Galileo Microbox Compressor

Specifications:

Instrumentation:

• Base Parameters Elevation
• Base Parameters: SCFM at 14,7 psi, 60 °F
• Elevation: 50 ft.
• Ambient Temperature: 100 °F
• Suction Temperature: 80 °F
• Gas Specific Gravity: 0,65

Performance Data:

Minimum Inlet Pressure:

• Suction Pressure: 22 PSI
• Discharge Pressure: 4500 PSI
• Flow: 705 SCFM
• Power: 324 BHP
• Specific Consumption: 0,460 BHP/SCFM

Working Pressure:

• Suction Pressure: 34 PSI
• Discharge Pressure: 4500 PSI
• Flow: 959 SCFM
• Power: 408 BHP
• Specific Consumption: 0,425 BHP/SCFM

Maximum Inlet Pressure:

• Suction Pressure: 38 PSI
• Discharge Pressure: 4500 PSI
• Flow: 1046 SCFM
• Power: 436 BHP
• Specific Consumption: 0,417 BHP/SCFM

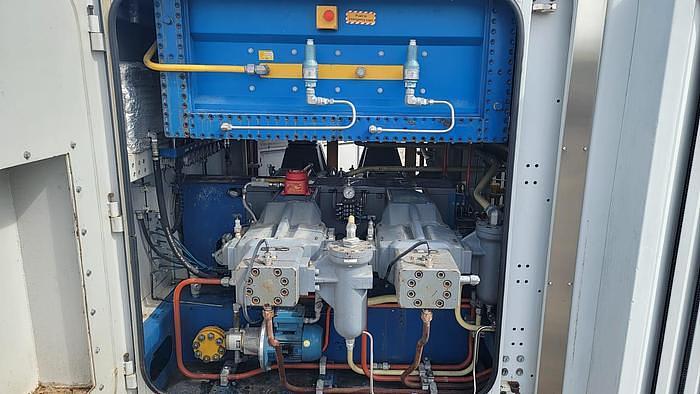

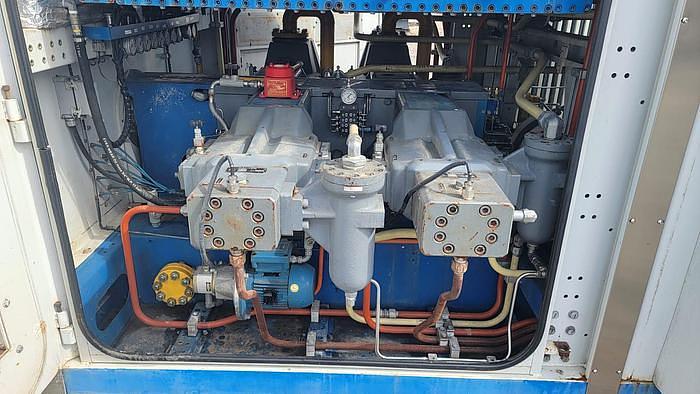

Compression Stages:

Stage 1(x2)

• Cylinder: B250T 1800
• Bore In(in): 9,843
• Inlet Pressure (PSI): 38
• Outlet Pressure (PSI): 215
• Inlet Temperature (Fahrenheit): 88
• Outlet Temperature (Fahrenheit): 292
• Power (BHP): 68

Stage 2(x2)

• Cylinder: B14T 130 1800
• Bore In(in): 5,118
• Inlet Pressure (PSI): 175
• Outlet Pressure (PSI): 500
• Inlet Temperature (Fahrenheit): 124
• Outlet Temperature (Fahrenheit): 257
• Power (BHP): 43

Stage 3(x2)

• Cylinder: M10T 90 1800
• Bore In(in): 3,453
• Inlet Pressure (PSI):440
• Outlet Pressure (PSI): 1643
• Inlet Temperature (Fahrenheit): 125
• Outlet Temperature (Fahrenheit): 312
• Power (BHP): 56

Stage 4(x2)

• Cylinder: A05T 40 1800
• Bore In(in): 1,575
• Inlet Pressure (PSI):1498
• Outlet Pressure (PSI): 4670
• Inlet Temperature (Fahrenheit): 124
• Outlet Temperature (Fahrenheit): 290
• Power (BHP): 47

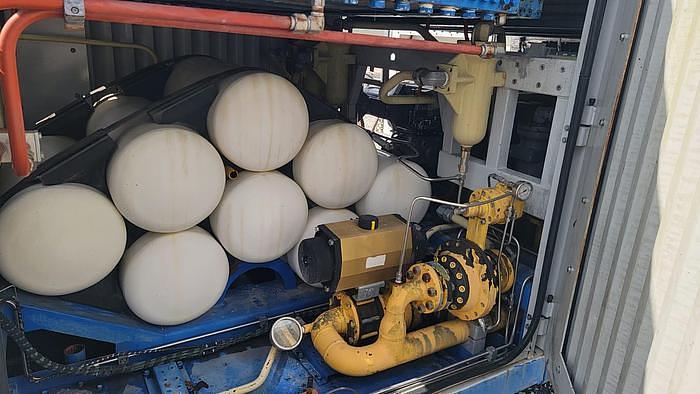

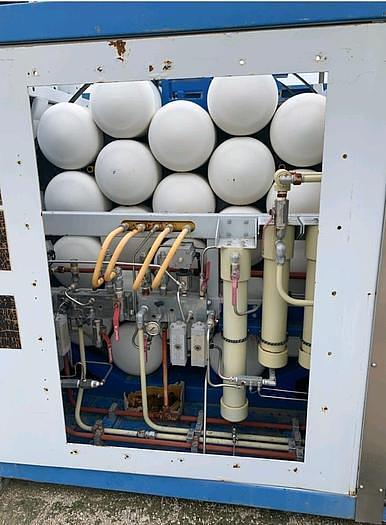

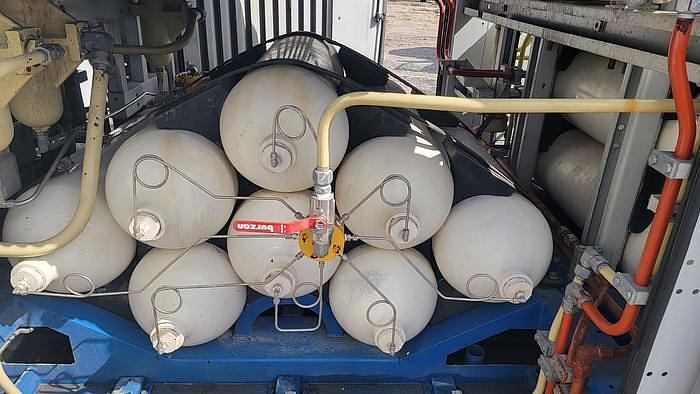

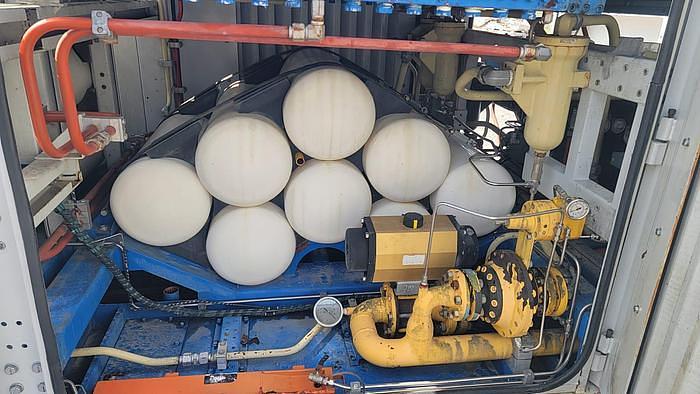

900 CFM Machine runs on 22psi to 38 PSI Inlet. 800 hours LOW Low hours and comes with 30 Storage vessels 4350 psi

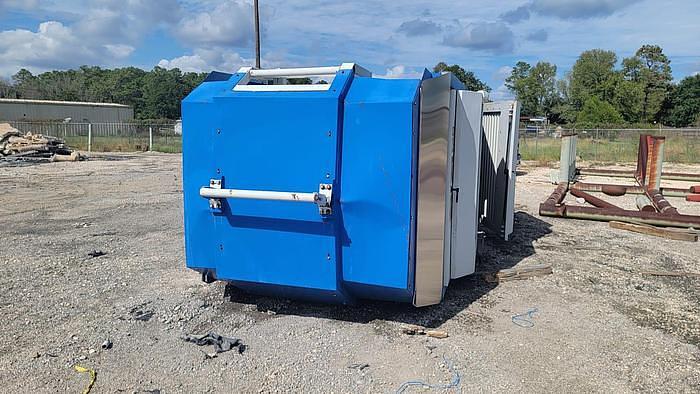

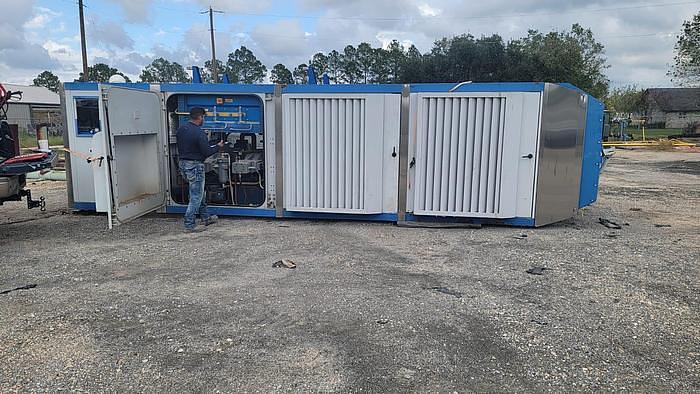

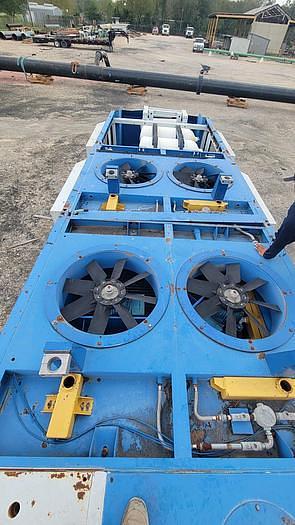

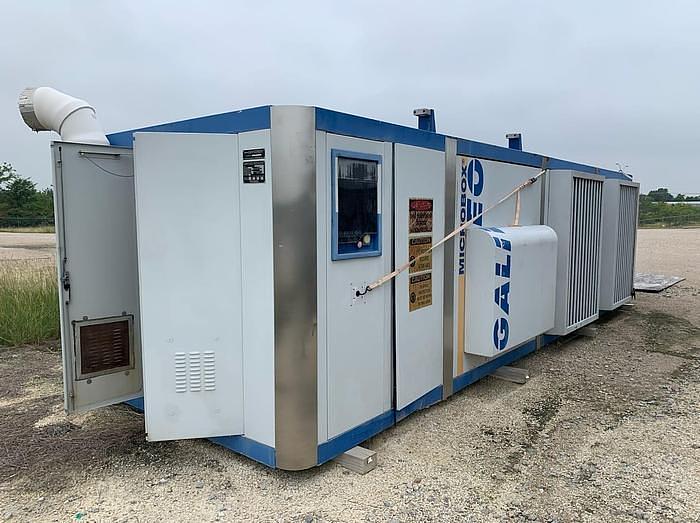

The unit is 30 foot long, 8.5 feet wide and 50,000 lb weight

see the attached data sheets and Manual

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the compressor skid in person. In addition, we can do Facetime/teams / Zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer meeting people buying our equipment in person to discuss all aspects of the project requirements and ensure adequate sales support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.
