Vaporizer 55,000 SCFH, 700 PSIG, low profile, ambient temperature, skid-based. Brand new

Vaporizer 55,000 SCFH, 700 PSIG, low profile, ambient temperature, skid-based. Brand new

Available quantity:1

Description

The HBVP-55K Ambient Vaporizer is a high-capacity cryogenic vaporization system engineered for dependable performance in industrial gas, medical gas, and clean energy applications. Built to ASME B31.3 standards with a 700 PSIG maximum allowable working pressure, this unit is designed to safely and efficiently convert cryogenic liquids into gaseous form for continuous operations. Suitable for use with Liquid Oxygen (LOX), Liquid Nitrogen (LIN), Liquid Argon (LAR), and Liquefied Natural Gas (LNG), this vaporizer delivers reliability across a wide range of industries.


Mechanical Construction

All-aluminum design for corrosion resistance and long service life

Alloy 6063 extrusions, Alloy 6061 structural members, and Alloy 5052 piping components

Welded base with crimped fin array for thermal flexibility and durability

Wide 12-inch center-to-center fin spacing with 4-inch gap for optimized natural convection

Combination of 8-fin and 16-fin, 8-inch diameter extrusions with internal fins for increased heat transfer

1-1/2” and 2” ANSI CL300 RF W/N flange connections for secure integration


Design & Standards

Constructed to ASME B31.3 compliance

Maximum Allowable Working Pressure (MAWP): 700 PSIG

Seismic design per ASCE/SEI 7 (San Jose, CA regional standards)

Wind load design: rated for 120 mph per ASCE/SEI 7


Process & Performance

  • Outlet temperature designed at 20°F approach to ambient
  • Units are cleaned, sealed, and oxygen-tagged in accordance with FinnCo Procedure P-113 and CGA G-4.1 standards


Applications

The HBVP-55K Ambient Vaporizer is an excellent choice for:

Industrial gas distribution systems

LNG regasification and peak-shaving facilities

Hydrogen fueling stations and renewable energy projects

Medical oxygen and healthcare gas supply systems

Steel manufacturing, electronics production, aerospace, and food processing industries



Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide complimentary transportation pickup from DFW Airport and back if you would like to fly in and inspect the item in person. Additionally, we can conduct FaceTime / Teams/Zoom calls to review the item in person for any domestic /international procurement. Please be mindful that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.


Shipping Arrangements: The unit is in our yard, South of Dallas, Texas. We can assist with shipping arrangements, and when properly scheduled, we will provide loading service at no additional charge.


Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sales support to set your project up for success. We will require a verifiable Cashier's check as a payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared to the company account, before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect ourselves and you.


Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.

Specifications

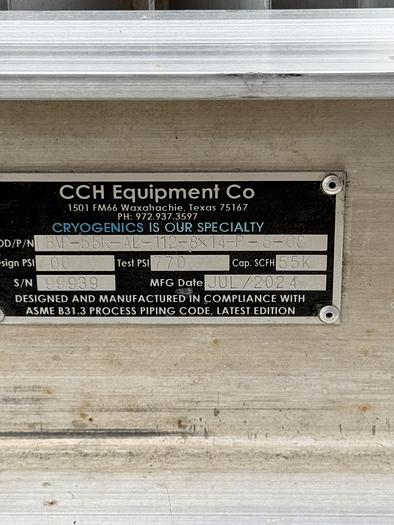

ManufacturerCCH Equipment Co
ModelHBVP-55K-AL-112-8X14-P-6-08
Year2024
ConditionNew
Serial Number99939
Stock Number0202-CCH-DAL
Cap. SCFH N255,000
Test PSI770
Design PSI700
