40FT LNG Storage ISO 12,000 Gallons /36,000kg Cryogenic ISO / LNG Container

For Sale 40-ft LNG ISO. (No chassis)

Specification:

Liquified gas being carried: LNG

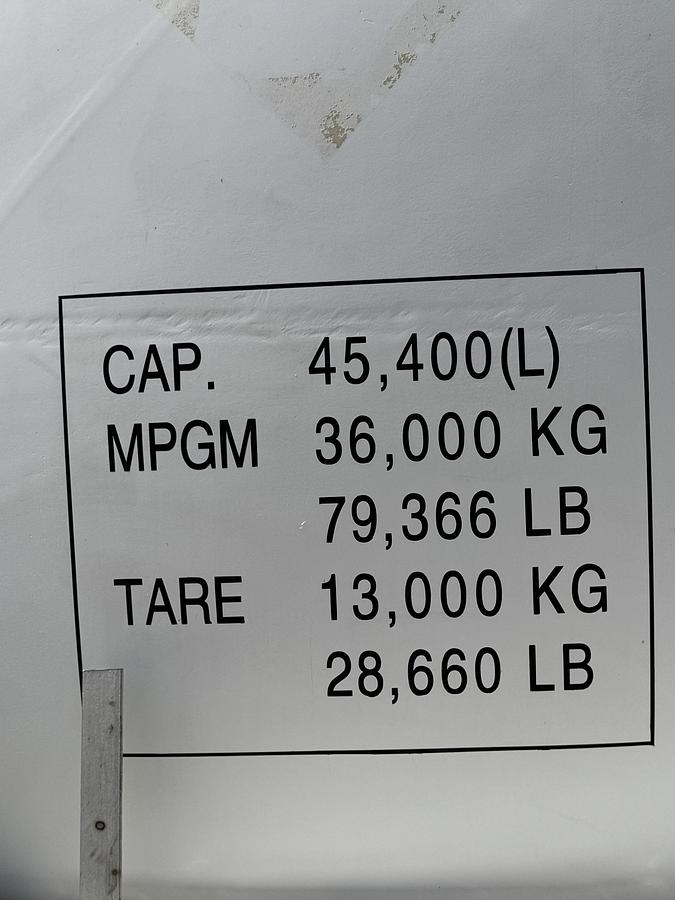

Capacity 12,000 Gallons

MPGM: 79,366 Lbs

Unladen (tare) mass: 28660 Lbs

Actual holding time: 60 days

Portable tank instruction: T75

MAWP: 130 psi / 9.0 bar

Test Pressure: 188 psi / 13.0 bar

Initial Pressure Test Date: 12/05/2017

Minimum Design Temperature: -196 degrees Fahrenheit

Shell Materials and material standards references: \

• Inner Vessel: ASME SA-240M 304
• Outer Jacket: Q345R GB 713
• Equivalent thickness in reference steel: 6.36 (Inner shell), 6.29 (Inner head) mm

Capacity

• Tank water capacity @ 20 degrees Fahrenheit: 12,000 Gallons

Insulation

• High vacuum Multi-Layer Insulation

Heat Flux: 110.8 Watts

Holding times

• LNG, Refrigerated Liquid UN 1972: Reference holding time: 148 days, Initial pressure: 0.2 MPa, Degree of filling: 15704 kg
• Ethylene, Refrigerated Liquid UN 1038: Reference holding time: 199 days, Initial pressure: 0.2 MPa, Degree of filling: 20958 kg

Design approval number:

US- DOT Approval number: IA-8106

IMDG: F/BV/17/020-T75

ADR/RID: F/7736/BV/17

TC Impact Approved + UIC 592 or

CSC Safety Approval:

• Date Manufactured: 07/2017
• Identification Number: CC40FT-191-9
• Maximum Operating Gross Mass: 36,00 kg/ 79,366 Lbs
• Allowable Stacking Load for 1.8g: 192,000 kg/ 423,288 Lbs
• Transverse Racking Test Force: 150,000 newtons

Approval For Transport Under Customs Seal: GB/C 9560 BV/2017

• Type: CC-40FT-9E
• Manufacturer's No. Of The Container: CC40FT-191-9

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do FaceTime / Teams/Zoom calls to go over the item in person for any domestic /international procurement. Please be mindful that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard, South of Dallas, Texas. We can assist with shipping arrangements, and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sales support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared in the company account, before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect ourselves and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
