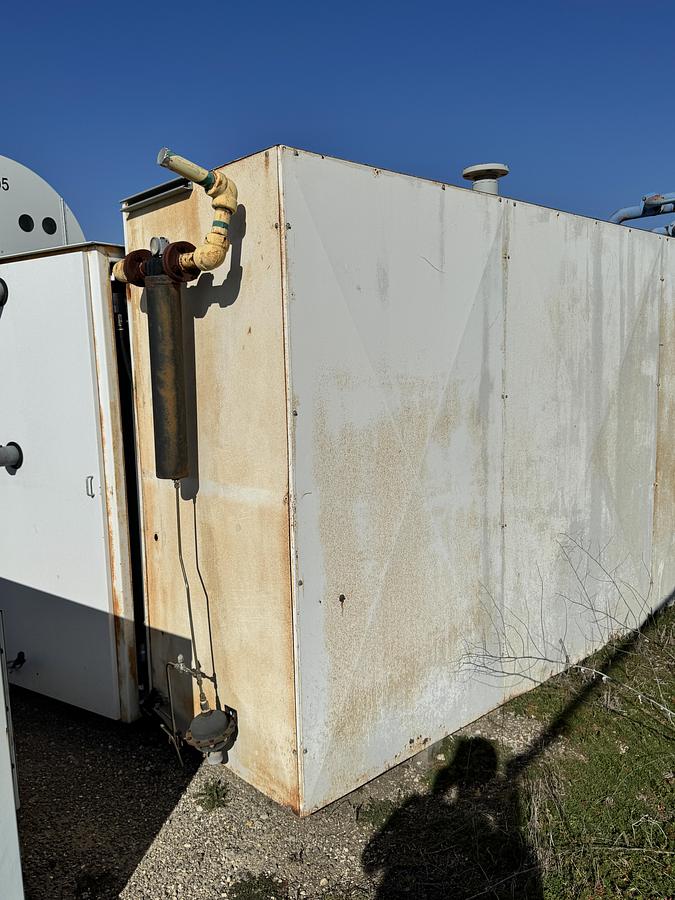

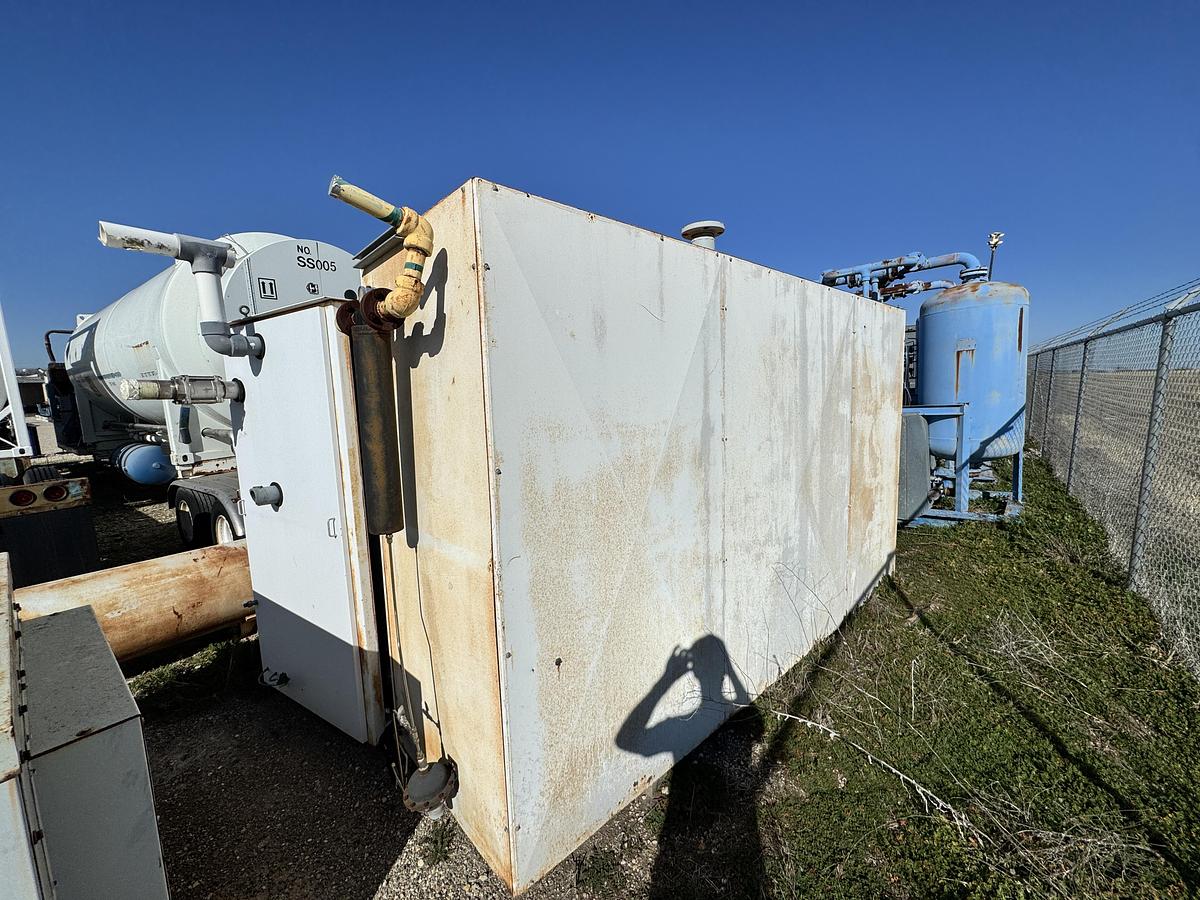

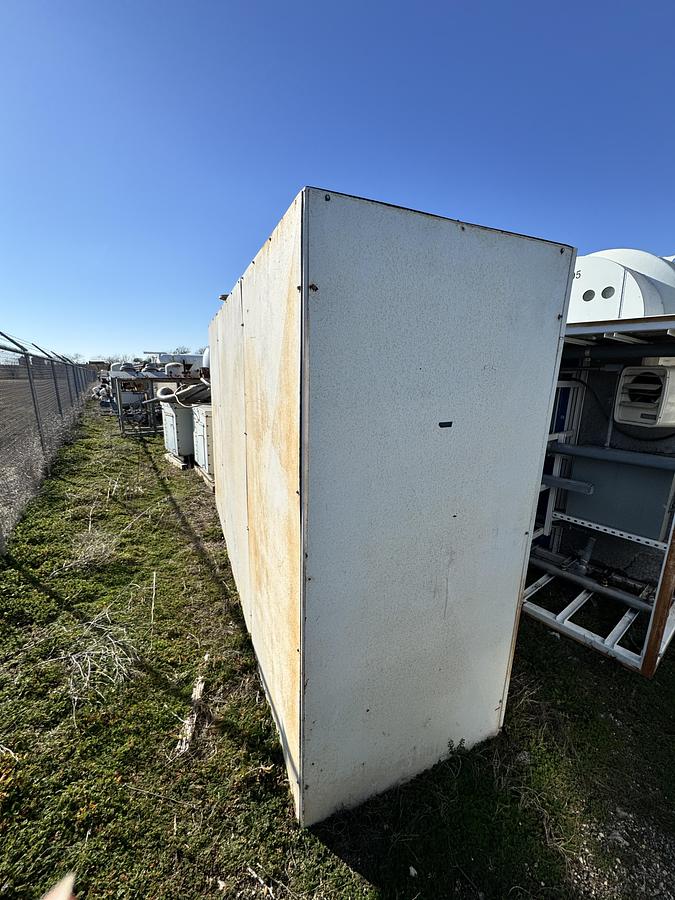

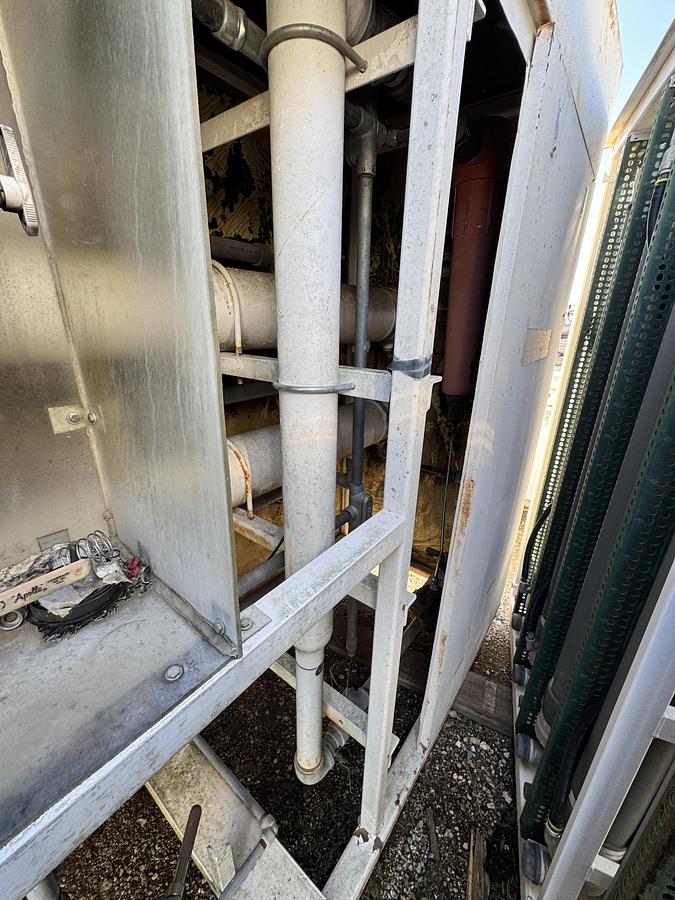

Gas Processing Control Panel with Flow/Temperature Monitoring & BP Regulator – Air Products Skid Assembly

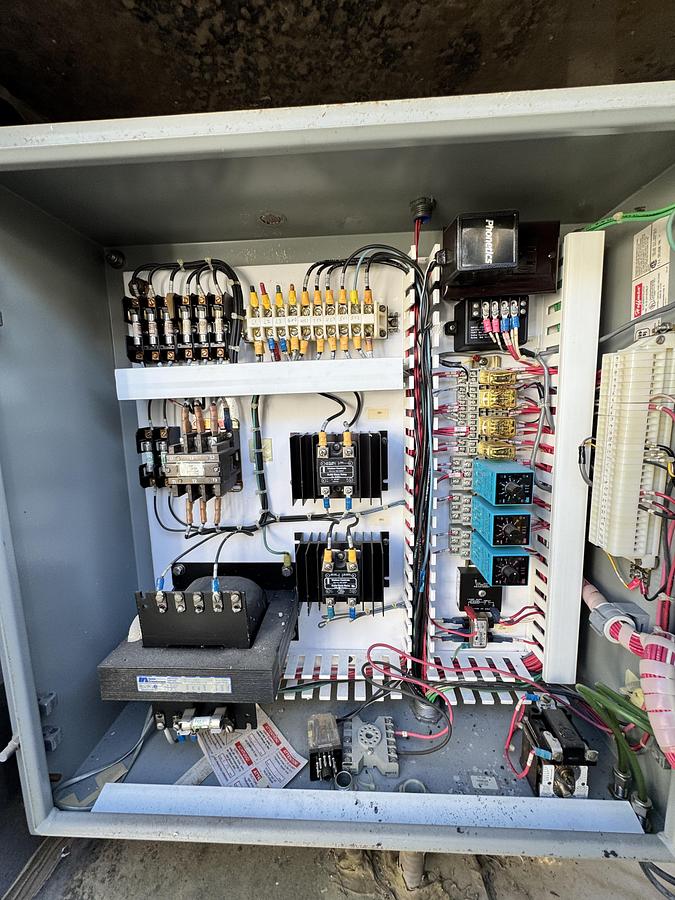

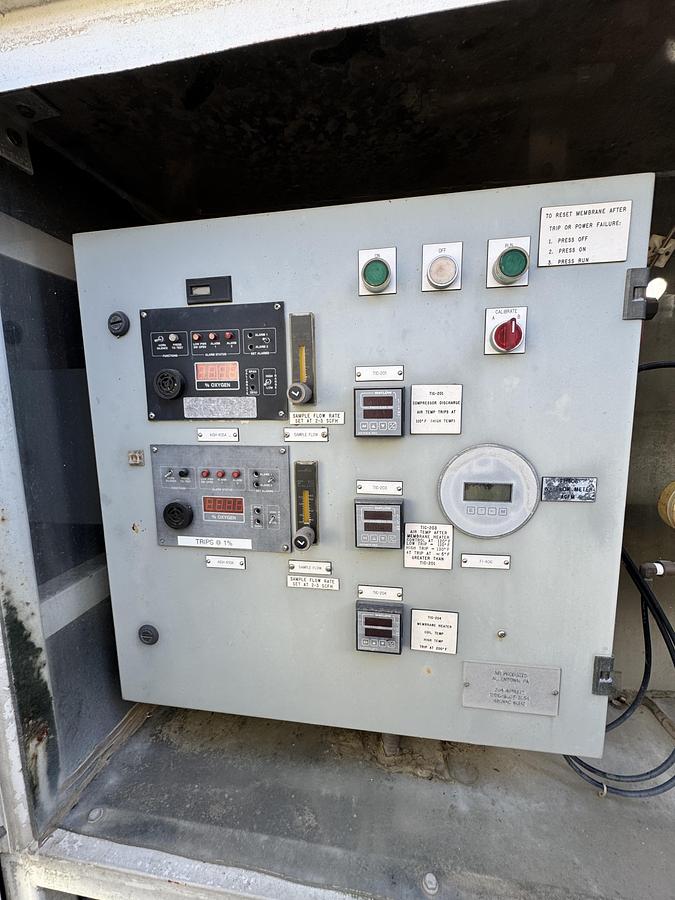

Control Panel Specifications:

• Power Supply: 480 VAC, 60 Hz
• Manufacturer Plate:
• Mfg: Air Products, Allentown, PA
• Model: 128HG-9307-3G54
• Serial: 214-4541272

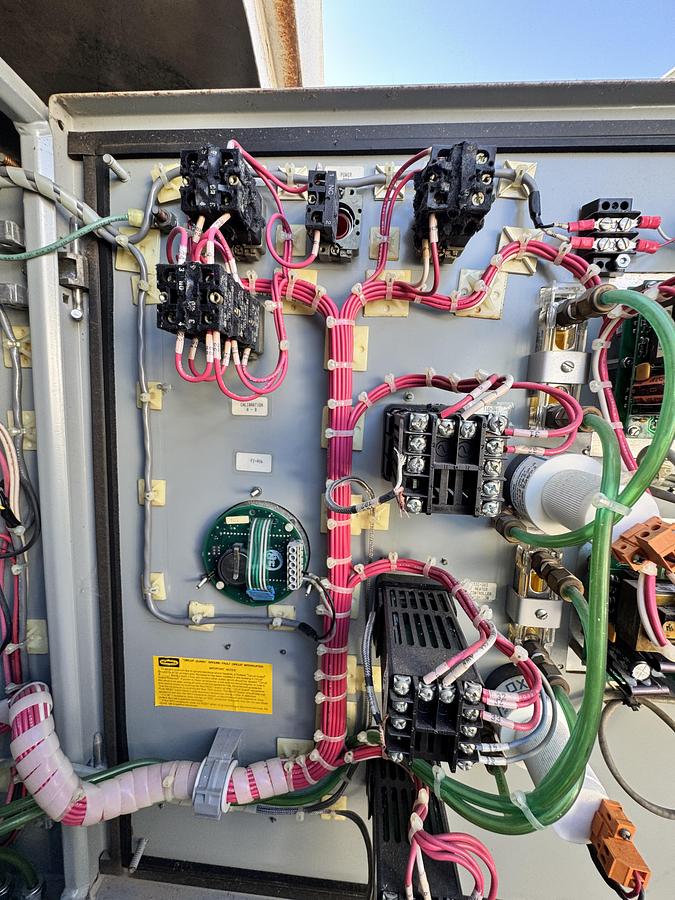

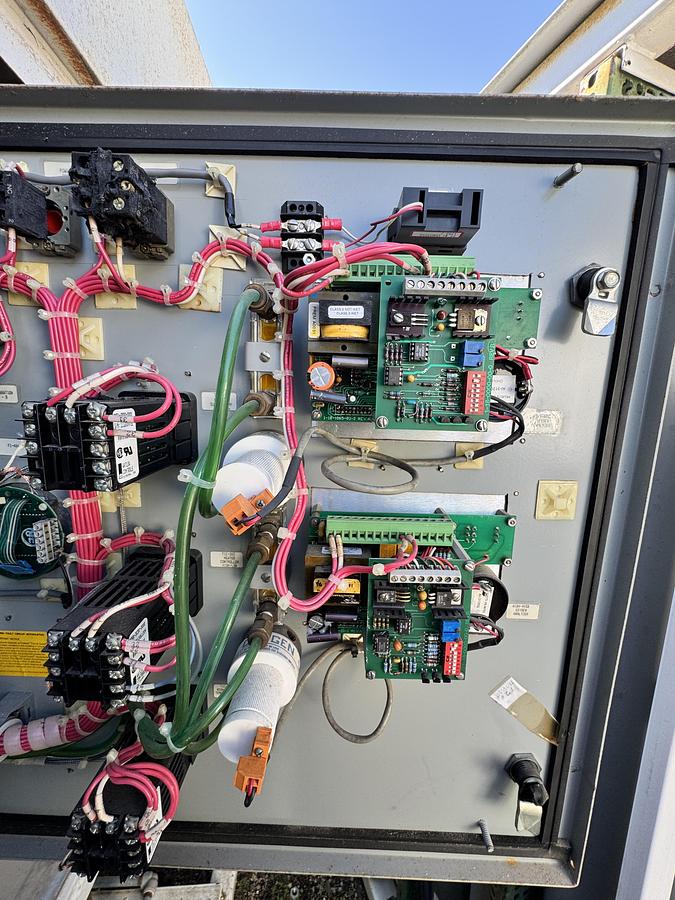

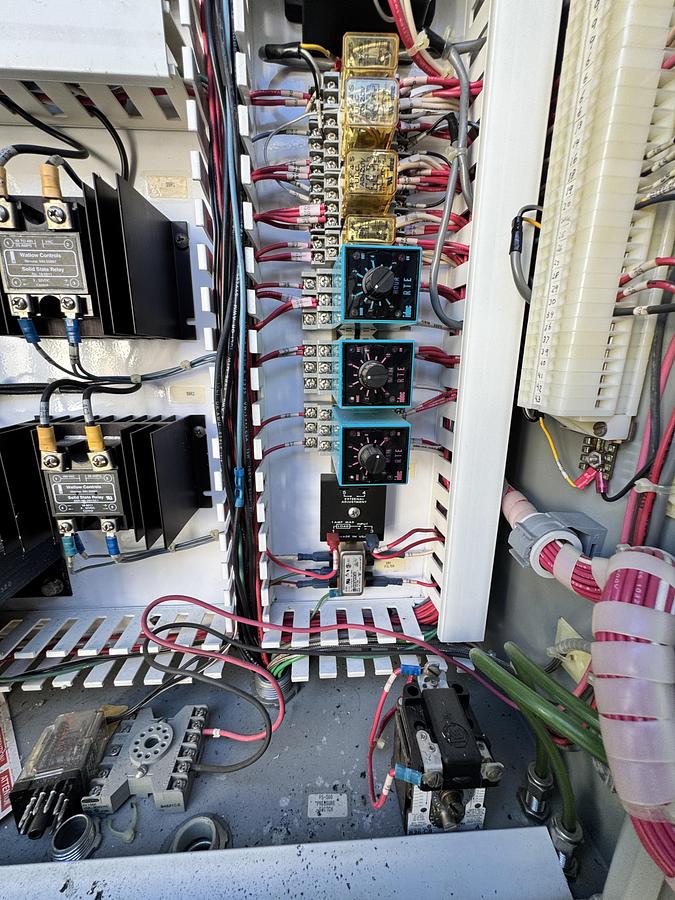

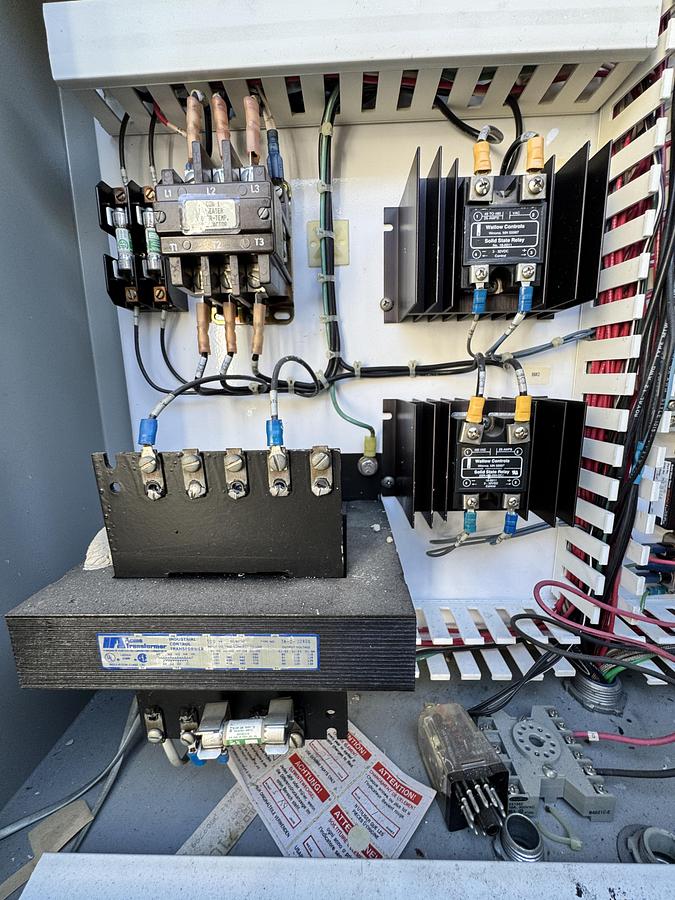

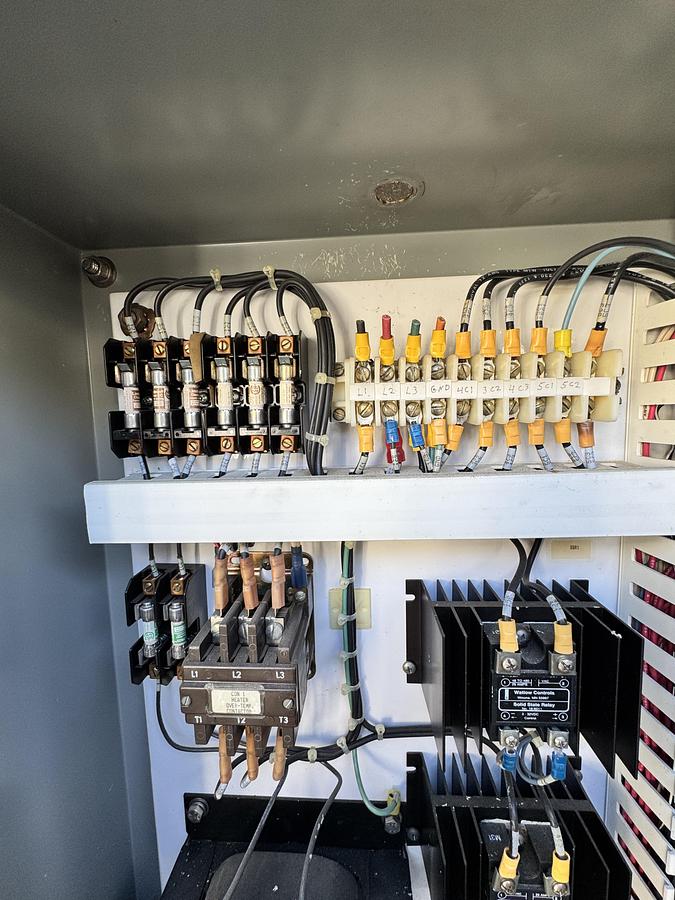

• Panel Components:

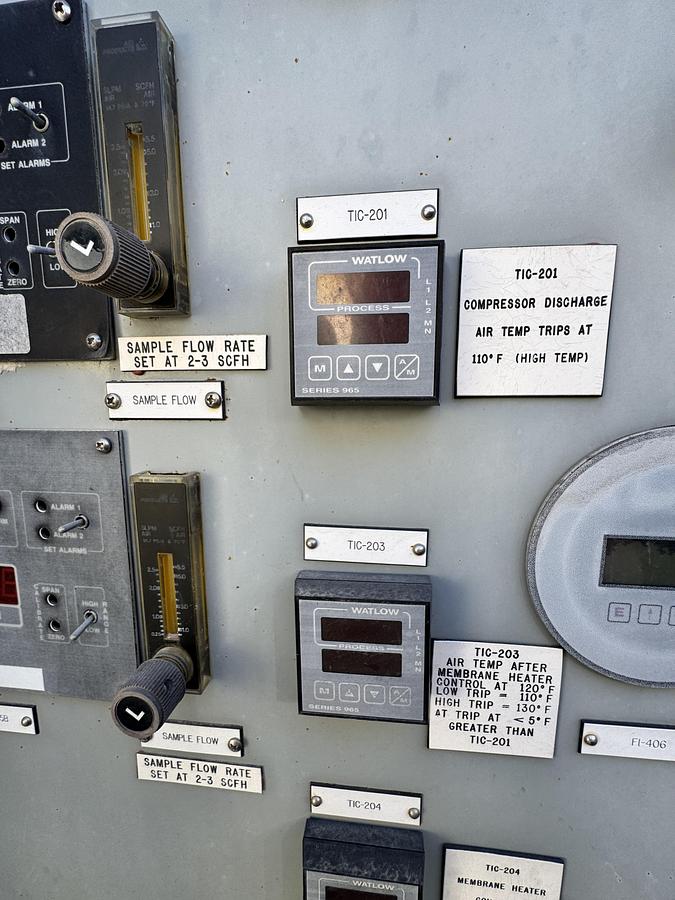

• (2) Watlow Series 965 Temperature Controllers:
• TIC-201: Compressor discharge temperature trip @ 110°F

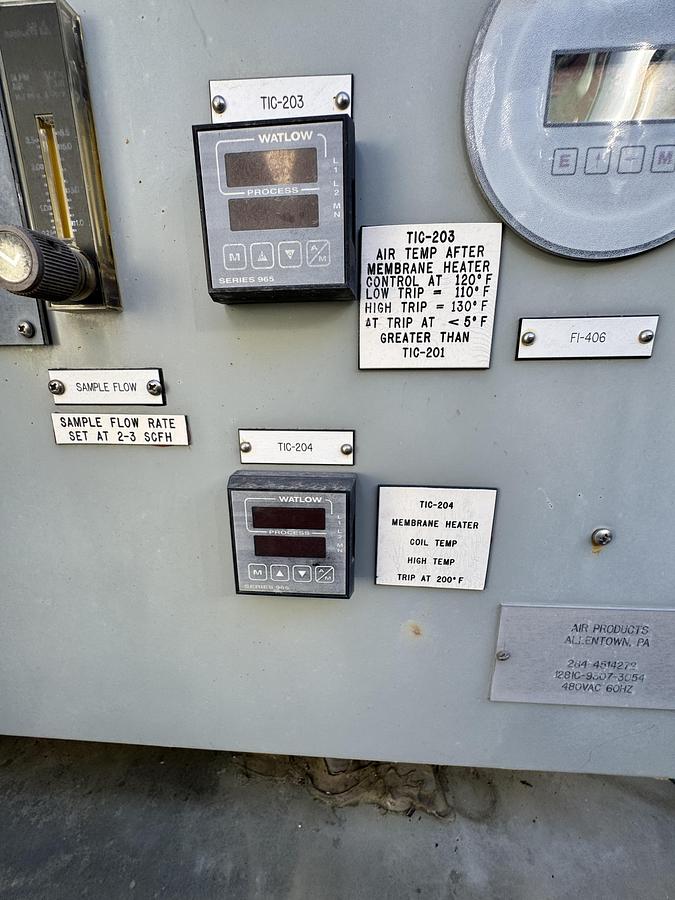

• TIC-203: Air temp after membrane heater – control @ 120°F, low trip @ 110°F, high trip @ 130°F
• TIC-204: Membrane heater coil temp, high temp trip @ 200°F
• (2) Sample Flow Meters – Range: 0–5 SCFH, preset at 2–3 SCFH

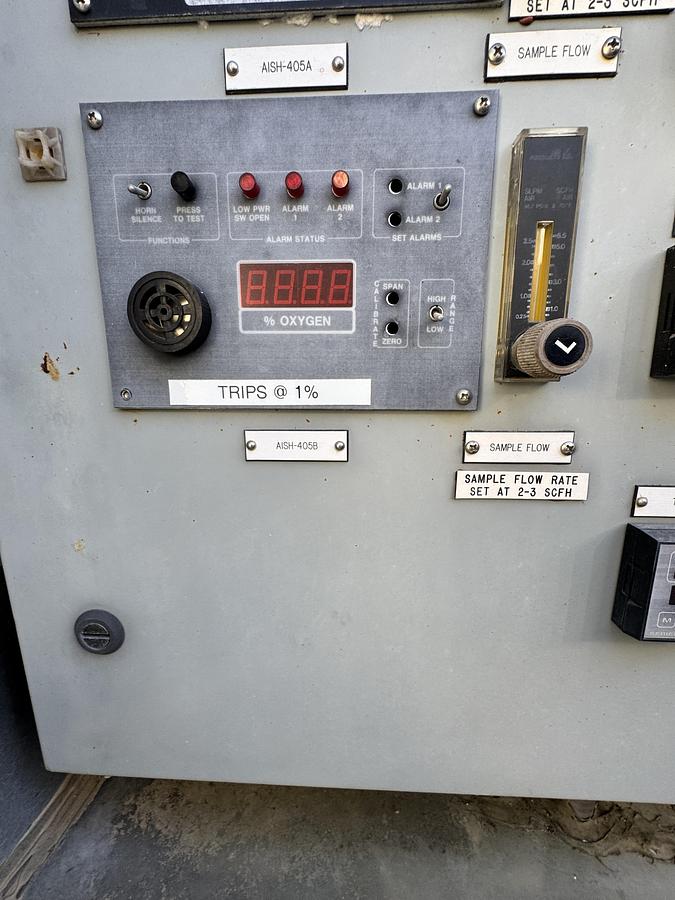

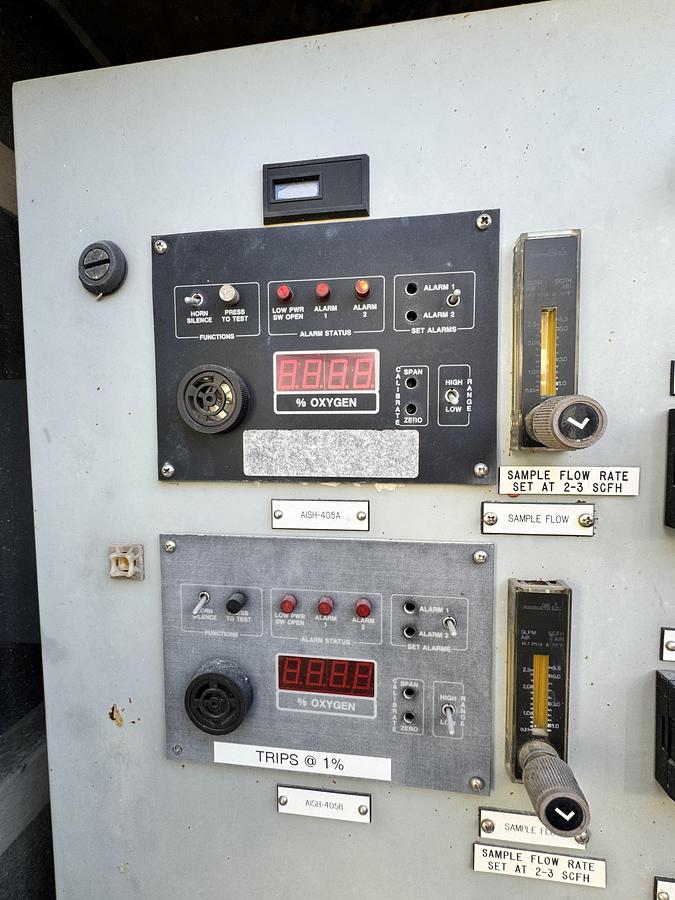

• Oxygen Analyzer System – Digital readout with alarm trip at 1% O₂

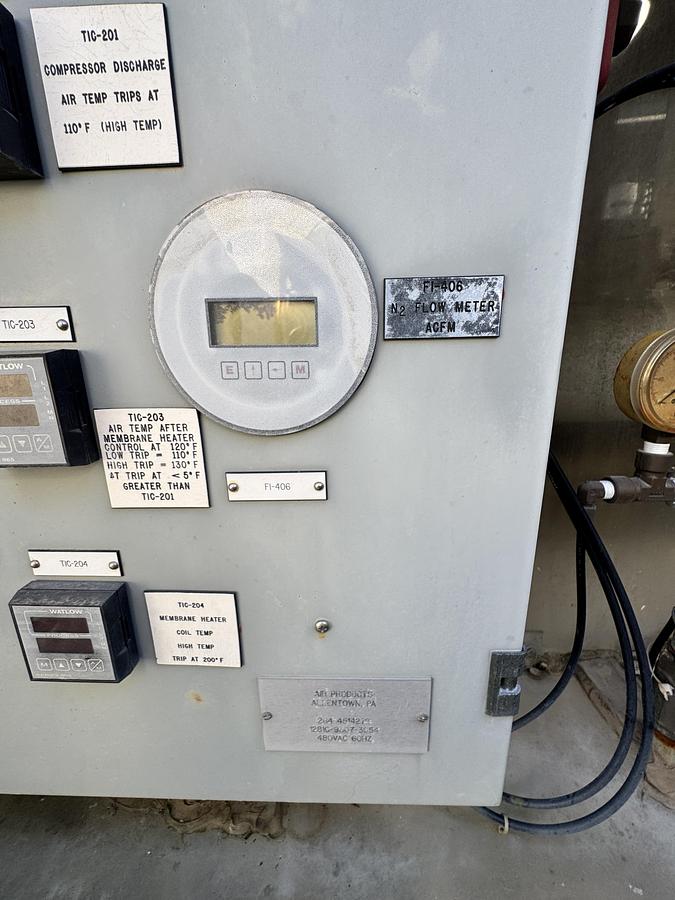

• FI-406: Nitrogen Flow Meter (ACFM)

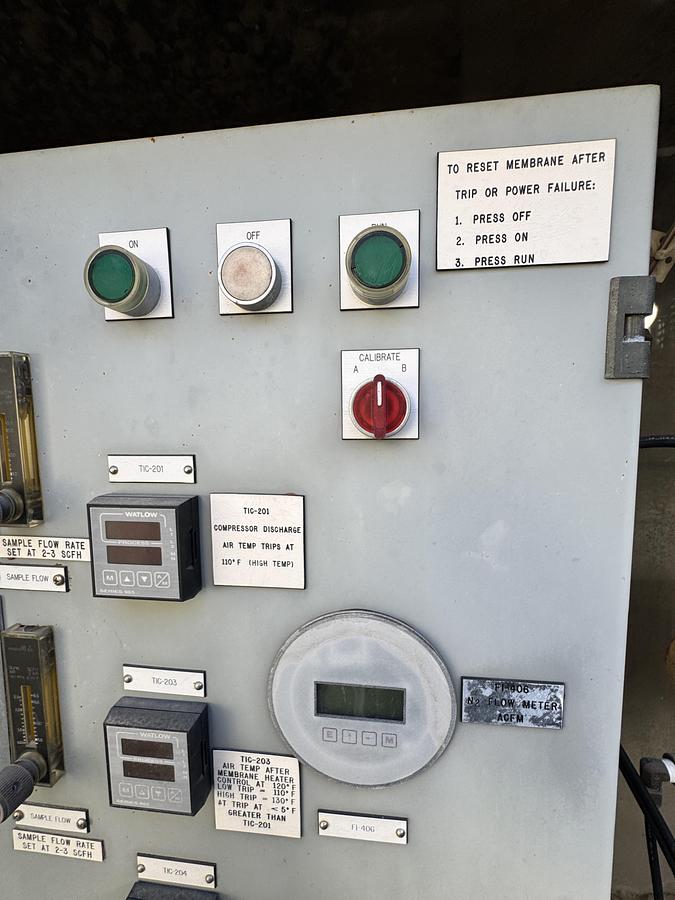

• Operational Switches: Start / Stop / Run, and membrane reset sequence
• Calibration Switch (A/B)
• Instruction plates for alarm settings and reset operations

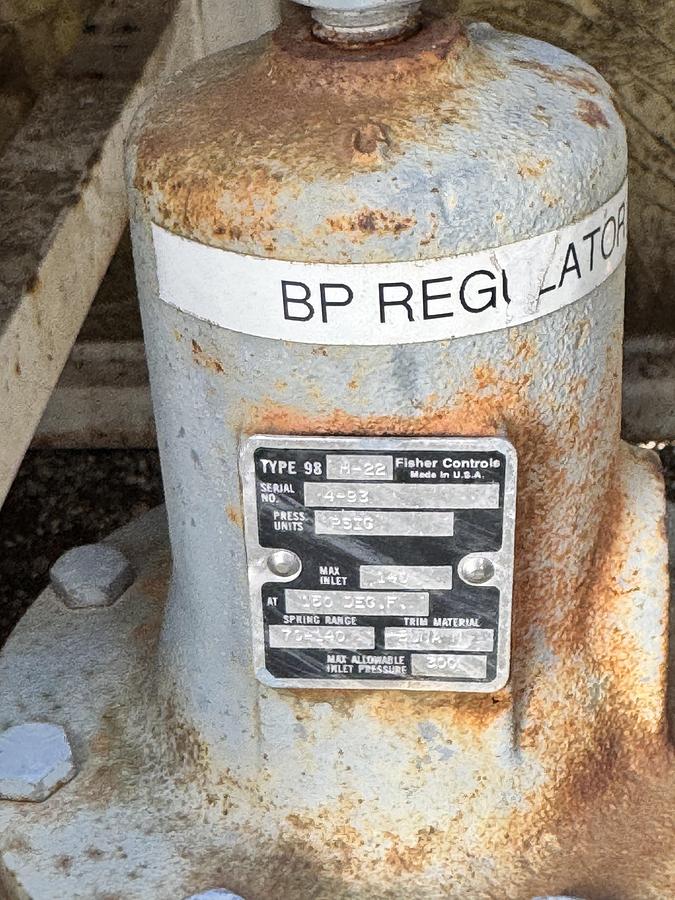

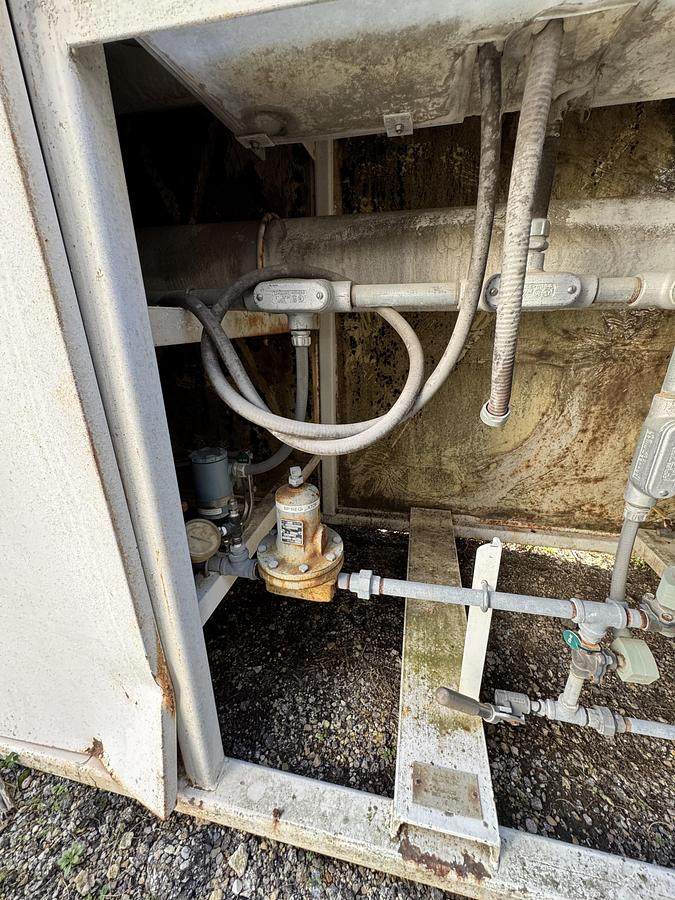

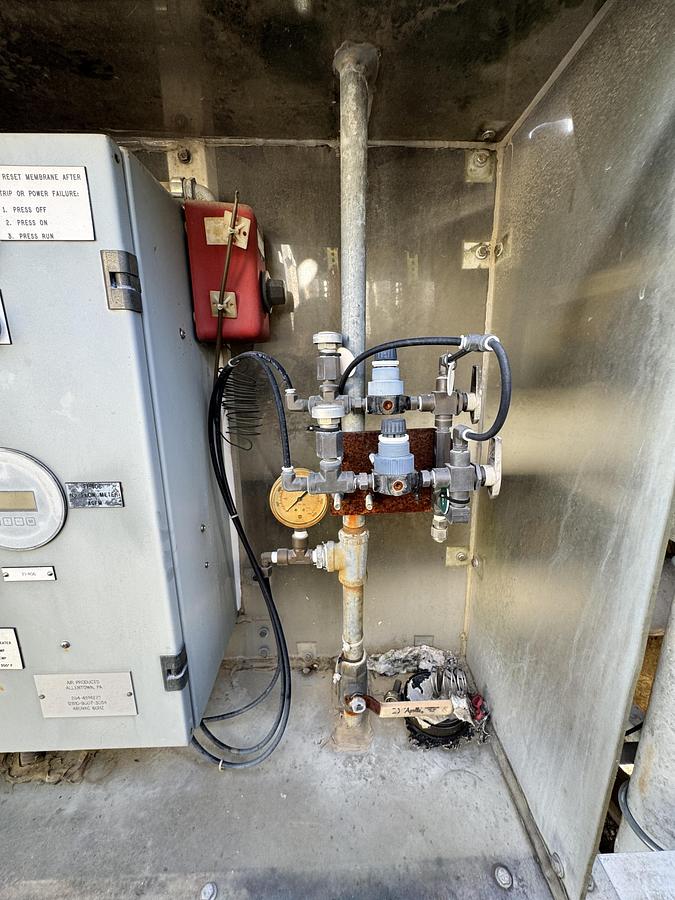

Back Pressure Regulator:

• Model: Type 98H-22
• Manufacturer: Fisher Controls (USA)
• Serial Number: 4-93
• Max Inlet Pressure: 140 PSIG @ 160°F
• Spring Range: 70–140 PSIG
• Trim Material: Stainless Steel
• Max Allowable Inlet Pressure: 250 PSIG
• Label: BP REGULATOR
• Application: Gas pressure control and regulation for membrane protection

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do Facetime / Teams/zoom calls to go over the item in person for any domestic /international procurement. Please be mindful, that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sale support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.

Feel free to call or contact Gas Equipment 4 Sale with any questions; we will be happy to discuss how procuring those units can help you meet your project needs.
