Air Products Liquid Oxygen Storage & Control System – 25,000 Gallon Vertical Tank with Integrated Control Panel and BP Regulation

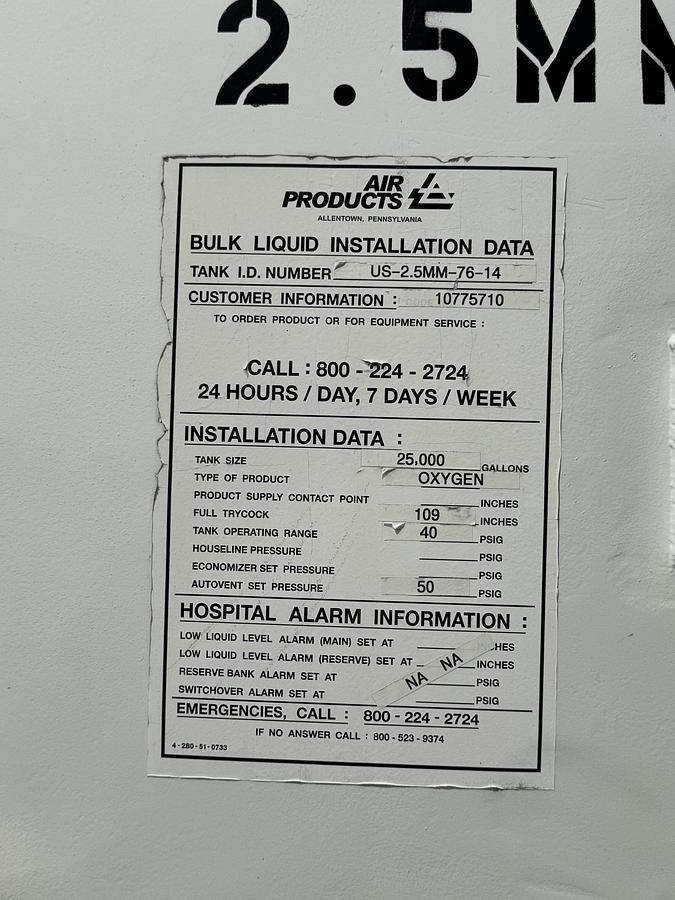

Tank Specifications:

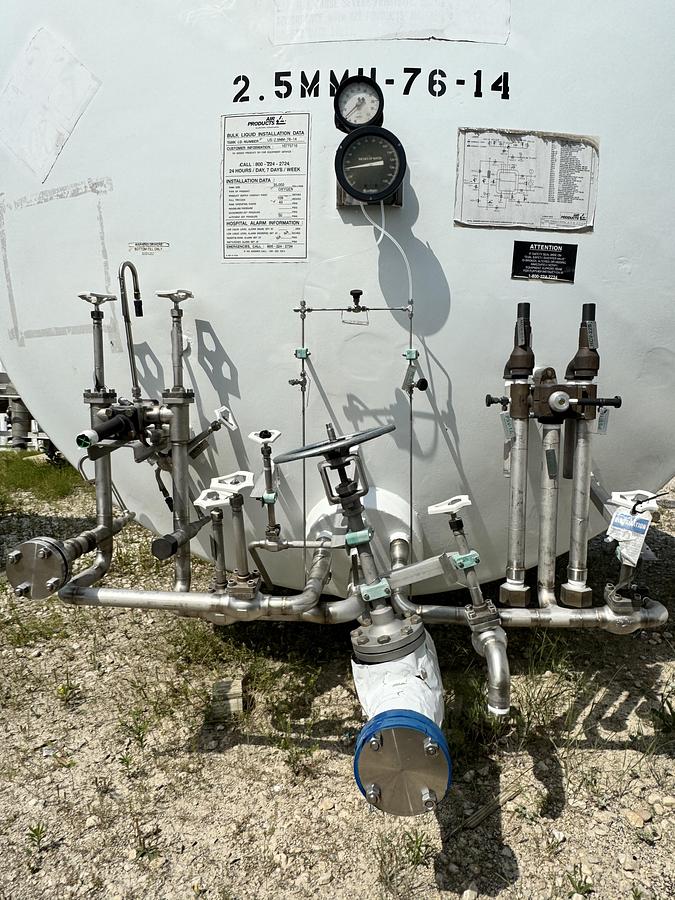

Tank ID: US-2.5MM-76-14

Capacity: 25,000 gallons (bulk liquid oxygen)

Product: Liquid Oxygen (LOX)

Trycock Height: 109 inches

Operating Pressure Range: 40 PSIG

Economizer Set Pressure: 50 PSIG

House Line Pressure: Noted on site

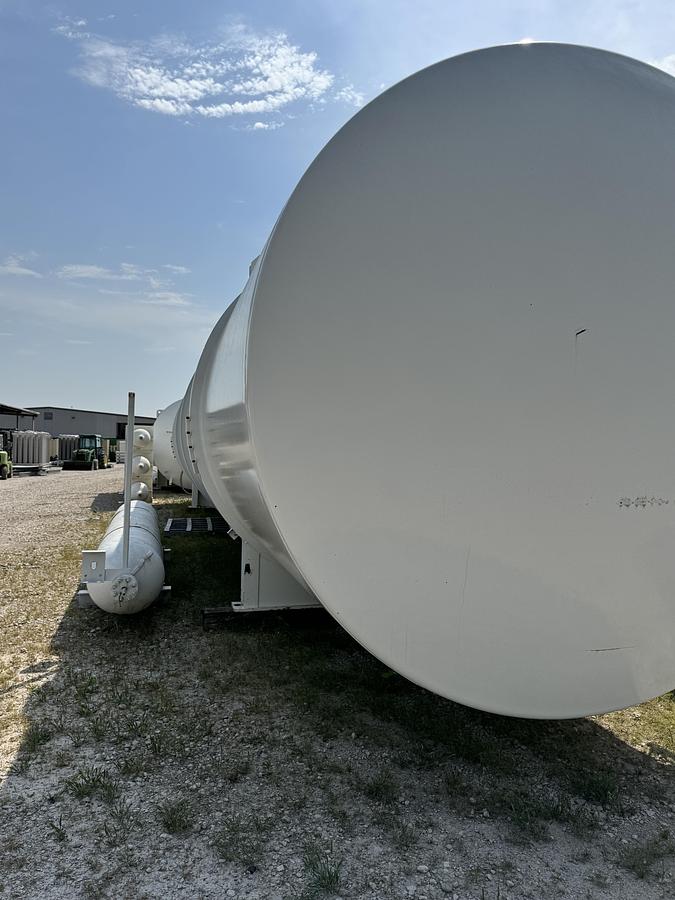

Design: Vacuum-insulated vertical tank

Orientation: Vertical, outdoor-rated

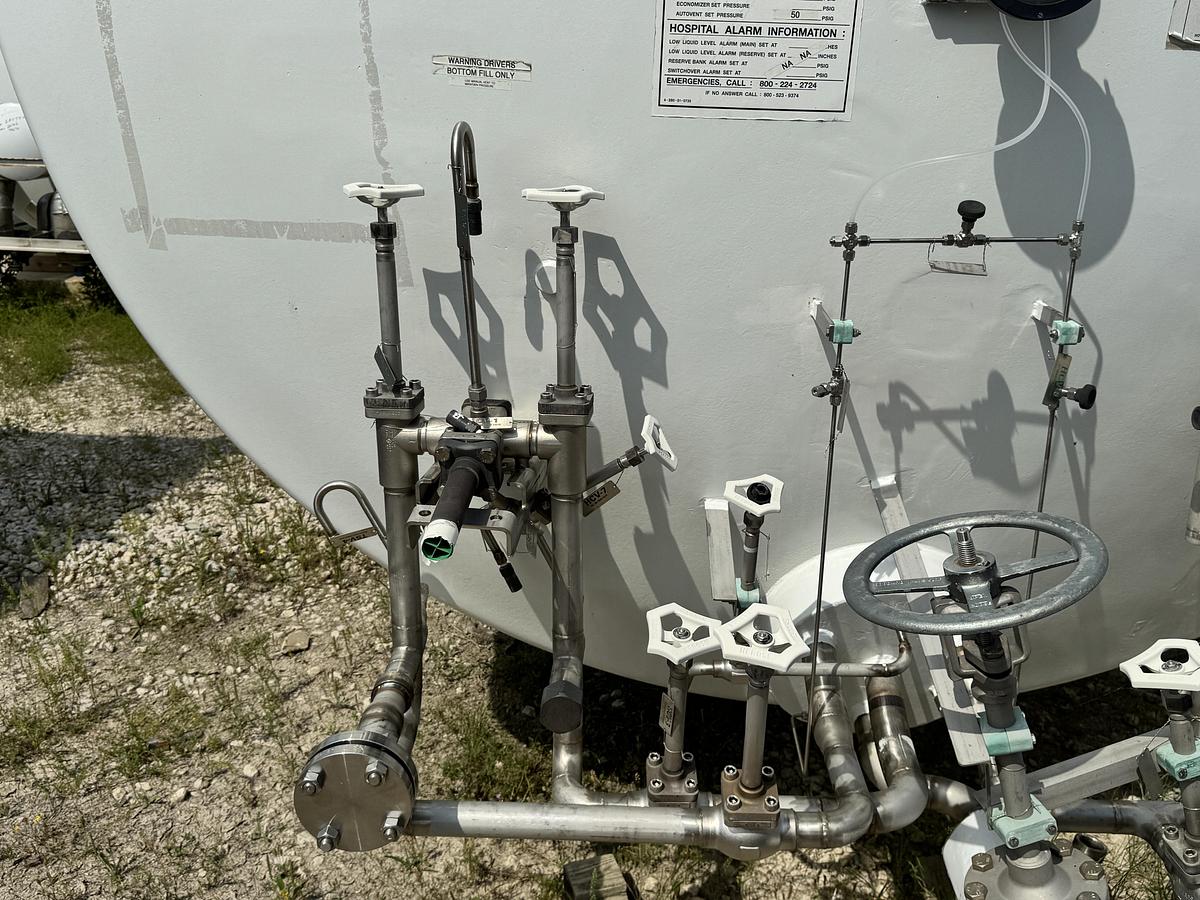

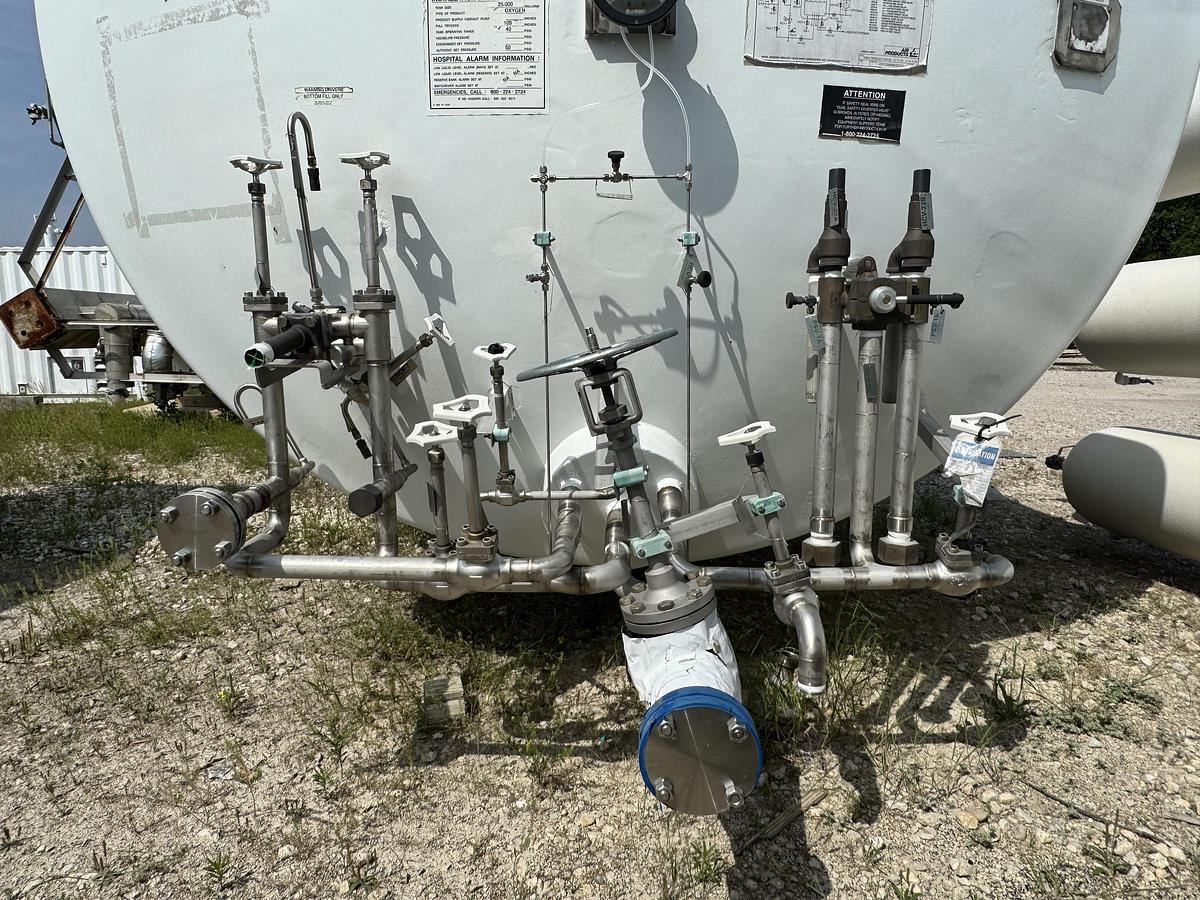

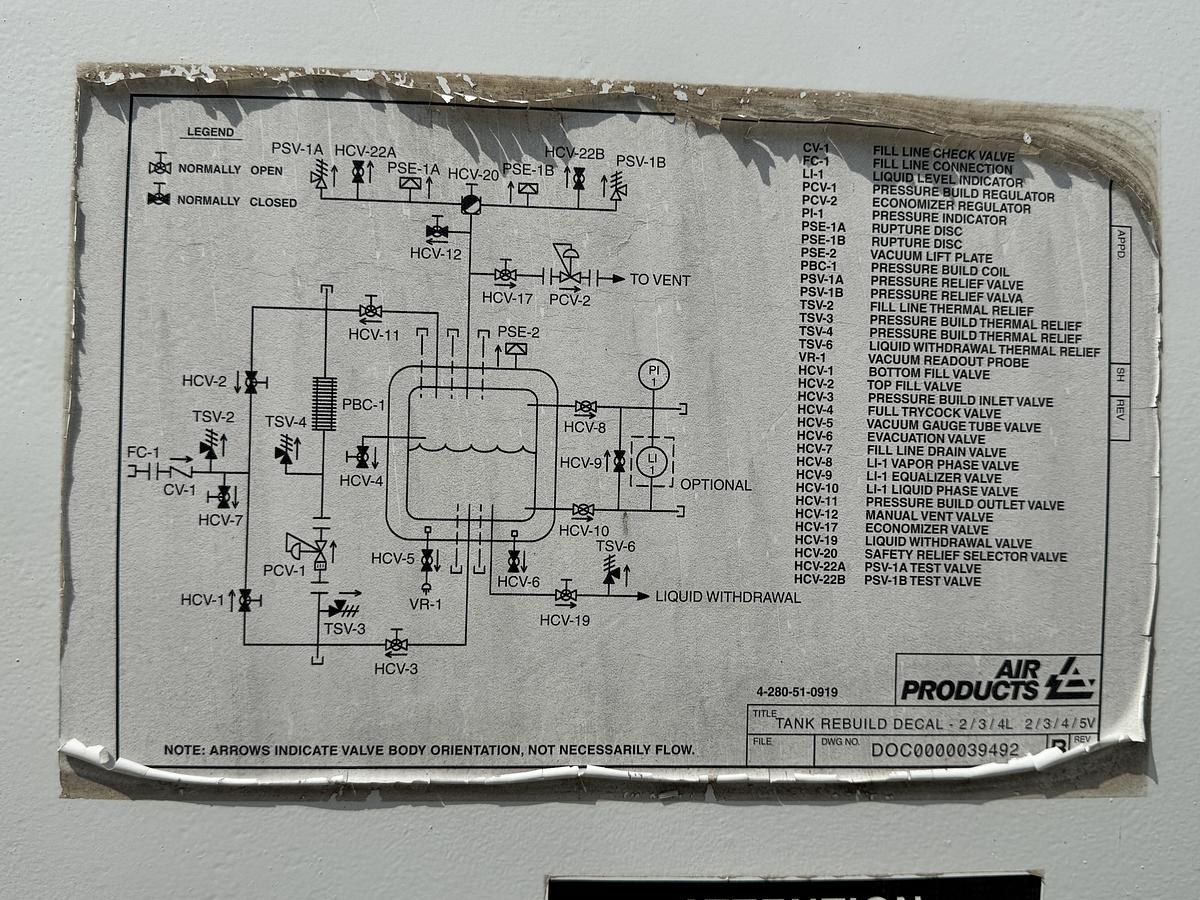

Includes: Complete valve schematic, alarm settings for hospital installations

Control Panel Specifications:

Power Requirements: 480 VAC, 60 Hz

Main Features:

Oxygen analyzer with alarm trip at 1% O₂

Watlow Series 965 temperature controllers:

TIC-201 – Compressor Discharge Temp Trip @ 110°F

TIC-203 – Air Temp After Membrane Heater (Control at 120°F, Trip at 130°F)

TIC-204 – Membrane Coil Heater Temp Trip @ 200°F

Dual sample flow meters (2–3 SCFH)

FI-406 – Digital nitrogen flow meter (ACFM)

Alarm indicators, calibration switch, and full reset instructions for trip/power failure events

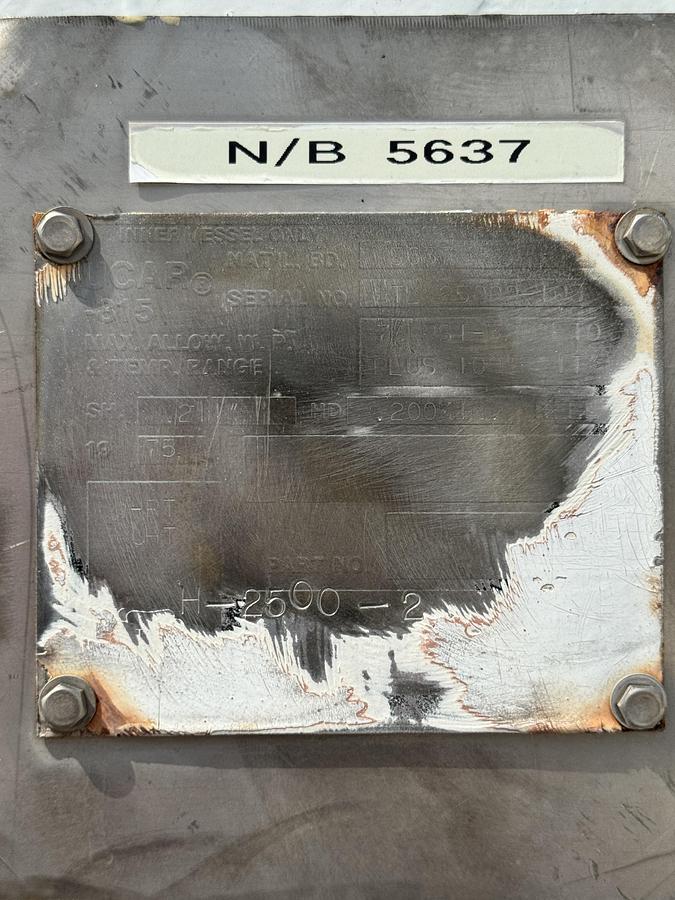

Stainless steel nameplate: Air Products, 128HG-9307-3G54

Back Pressure Regulator:

Model: Type 98H-22

Manufacturer: Fisher Controls (USA)

Spring Range: 70–140 PSIG

Max Inlet Pressure: 140 PSIG @ 160°F

Trim Material: Stainless Steel

Service: Compatible with oxygen and nitrogen gas

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do Facetime / Teams/zoom calls to go over the item in person for any domestic /international procurement. Please be mindful, that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sale support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
