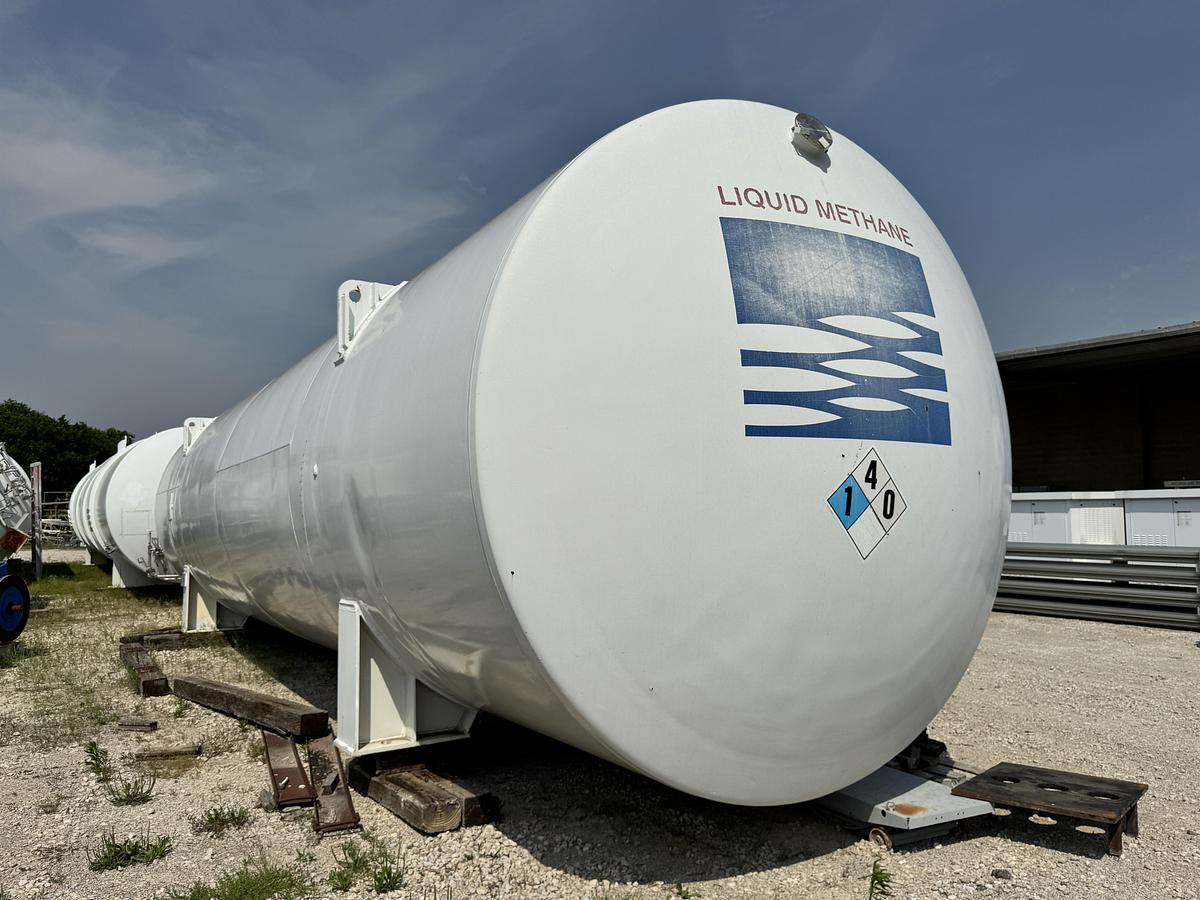

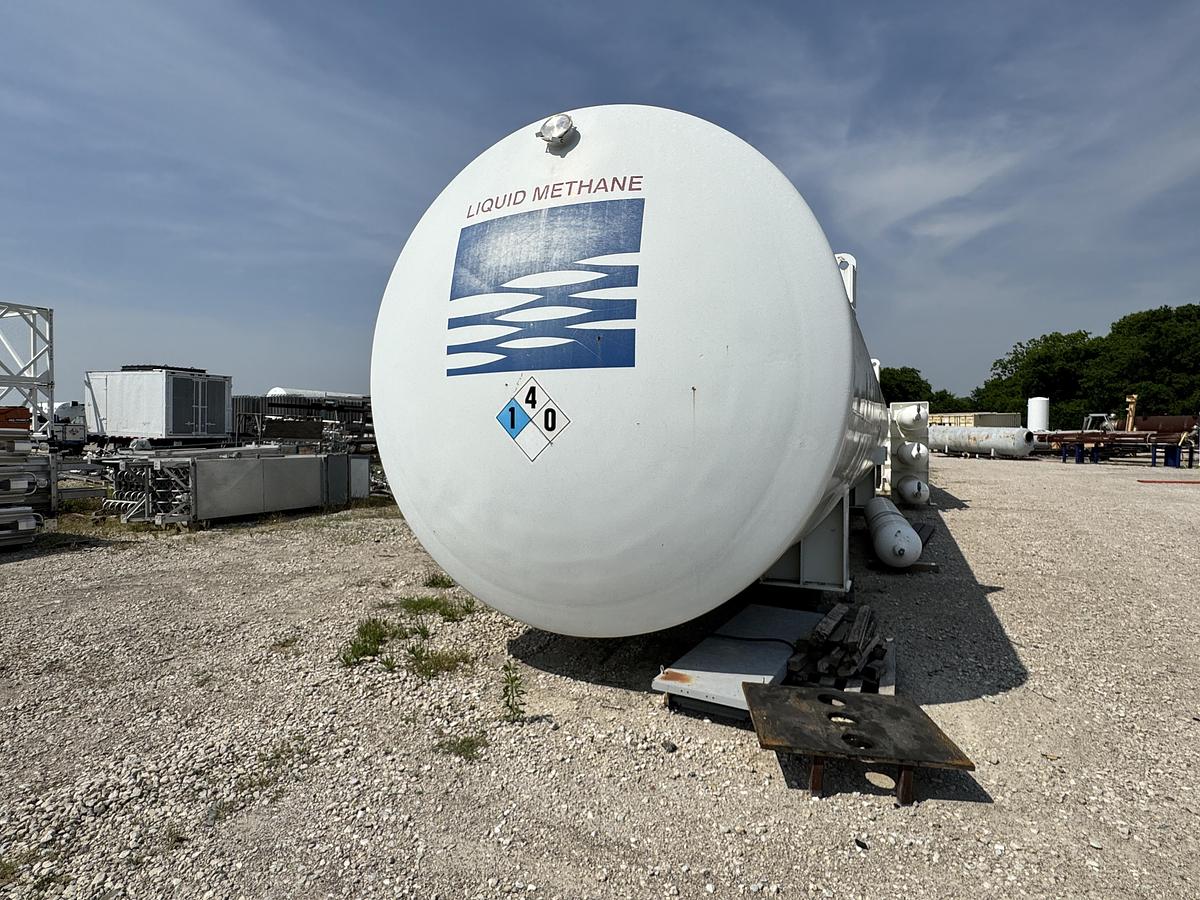

21,000-Gallon Horizontal LNG Storage Tank – Vacuum-Jacketed, Cryogenic, Liquid Methane

Tank Specifications:

Tank Capacity: Approx. 21,000 gallons (LNG / Liquid Methane)

Design Pressure: 90 PSIG with external vacuum

Temperature Rating:

MAWP: 90 PSIG @ +100°F

MDMT: –320°F @ 90 PSIG

Orientation: Horizontal, skid-mounted

Construction: Vacuum-jacketed double-walled cryogenic storage

Material Thickness:

Head: 0.704"

Shell: 0.710"

Weight of Contents (Max): 78,400 lbs (methane content)

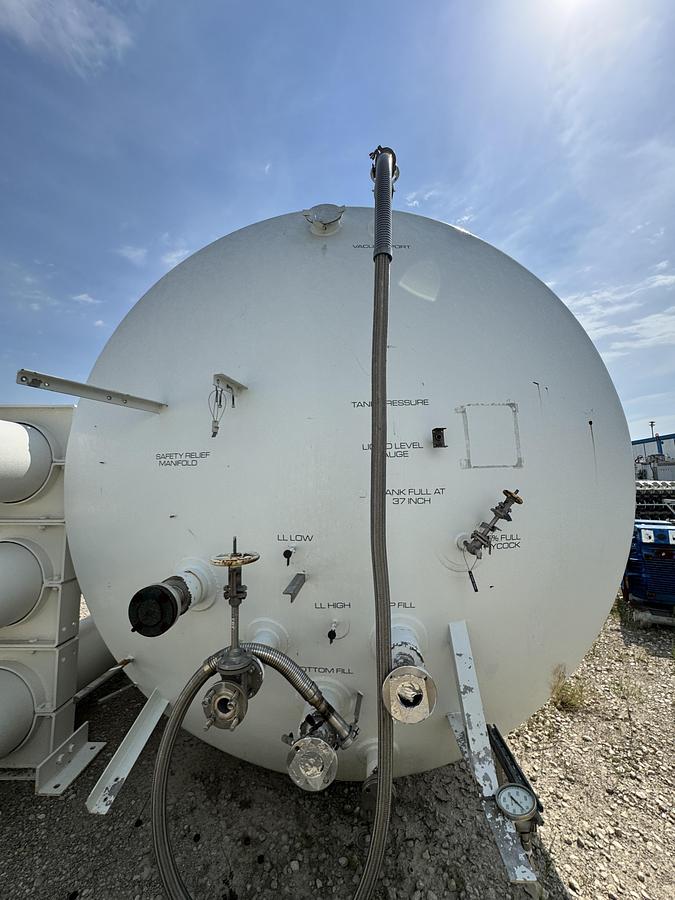

Features and Connections:

Labelled Ports:

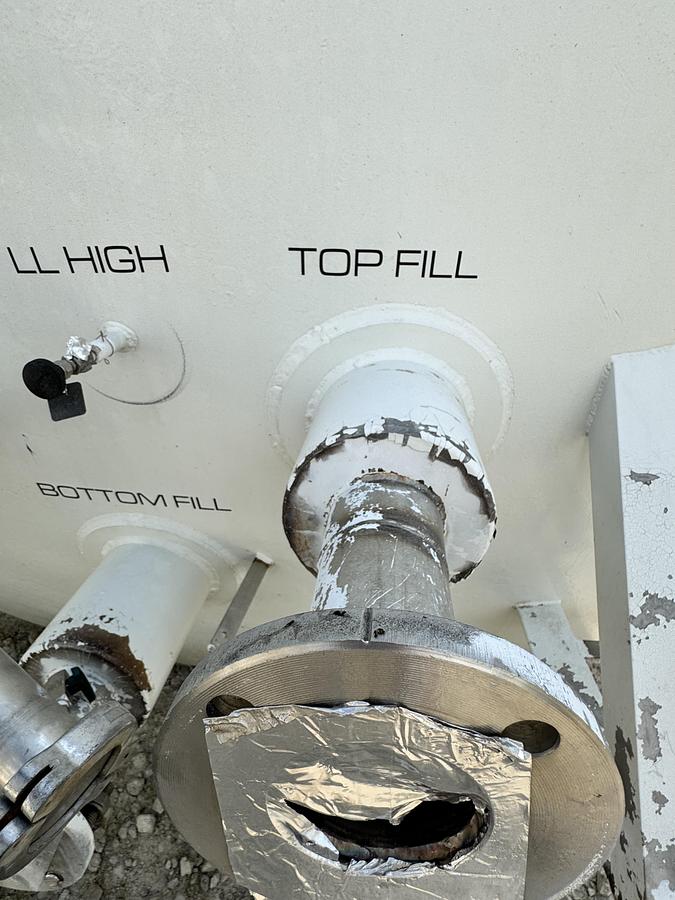

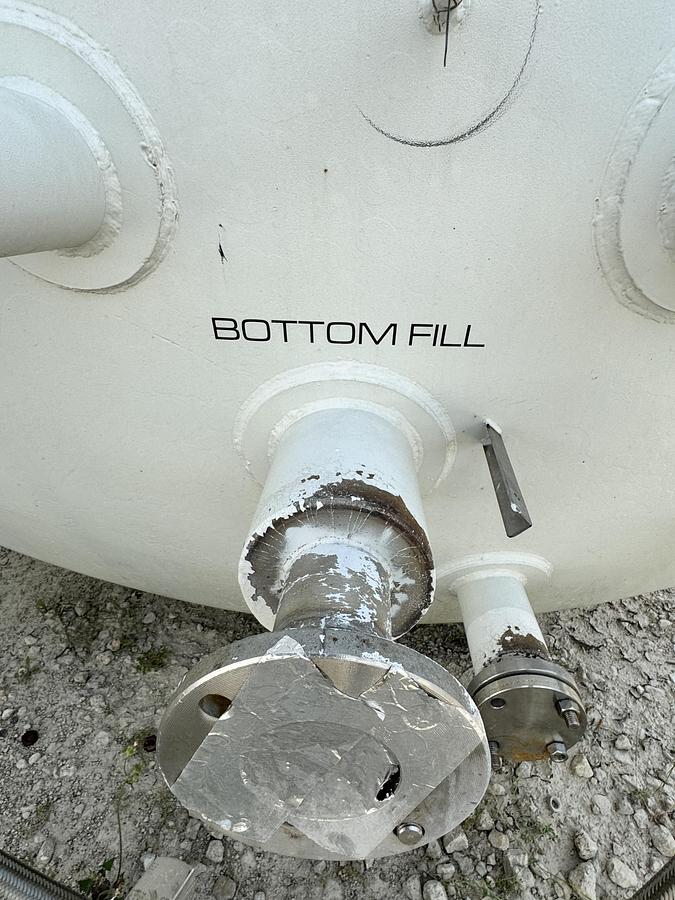

Bottom Fill

Top Fill

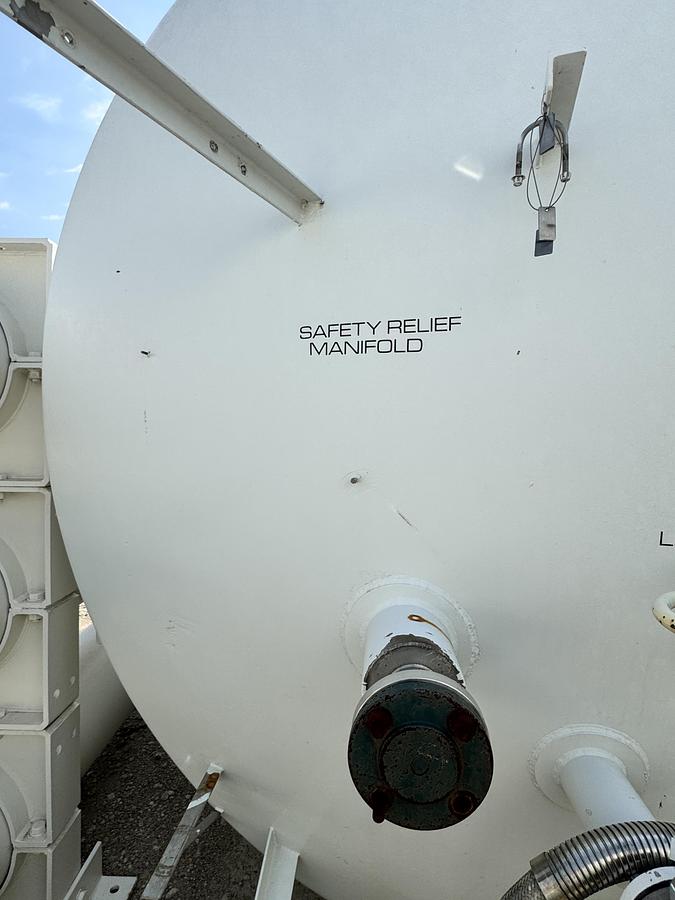

Safety Relief Manifold

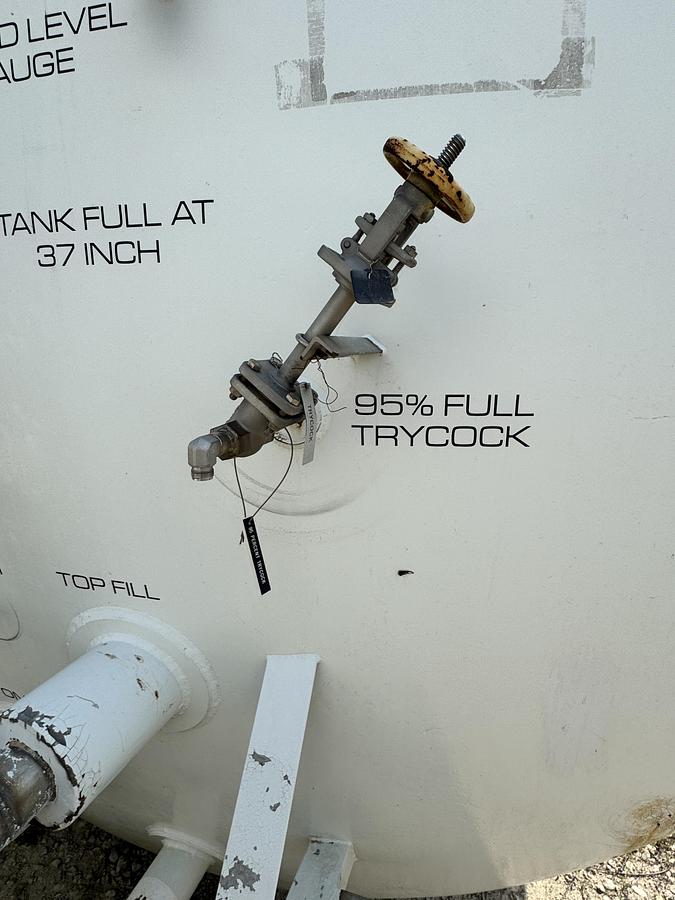

95% Full Trycock

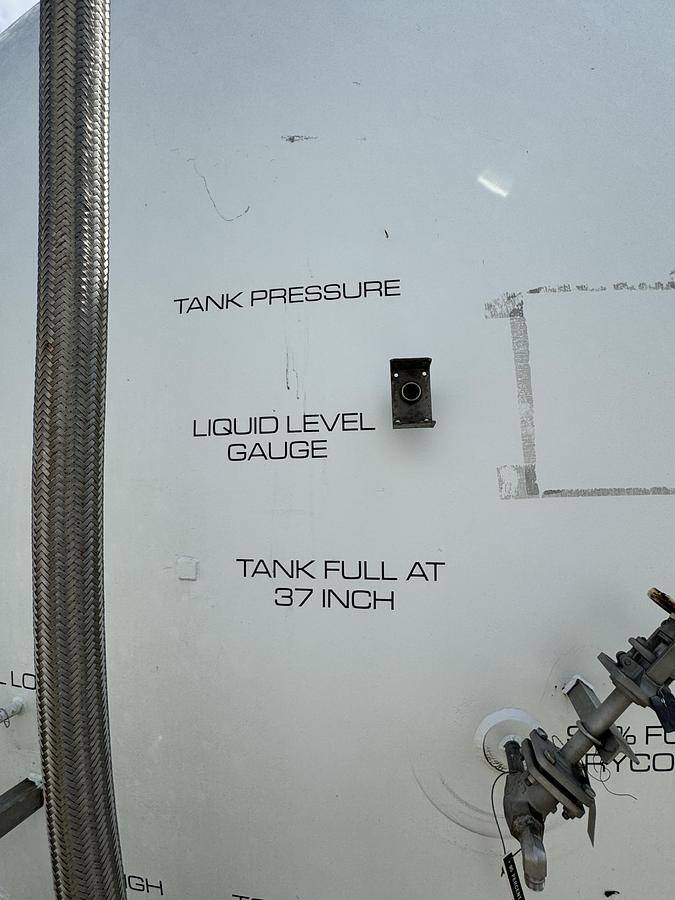

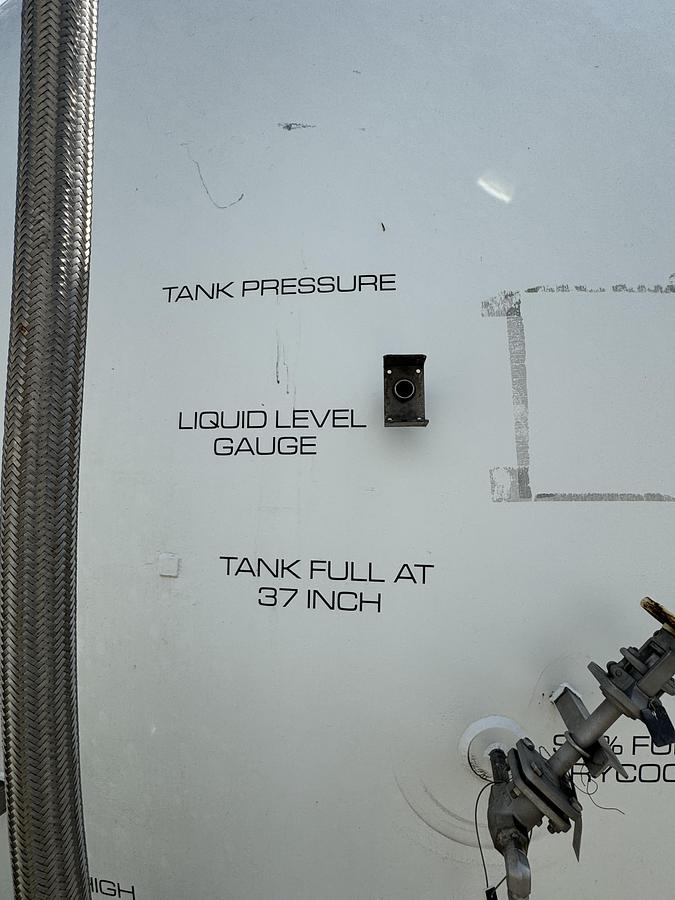

Liquid Level Gauge (Tank Full at 37 in.)

Tank Pressure and Liquid Level Indicator Mount

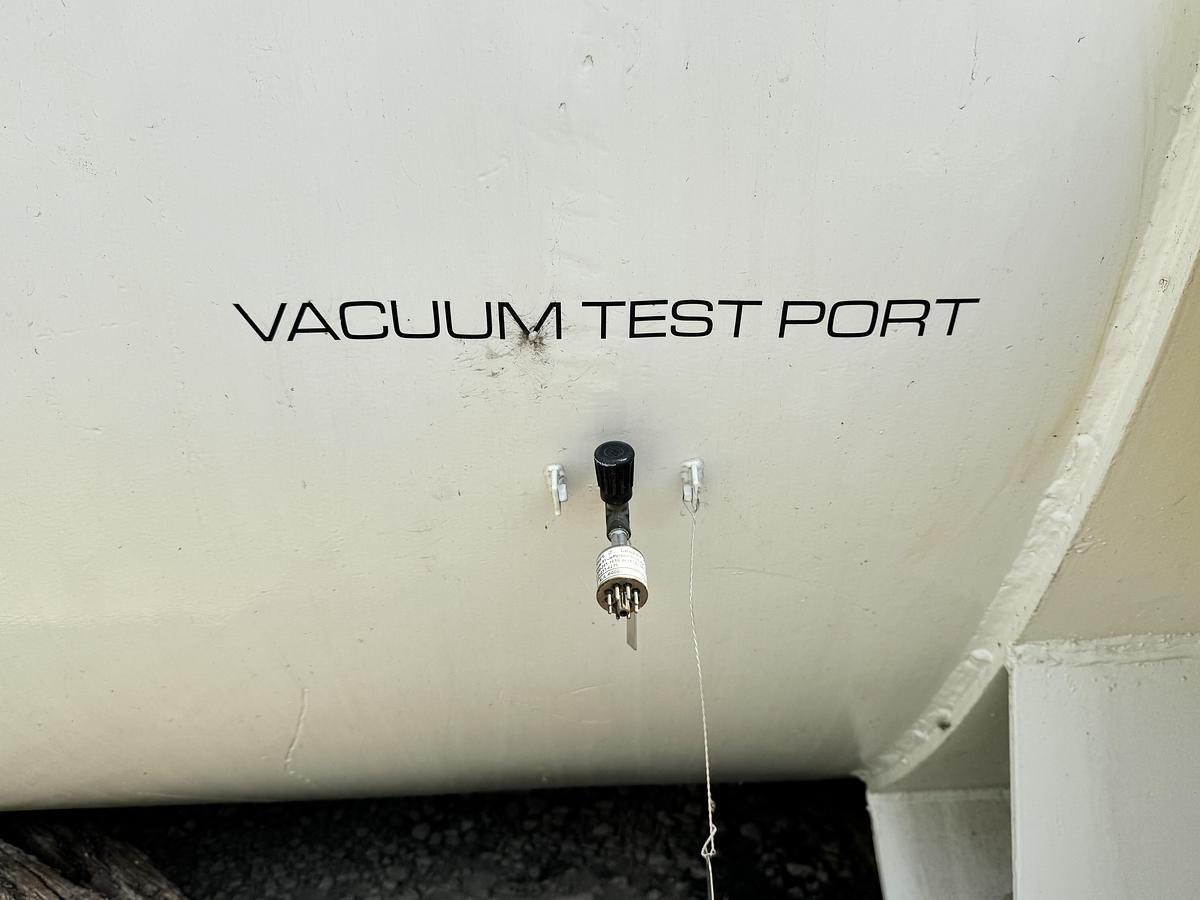

Vacuum Test Port

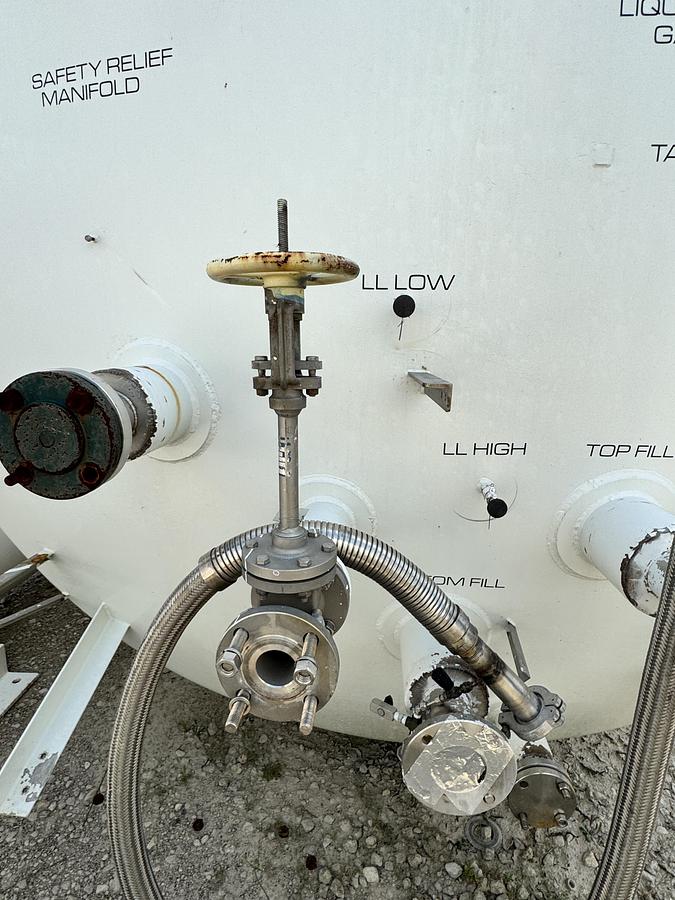

Manifold Components:

Stainless-steel braided flexible lines

Isolation valve assemblies

95% trycock assembly

Welded lifting lugs

Skid-mounted frame for transport

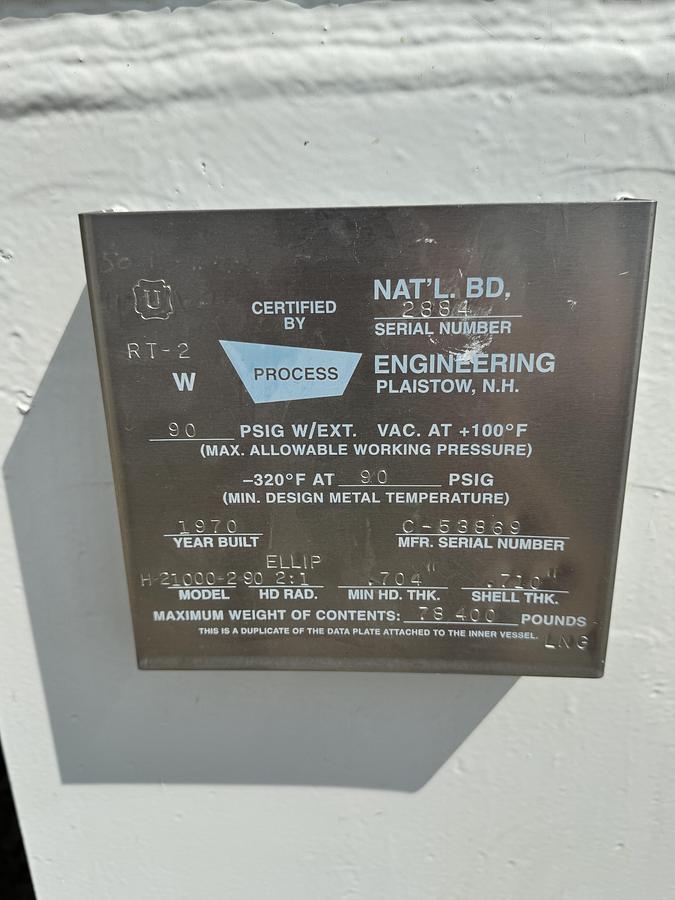

Certifications & Markings:

National Board: NB #28842

Manufacturer Serial #: C-53369

Code Stamp: ASME “U” Stamp (pressure vessel)

Duplicate Data Plate Present

Certified for Process Use

Applications:

LNG (Liquid Methane) fuel storage for power generation

Industrial cryogenic gas systems

Back-end storage for LNG regasification plants

Fueling stations or LNG supply depots

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do Facetime / Teams/zoom calls to go over the item in person for any domestic /international procurement. Please be mindful, that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sale support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
