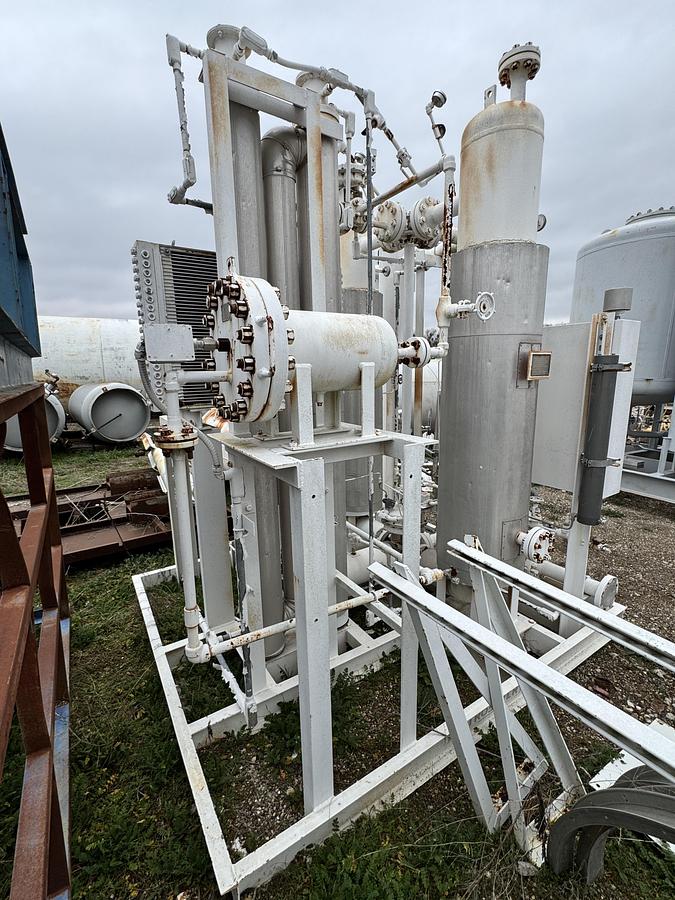

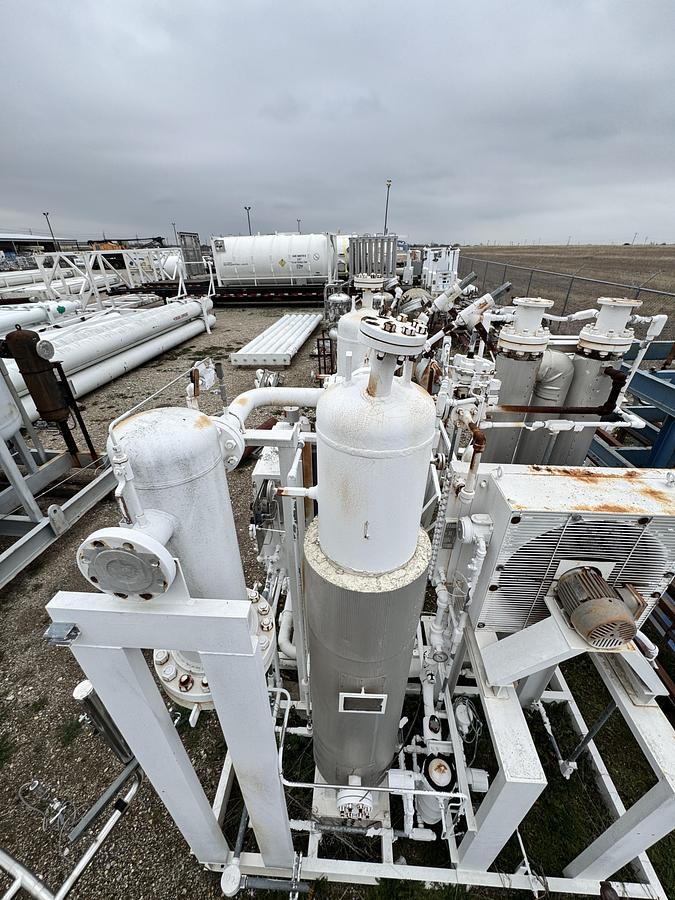

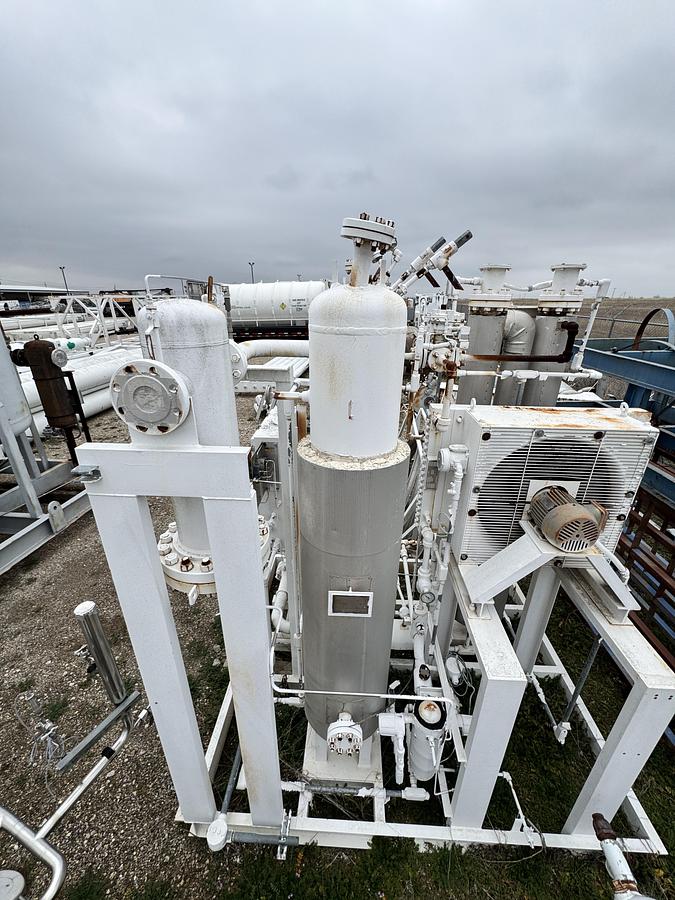

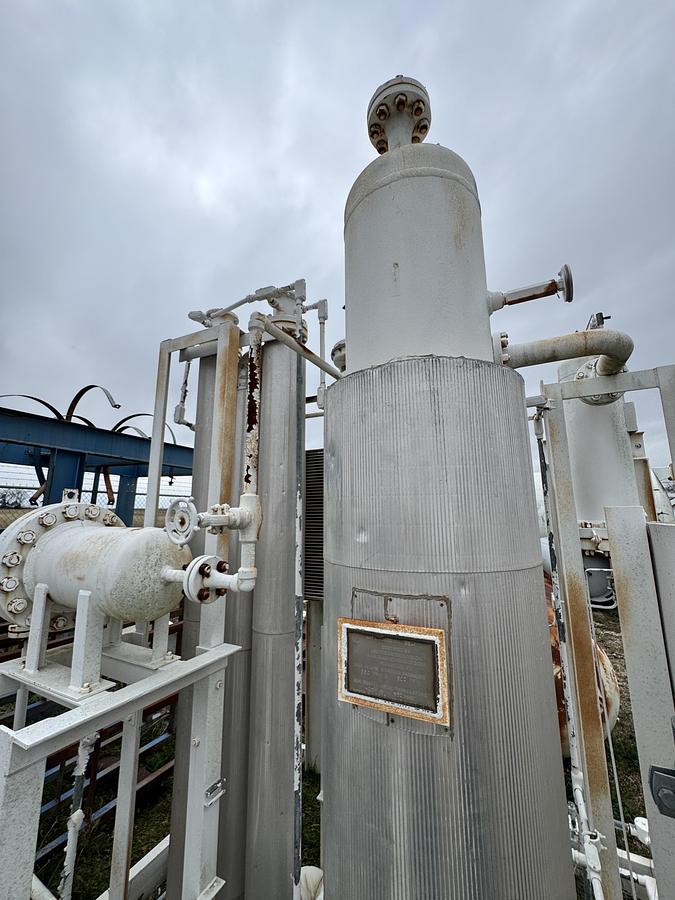

Lectrodryer Dehumidifier Skid – Gas Service, 500 SCFM, 550 PSIG MAWP

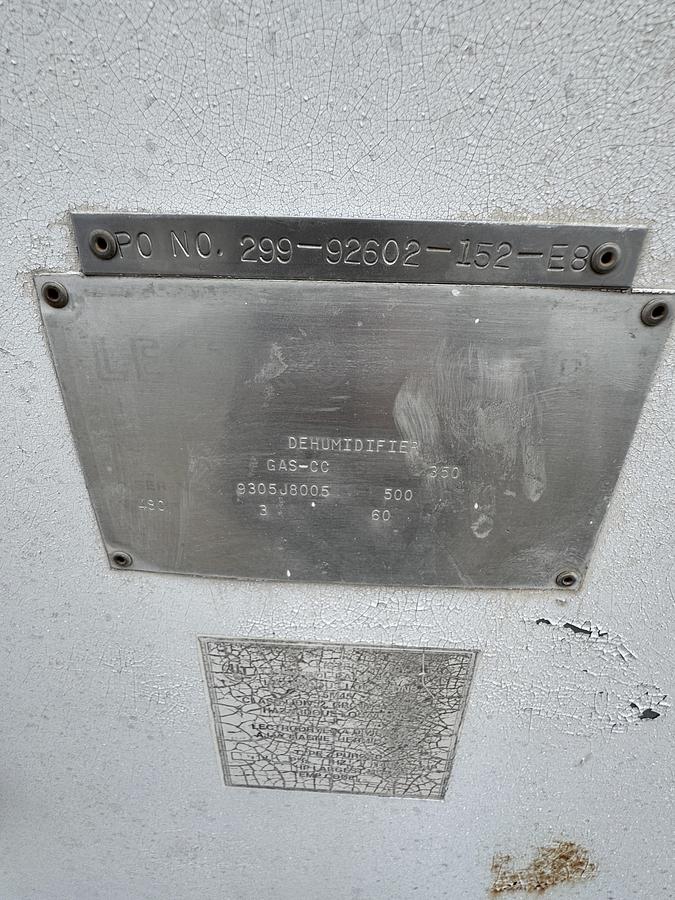

Model / Tag Information:

PO No: 299- 92602- 152-E8

Tag: GAS-CC

Part No: 9305J8005

Flow Capacity: 500 SCFM

Max Pressure: 550 PSIG

Voltage/Phase: 3 Phase / 60 Hz

Certified to: NFPA 496 & ISA S12.4 Purged Enclosure Standards

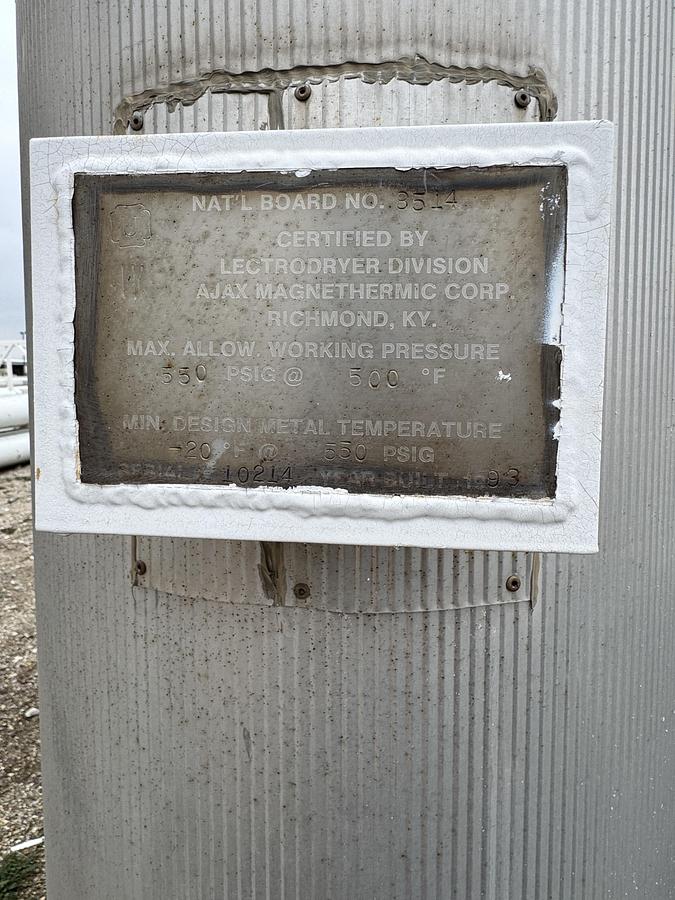

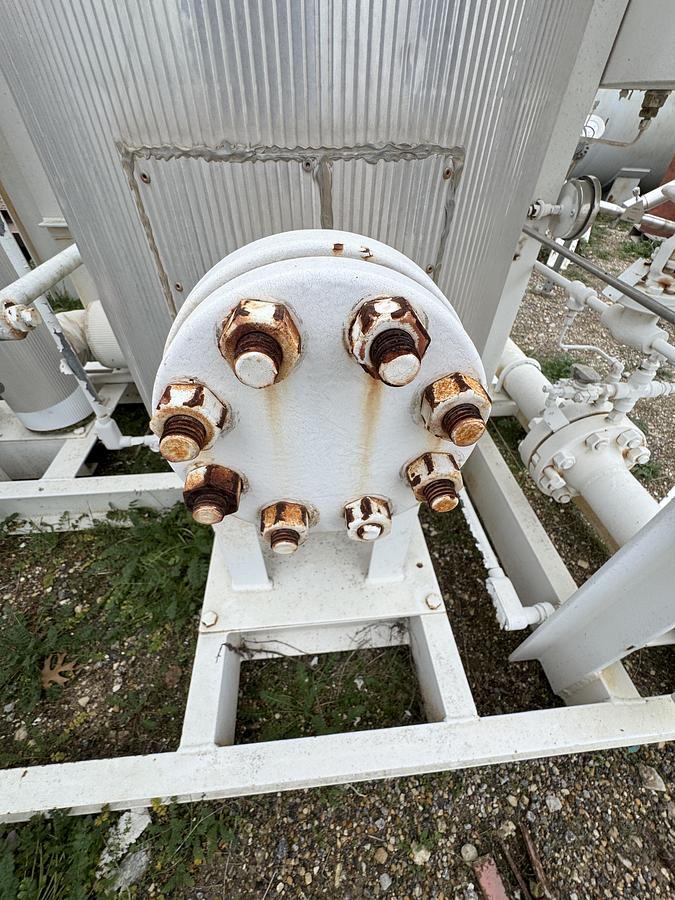

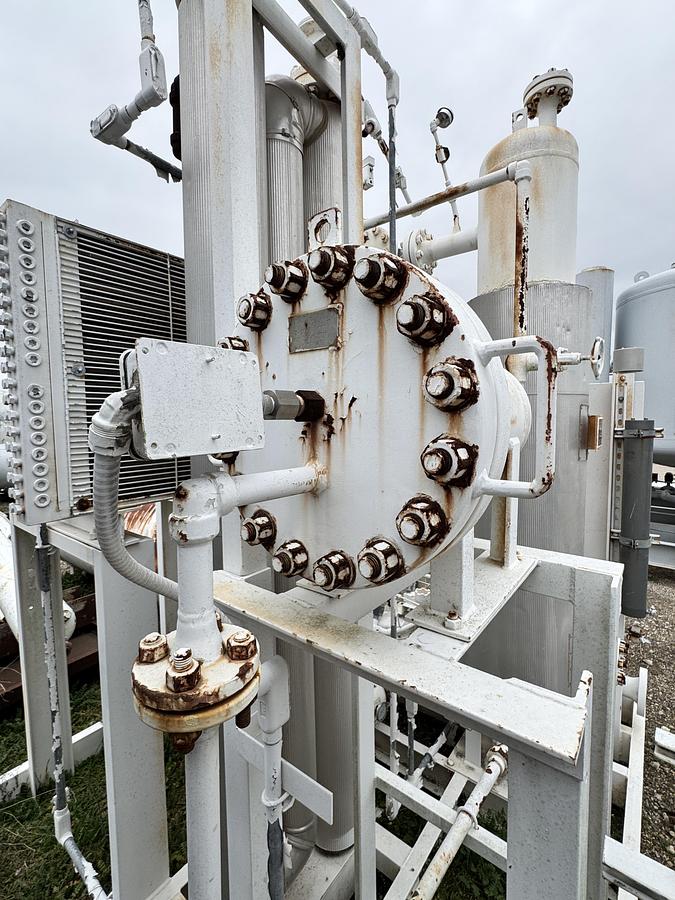

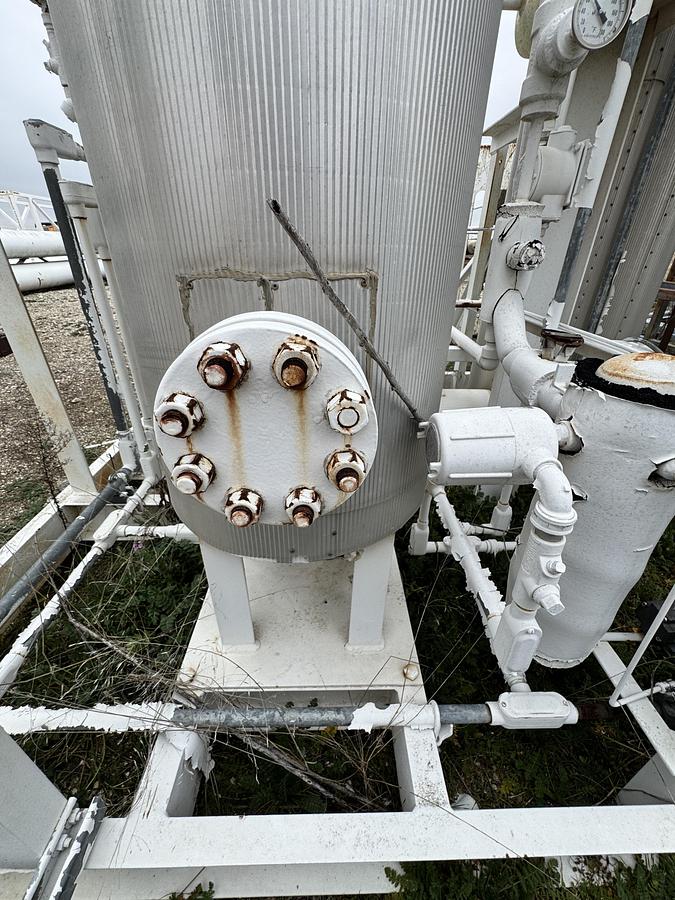

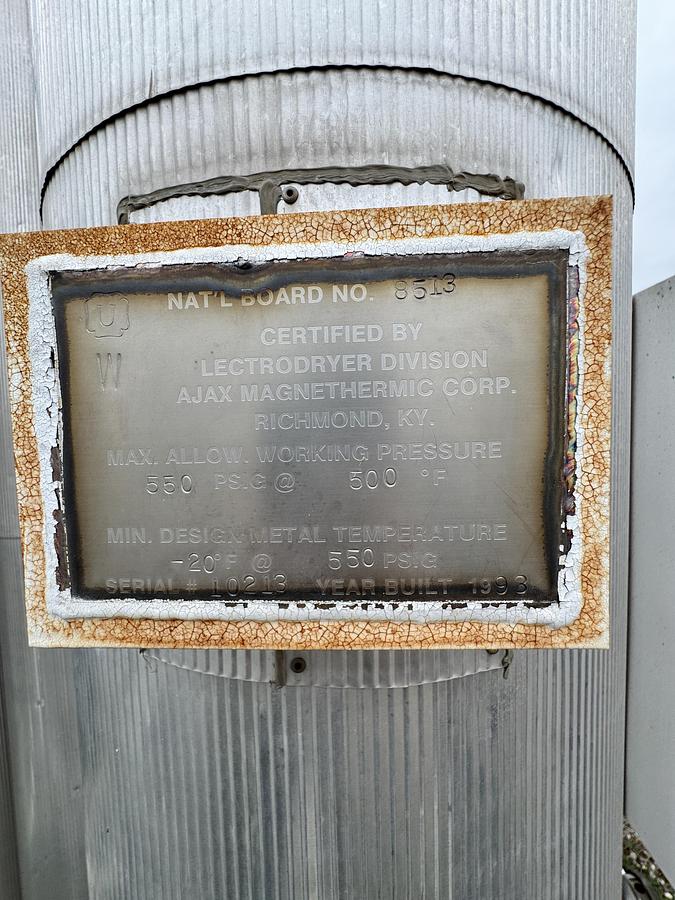

Pressure Vessel Info:

Nat’l Board #: 8513 / 8514

MAWP: 550 PSIG @ 500°F

Min. Design Temp: -20°F @ 550 PSIG

Serial #: 10213 / 10214

Year Built: 1993

Service: Gas drying system (likely nitrogen or air)

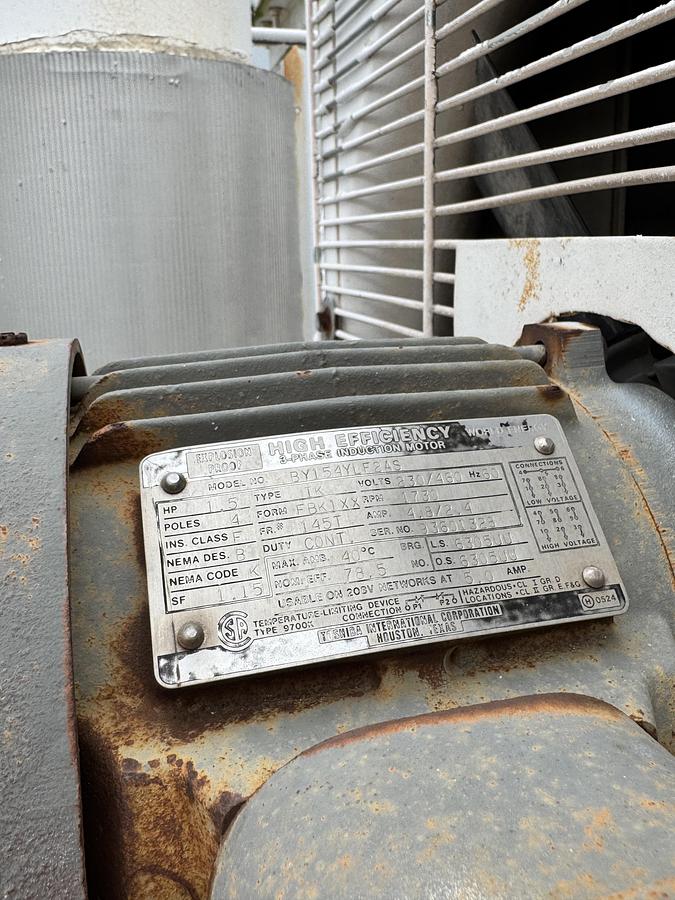

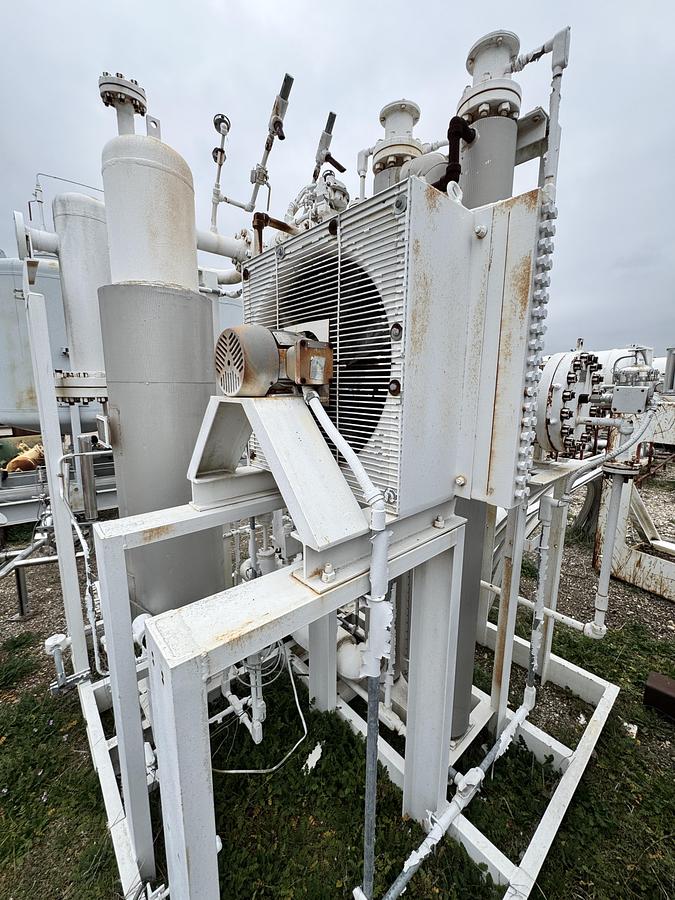

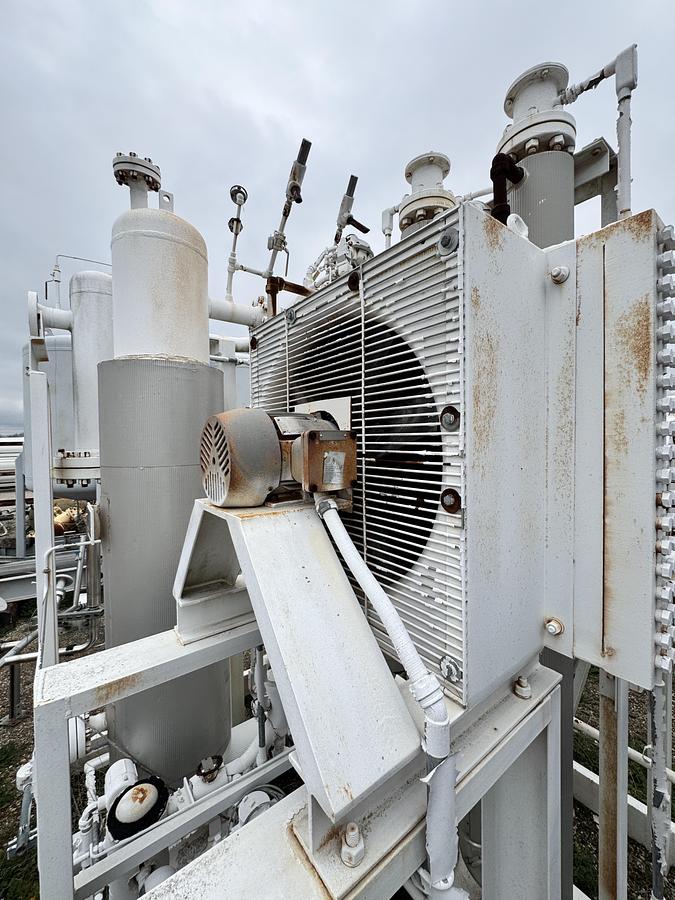

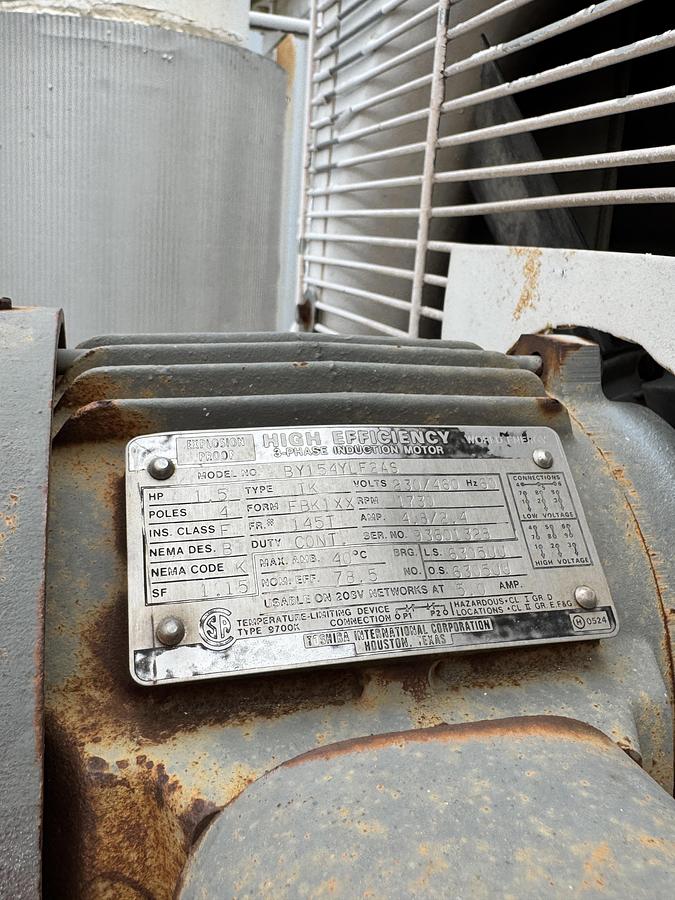

Motor Details:

Manufacturer: Toshiba International Corporation

Model: BY154YF2AS

HP: 15

Voltage: 230/460V, 3-Phase

RPM: 1760

Duty: Continuous

Frame: 145T

Enclosure: Explosion-Proof (for Hazardous Locations)

Efficiency: 78.5%

Temp Rating: 40°C Ambient

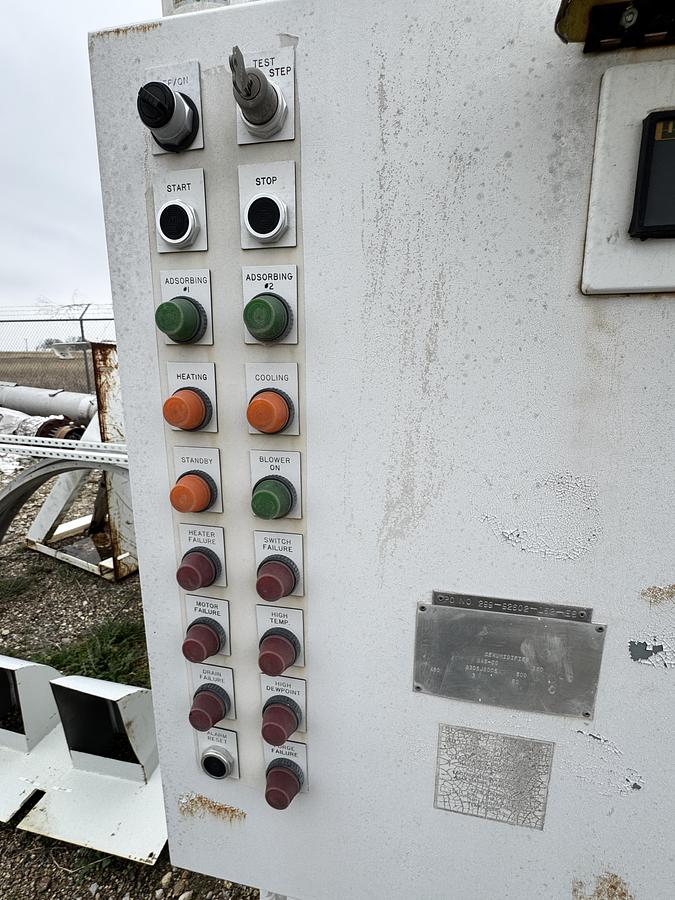

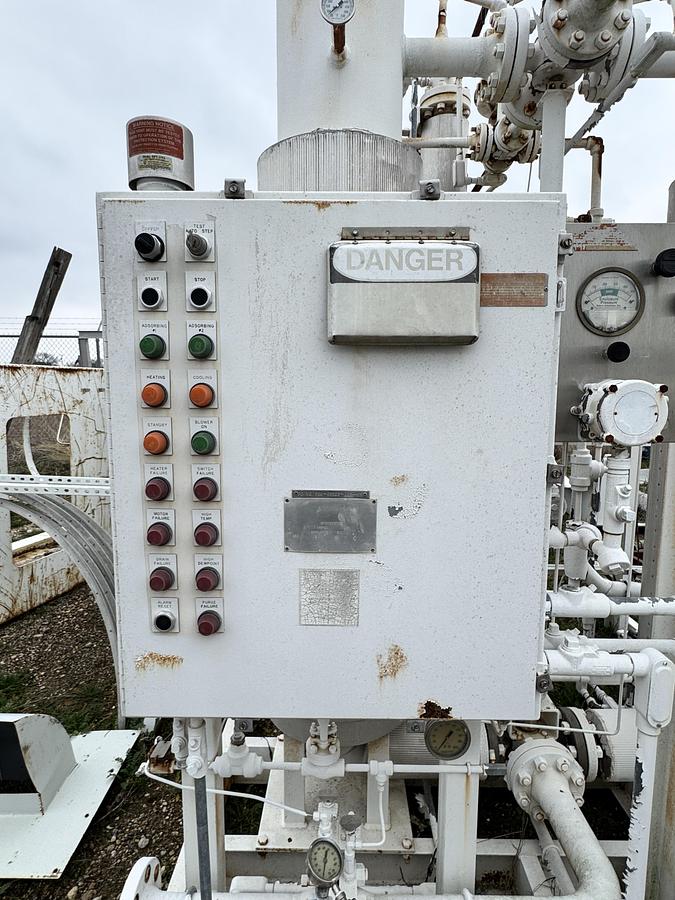

Control Panel:

Includes functions for:

Start/Stop/Test

Adsorbing 1 & 2

Heating/Cooling/Standby

Blower Control

Alarm Indicators: Heater Failure, Motor Failure, High Temp, High Dewpoint, Drain Failure, Switch Failure

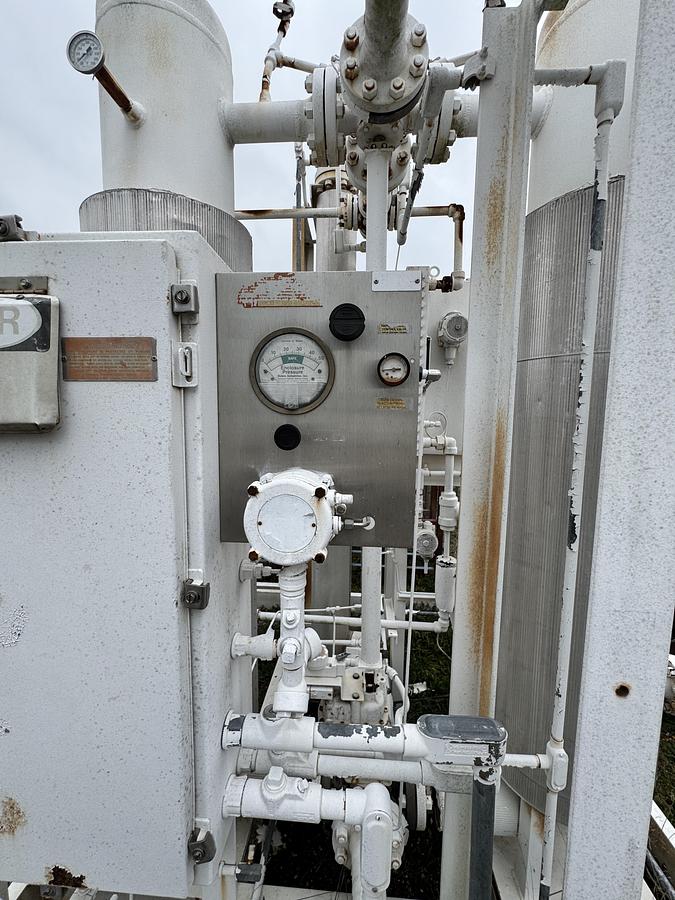

Enclosure Ratings & Purge System:

UL Listed for Class I & II, Group C, D, E, F, G

Hazardous Location Type Purged

Certified by Bebco Industries, Inc.

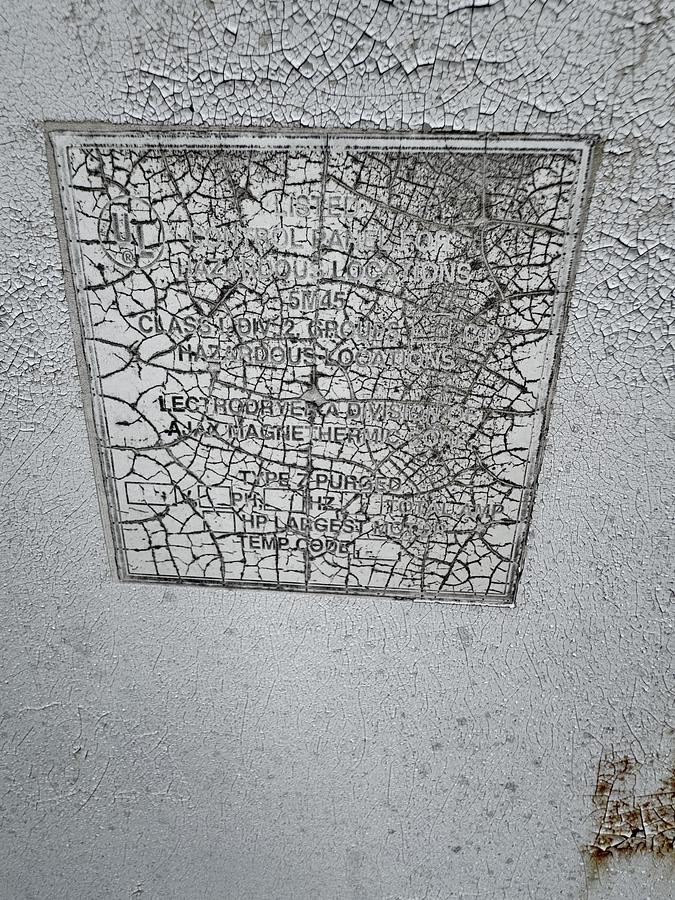

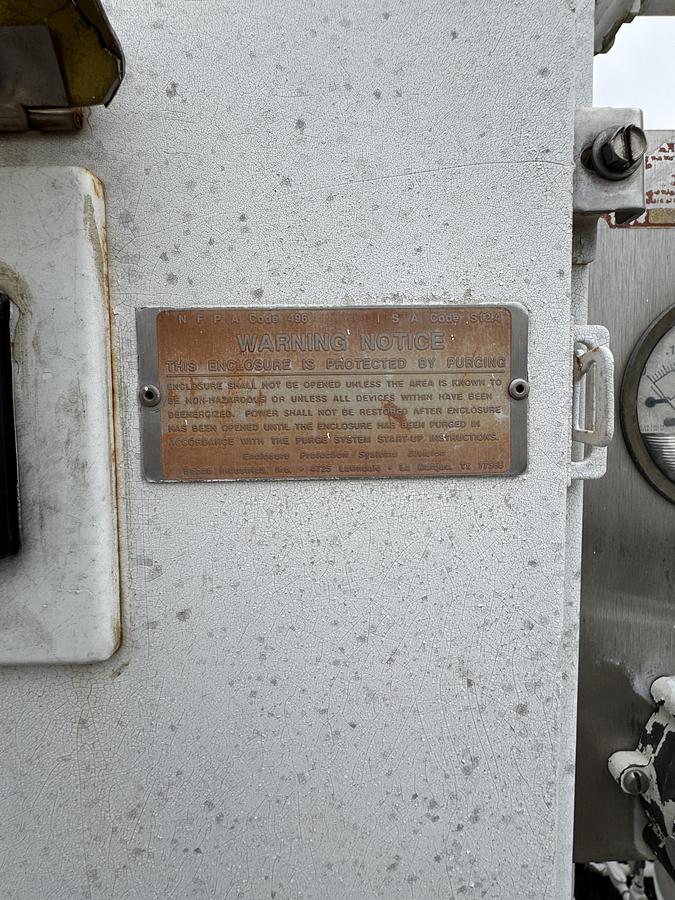

Warning Notice Plate installed for purge verification compliance
