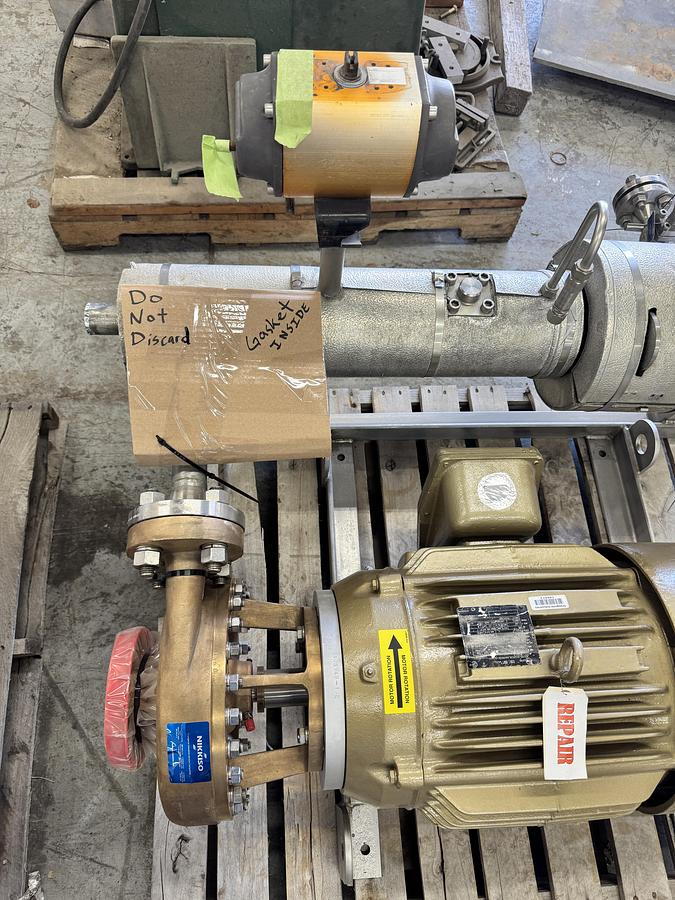

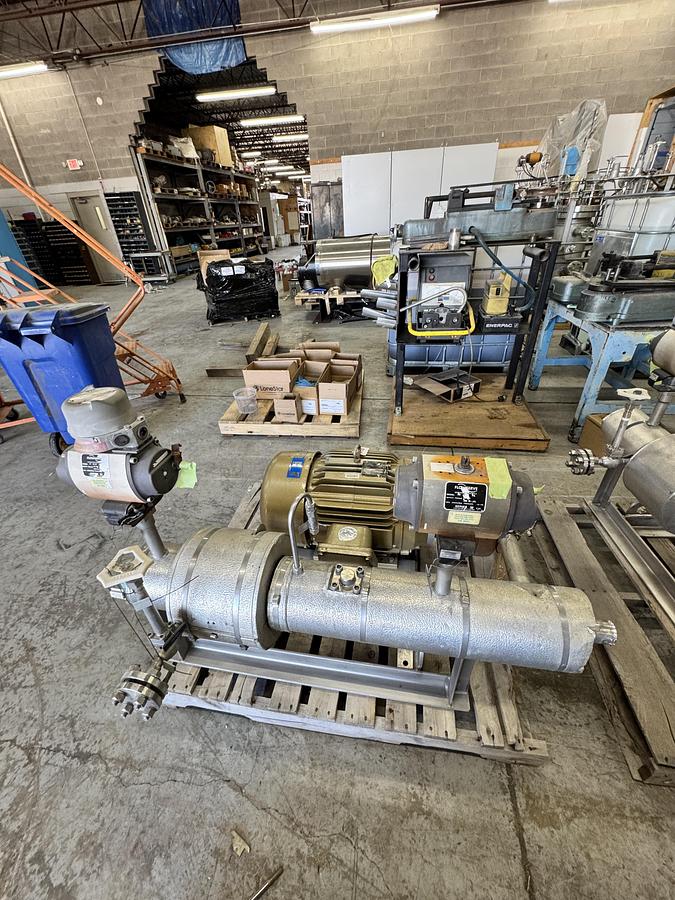

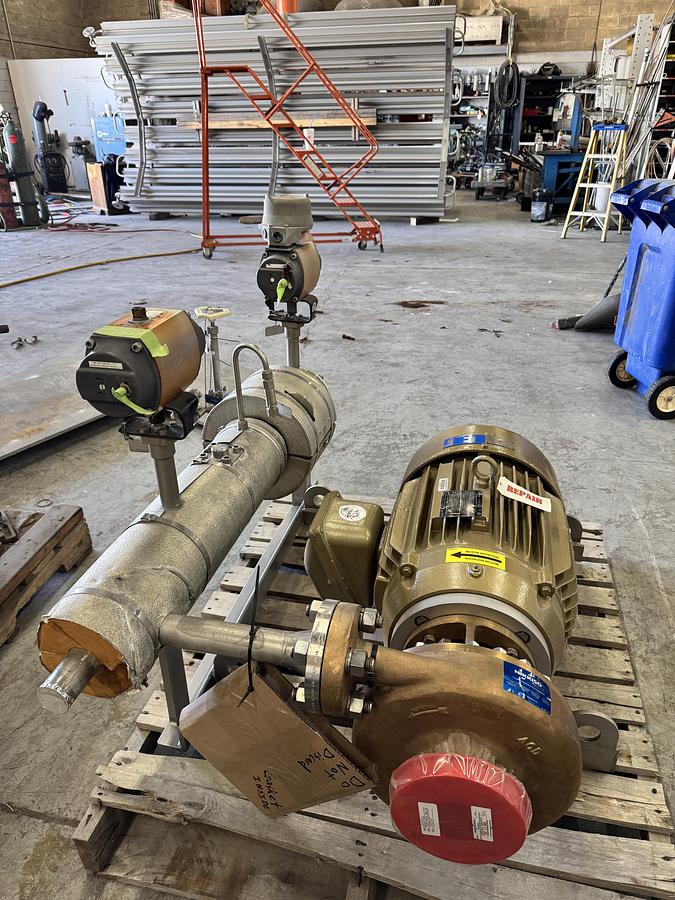

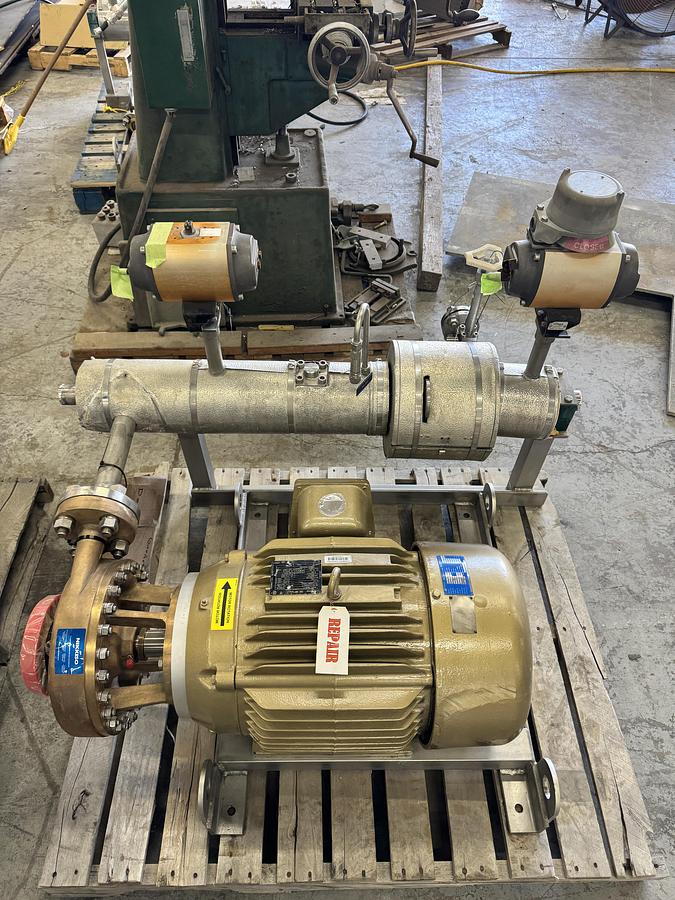

Nikkiso / ACD TC-30 with Flowserve Actuator & Baldor 30 HP Motor

2024-manufactured Cryogenic Industries (ACD / Nikkiso) TC-30 pump package rated for LNG, LN₂, LOX, and other cryogenic fluids. Powered by a 30 HP Baldor Reliance explosion-proof motor (Class I, II hazardous rated) and equipped with Flowserve pneumatic actuation and hazardous-location approved monitoring. Built for industrial cryogenic service with immediate availability.

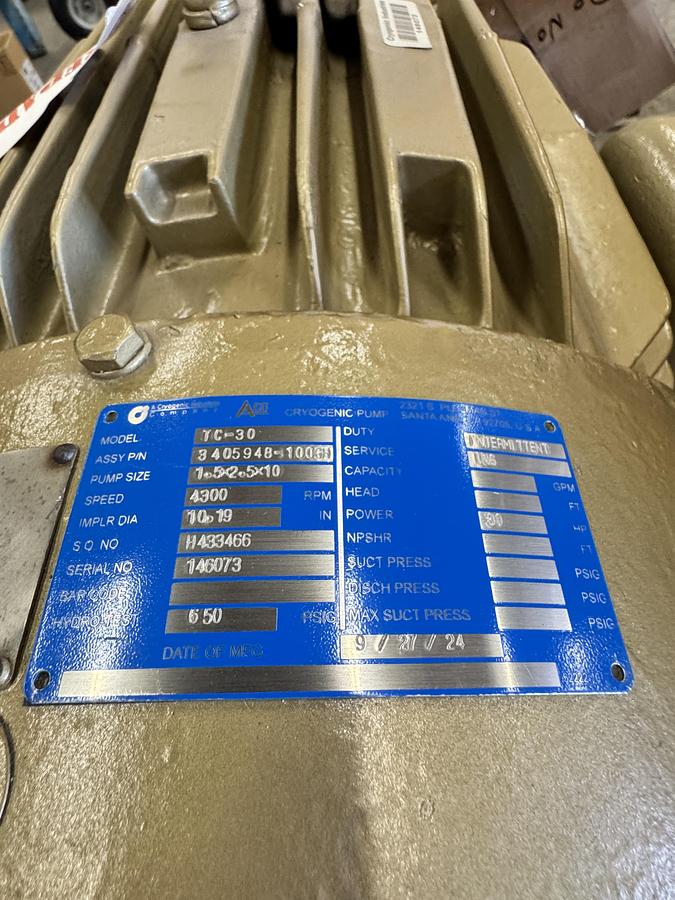

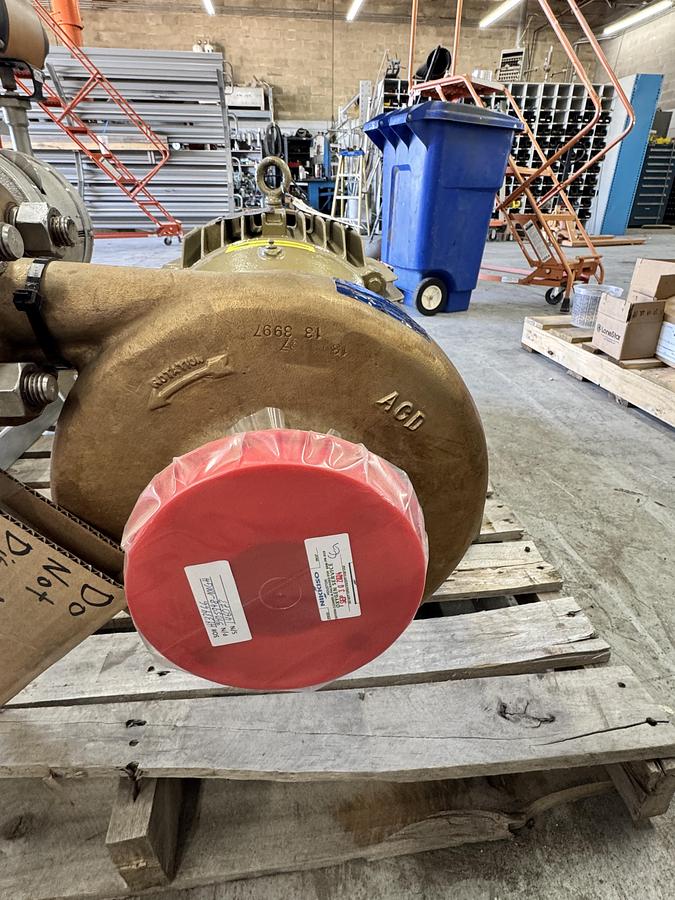

Manufacturer:

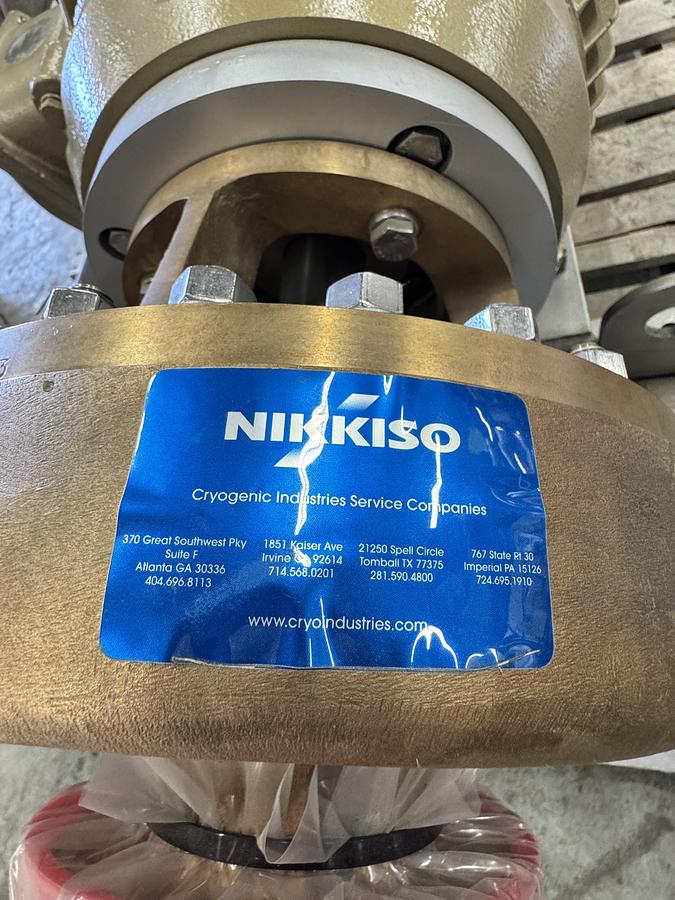

Cryogenic Industries (Nikkiso / ACD Cryogenic Pump)

Model: TC-30

Pump Serial #: 146073

Speed: 4300 RPM

Impeller Diameter: 10–19 in

Max Suction Pressure: 650 PSIG

Service: Cryogenic fluids (LNG, LN2, LOX, etc.)

Date of Manufacture: 09/21/2024

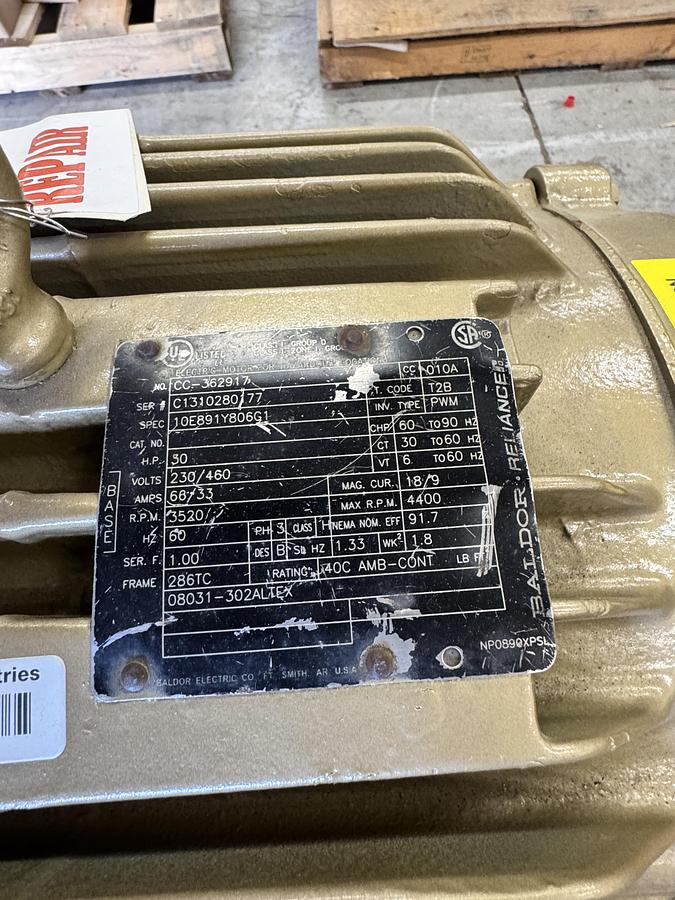

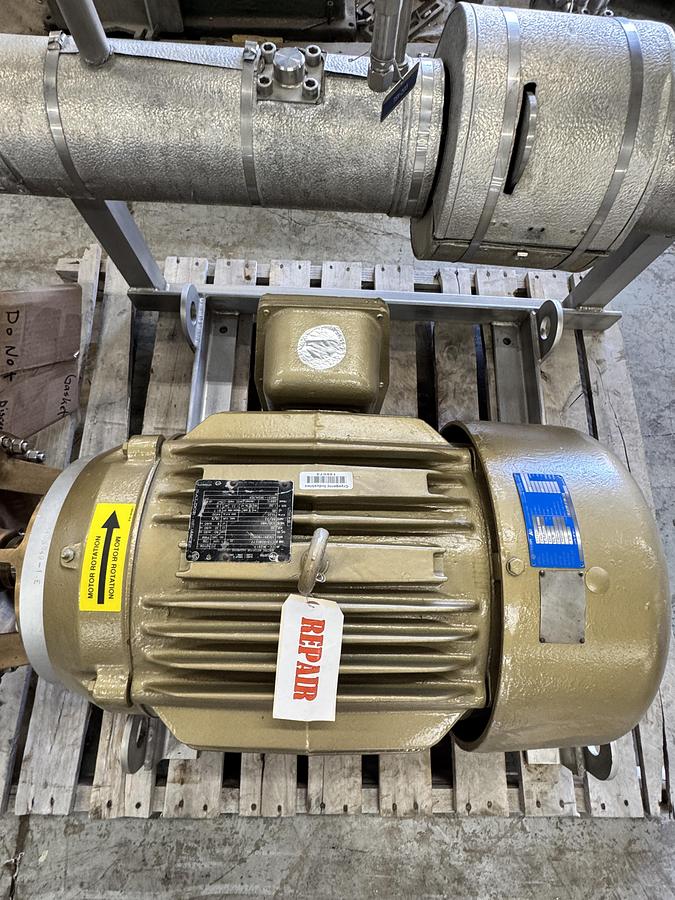

Pump Motor:

Brand: Baldor Reliance

Model: CC-362917

HP: 30

Volts: 230/460V

Amps: 68/33

RPM: 3520

Frame: 286TC

Enclosure: Explosion-proof (Class I, Group D; Class II, Group F, G)

Ins. Class: F

Max Ambient: 40°C

Efficiency: 91.7%

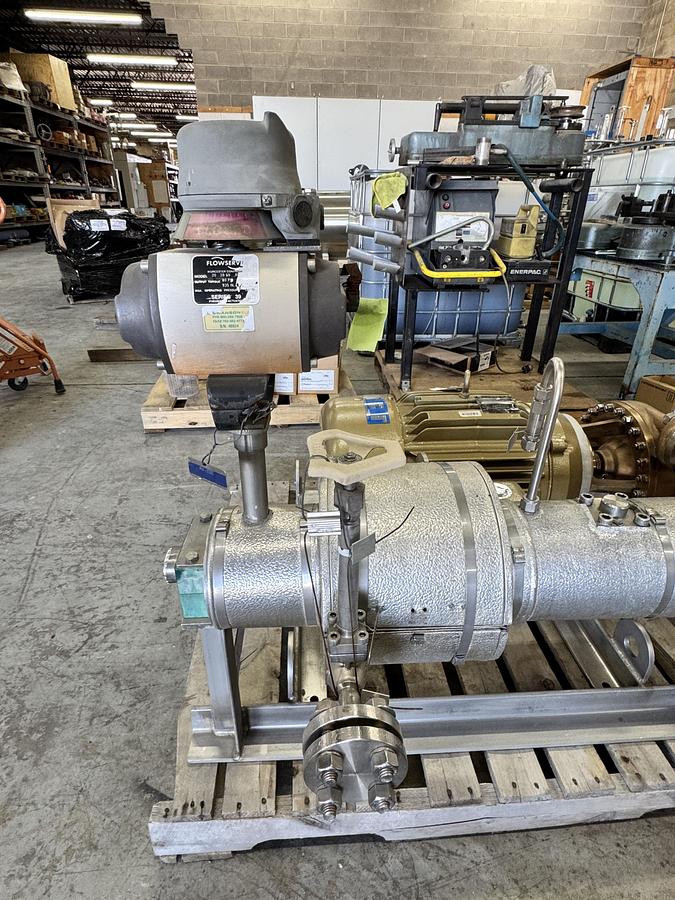

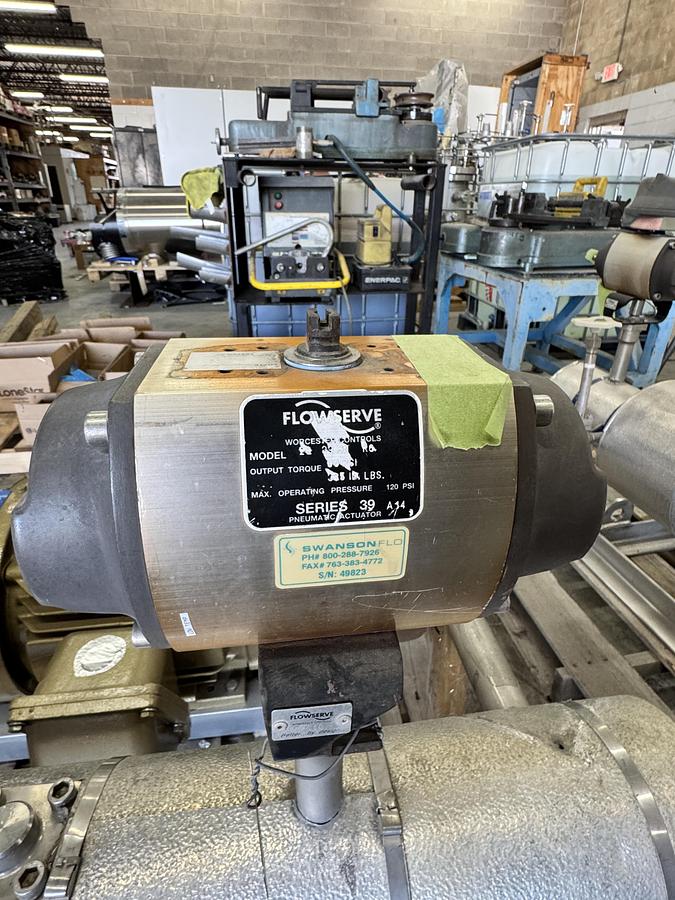

Pneumatic Actuator:

Brand: Flowserve Worcester Controls

Model: 39 A44

Series: 39 Pneumatic

Max Operating Pressure: 120 PSI

Output Torque: 1850 in-lbs

Controls Supplied by: SwansonFlo

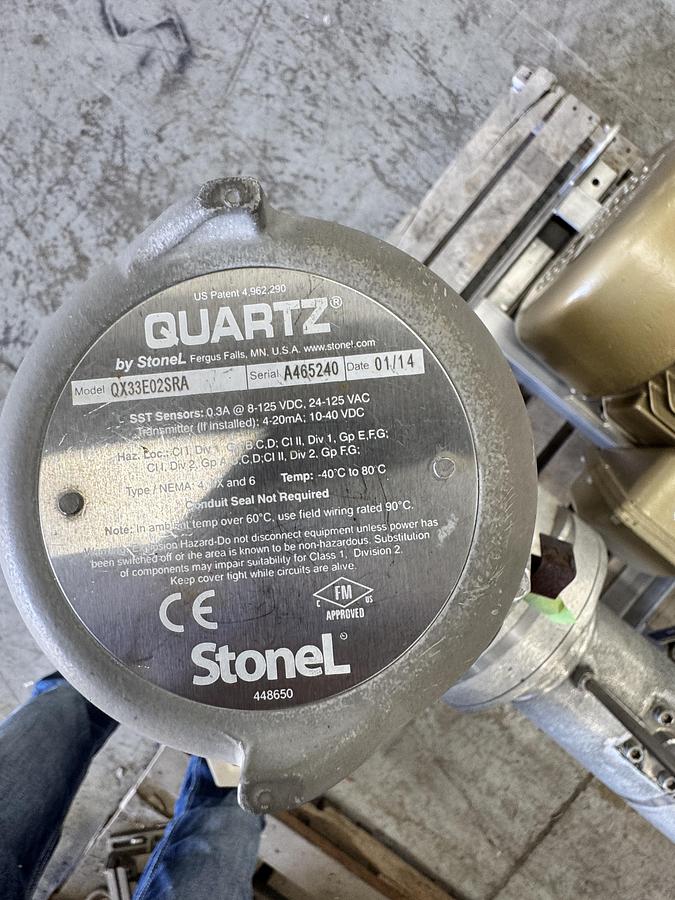

Sensor/Monitor: StoneL Quartz (Model: QX33E02SRA, Date: 01/14)

Sensor Ratings: 8–125VDC / 24–125VAC

Temp Range: -40°C to +80°C

Hazardous Location Approved: Class I, II, III, Div 2, Groups B-G
