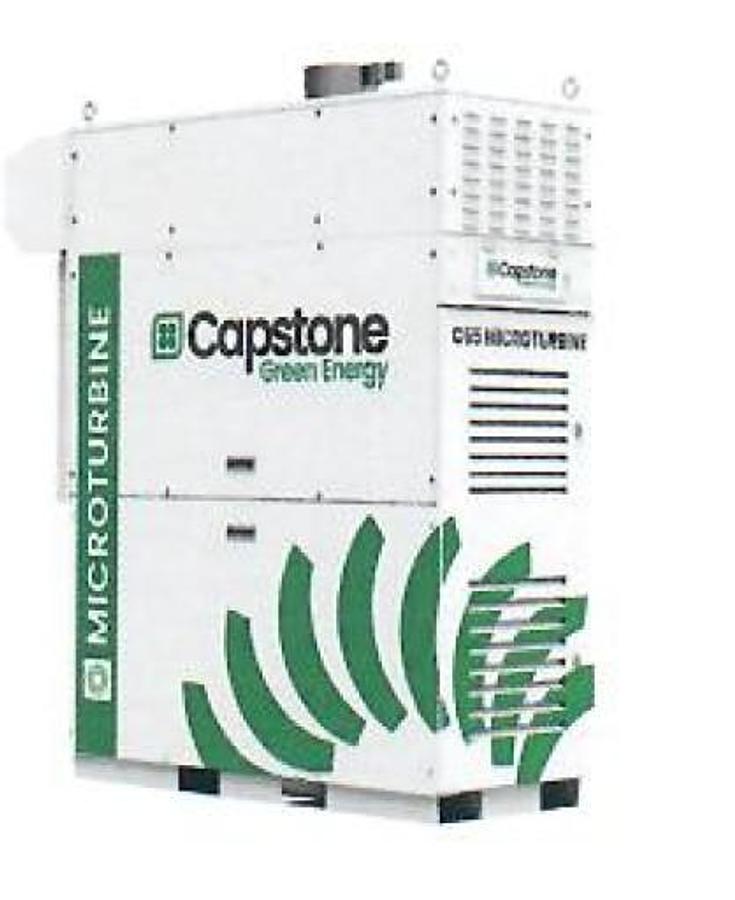

Capstone Green Energy C65 ICHP MicroTurbine

Voltage: 400/480 VAC, 3-Phase, 4-Wire Wye

Frequency: 50/60 Hz

Fuel Flow (HHV): 919 MJ/hr (871,000 BTU/hr)

Electrical Efficiency (LHV): 28%

Net Heat Rate (LHV): 12.9 MJ/kWh (12,200 BTU/kWh)

Emissions: <9 ppmvd NOx @ 15% O2 (19 mg/m³)

Exhaust Temperature: 329°C (625°F)

Exhaust Mass Flow: 0.49 kg/s (1.08 lbm/s)

Heat Recovery Output: 132 kW (0.45 MMBTU/hr) with integrated copper core ICHP heat recovery module

Dimensions: 30 in. (W) x 87 in. (D) x 100 in. (H)

Weight:

Grid Connect Model: 2,200 lbs (998 kg)

Dual Mode Model: 3,000 lbs (1,364 kg)

Noise Level: 65 dBA at 33 ft (10 m)

Clearance Requirements:

Left/Right/Rear: 30 in.

Front (Grid Connect): 30 in.

Front (Dual Mode): 65 in.

Certifications & Compliance:

UL 2200 Listed

CE Certified

UL 1741-SA, VDE, BDEW, CEI 0-16, AS4777

California Rule 21 Compliant

Features:

Ultra-low emissions and minimal maintenance with only one moving part

Patented air bearings—no need for oil or coolant

Integrated utility synchronization—no external switchgear required

Modular and compact design for easy installation

Remote monitoring and diagnostics

Compatible with multiple-unit integration
