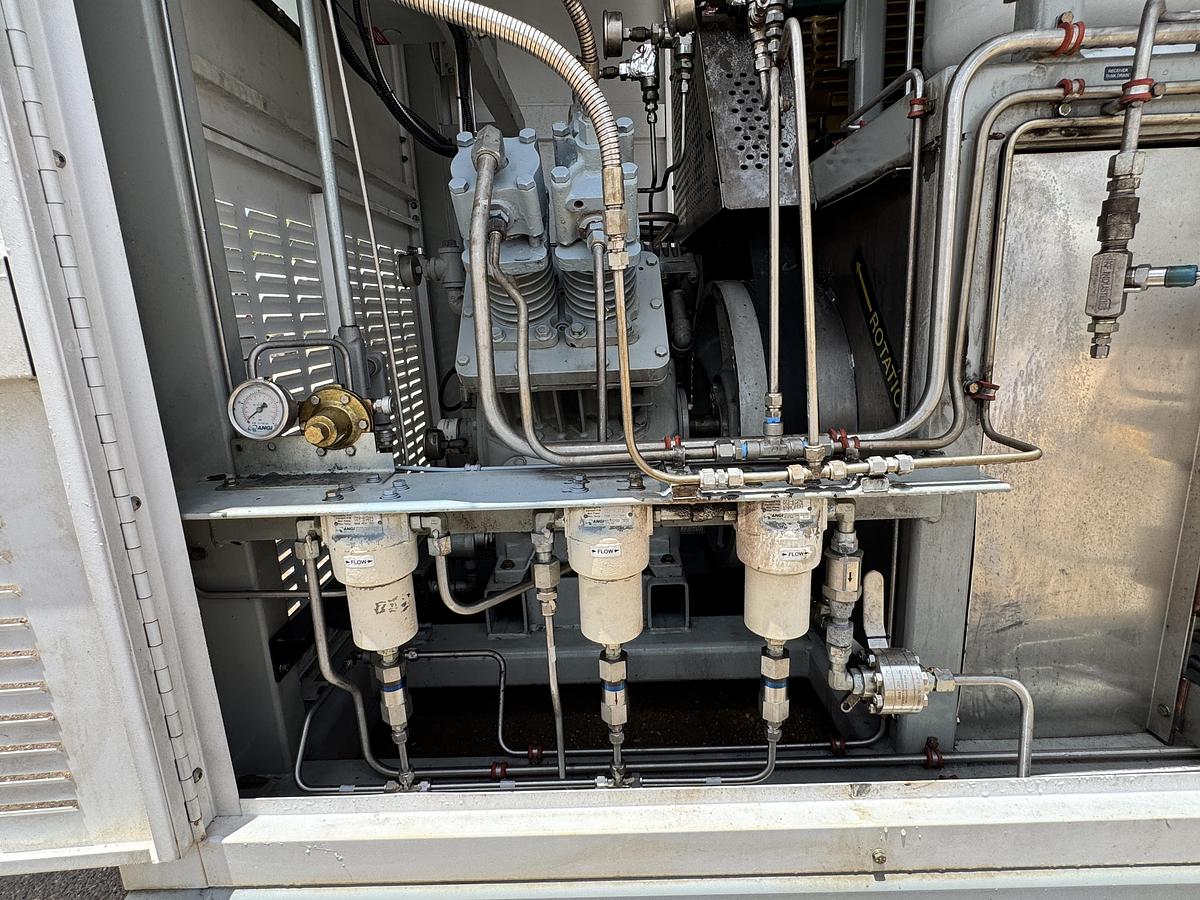

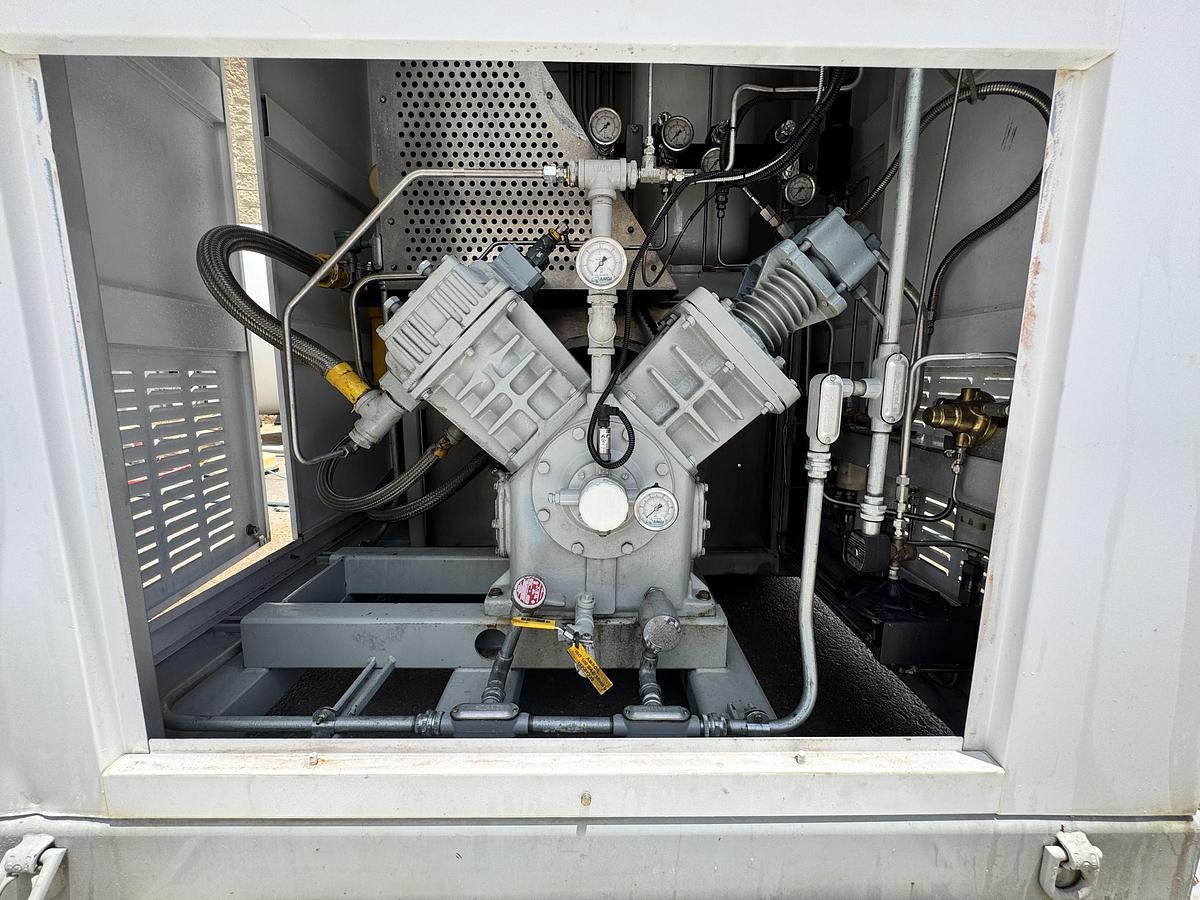

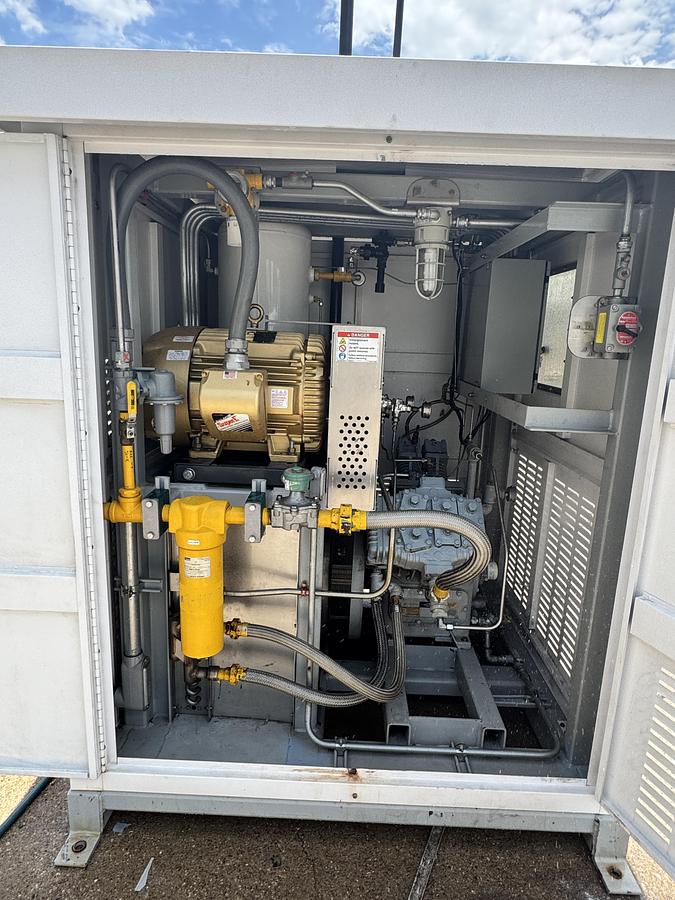

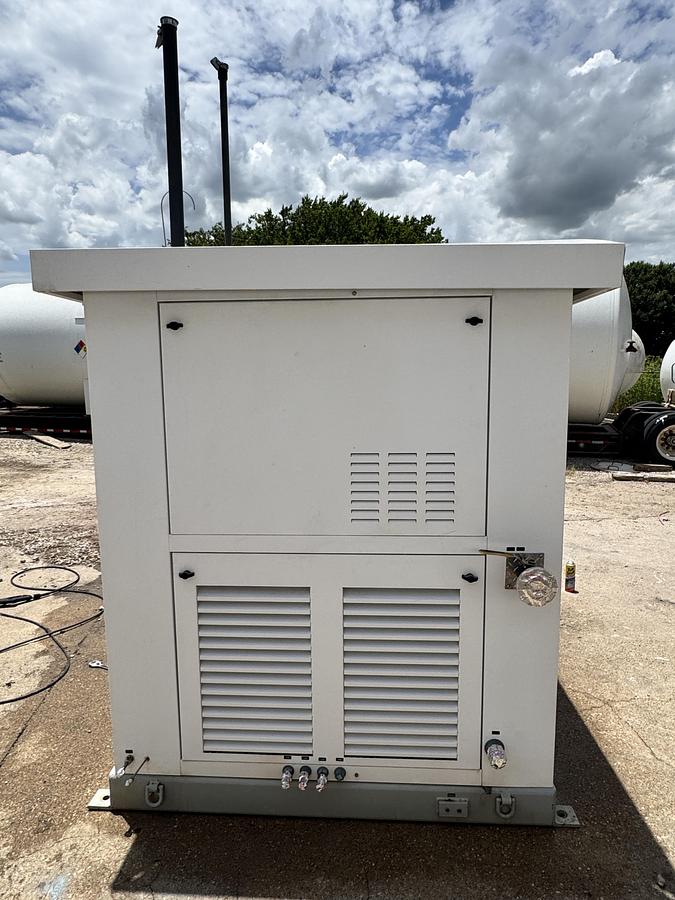

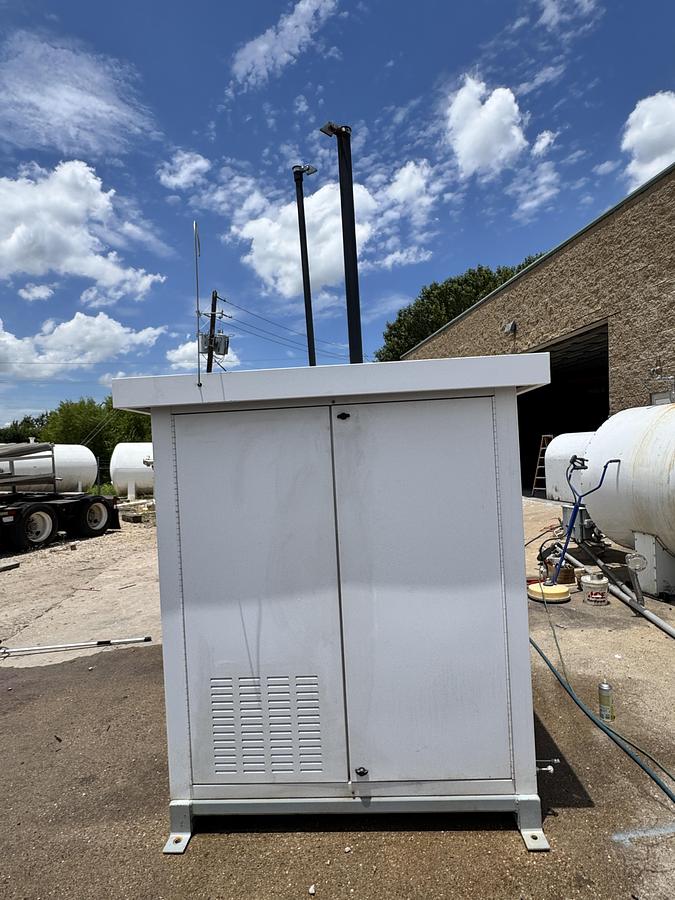

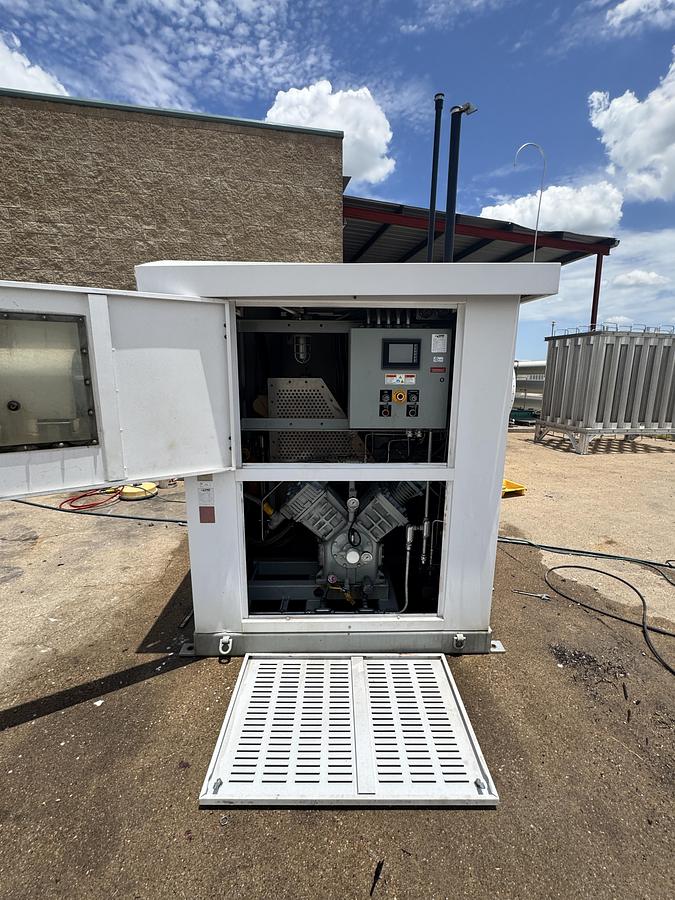

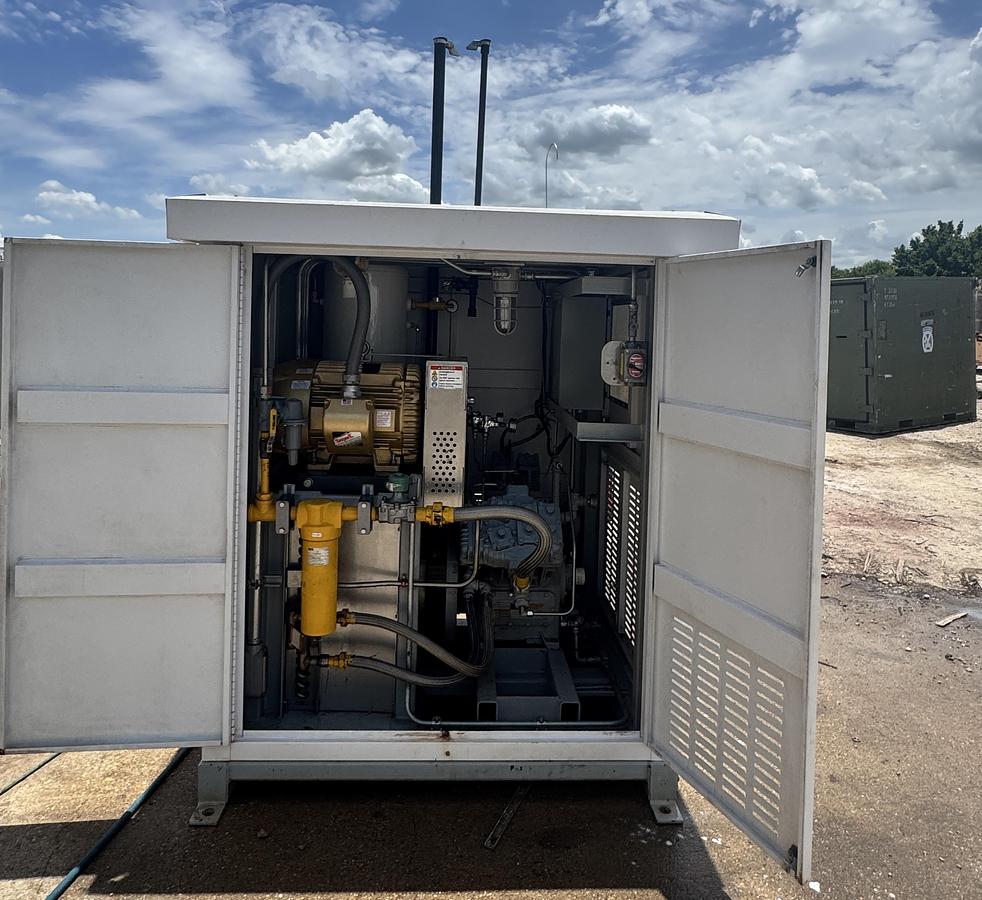

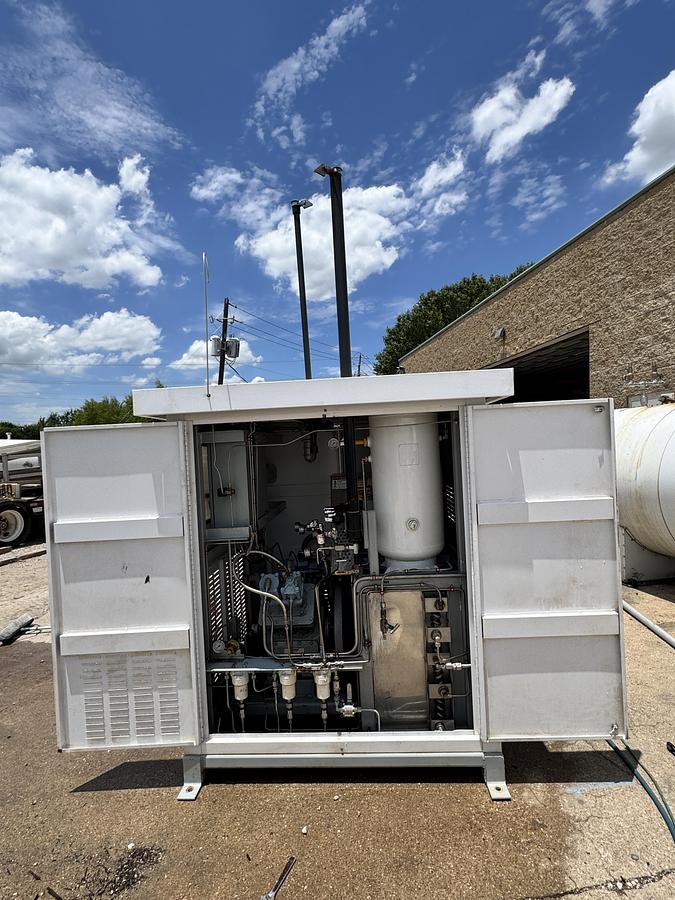

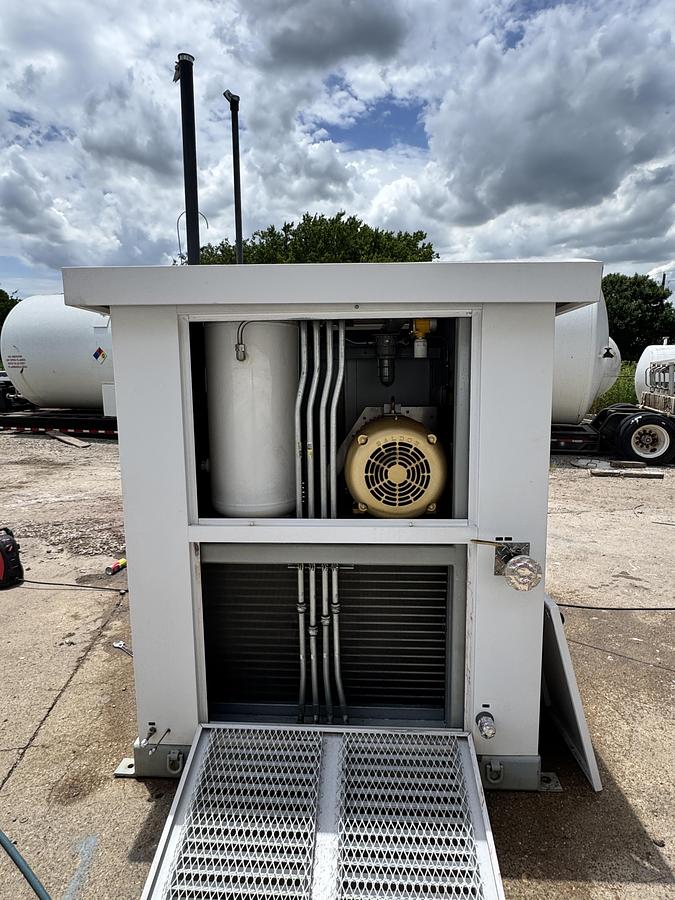

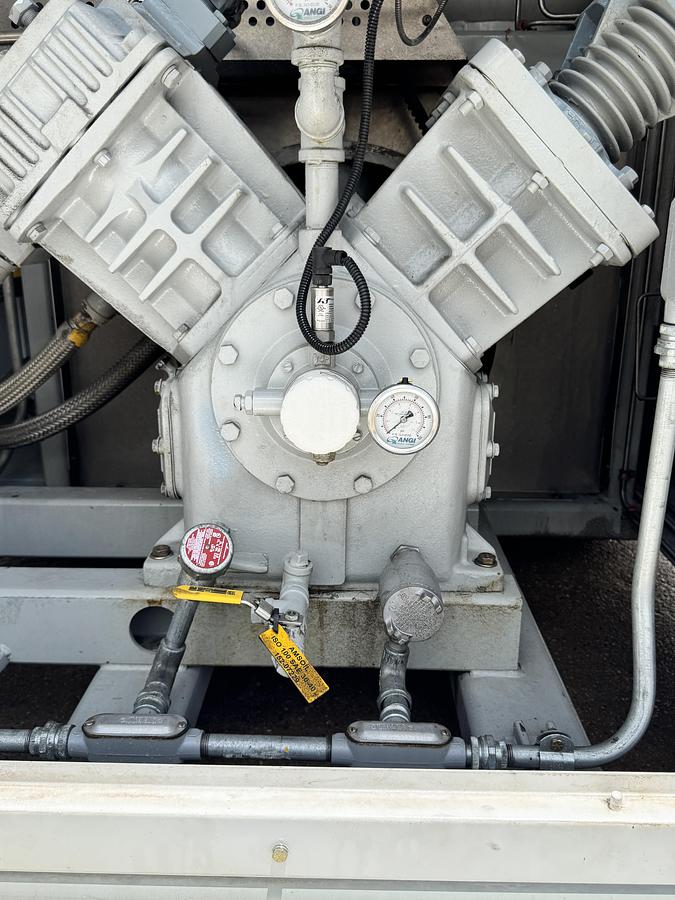

ANGI Natural Gas Compressor Package – Model NG-050-E-S-4-Z

ANGI Natural Gas Compressor Package – Model NG-050-E-S-4-Z

Available quantity:1

Description

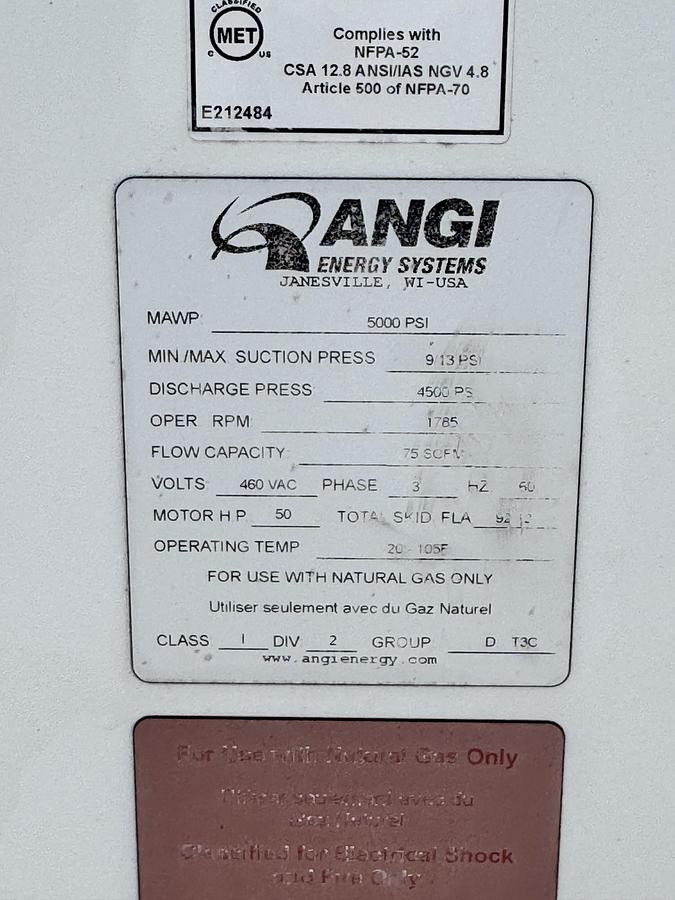

Flow Capacity: 75 SCFM

Discharge Pressure: 4,500 PSI

MAWP: 5,000 PSI

Suction Pressure Range: 9–13 PSI

Operating RPM: 1785

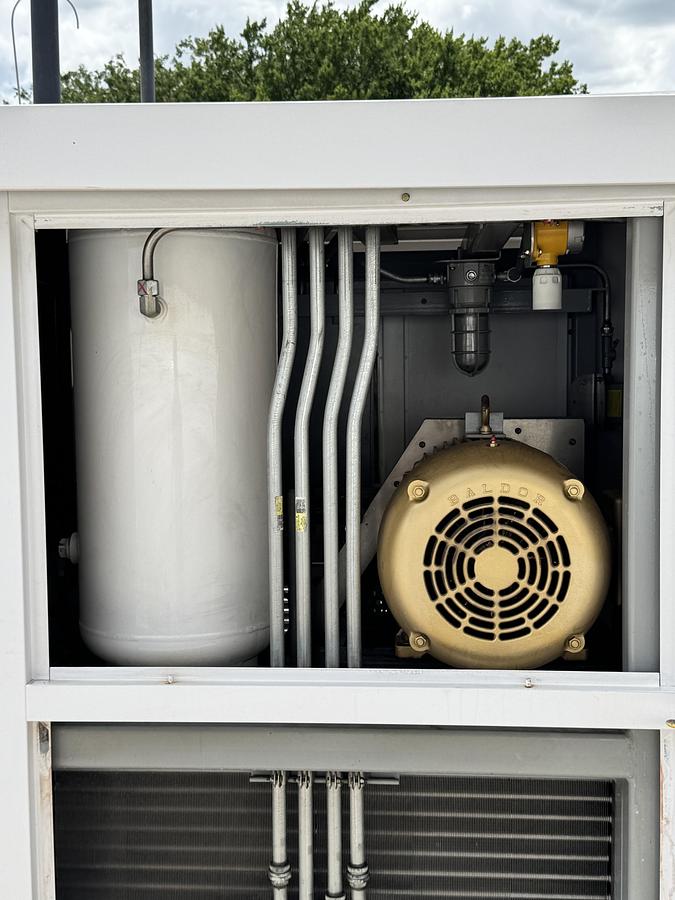

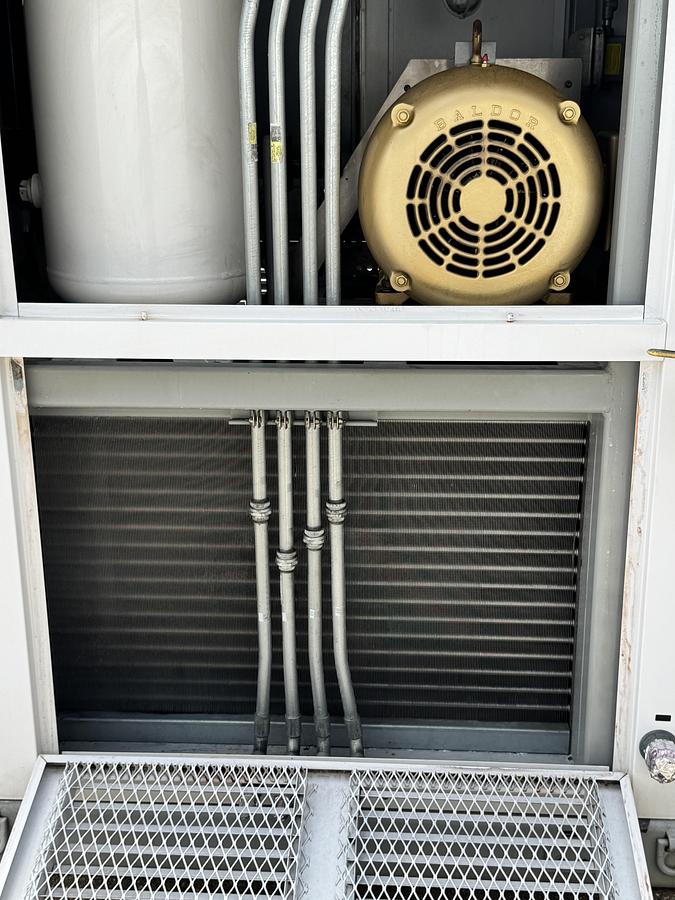

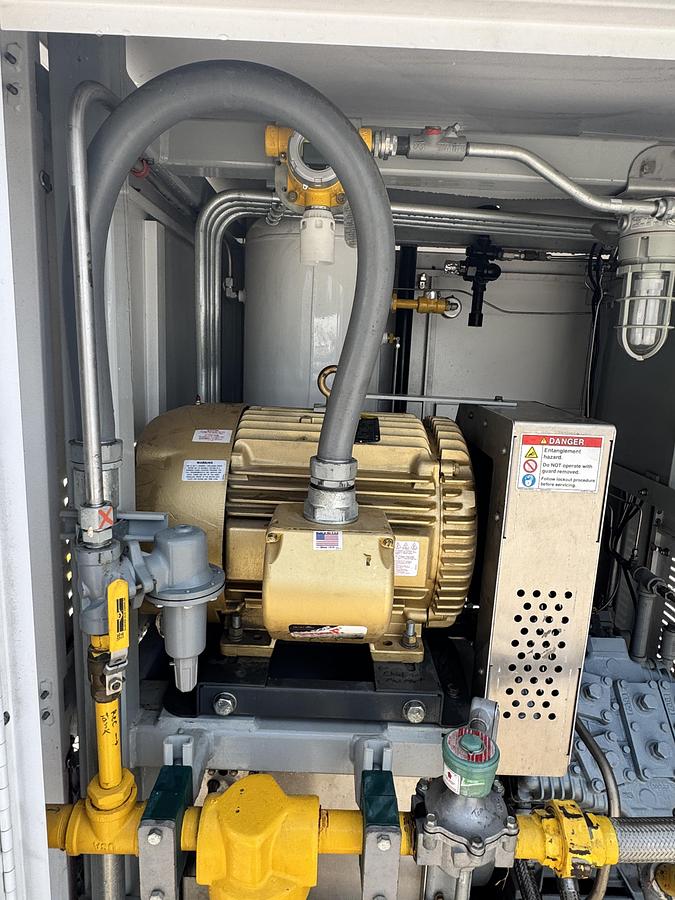

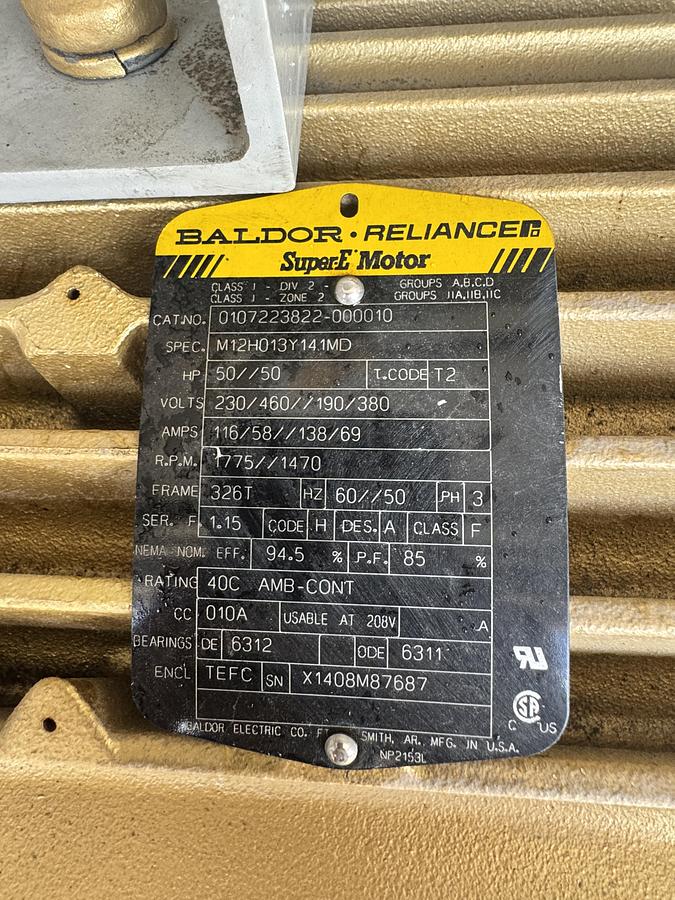

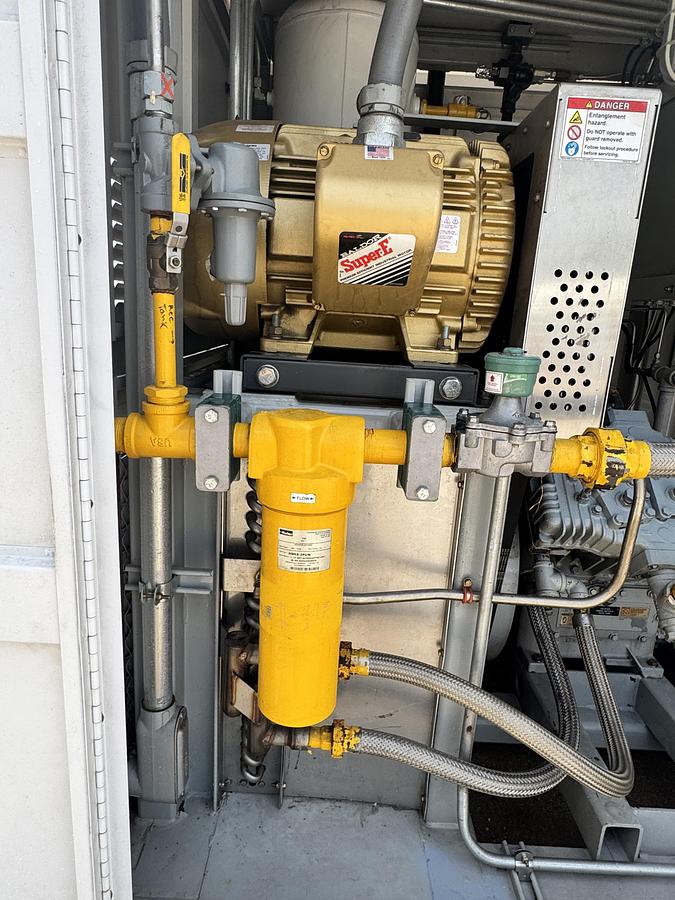

Motor:

  • Manufacturer: Baldor-Reliance Super E
  • Horsepower: 50 HP
  • Voltage: 230/460/190/380 VAC
  • Amperage: 116/58/138/69 A
  • RPM: 1775 / 1470
  • Efficiency: 94.5%
  • Enclosure: TEFC
  • Frame Size: 326T

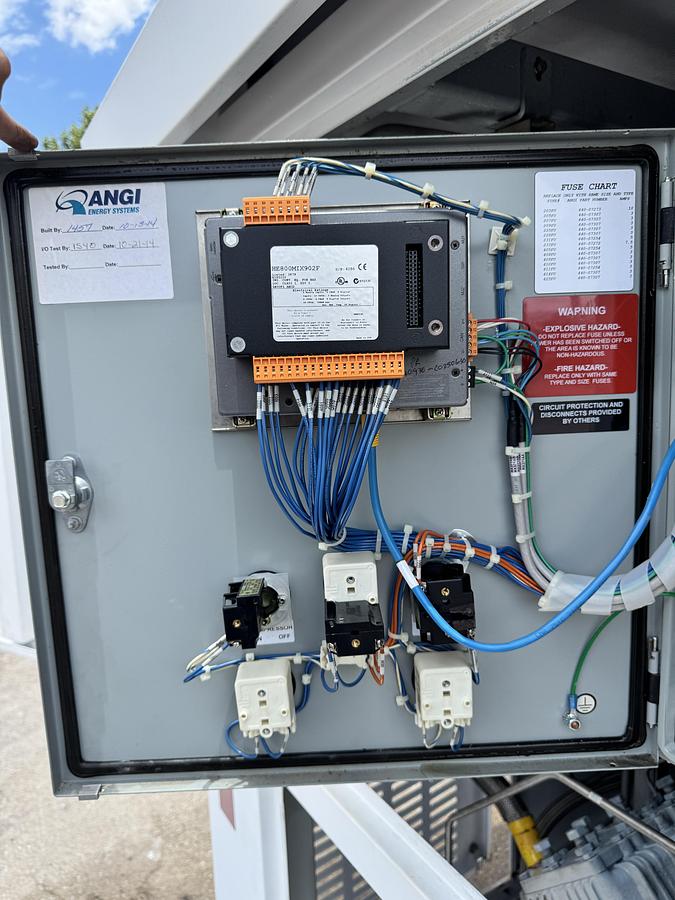

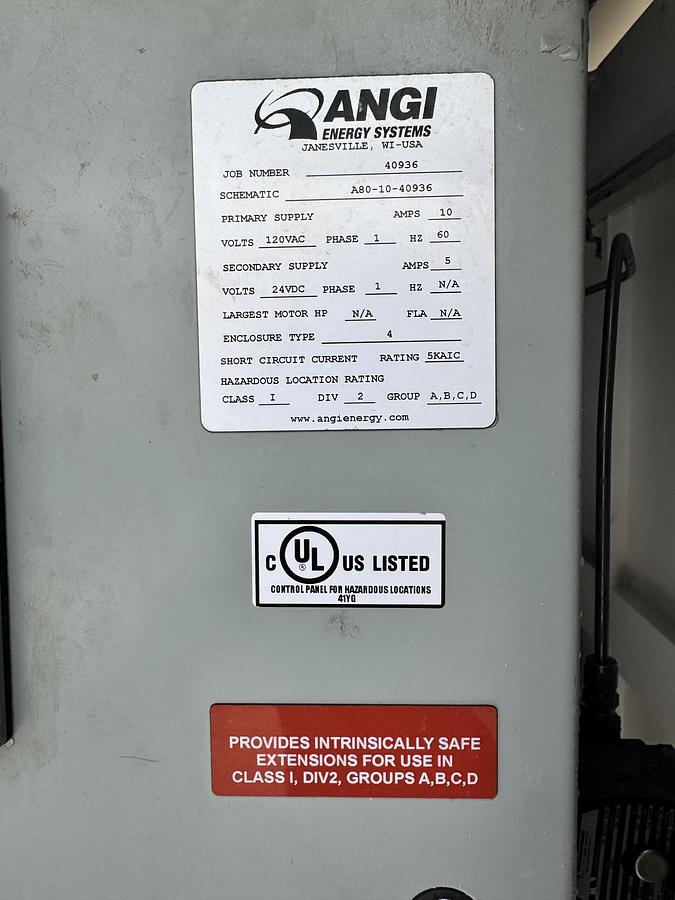

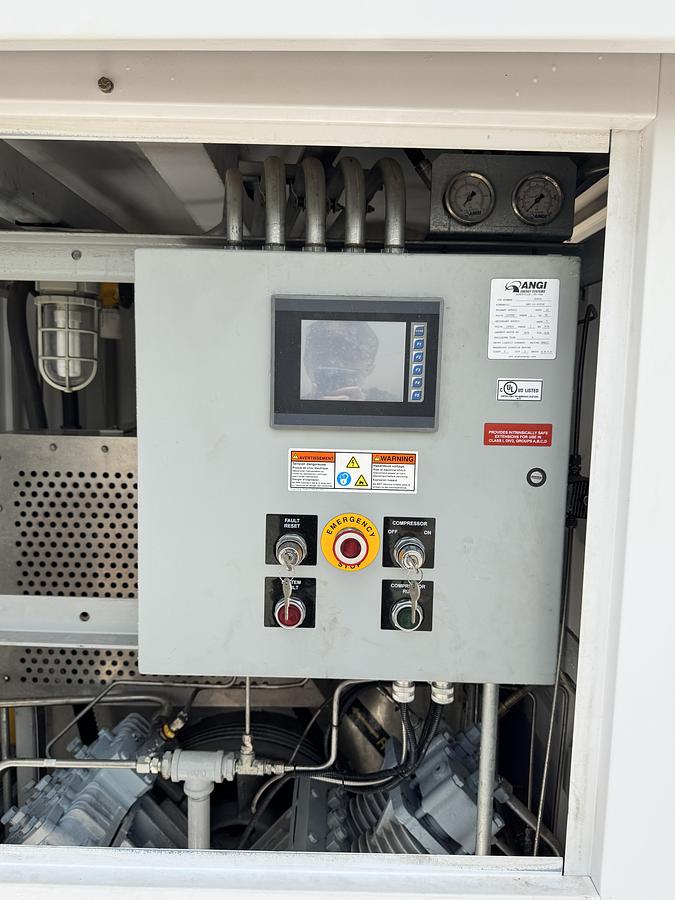

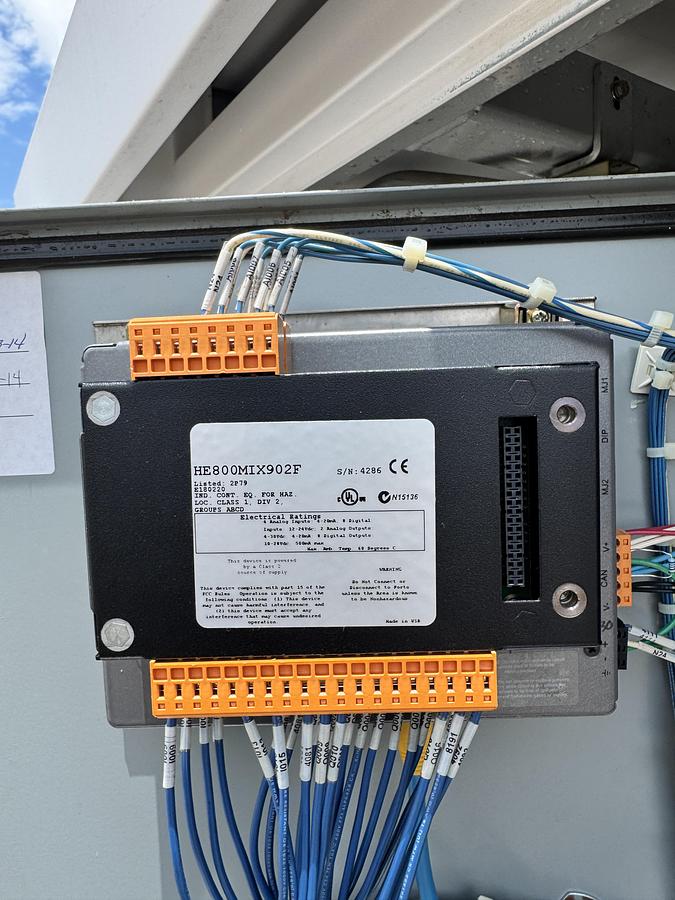

Electrical System:

  • Primary Supply: 120 VAC, 10 Amps, 60 Hz, 1 Phase

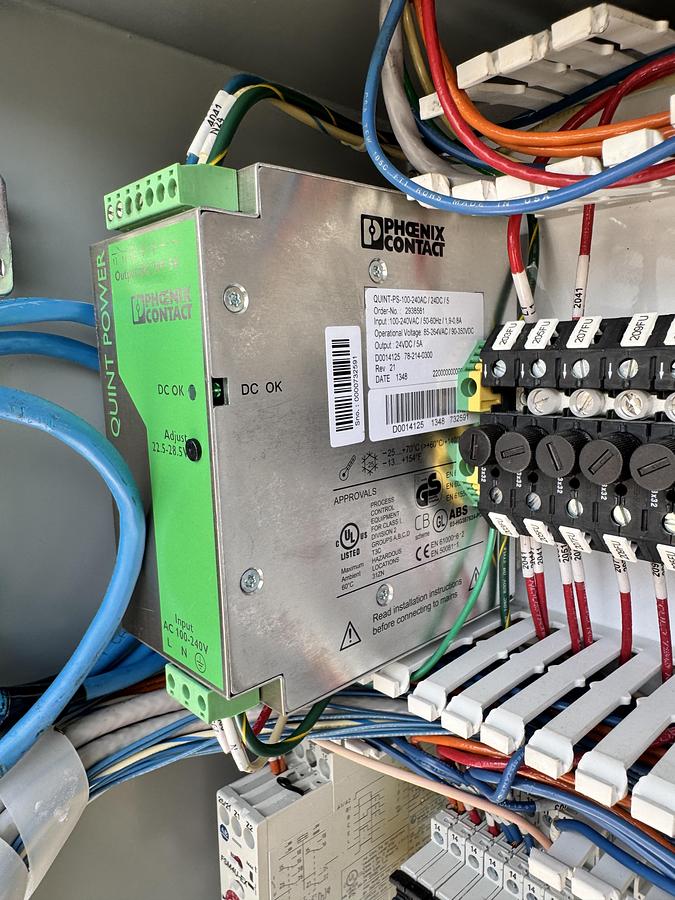

  • Secondary Supply: 24 VDC, 5 Amps

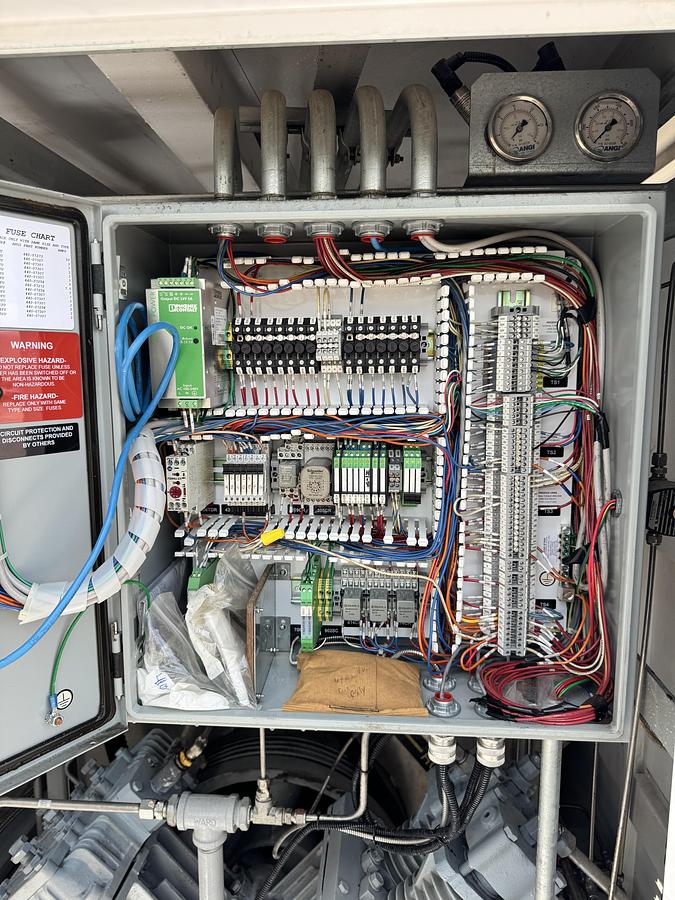

  • Control Panel: UL Listed for Hazardous Locations
  • Short Circuit Rating: 5kAIC
  • Hazardous Area Classification:
  • Class I, Division 2, Group D, T3C (compressor skid)
  • Class I, Division 2, Groups A, B, C, D (control panel)

Additional Components:

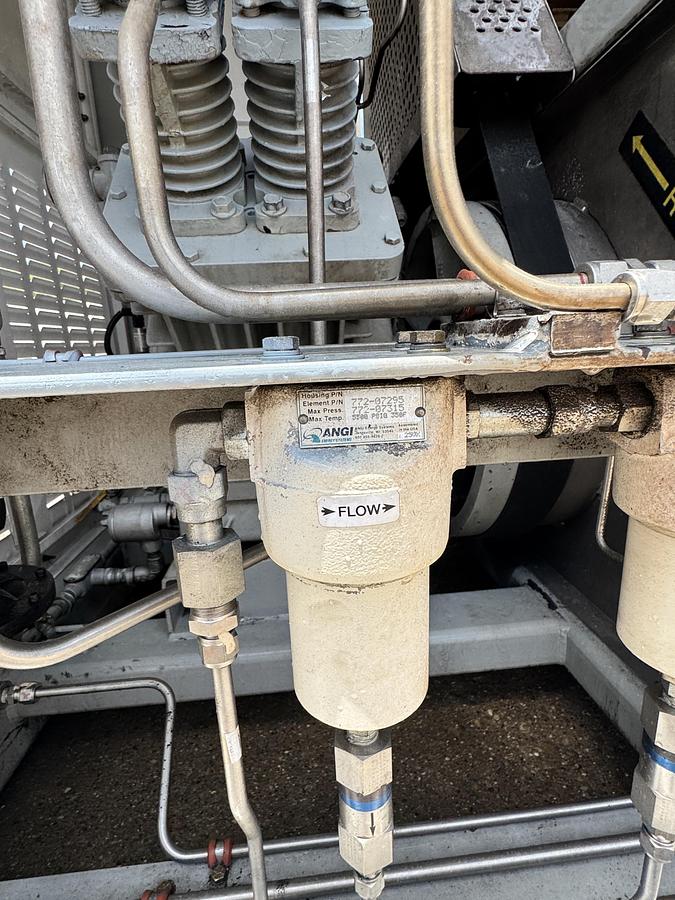

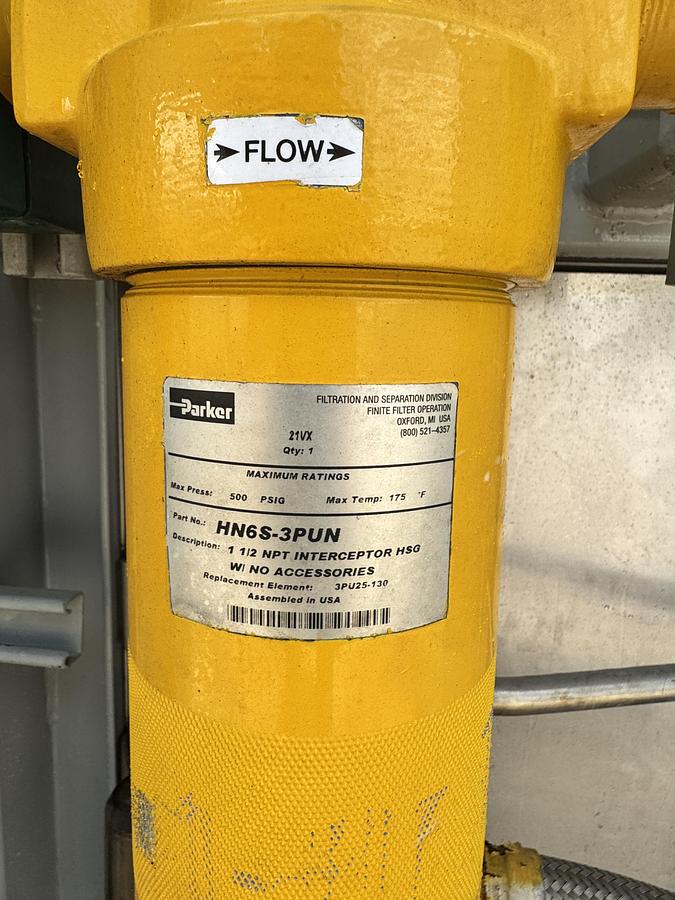

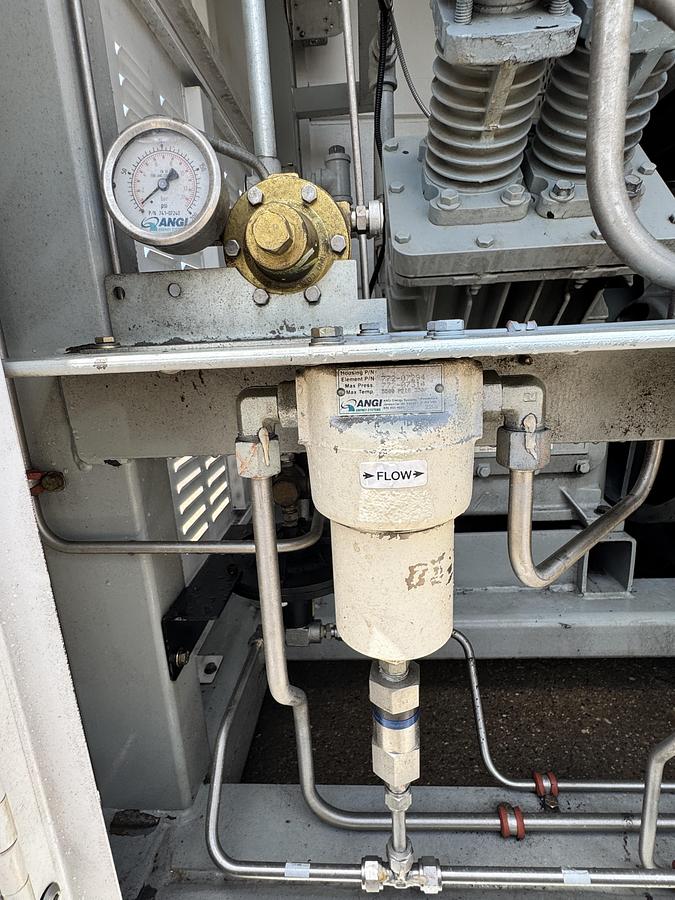

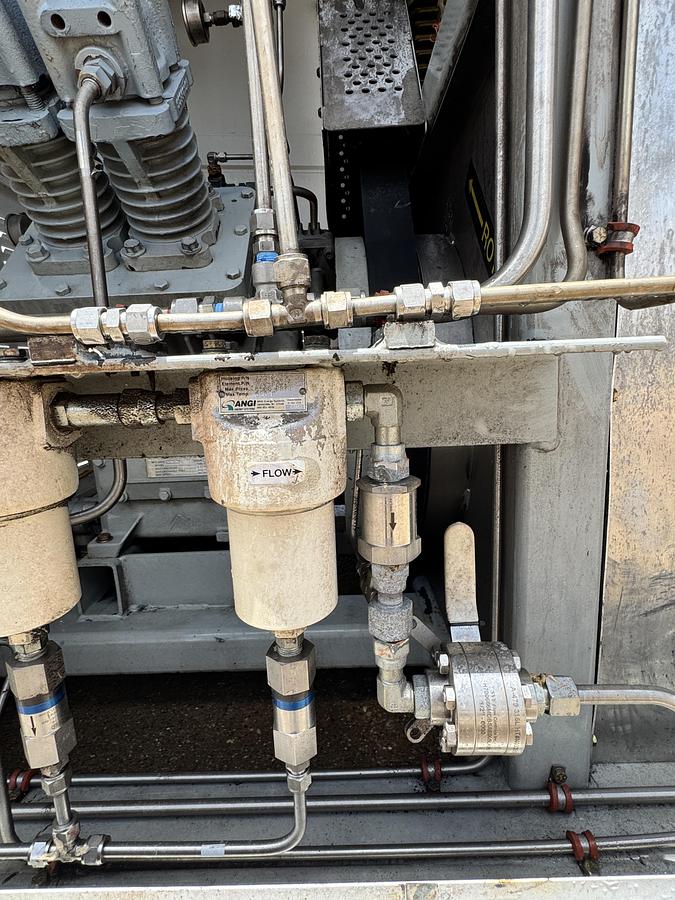

  • Filter: Parker HN6S-3PUN, 1-1/2” NPT Interceptor Housing (500 PSIG Max, 175°F Max Temp)

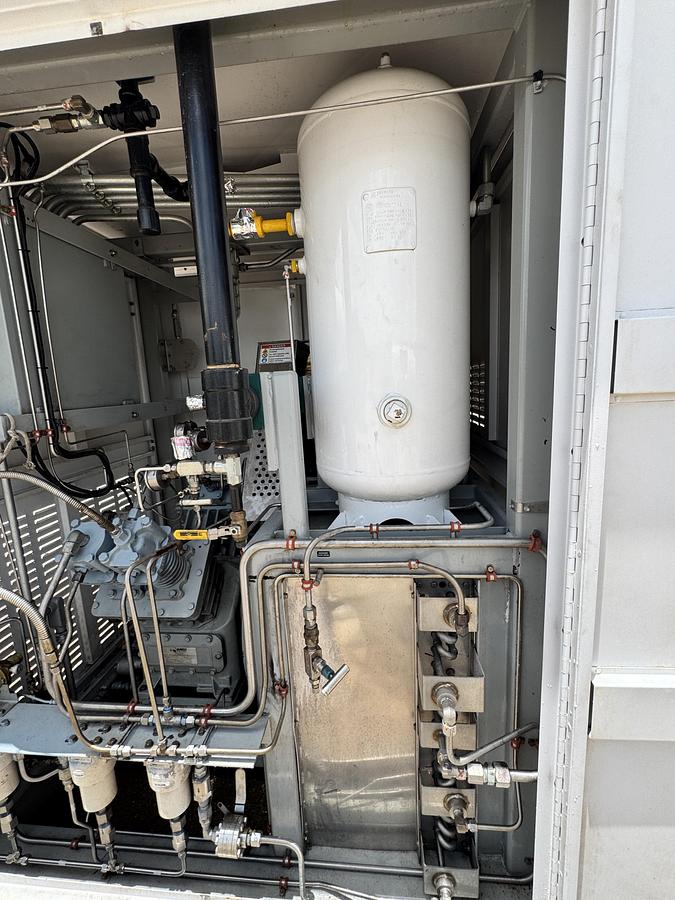

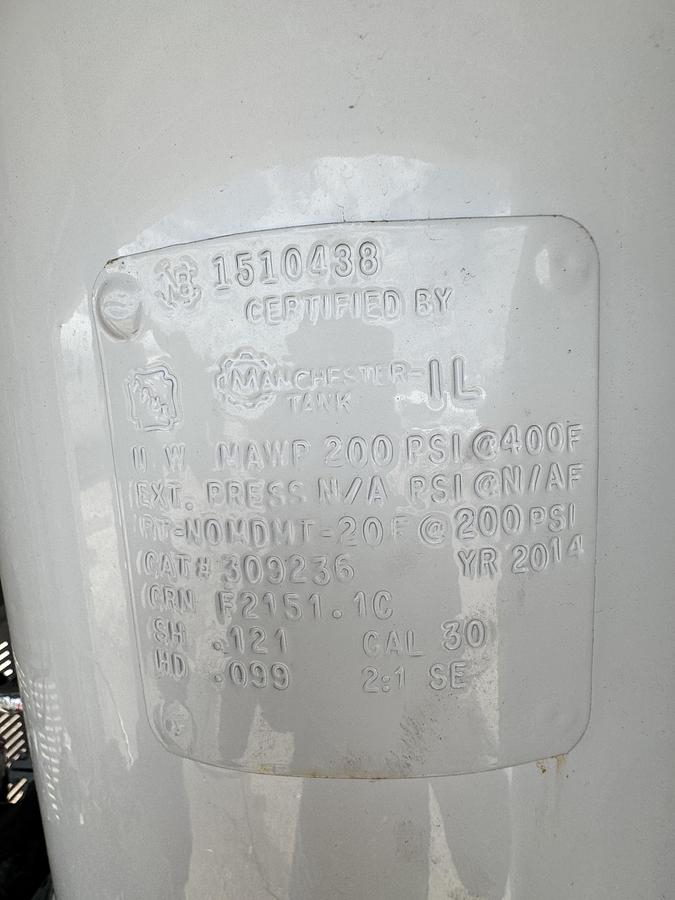

  • Surge Tank: Manchester Tank, 30 Gallon, MAWP 200 PSI @ 400°F, CRN F2151.1C

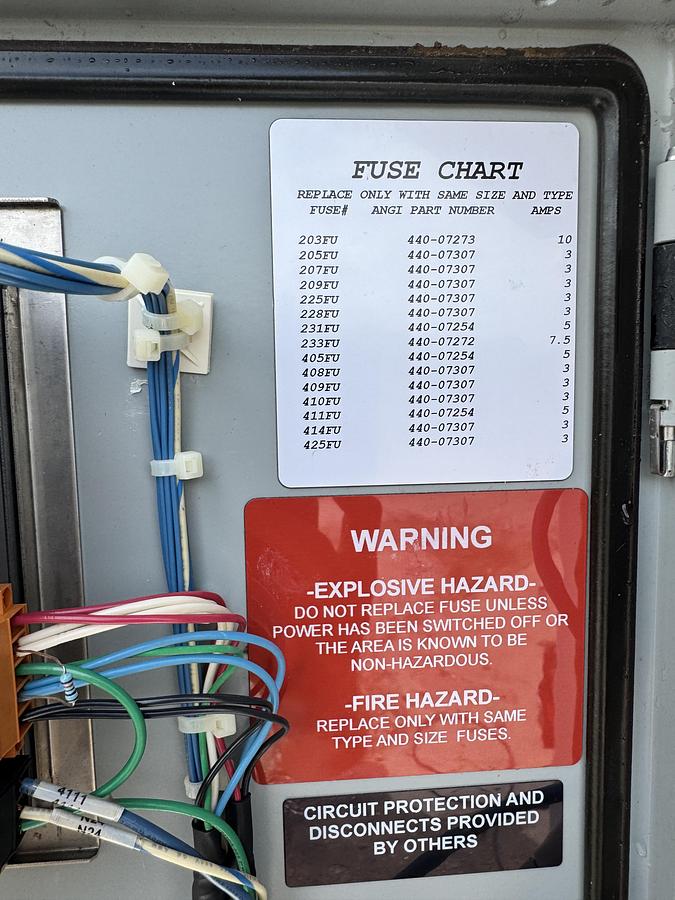

  • Fuse Chart: Included with part numbers and amperage ratings for each fuse position

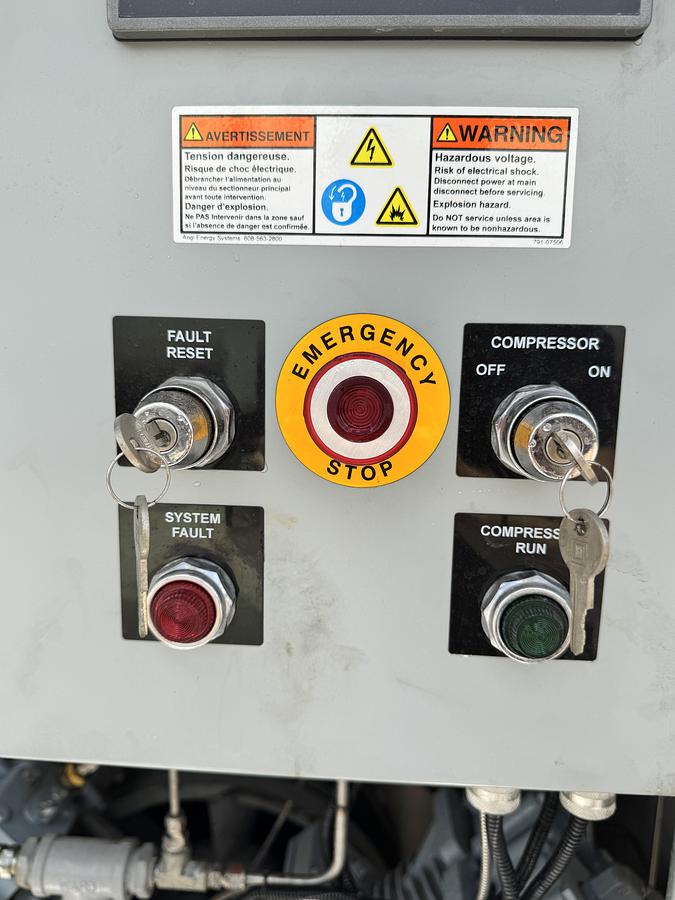

  • Safety Features:
  • Emergency Stop
  • System Fault and Compressor Fault Indicators
  • Keyed Compressor Start/Stop Control
  • Intrinsically Safe Extensions for Class 1, Div 2, Group D

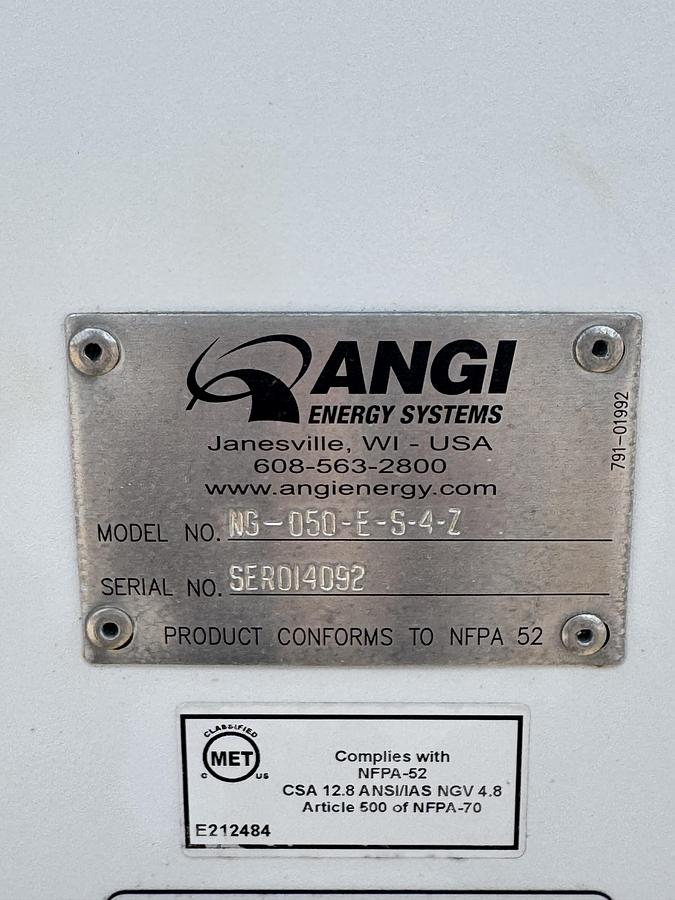

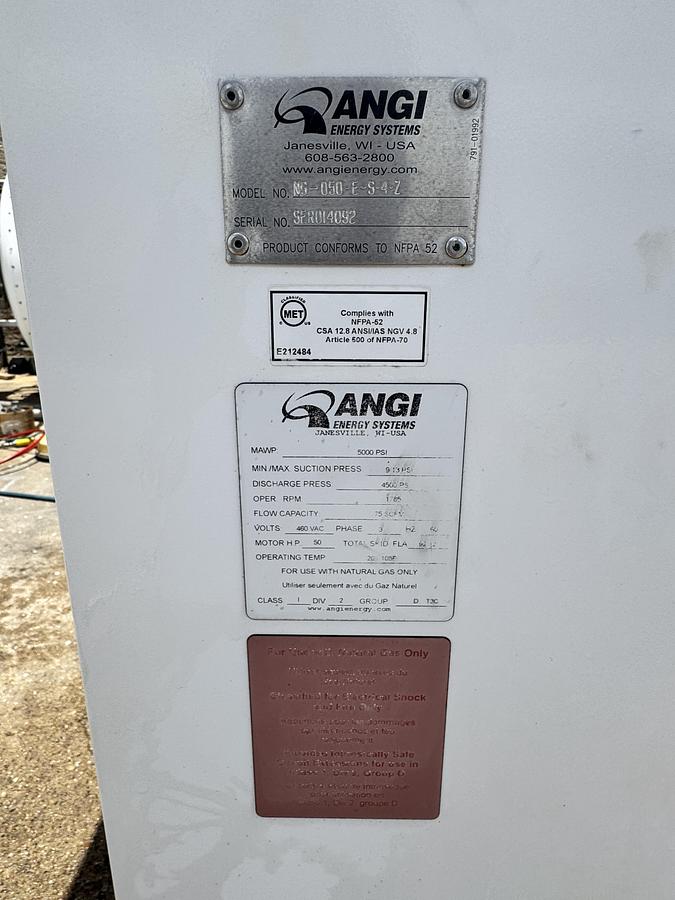

Certifications & Compliance:

  • NFPA 52
  • CSA 12.8 ANSI/IAS NGV 4.8
  • Article 500 of NFPA-70
  • UL & MET Listed

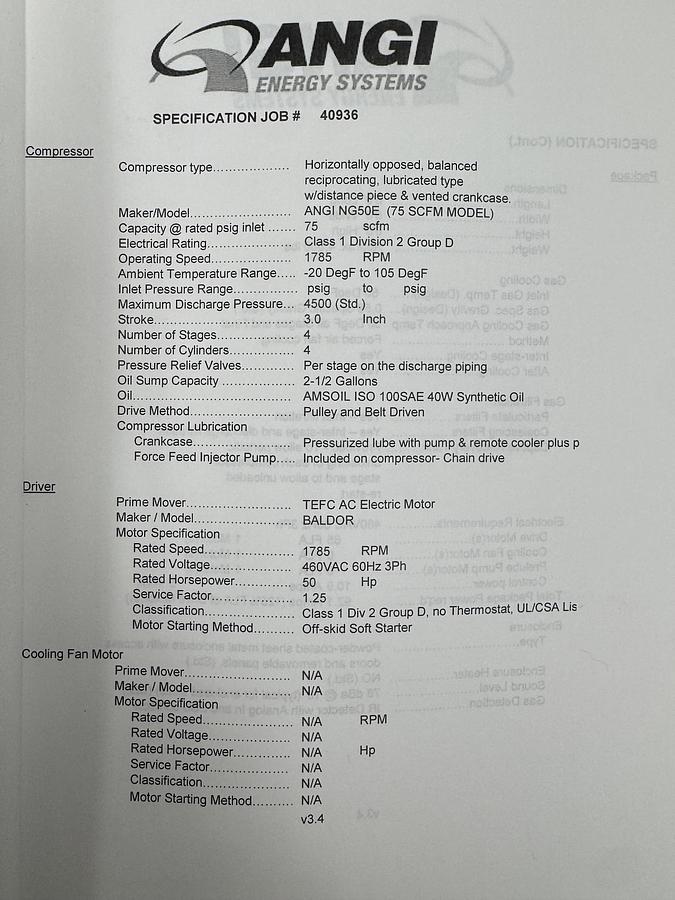

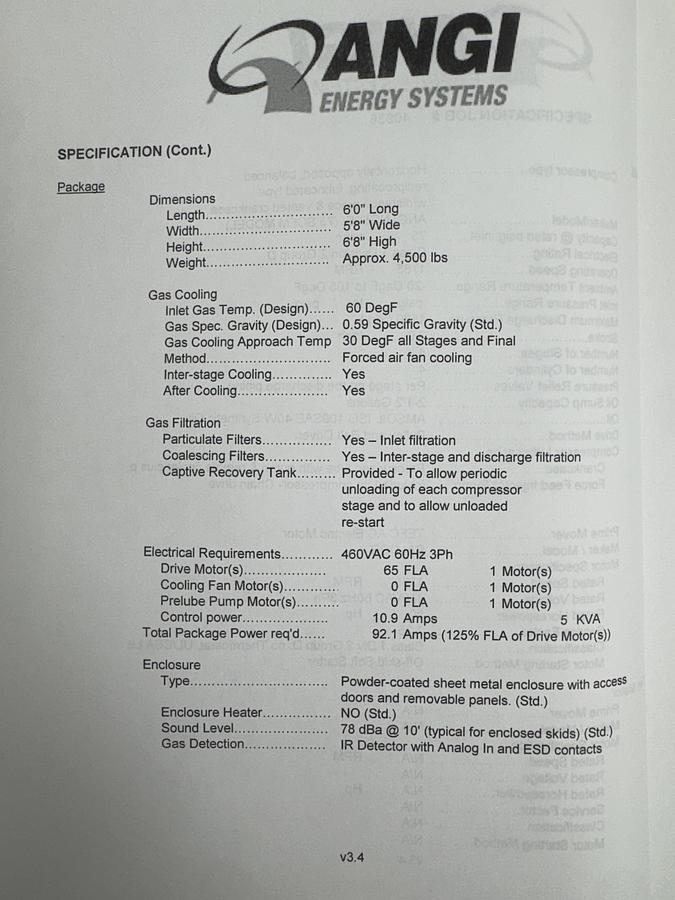

Specifications

ManufacturerANGI Energy Systems
ModelNG-050-E-S-4-Z
ConditionUsed
Stock Number0334-CCH-DAL
