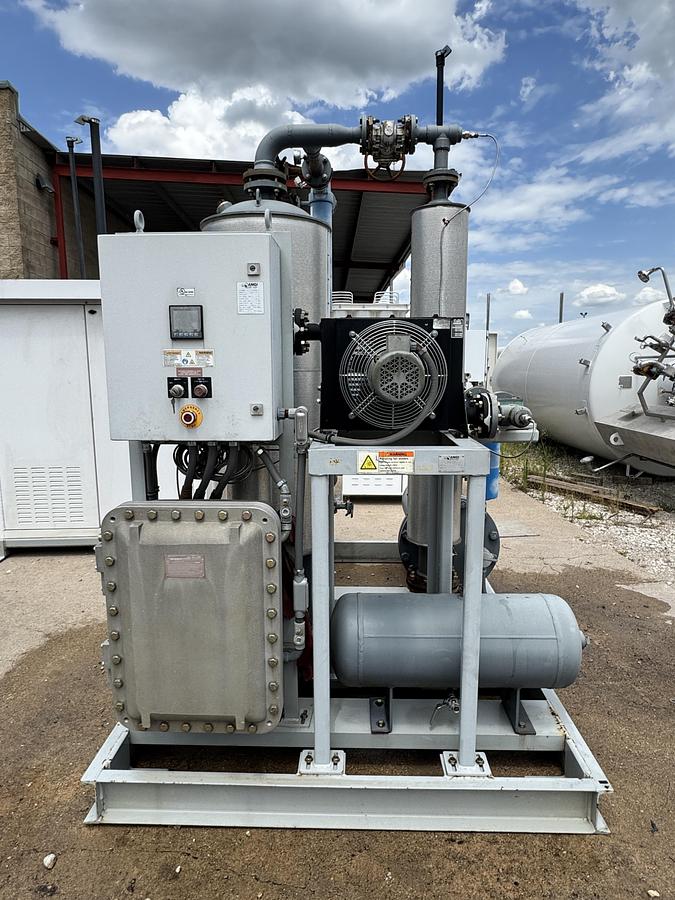

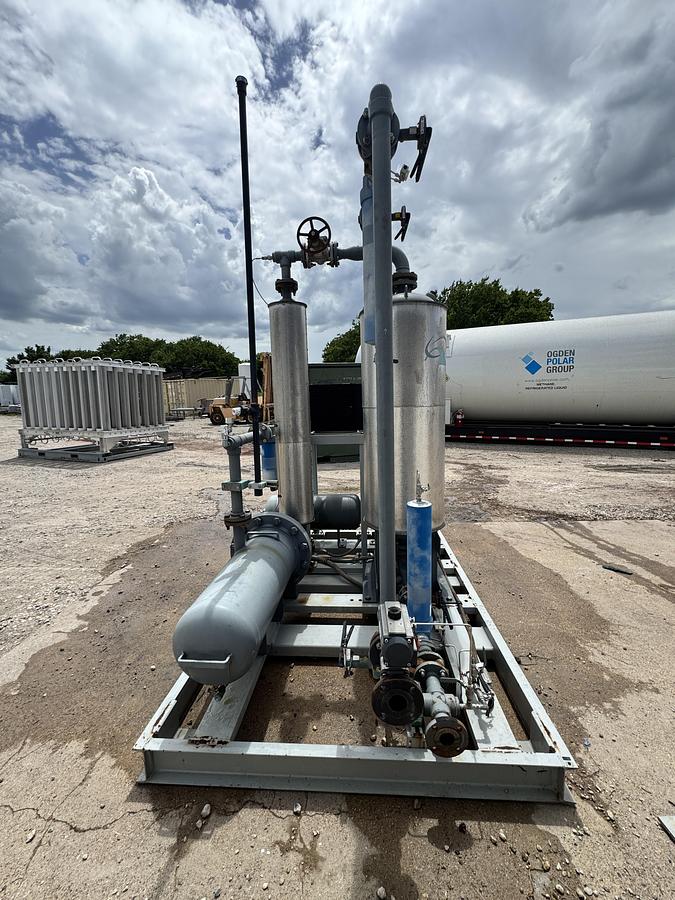

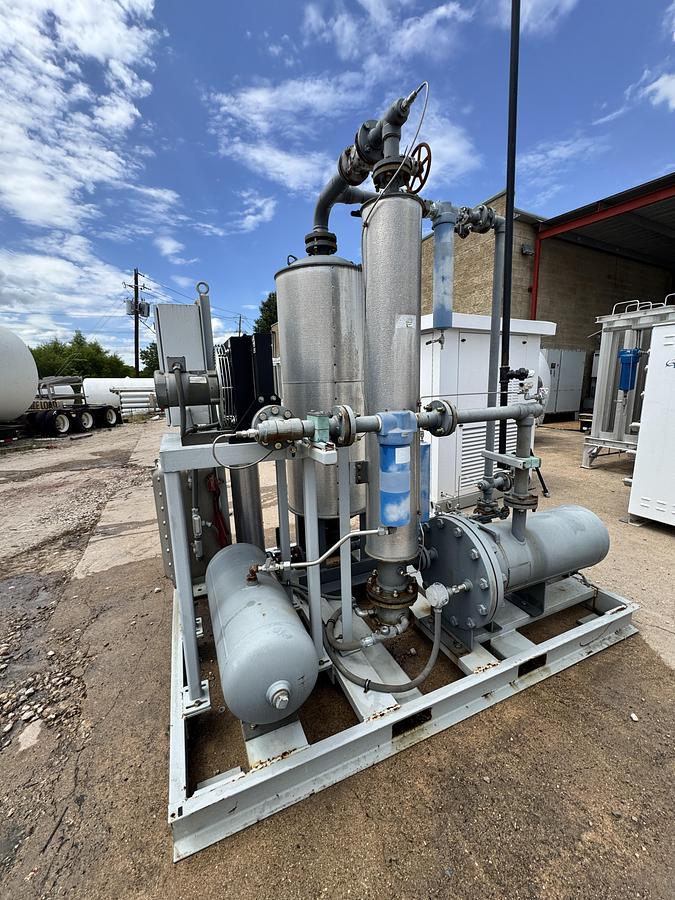

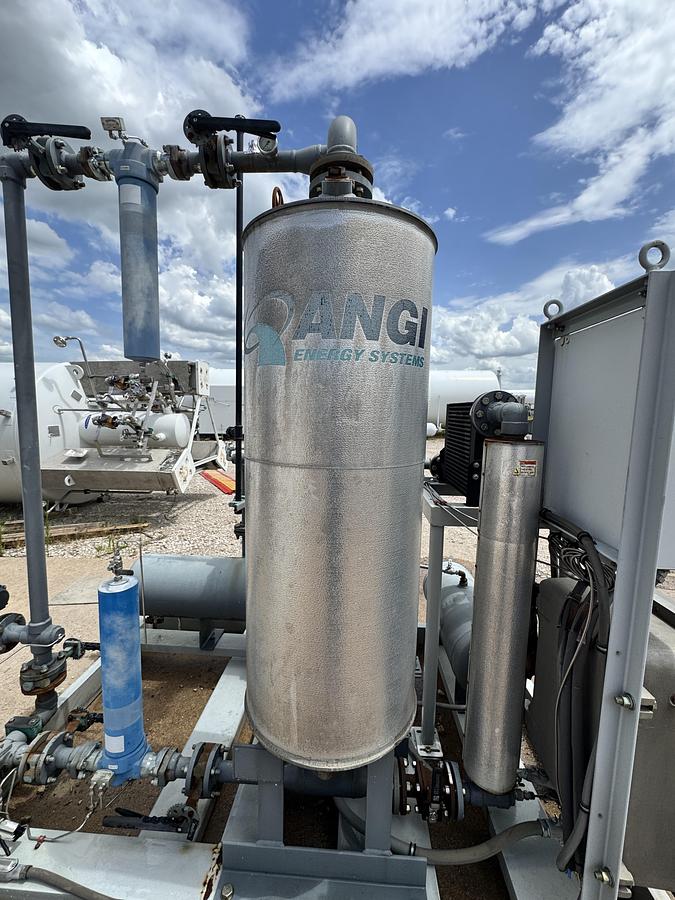

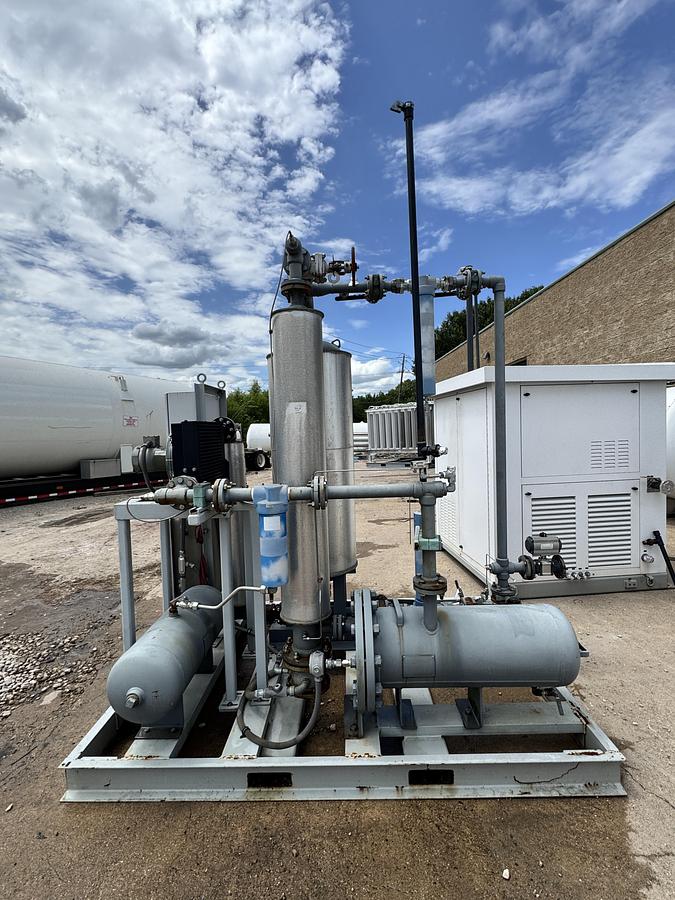

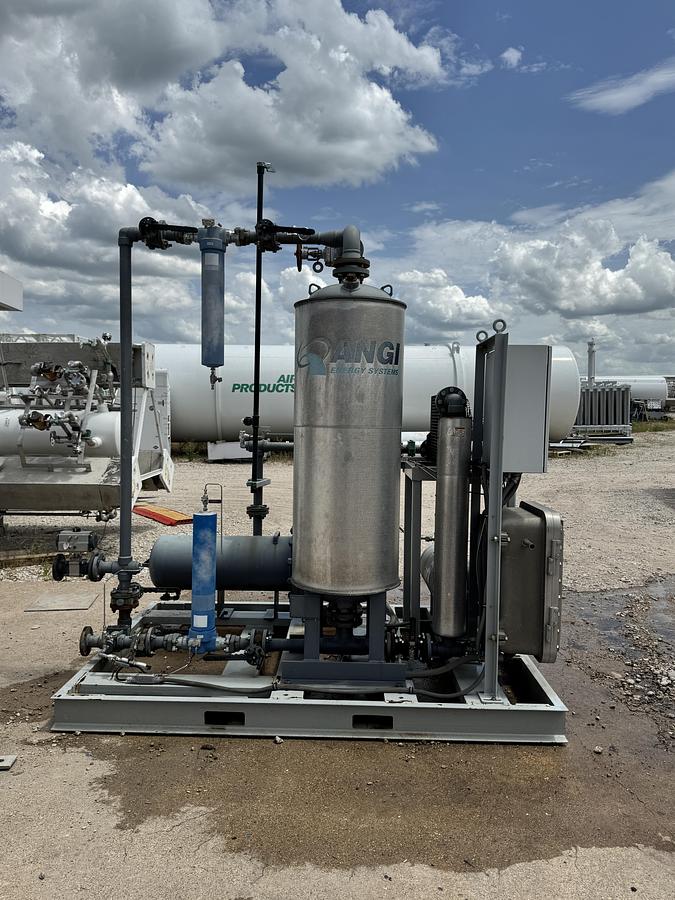

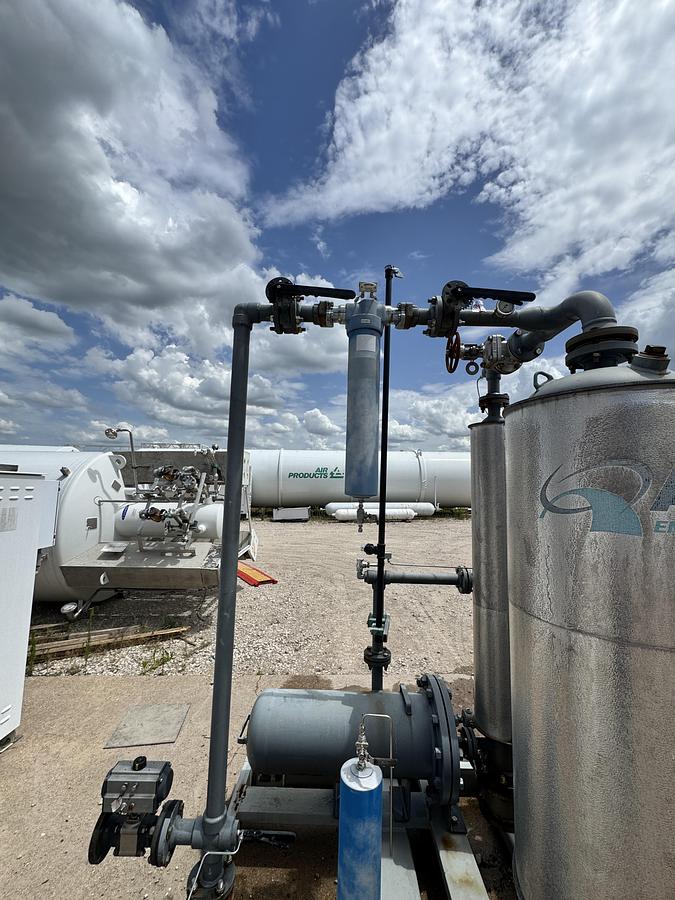

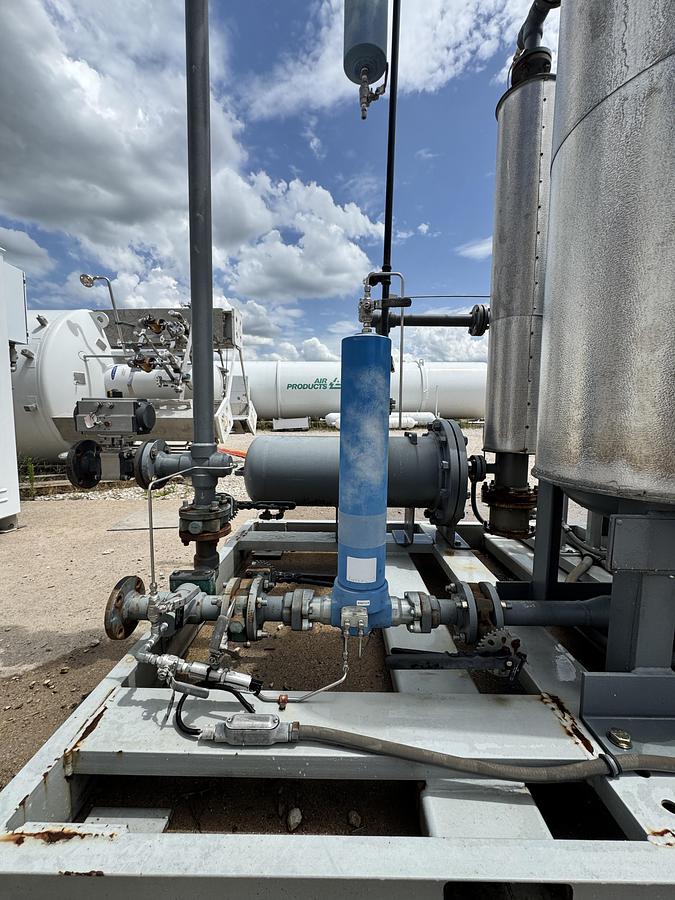

ANGI Energy Systems Natural Gas Dryer Skid with Controls, Motor, and Cooler

Specifications

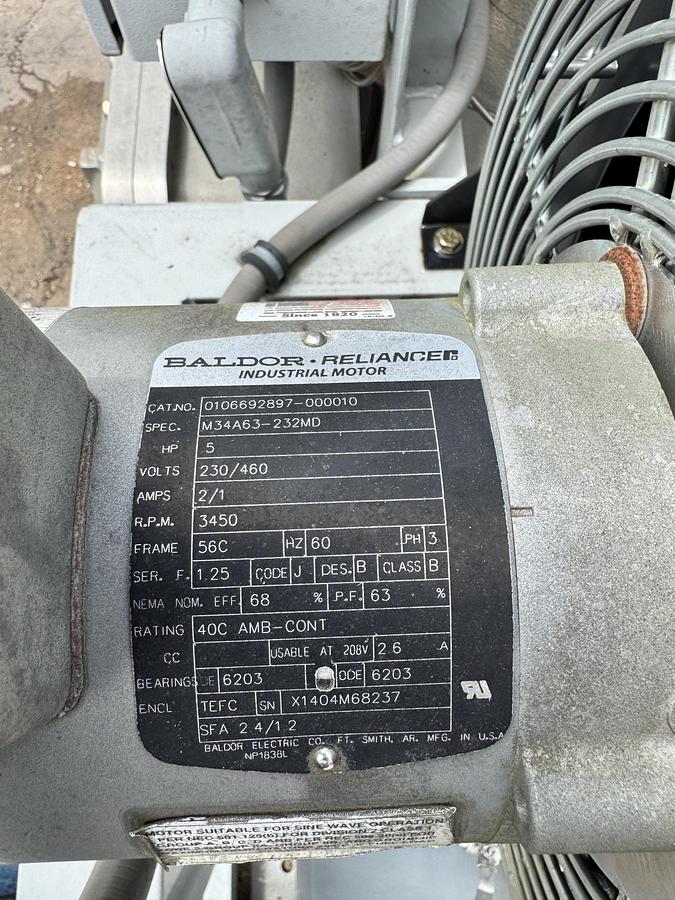

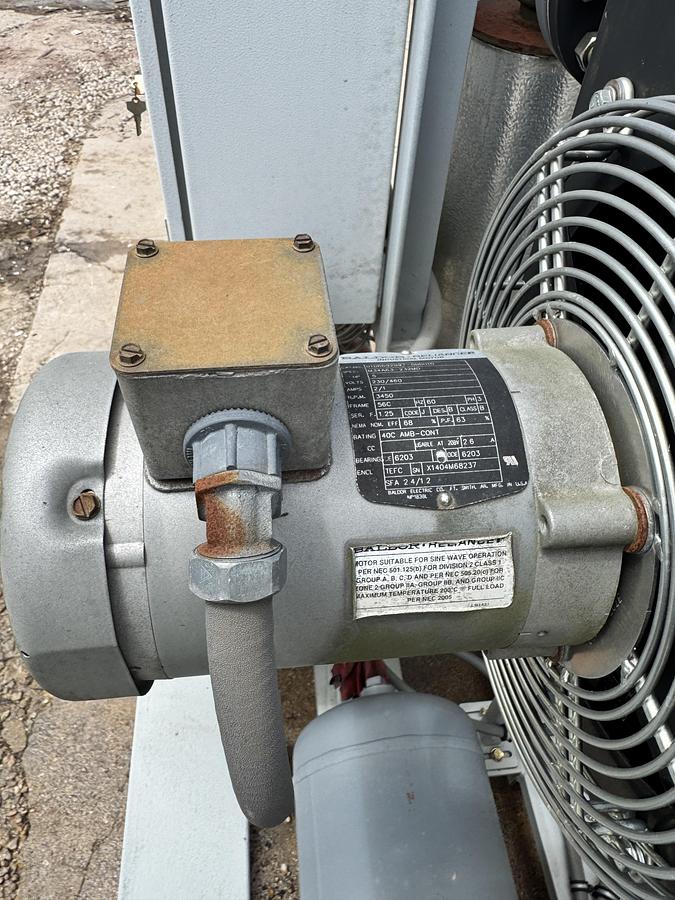

BALDOR Industrial Motor

Model: M34A63-232MD

Voltage: 230/460V, 3 Phase

Amps: 2/1

RPM: 3450

Frame: 56C

Service Factor: 1.25

Enclosure: TEFC (Totally Enclosed Fan Cooled)

Efficiency: 68% NEMA

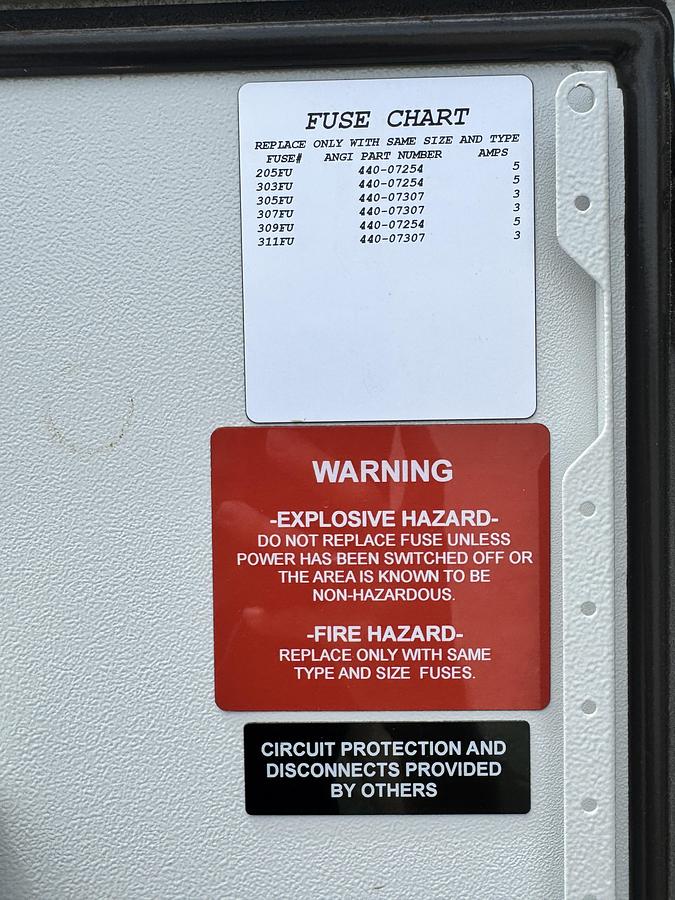

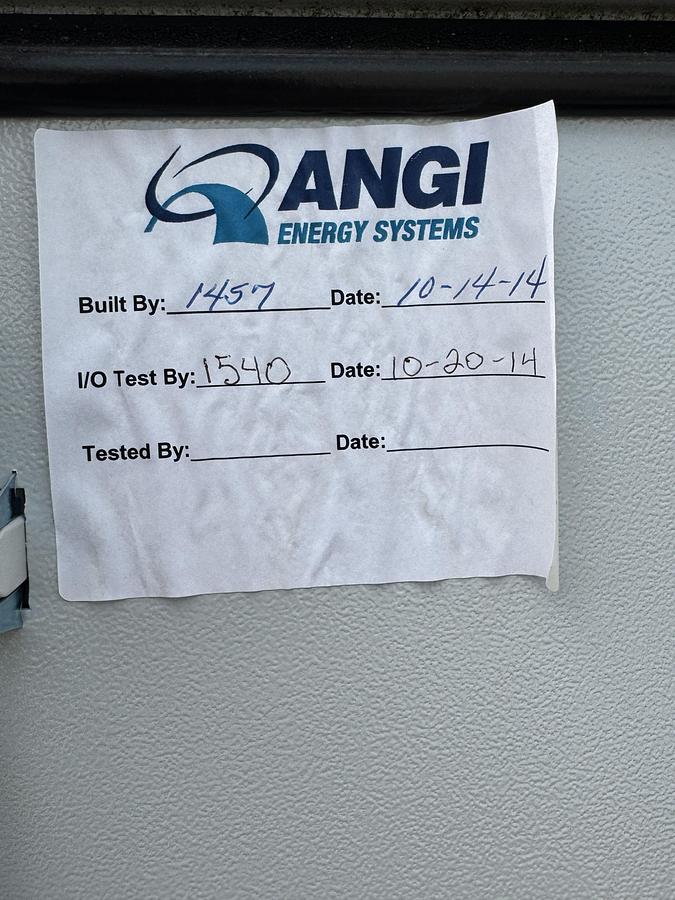

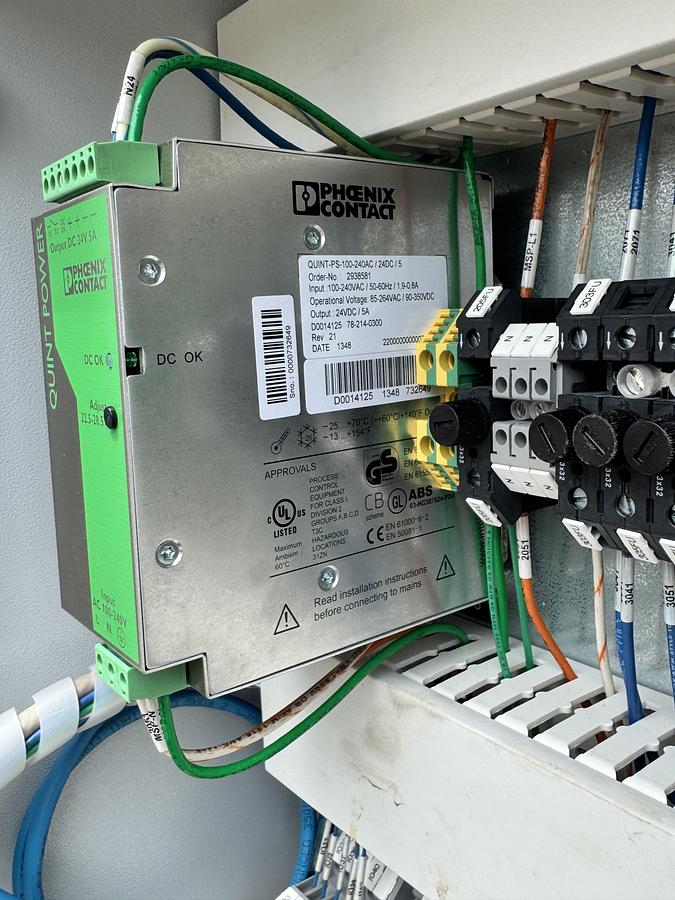

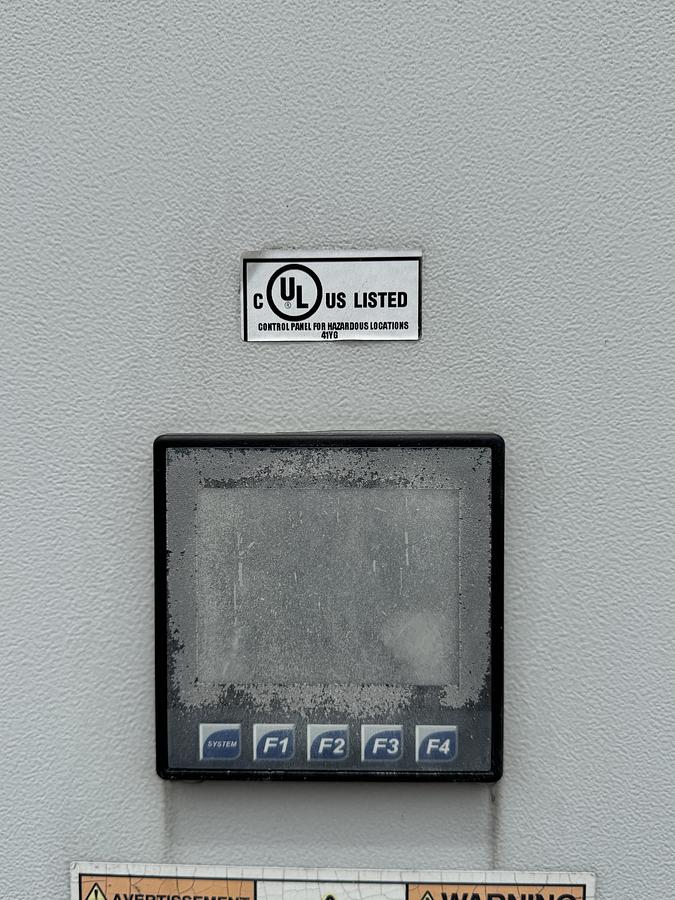

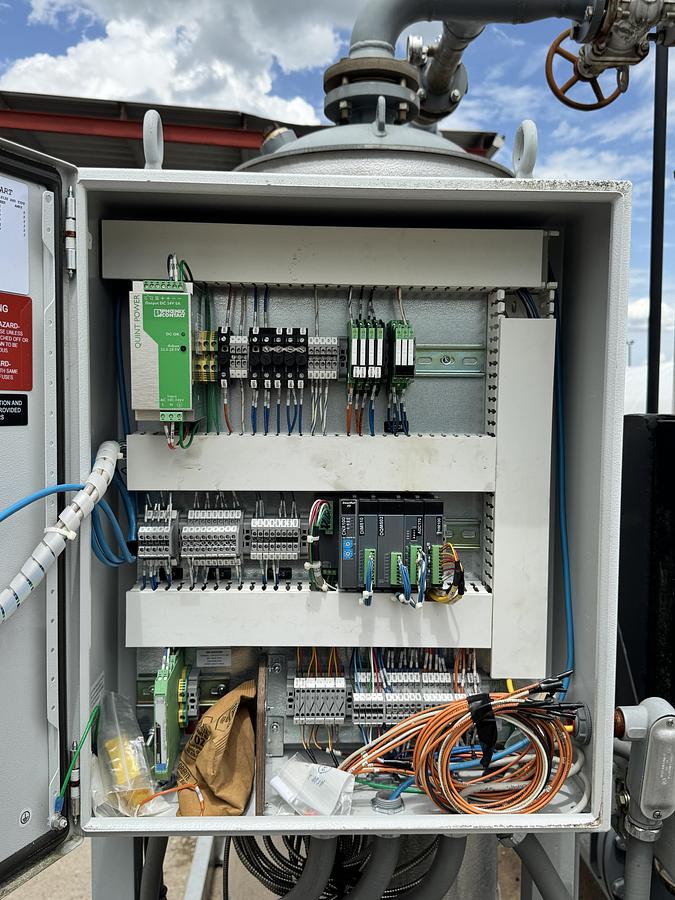

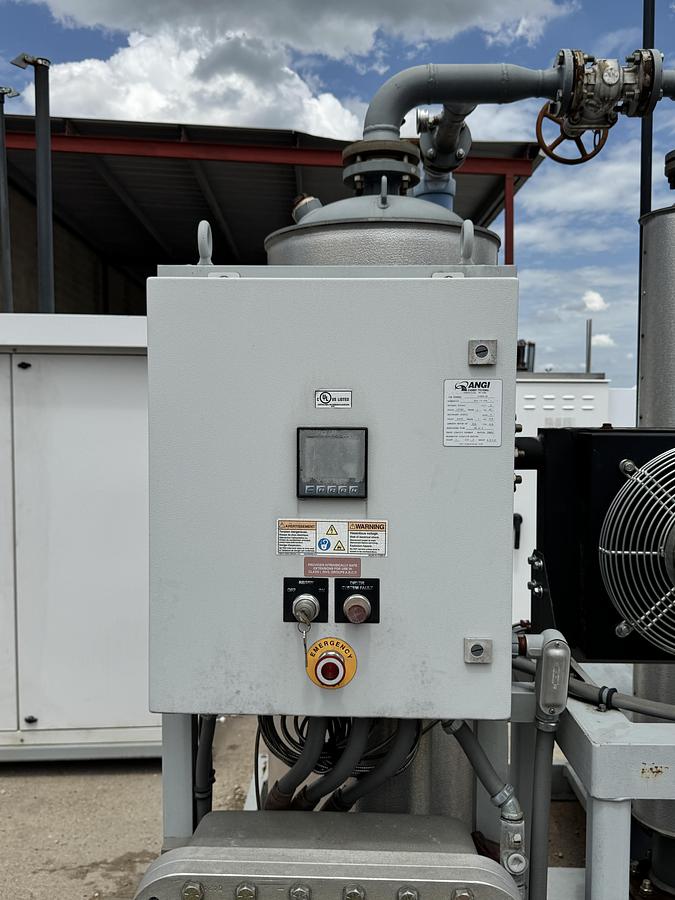

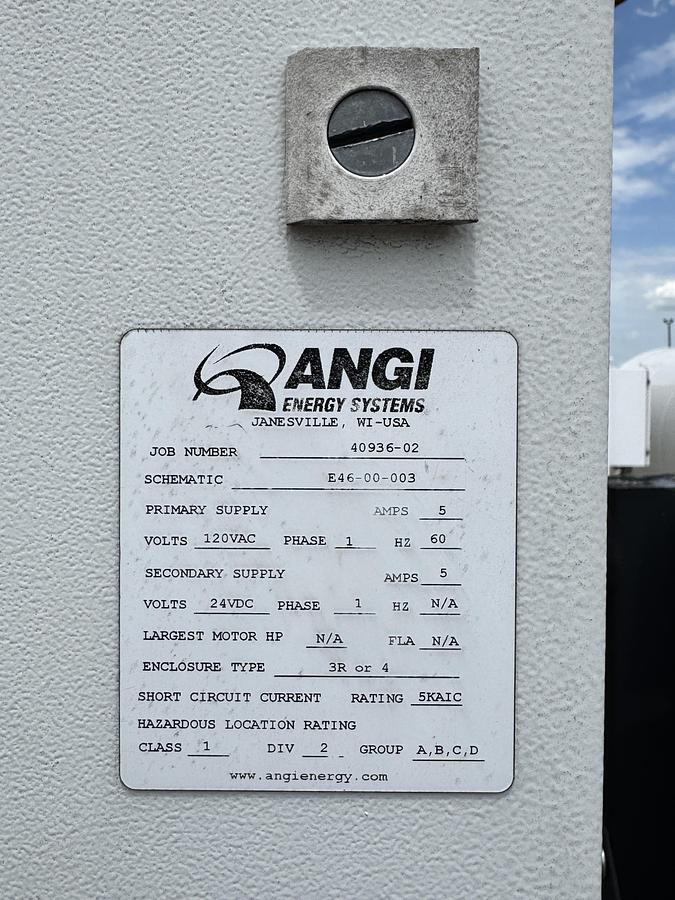

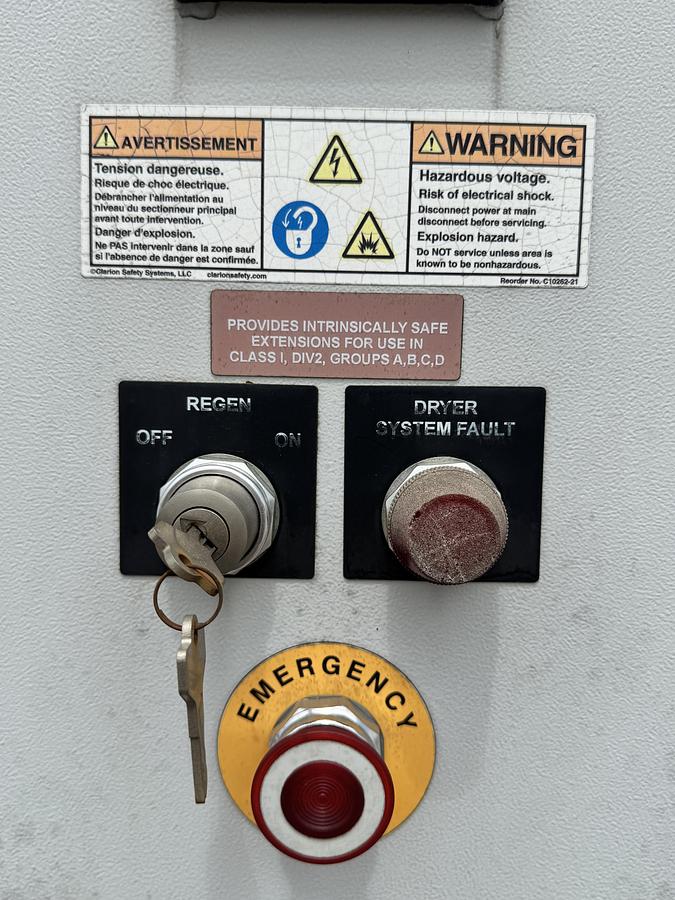

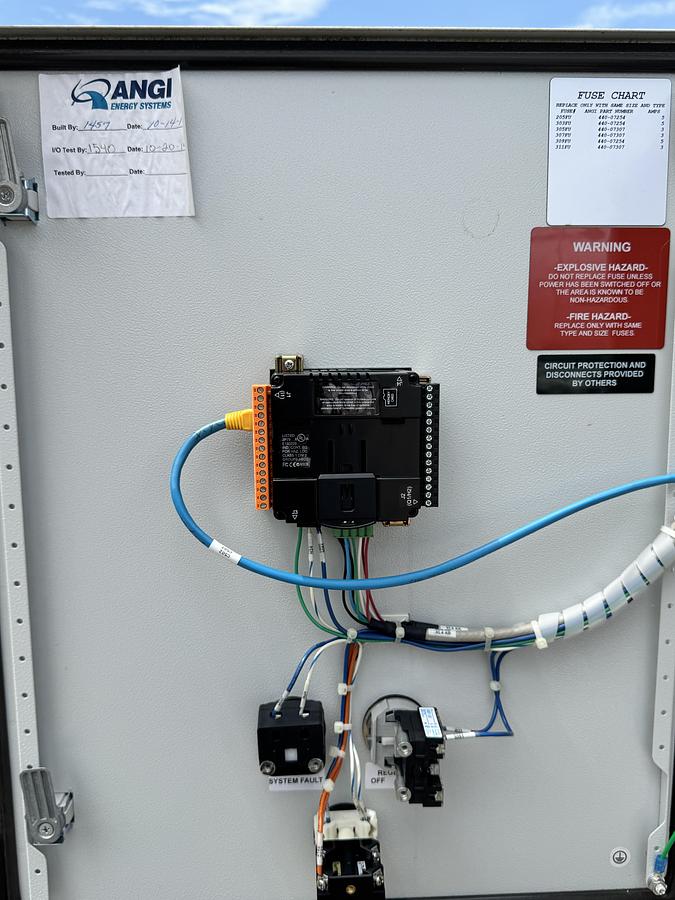

ANGI Electrical Control Panel

Job Number: 40936-02

Schematic: E46-00-003

Primary: 120VAC, 5 Amps, 1 Phase

Secondary: 24VDC, 5 Amps

Enclosure Rating: NEMA 3R or 4

Hazardous Location Class: Class I, Div 2, Groups A, B, C, D

Short Circuit Rating: 5kAIC

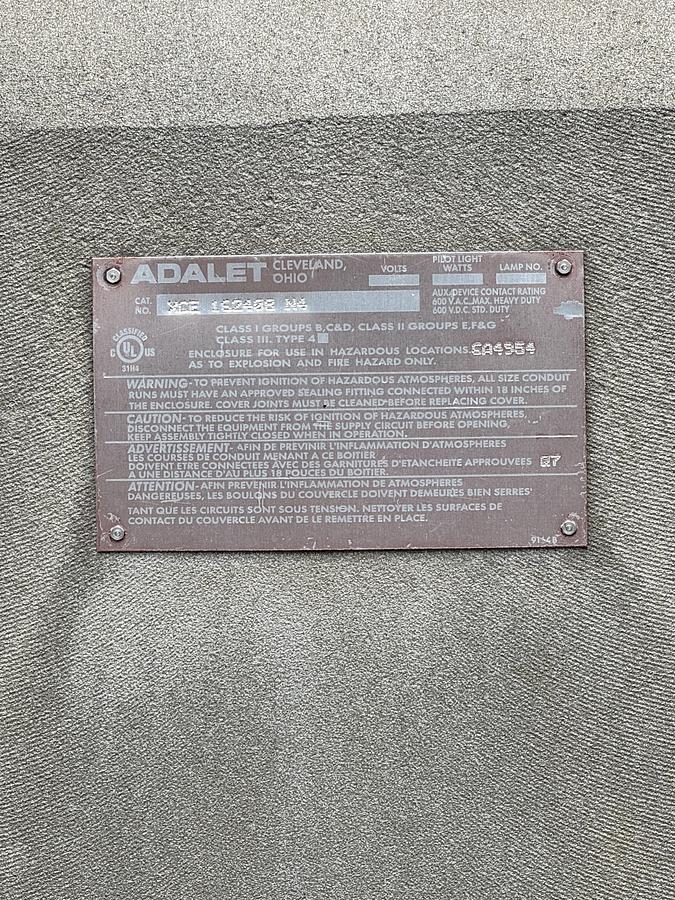

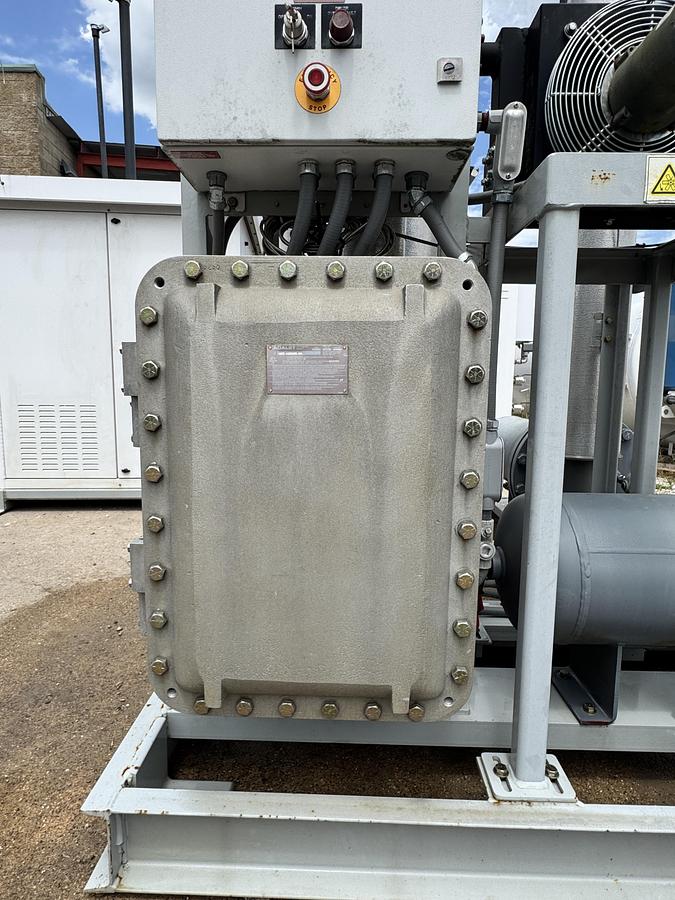

ADALET Explosion-Proof Junction Box

Model: XDE 162328 N4

Rated for: Class I, Groups B, C, D | Class II, Groups E, F, G

Enclosure Type: NEMA Type 4 for Hazardous Locations

Voltage Rating: 600 VAC / 600 VDC

Certification: UL Listed

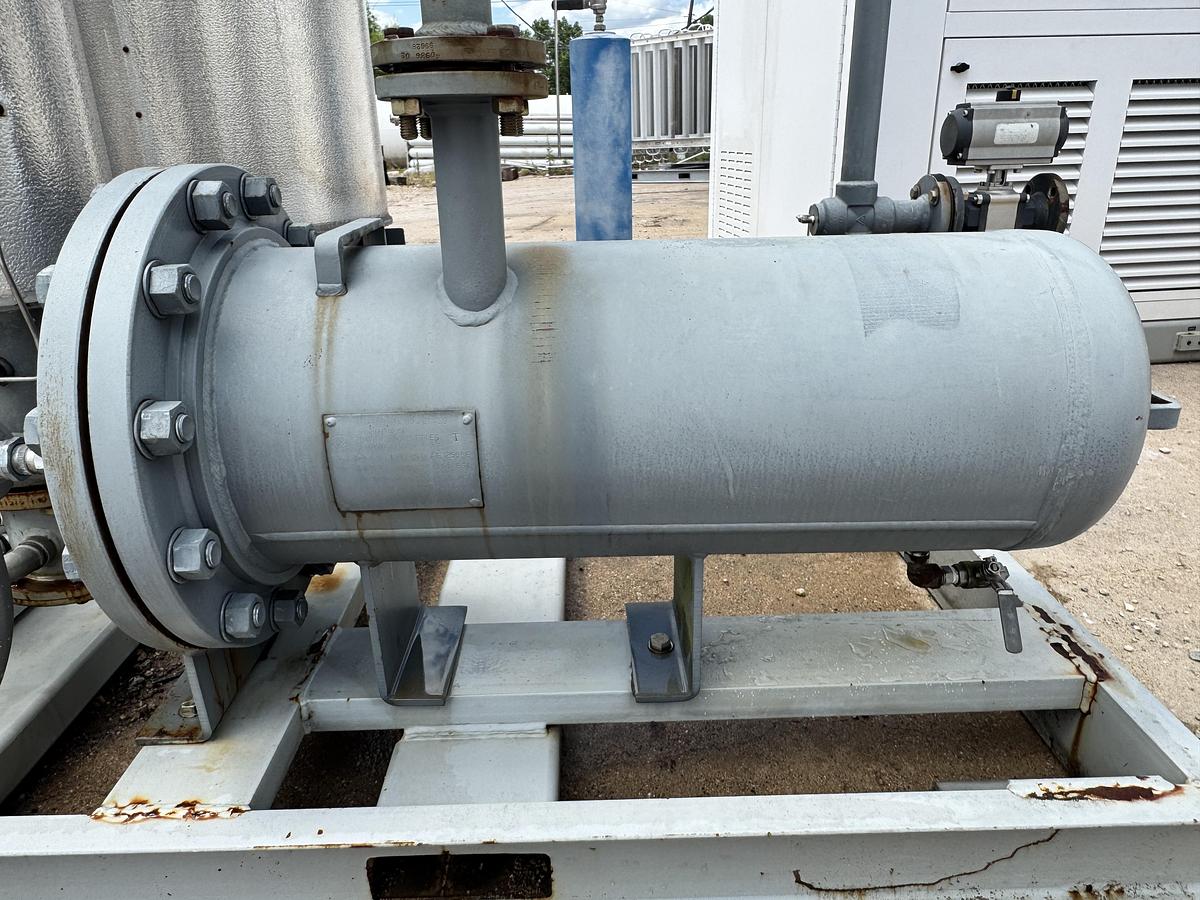

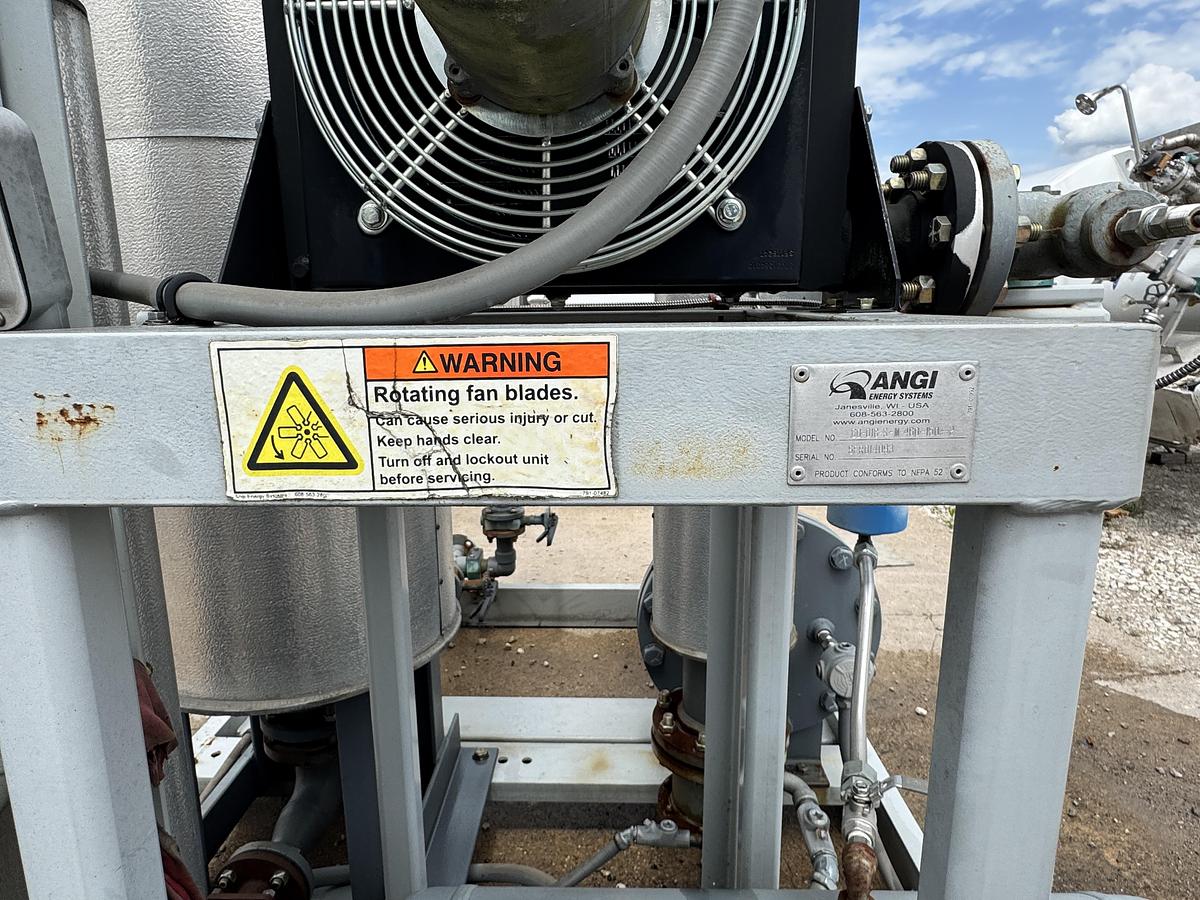

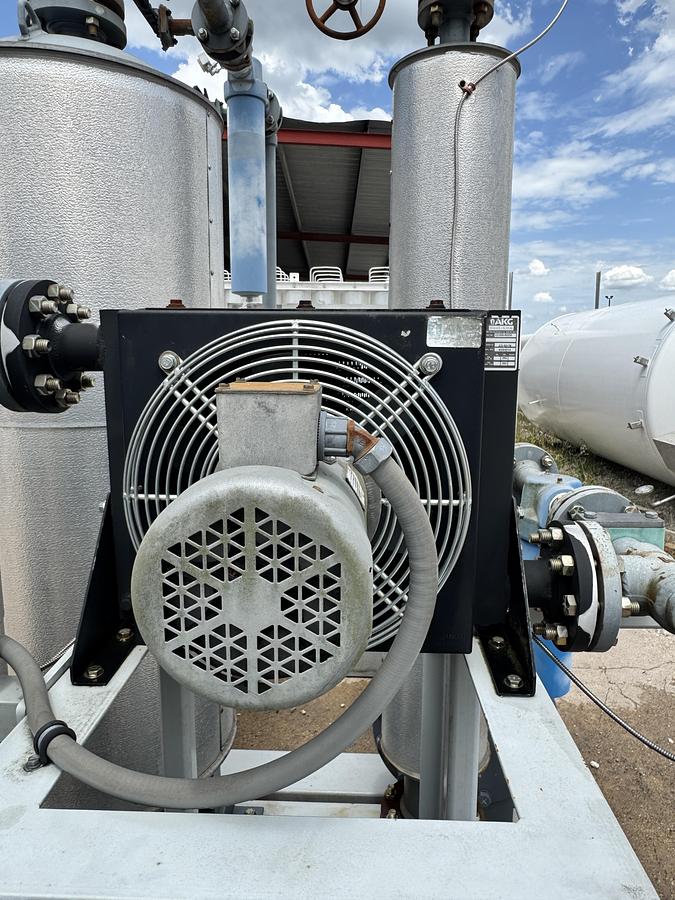

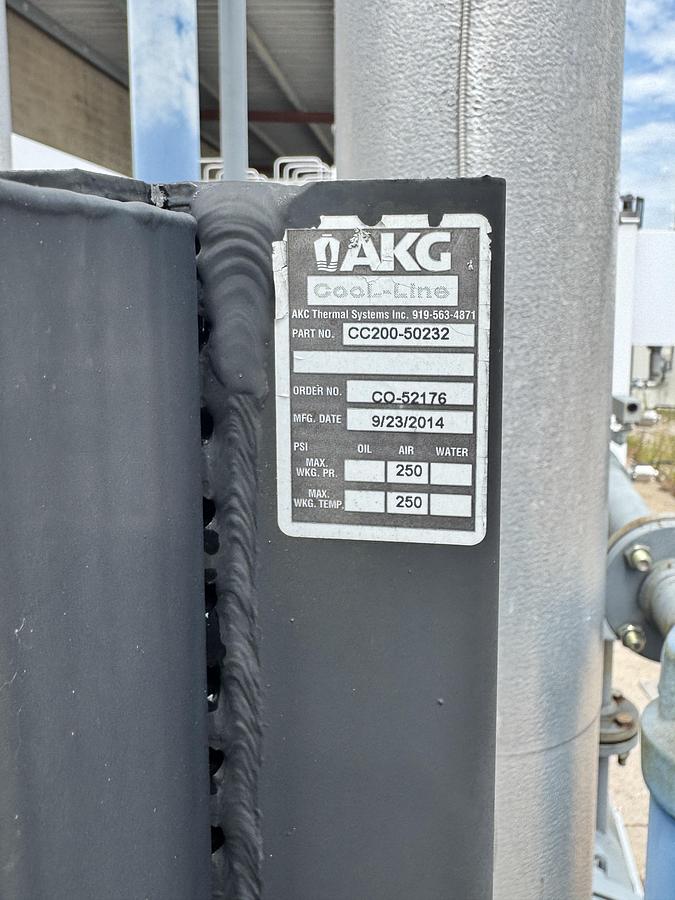

AKG Thermal Systems Air Cooler

Part Number: CC200-50232

Order No.: CO-52176

Max Working Pressure: 250 PSI

Max Working Temperature: 250°F

Manufacture Date: 9/23/2014

Application: Oil / Air / Water cooling compatible

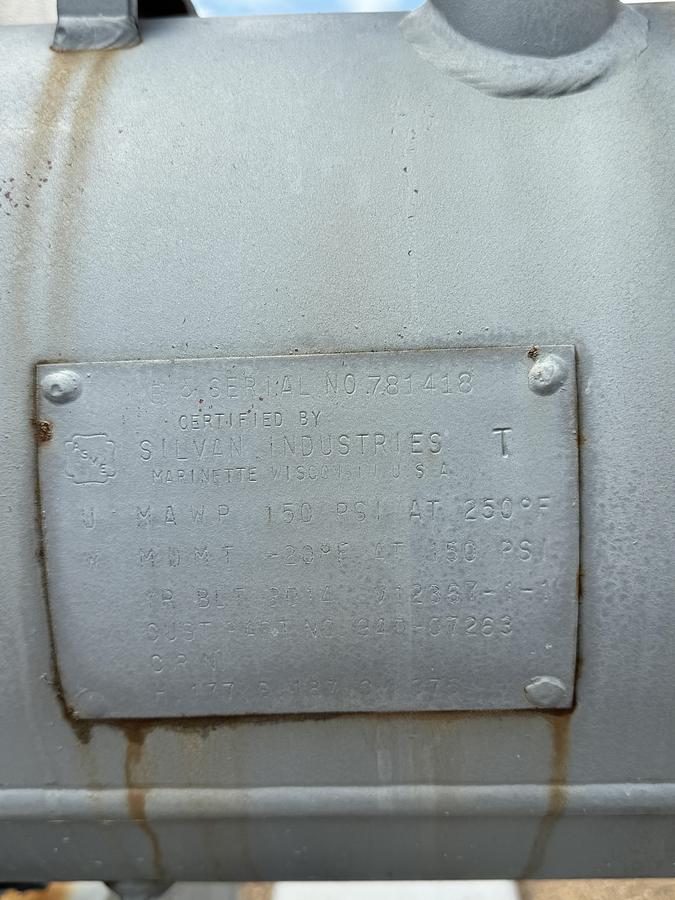

Sivon Industries Pressure Vessel

Serial Number: 0781418

MAWP: 150 PSI @ 250°F

MDMT: -20°F @ 150 PSI

Manufacture Year: 2014

Certified Location: Marinette, Wisconsin, USA

Pre-Purchase Inspections:

We welcome pre-purchase inspections during normal business hours, by appointment only. If you’re planning to fly in to view or inspect the equipment in person, we are happy to arrange for that with a proper notice.

Shipping Arrangements:

We’re happy to assist with shipping logistics and can provide loading services for equipment located at our yard, for units weighing up to 15,000 lbs, when scheduled in advance.

Payment Terms:

Full payment is required before the release of any equipment. We always prefer to meet our buyers in person to discuss project needs and ensure you receive the right equipment and support for your success.

A verifiable cashier’s check is required if you're paying in person. If you plan to use a third-party shipping company, a wire transfer must be completed and cleared in full before we release the equipment. While we aim to make the transaction as smooth as possible, we take appropriate measures to protect both parties.

Contact Us:

If you have any questions, please don’t hesitate to reach out. We're happy to answer online inquiries or jump on a call to explore how any of our available equipment at GasEquipment4Sale can help support your project needs.
