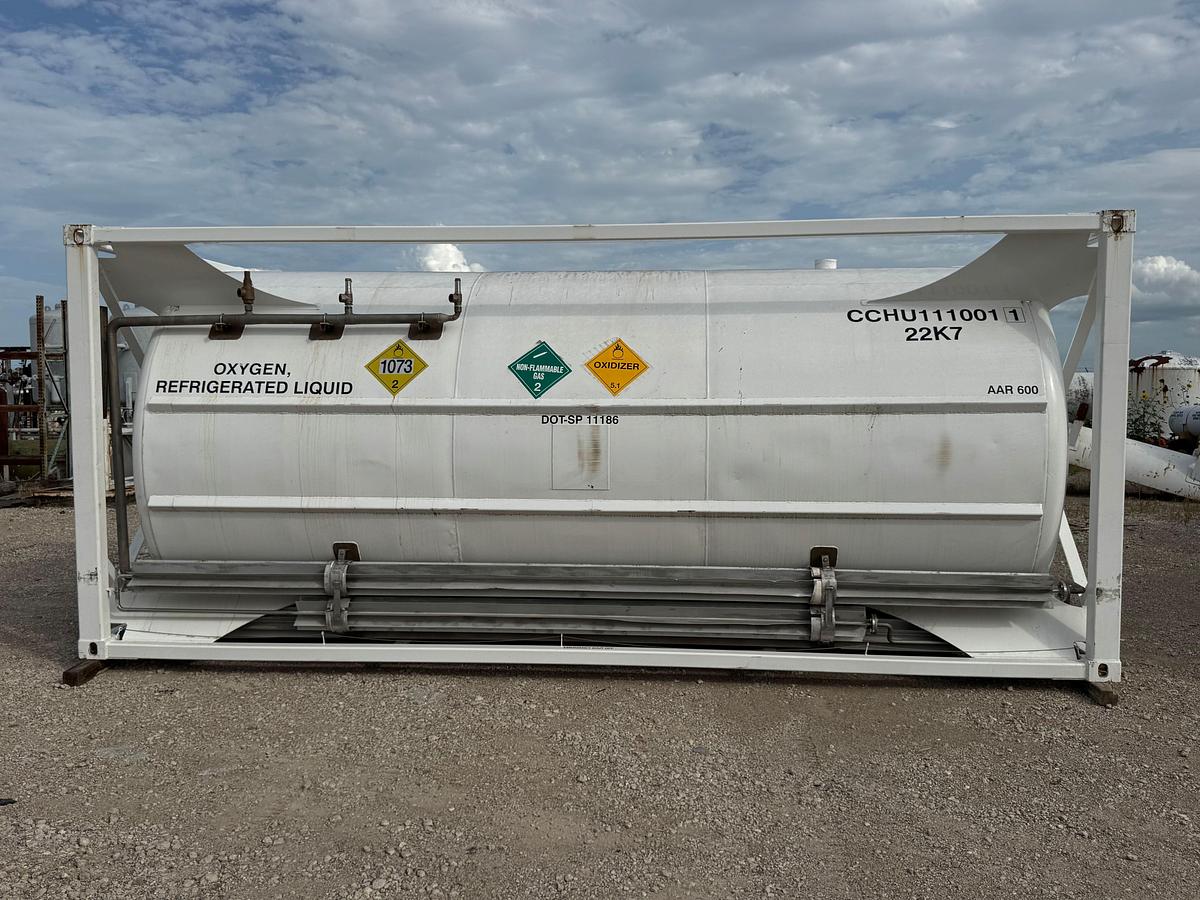

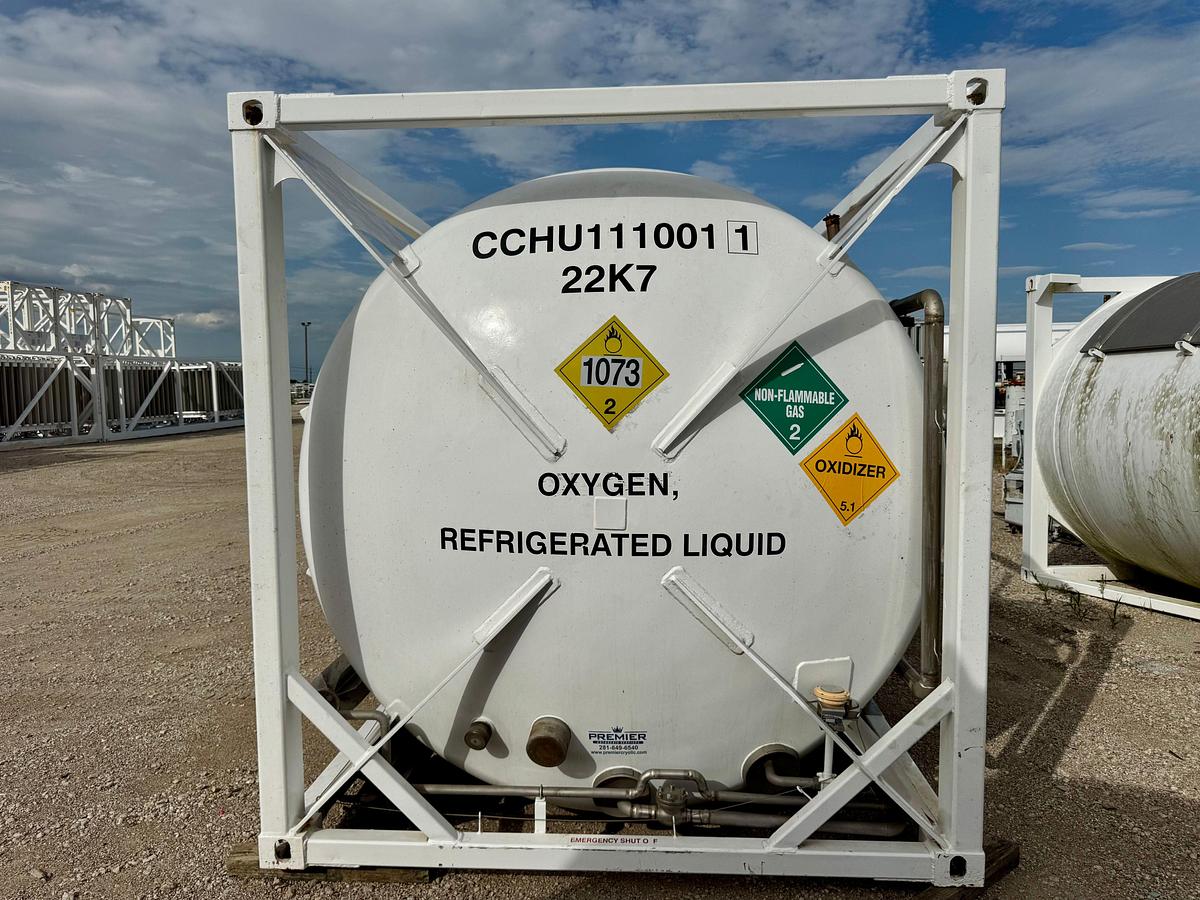

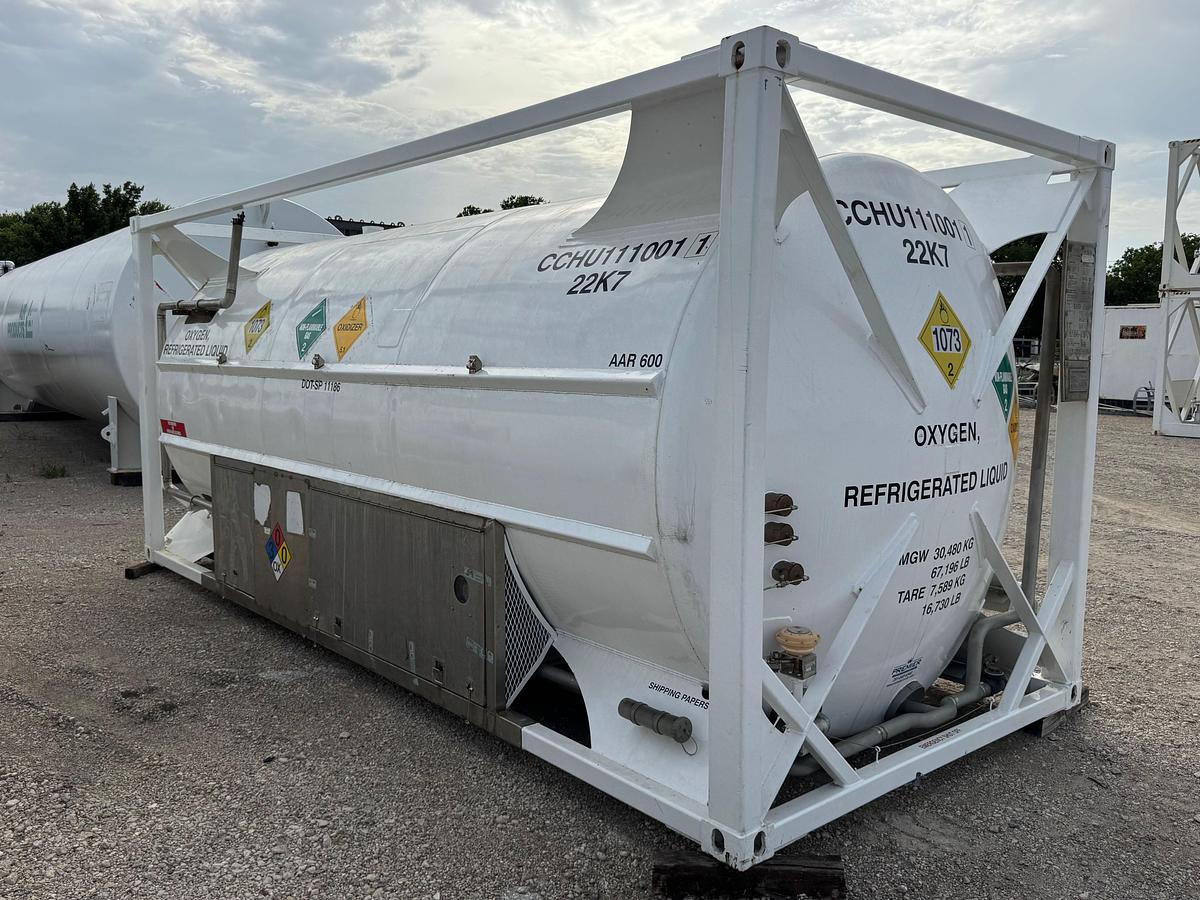

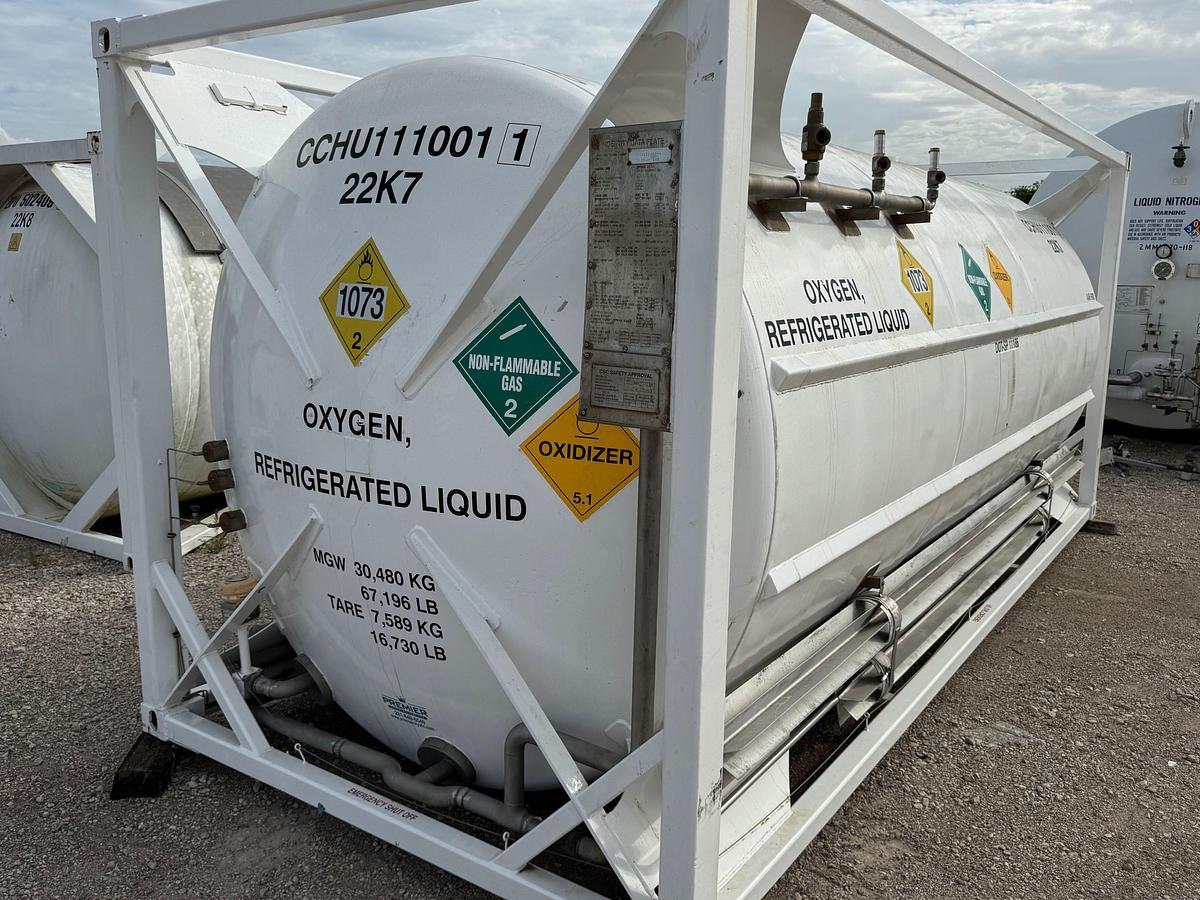

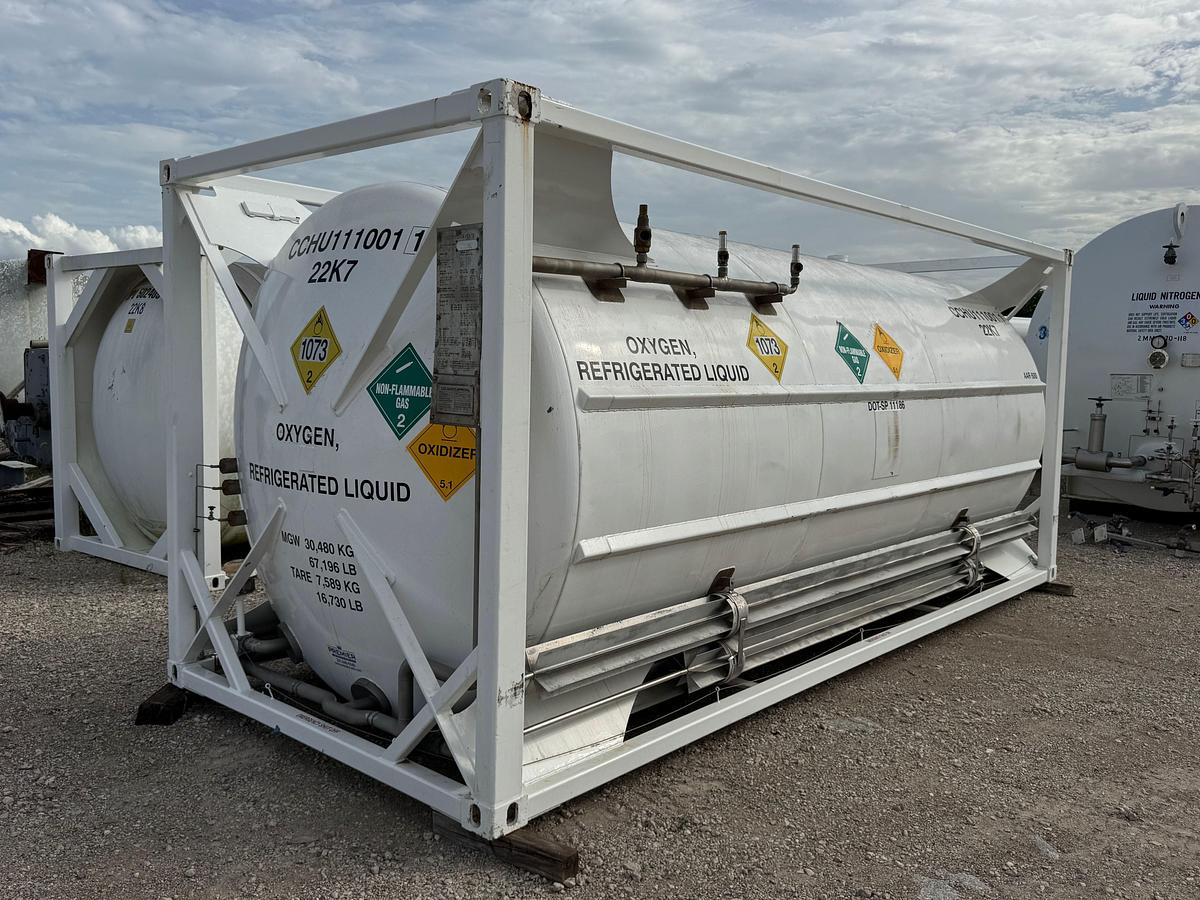

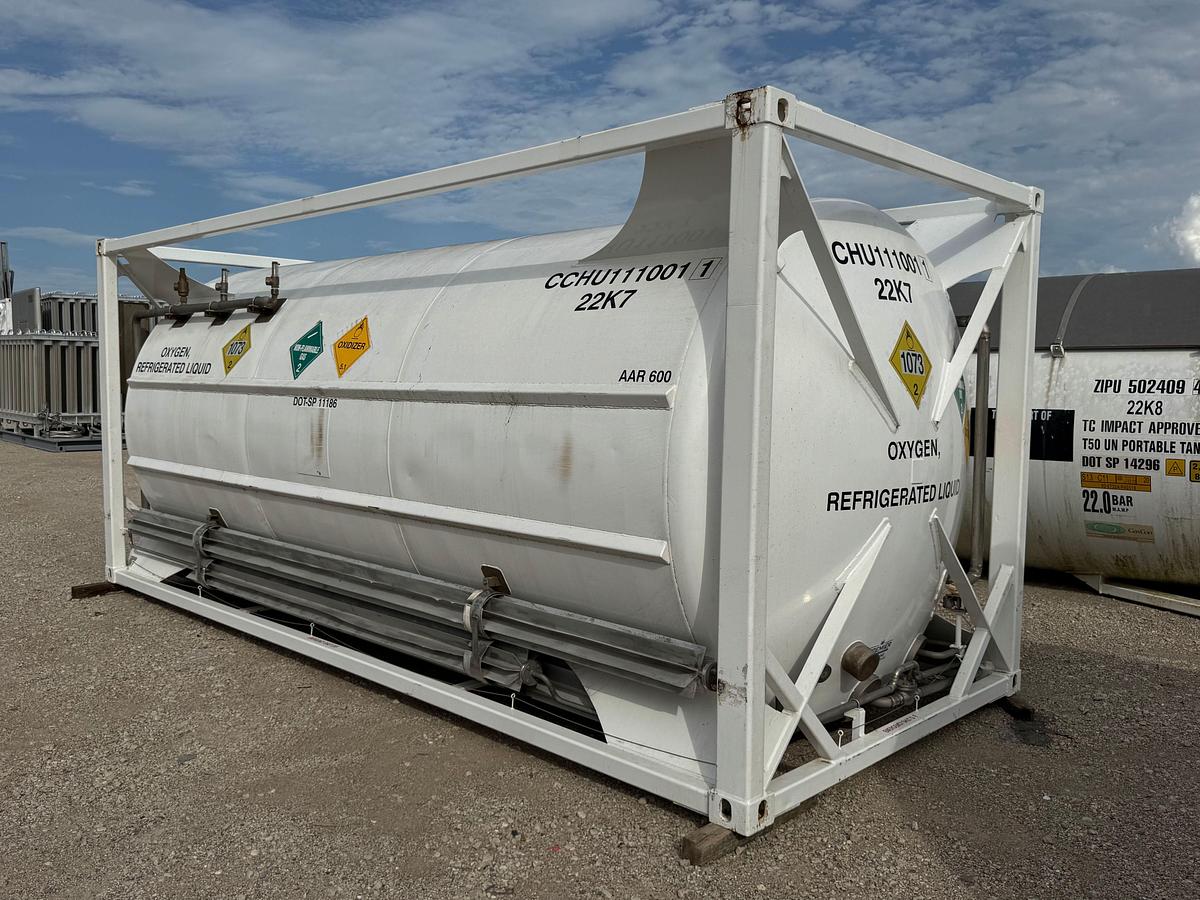

Cryenco 5300 Gallon ISO Cryogenic Tank Container – Oxygen Service (LOX/ LIN/ LNG/ LAR)

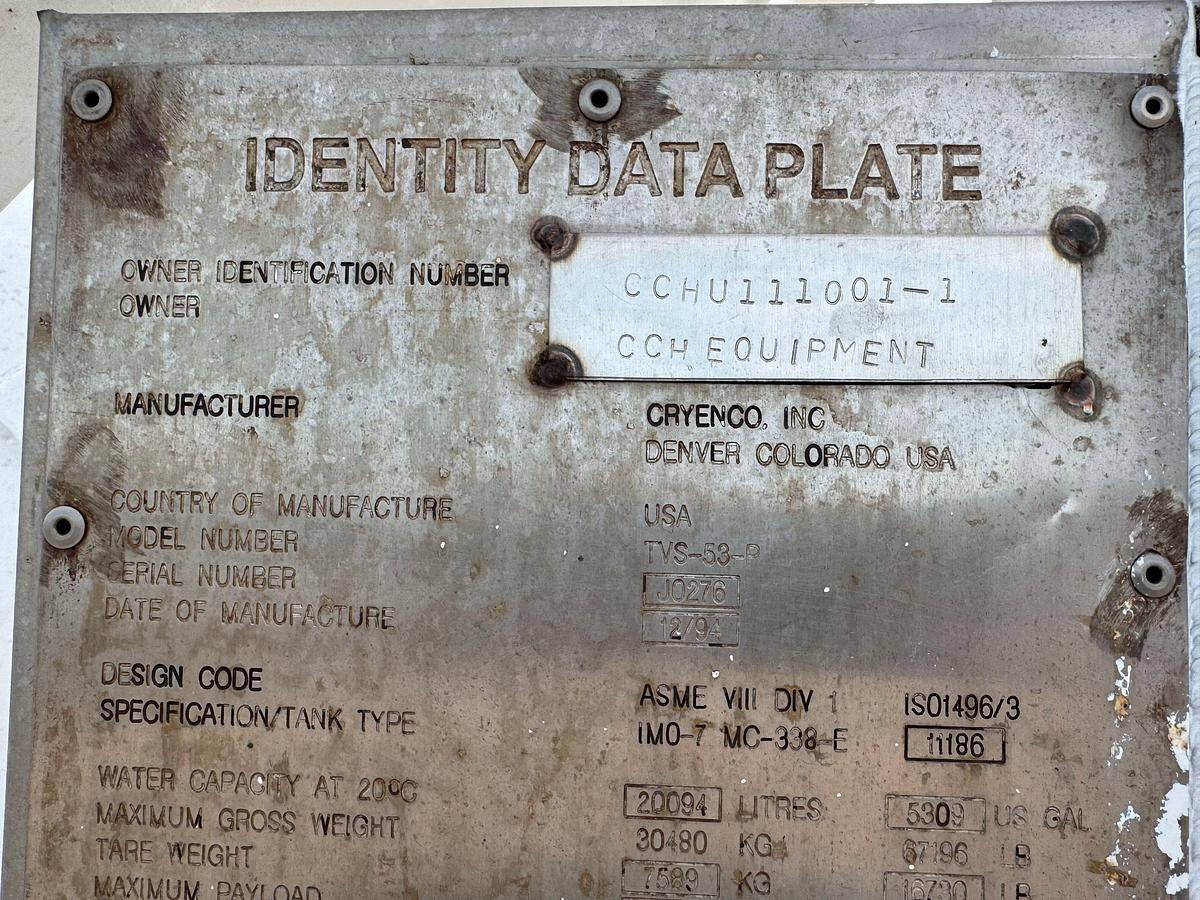

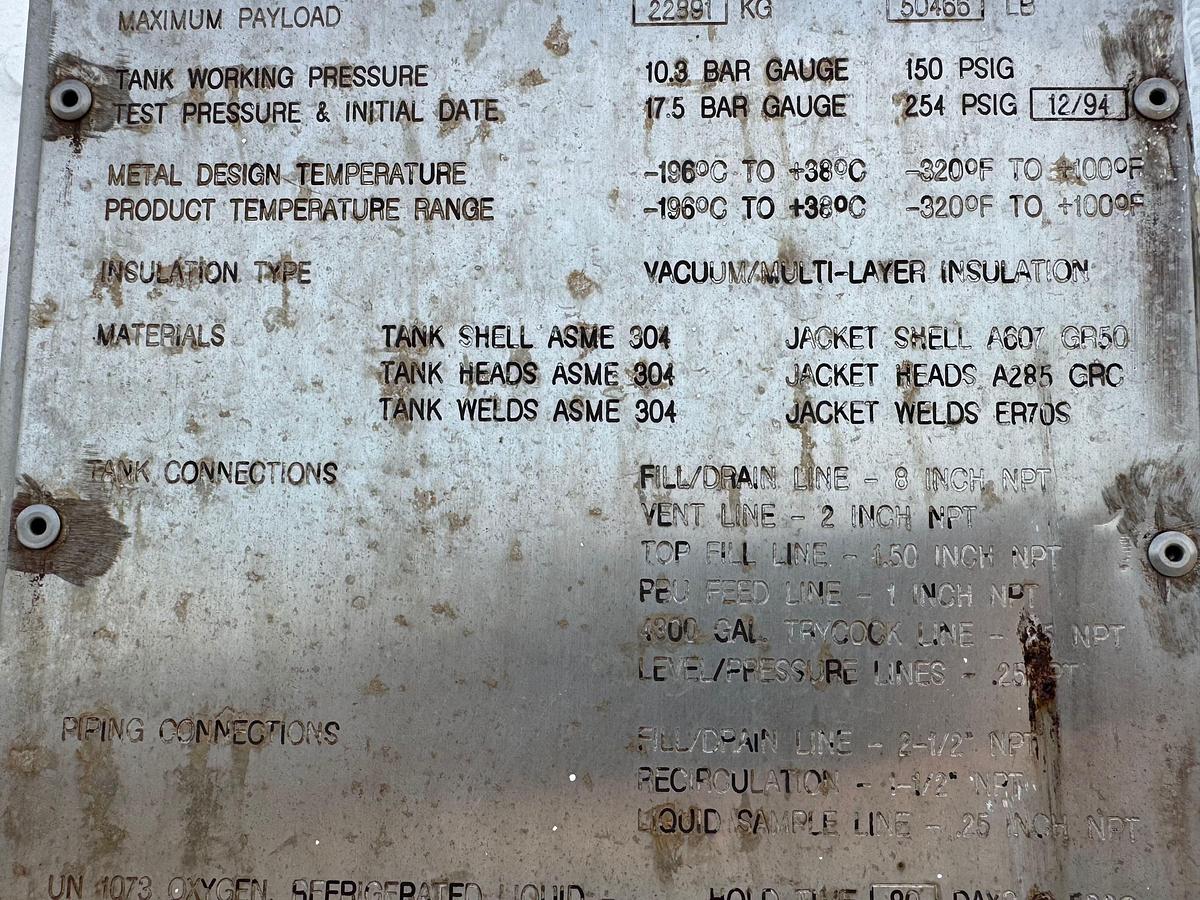

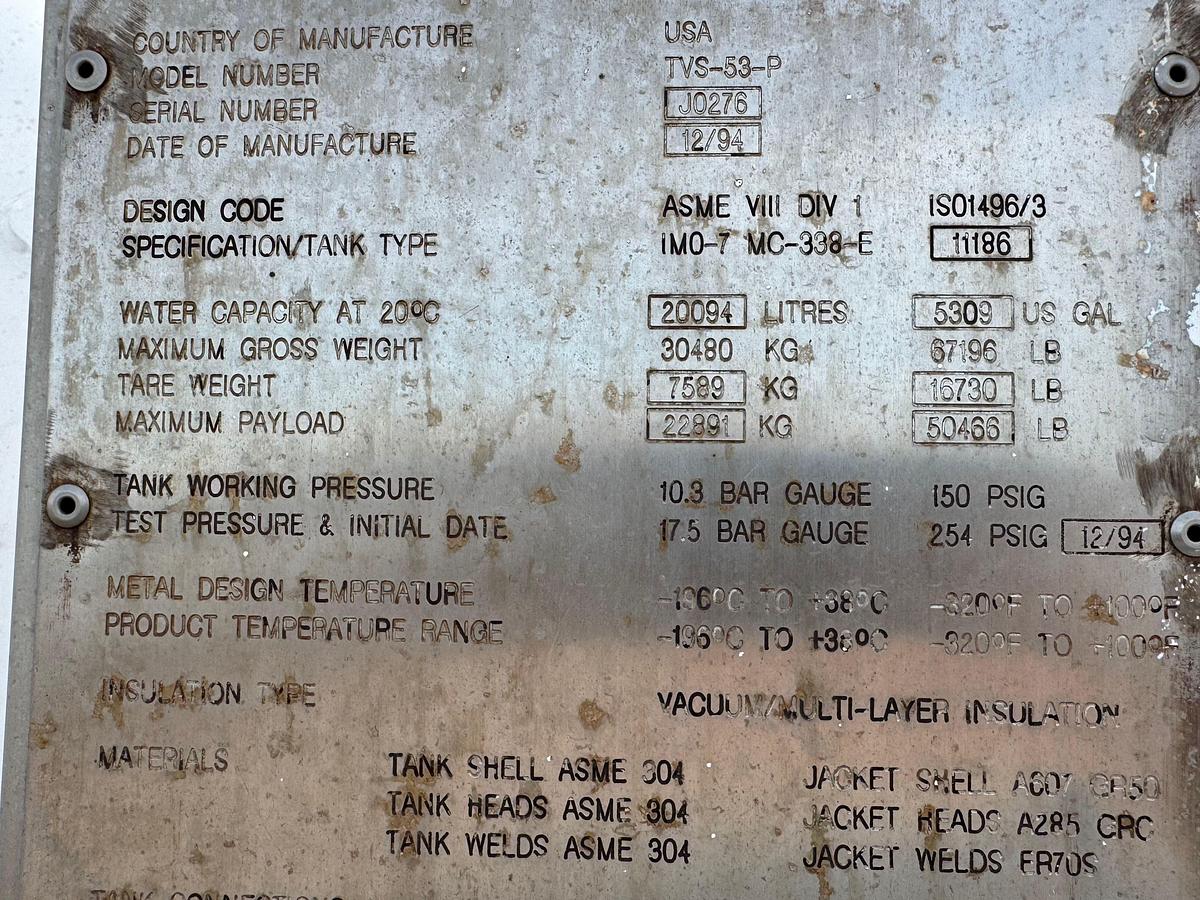

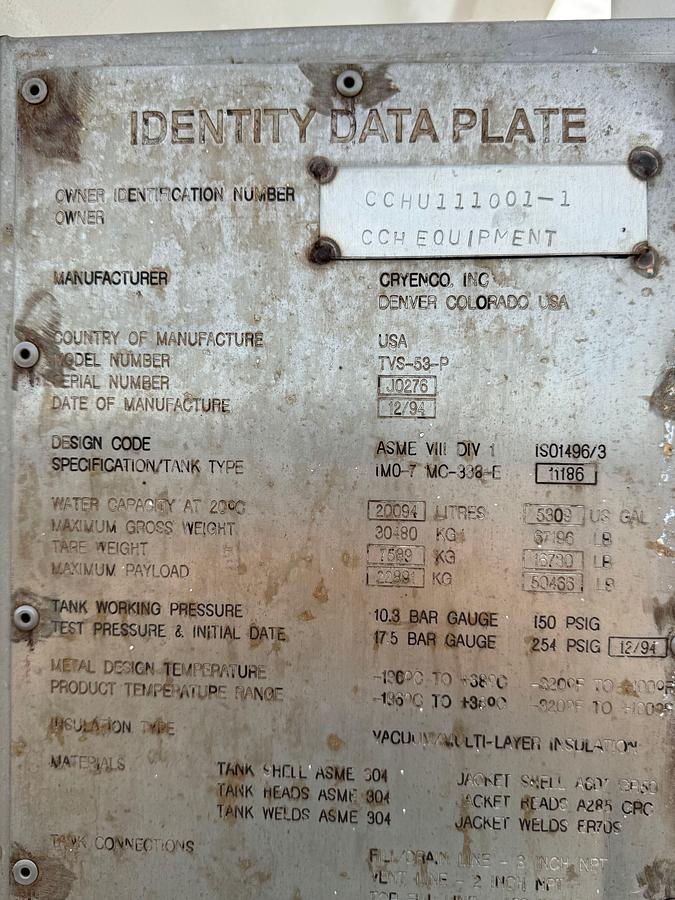

Specifications:

Last Service: Liquid Oxygen (LOX) – Refrigerated Liquid

Water Capacity: 20,094 Liters / 5,309 US Gallons

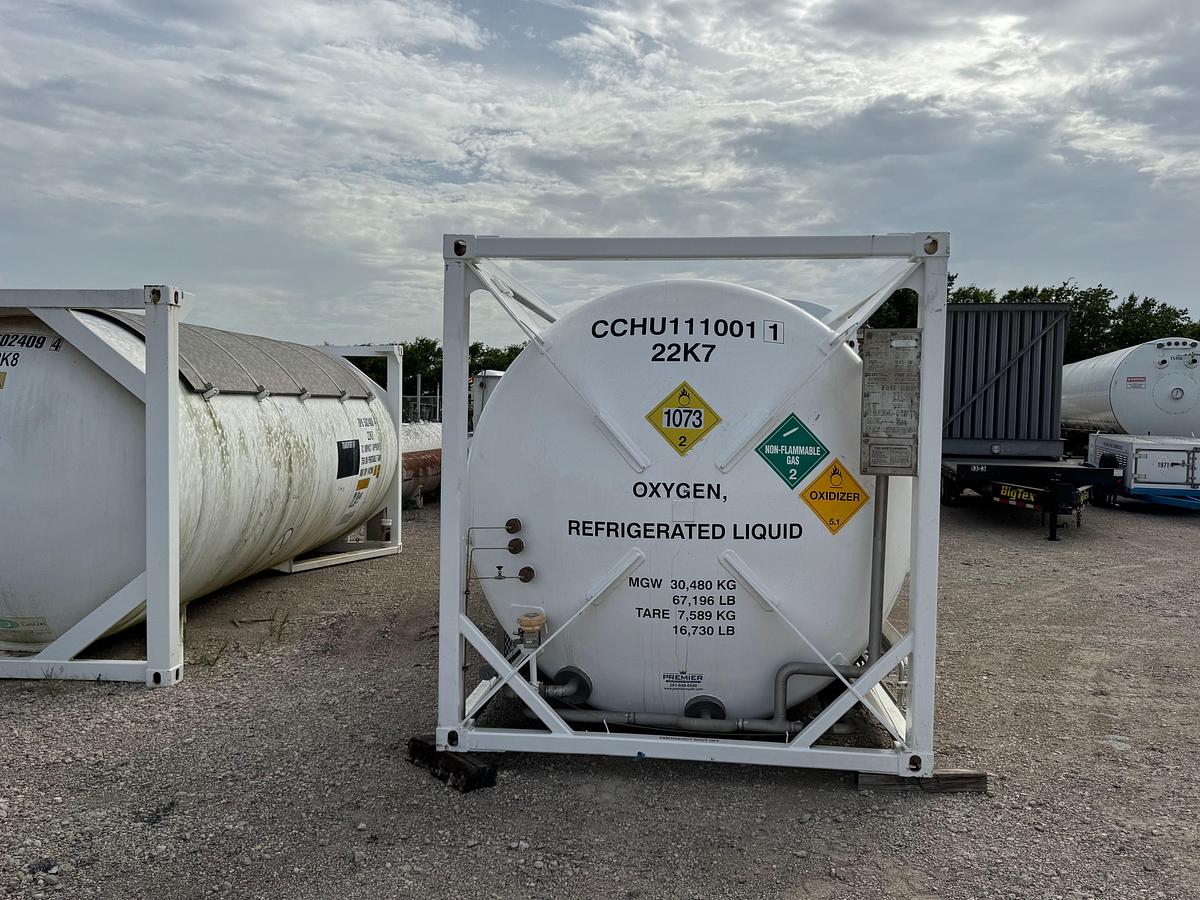

Max Gross Weight: 30,480 kg / 67,196 lbs

Tare Weight: 7,589 kg / 16,730 lbs

Payload Capacity: 22,891 kg / 50,465 lbs

Working Pressure: 150 PSIG (10.3 Bar )

Test Pressure: 254 PSIG (17.5 Bar)

Design Code: ASME VIII Div. 1 / ISO 1496/3

Test Date: 12/1994

Insulation: Vacuum Multi-Layer Insulation

Temperature Range: -196°C to +38°C (-320°F to +100°F)

Shell, Heads, Weld Material: ASME 304 Stainless Steel

Jacket Shell: A36 / CPC

Jacket Heads: A285 Grade C

Jacket Welds: ER70S

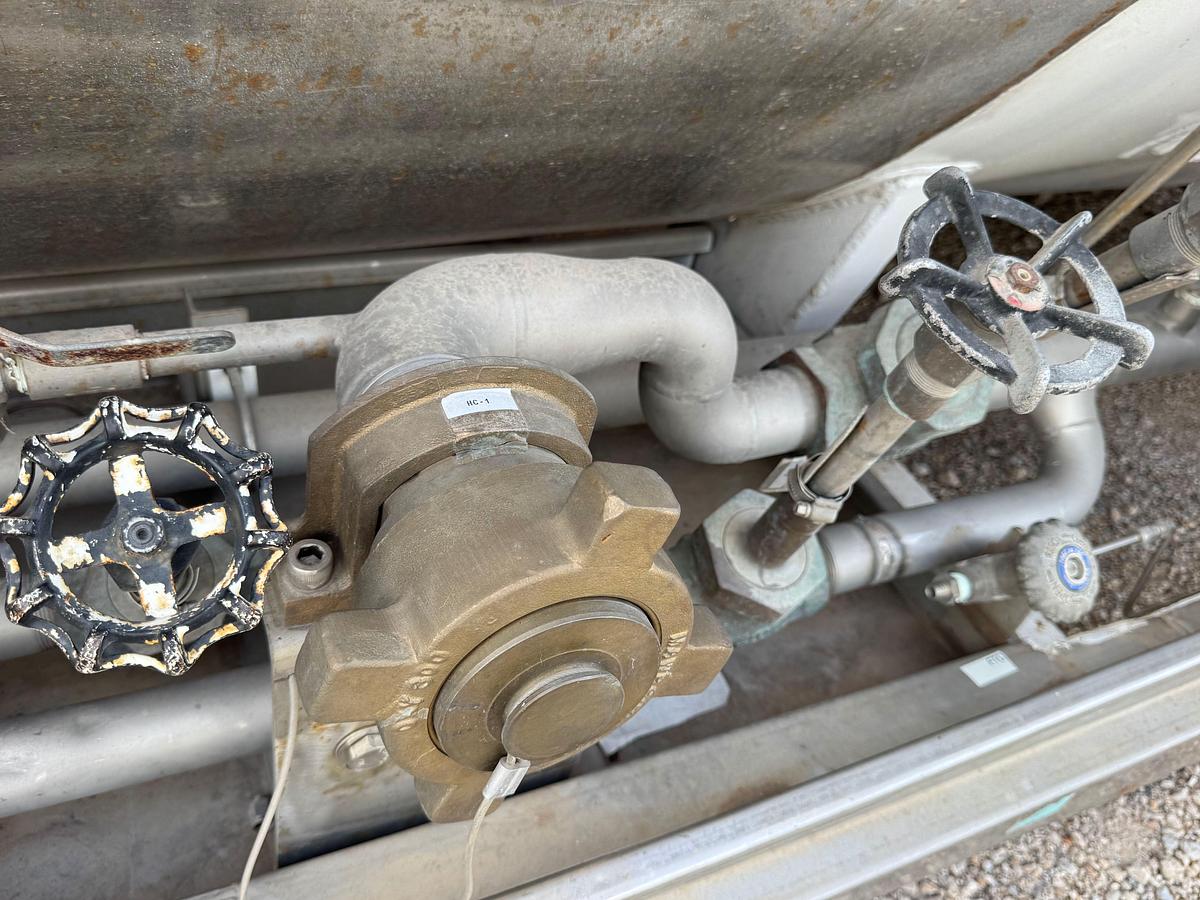

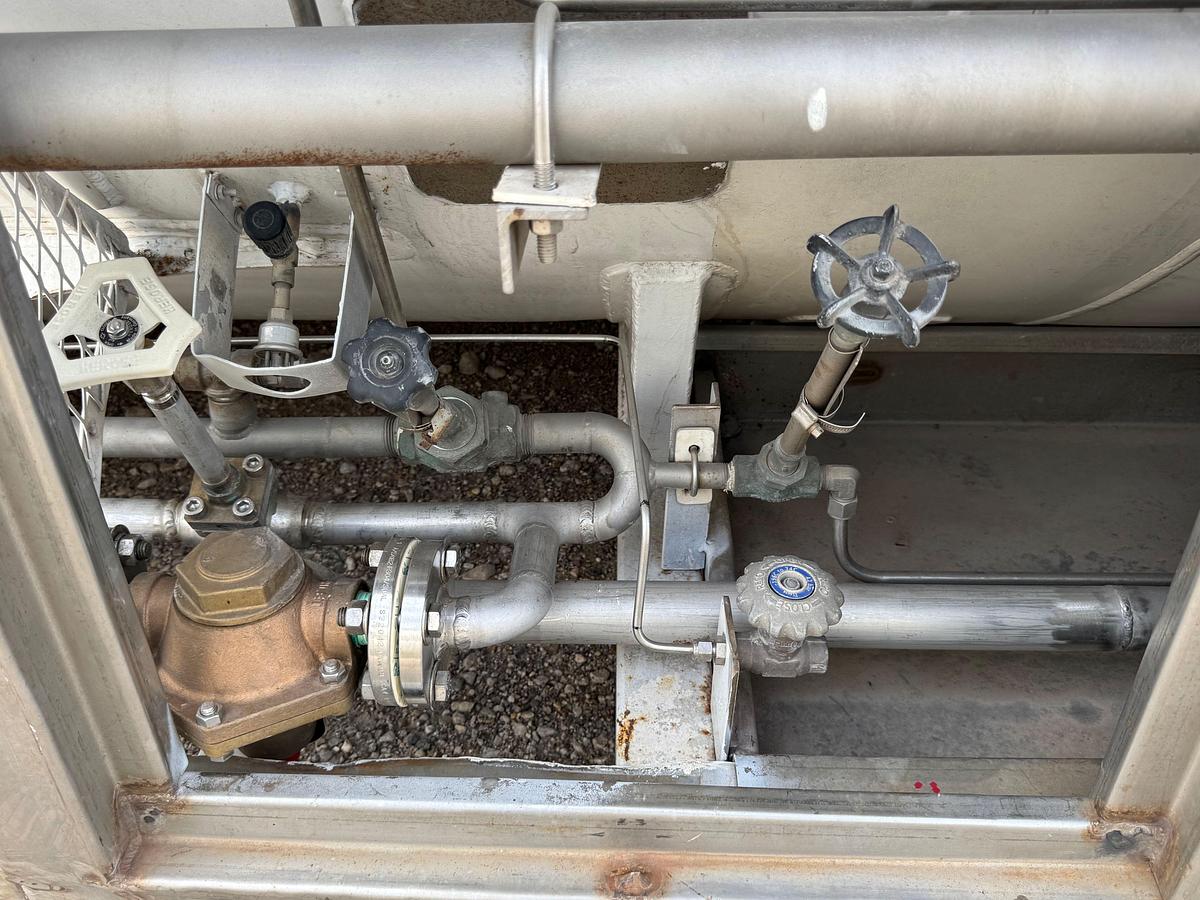

Fill/Drain Line: 3" NPT

Vent Line: 1" NPT

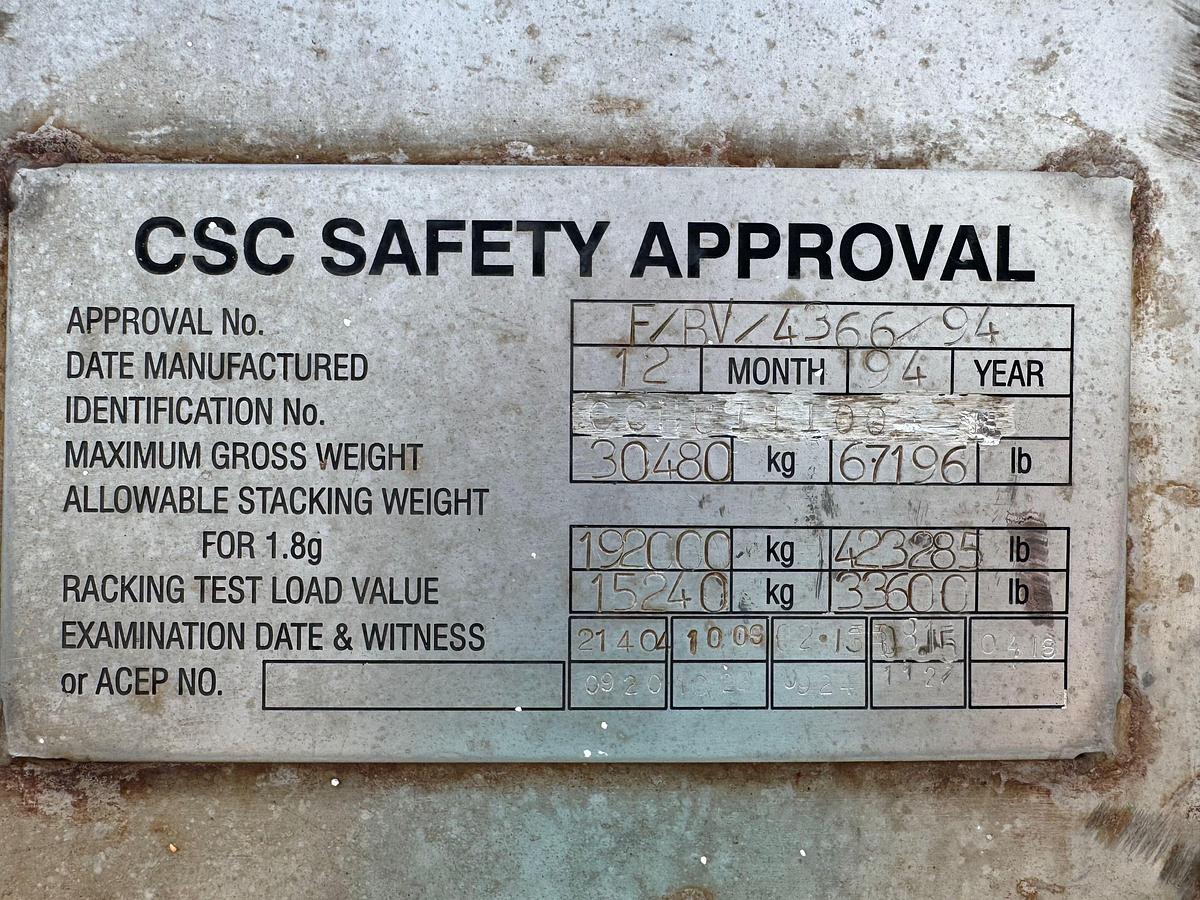

CSC Safety Approval:

CSC Approval No: F/BV/4366/94

Allowable Stacking Weight (1.8g): 192,000 kg / 423,284 lbs

Racking Test Load Value: 15,240 kg / 33,600 lbs

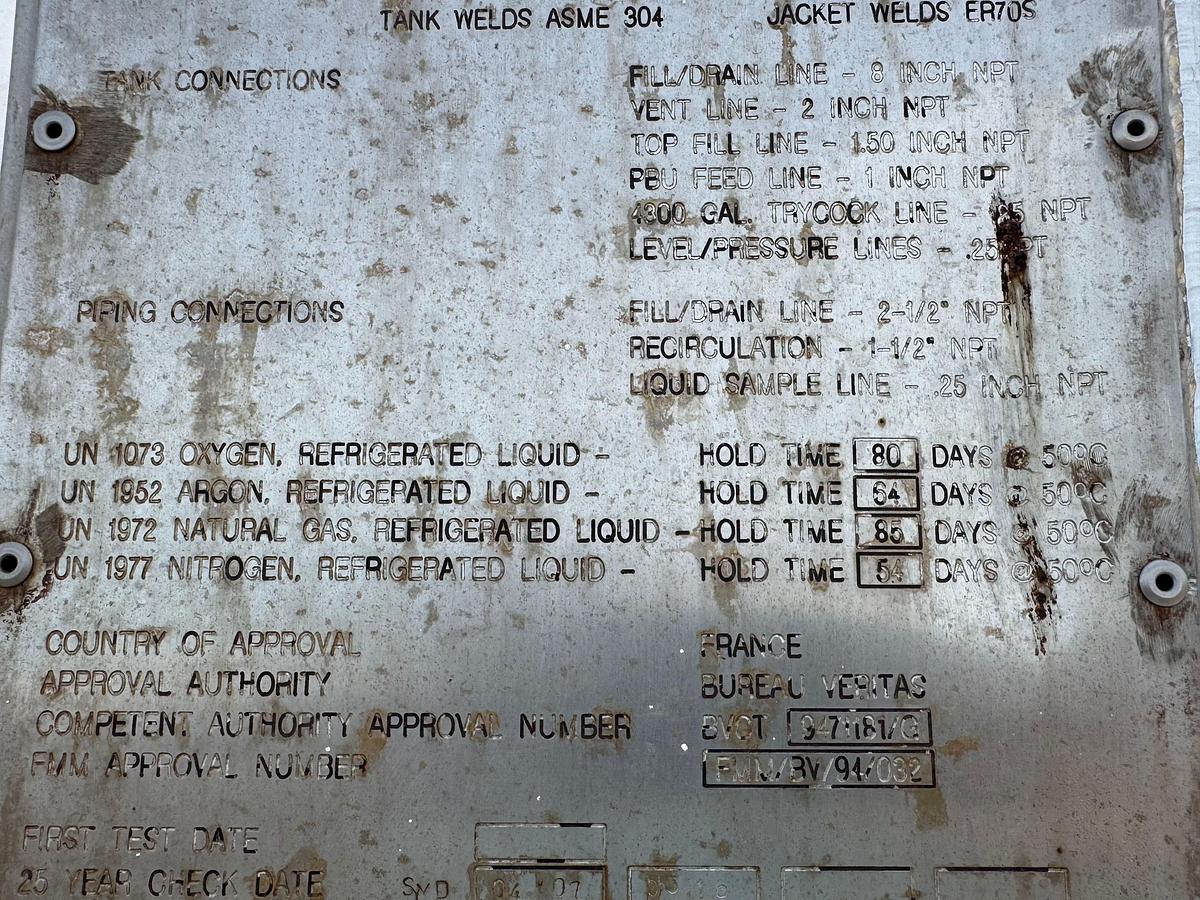

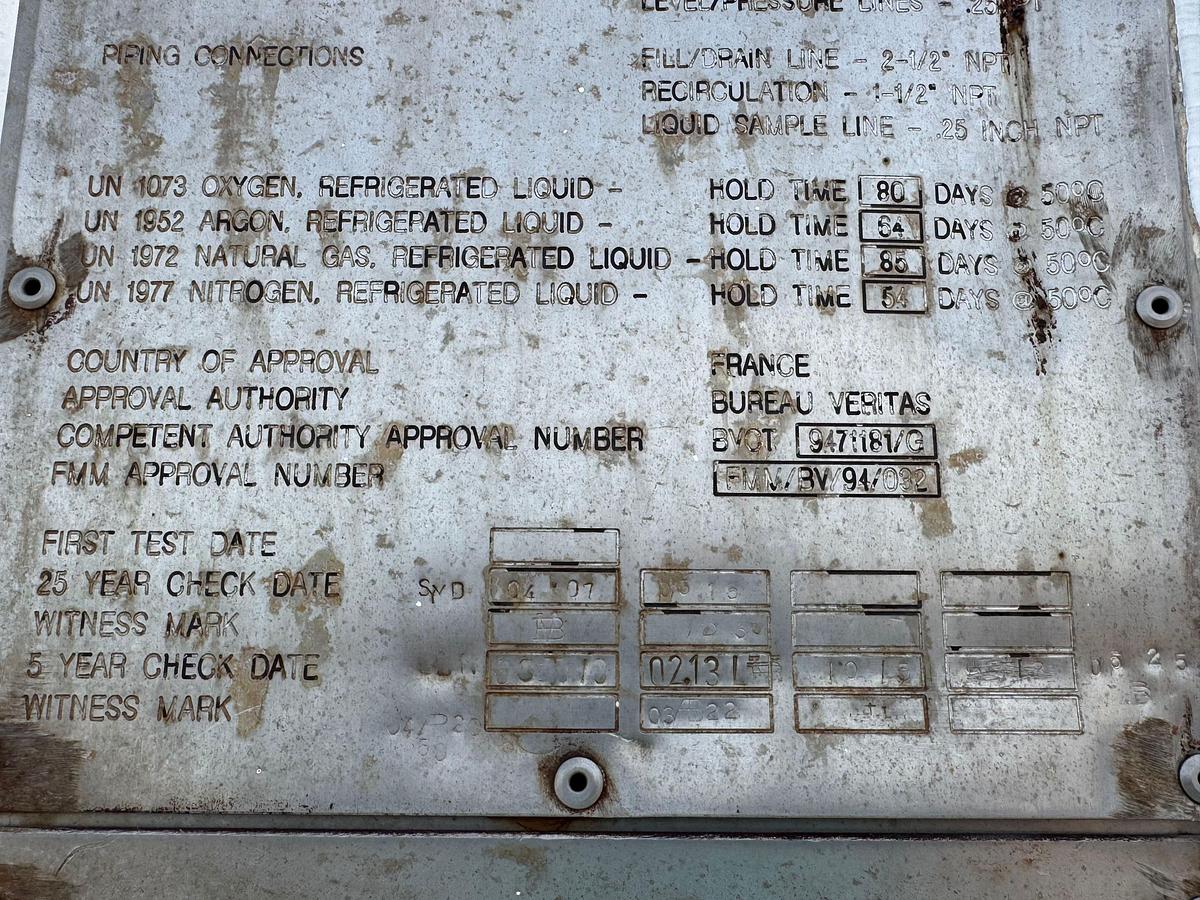

Can be used for the following services:

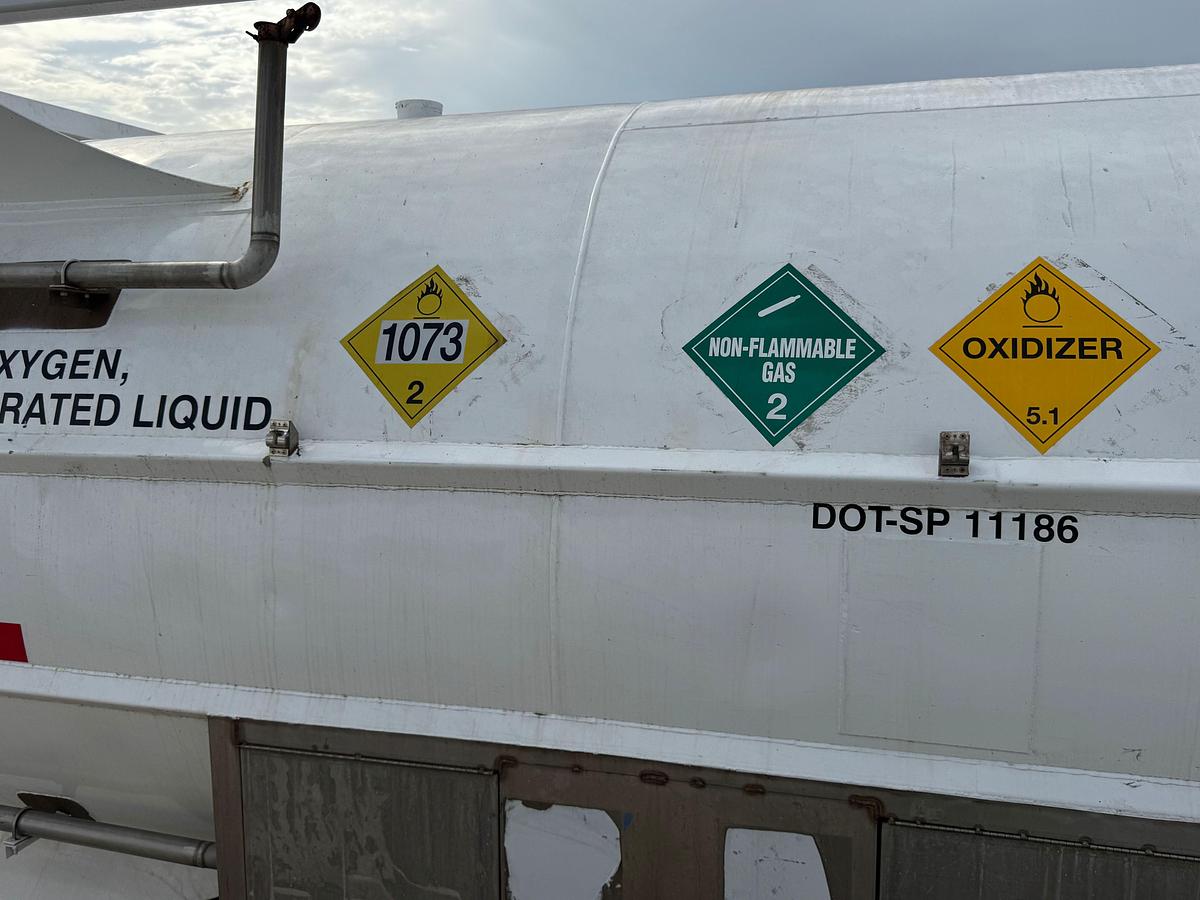

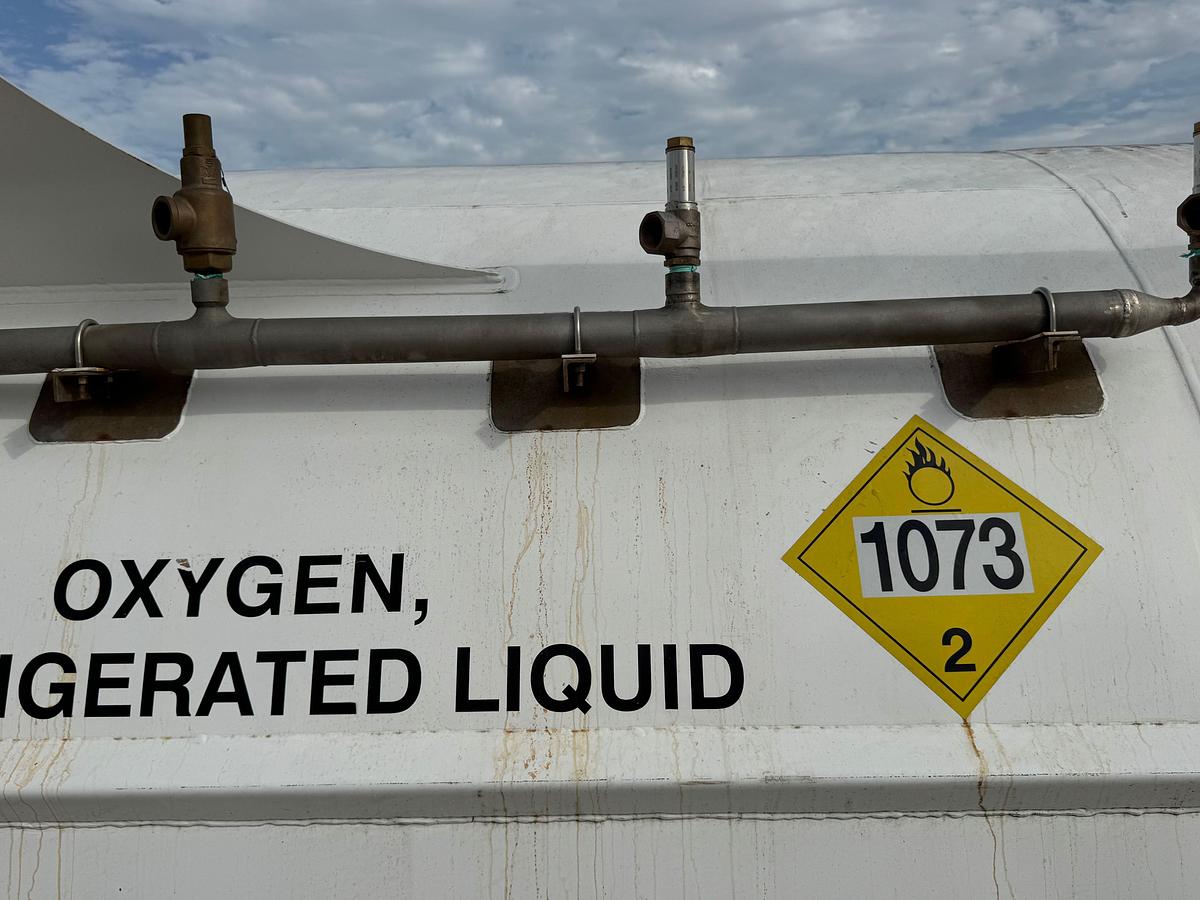

Oxygen, Refrigerated Liquid: Hold time 80 Days (UN 1073)

Argon, Refrigerated Liquid: Hold time 64 Days (UN 1952)

LNG: Hold time 85 Days (UN 1972)

Nitrogen, Refrigerated Liquid: Hold time 54 Days (UN 1977)
