Dual 50HP Starter Panel with Hevi-Duty Transformer

Specifications:

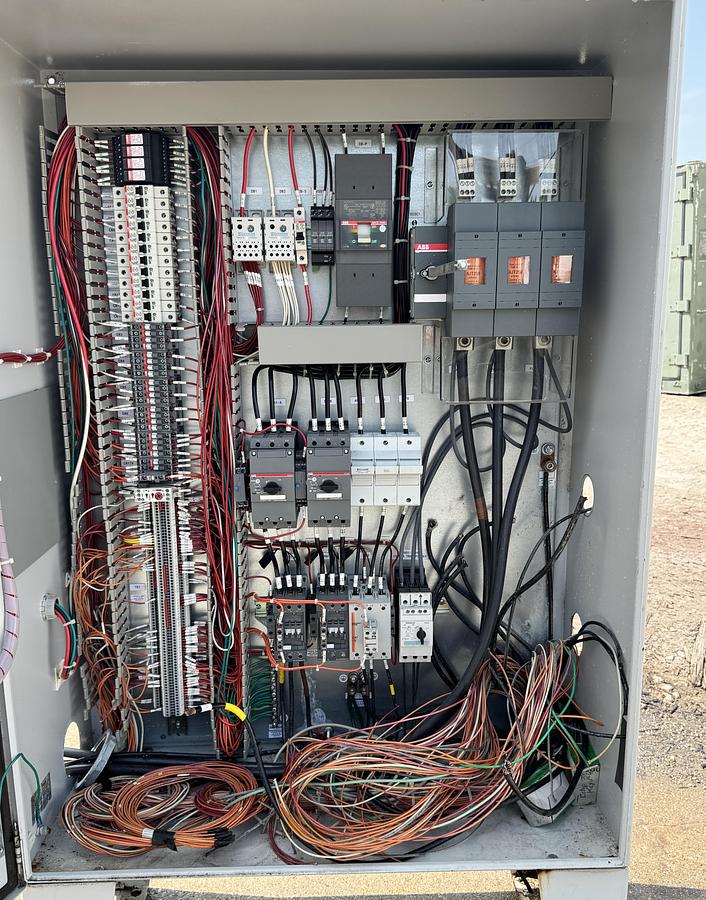

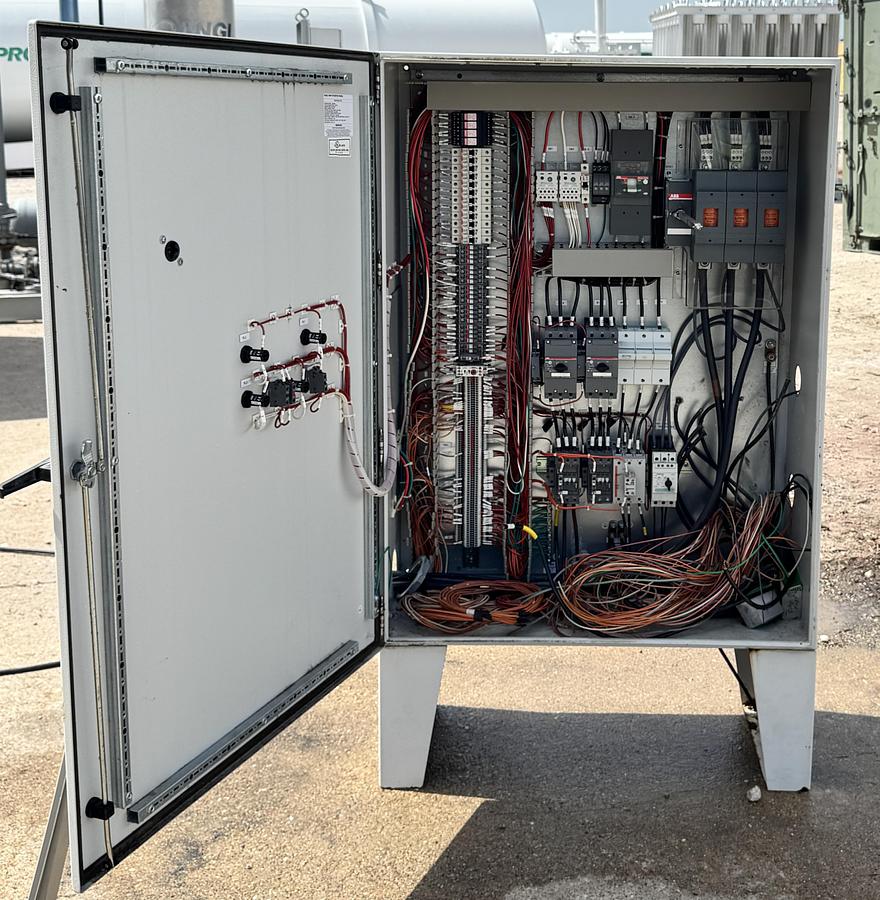

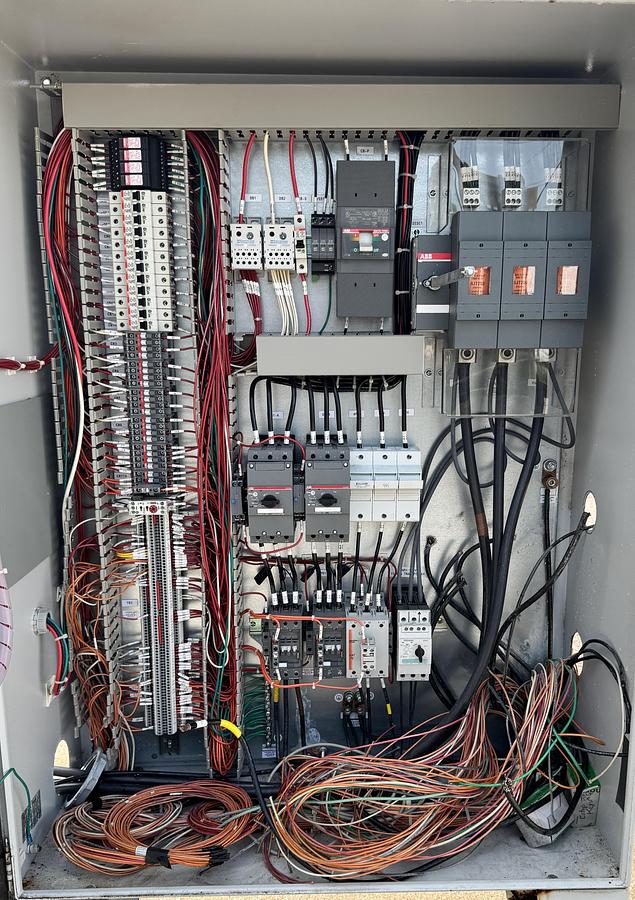

Starter Panel:

Manufacturer: E67322B

Model/Machine Name: 950-07609

Serial Number: 816-507

Date of Manufacture: 10/22/14

Maximum Voltage: 480 VAC, 3 Phase, 60 Hz

Full Load Amp Draw: 162.4 Amps

Amp Draw of Largest Motor: 65 Amps

Disconnect Amp Rating: 250 Amps

Short Circuit Current Rating (SCCR): 65kA RMS Symmetrical at 480V Max

Electrical Diagrams: 816-507 SHT1 through SHT5

Enclosure Rating: UL Type 3R (outdoor rated)

UL Listing: CM 266985

Supply Terminals: Yes

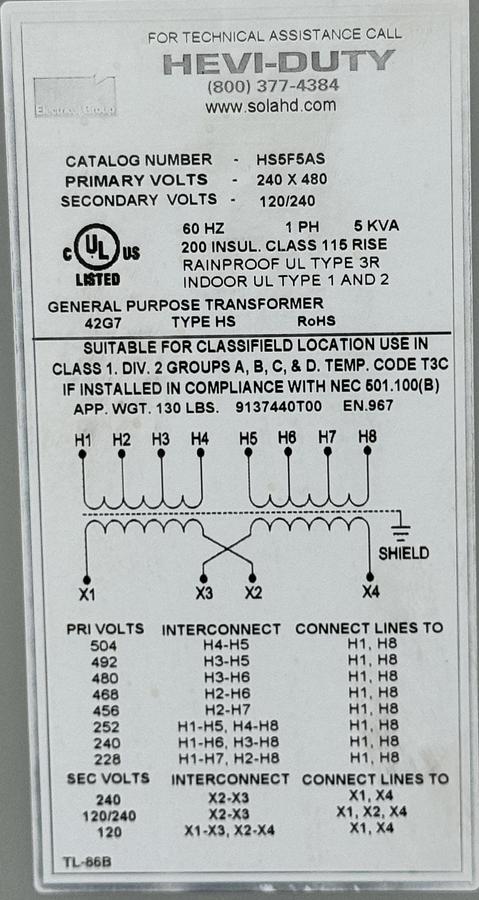

Transformer (Hevi-Duty):

Catalog Number: HS5F5AS

Primary Voltage: 240 x 480 VAC

Secondary Voltage: 120/240 VAC

Frequency: 60 Hz

Phase: Single Phase

Power Rating: 5 kVA

Insulation Class: 200 Insul. Class, 115°C Rise

UL Type: Rainproof UL Type 3R, Indoor UL Type 1 & 2

RoHS Compliant

Approximate Weight: 130 lbs

Application Suitability: Class I, Div. 2, Groups A, B, C & D – Temp Code T3C (with NEC compliance)

Connection Diagrams Provided

Pre-Purchase Inspections:

We welcome pre-purchase inspections during normal business hours, by appointment only. If you’re planning to fly in to view or inspect the equipment in person, we are happy to arrange for that with a proper notice.

Shipping Arrangements:

We’re happy to assist with shipping logistics and can provide loading services for equipment located at our yard, for units weighing up to 15,000 lbs, when scheduled in advance.

Payment Terms:

Full payment is required before the release of any equipment. We always prefer to meet our buyers in person to discuss project needs and ensure you receive the right equipment and support for your success.

A verifiable cashier’s check is required if you're paying in person. If you plan to use a third-party shipping company, a wire transfer must be completed and cleared in full before we release the equipment. While we aim to make the transaction as smooth as possible, we take appropriate measures to protect both parties.

Contact Us:

If you have any questions, please don’t hesitate to reach out. We're happy to answer online inquiries or jump on a call to explore how any of our available equipment at GasEquipment4Sale can help support your project needs.
