2025 Enric High-Pressure Nitrogen Storage Module – DOT/ASME Certified

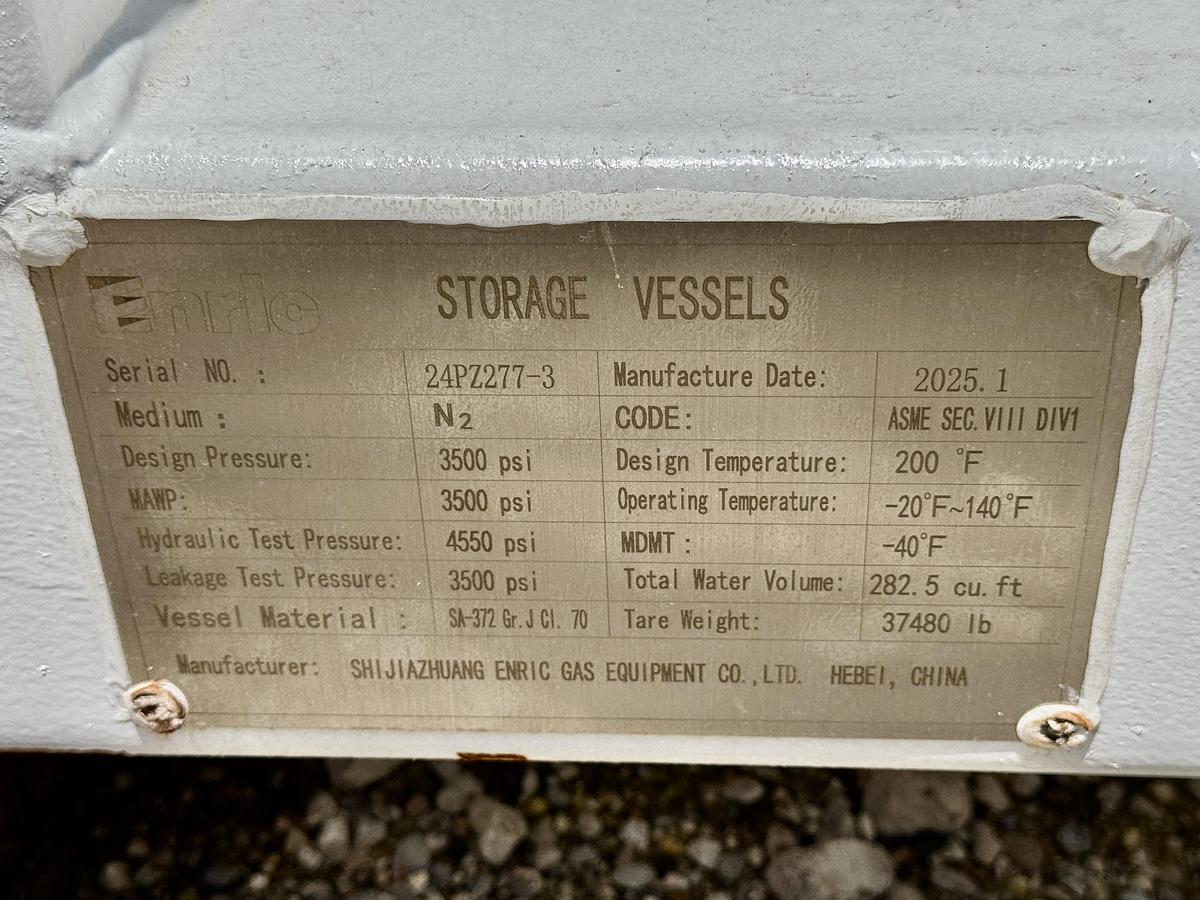

Technical Specifications:

Design Pressure: 3,500 PSI

Maximum Allowable Working Pressure (MAWP): 3,500 PSI

Hydrostatic Test Pressure: 4,550 PSI

Leak Test Pressure: 3,500 PSI

Vessel Material: SA-372 Grade J Class 70

Total Water Volume: 282.5 cubic feet

Operating Temperature Range: -4°F to 284°F

Design Temperature: 200°F

Minimum Design Metal Temperature (MDMT): -40°F

Tare Weight: 37,480 lbs

Cylinder Details:

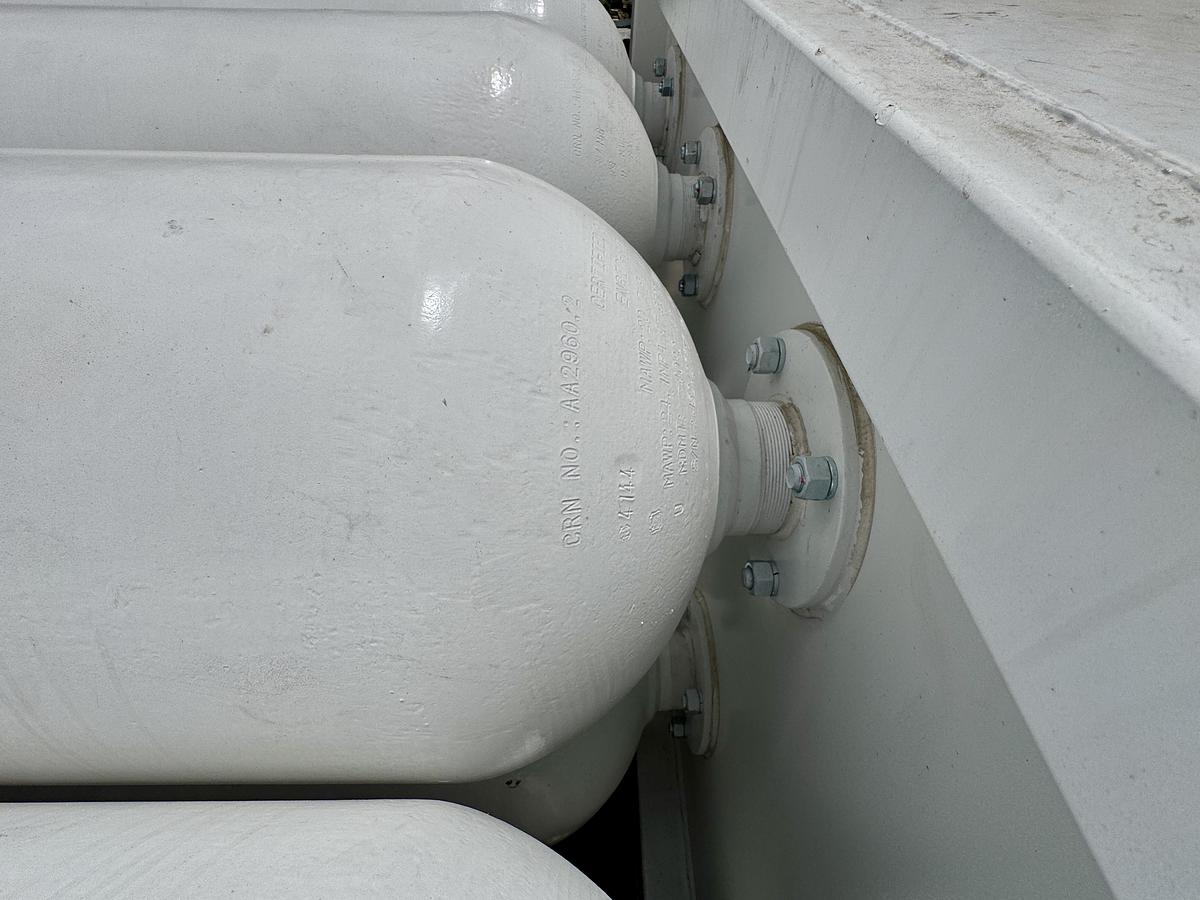

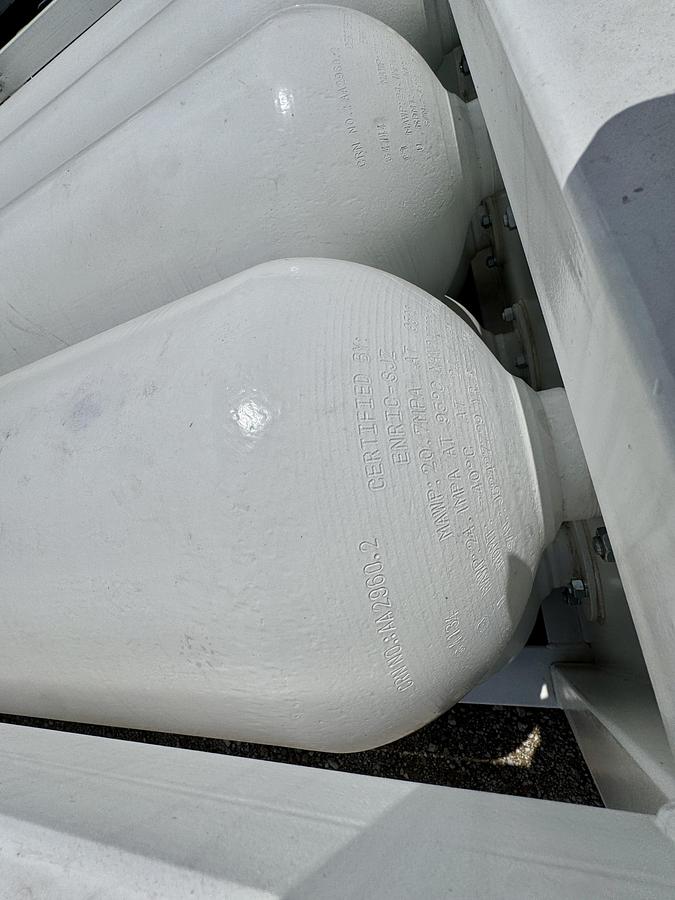

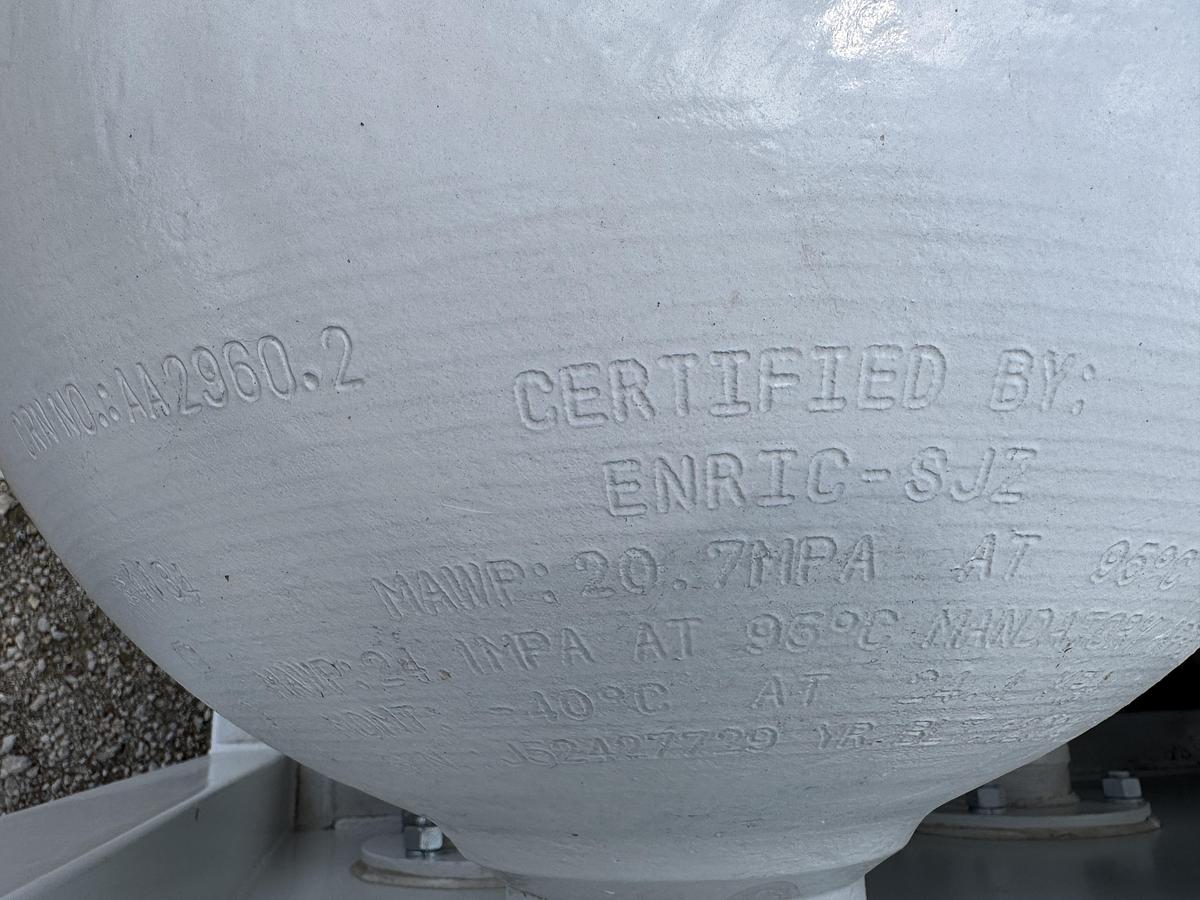

Tube Identification: GB No. AA2960.2

Certified By: ENRIC-SJZ

MAWP: 3,002 PSI at 203°F

Test Pressure: 3,496 PSI at 203°F

Minimum Temperature Rating: 14°F

Construction & Configuration:

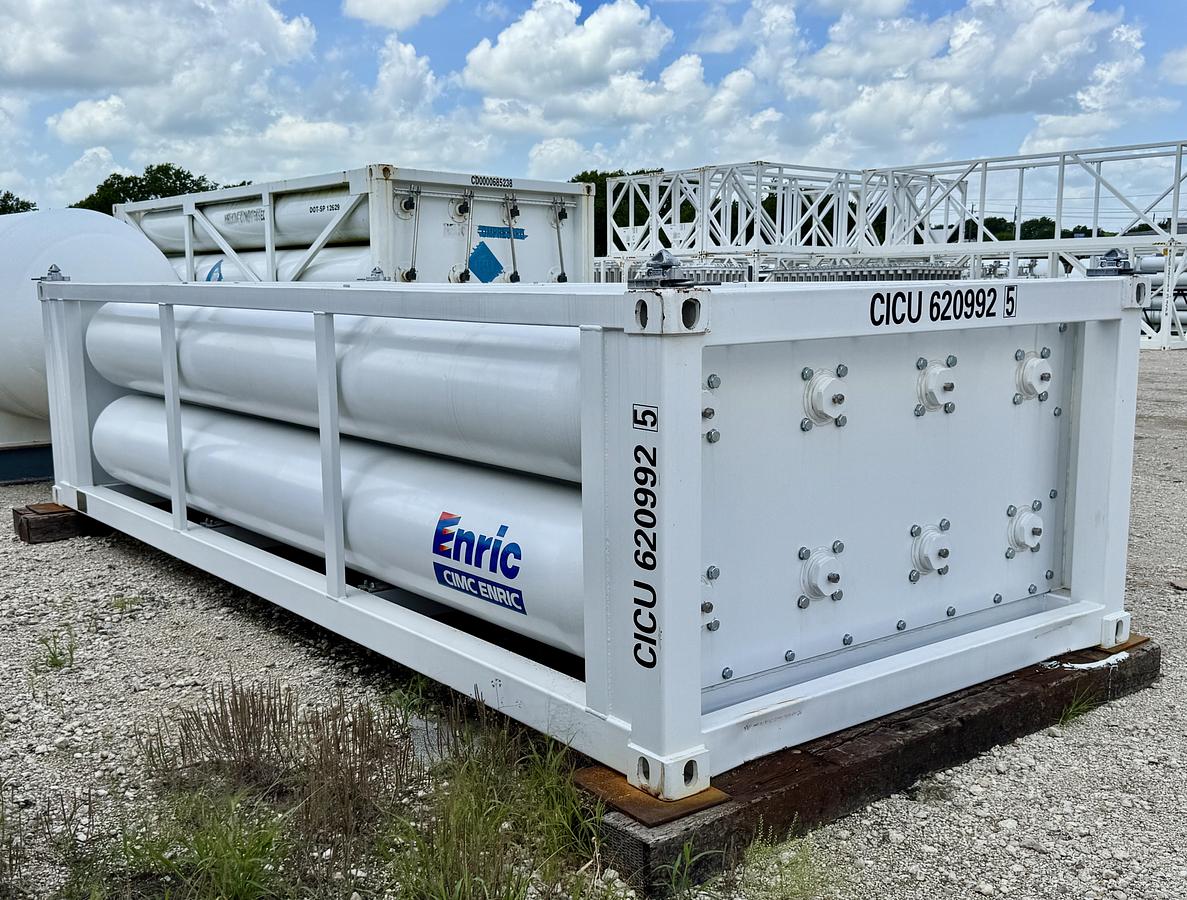

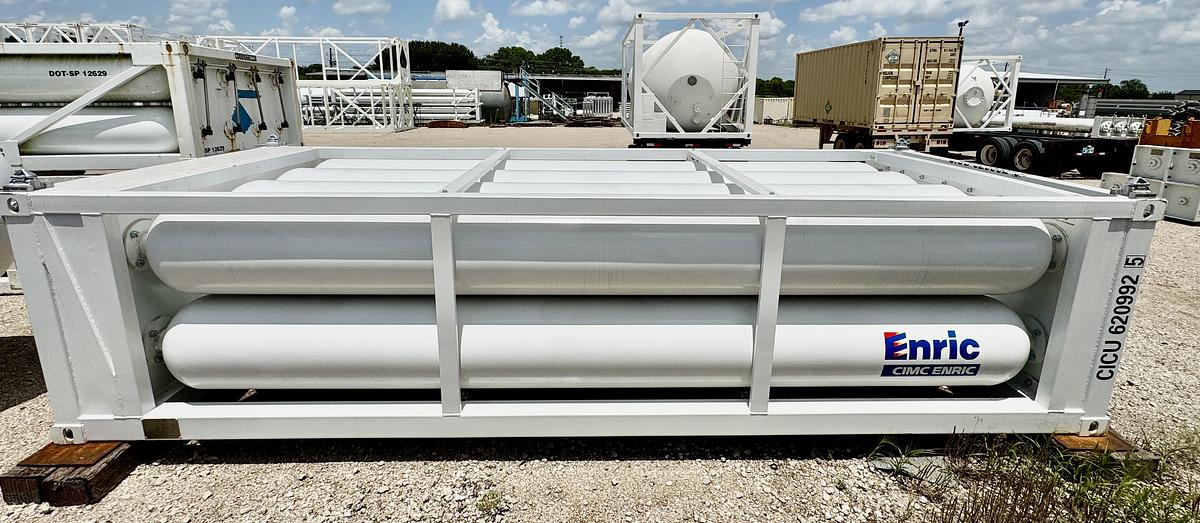

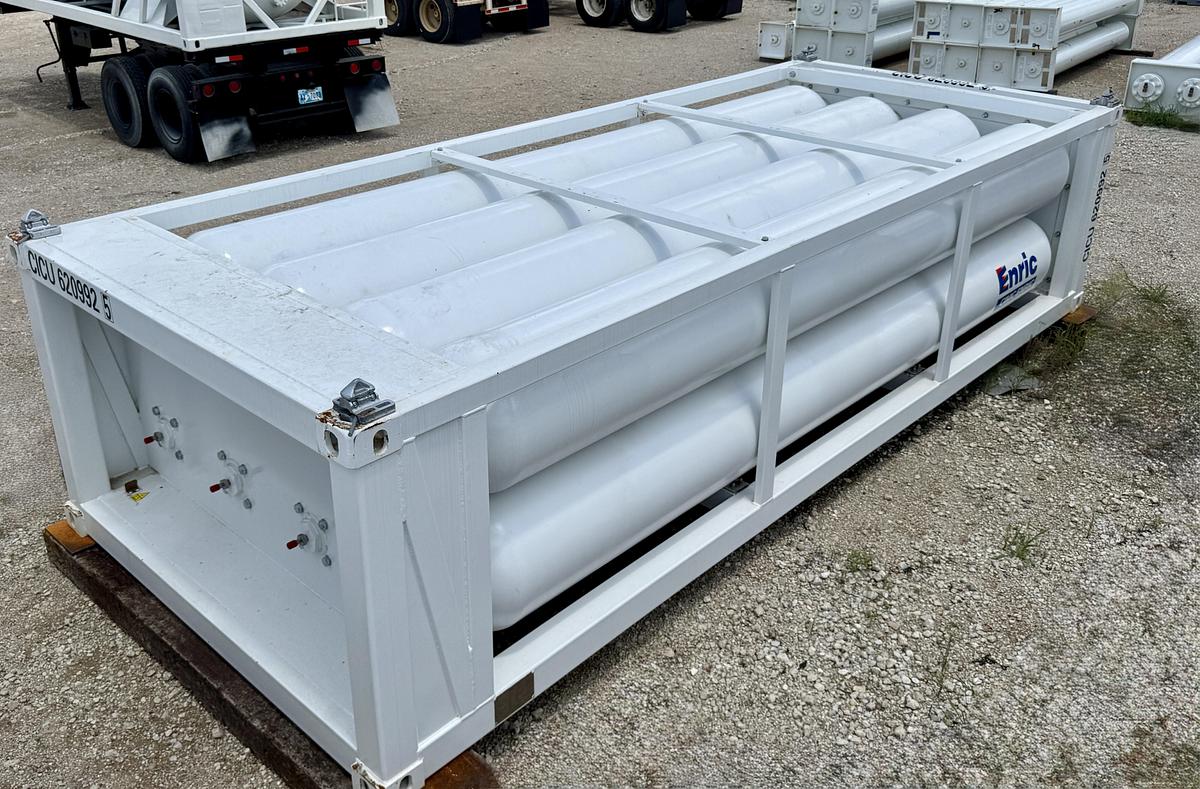

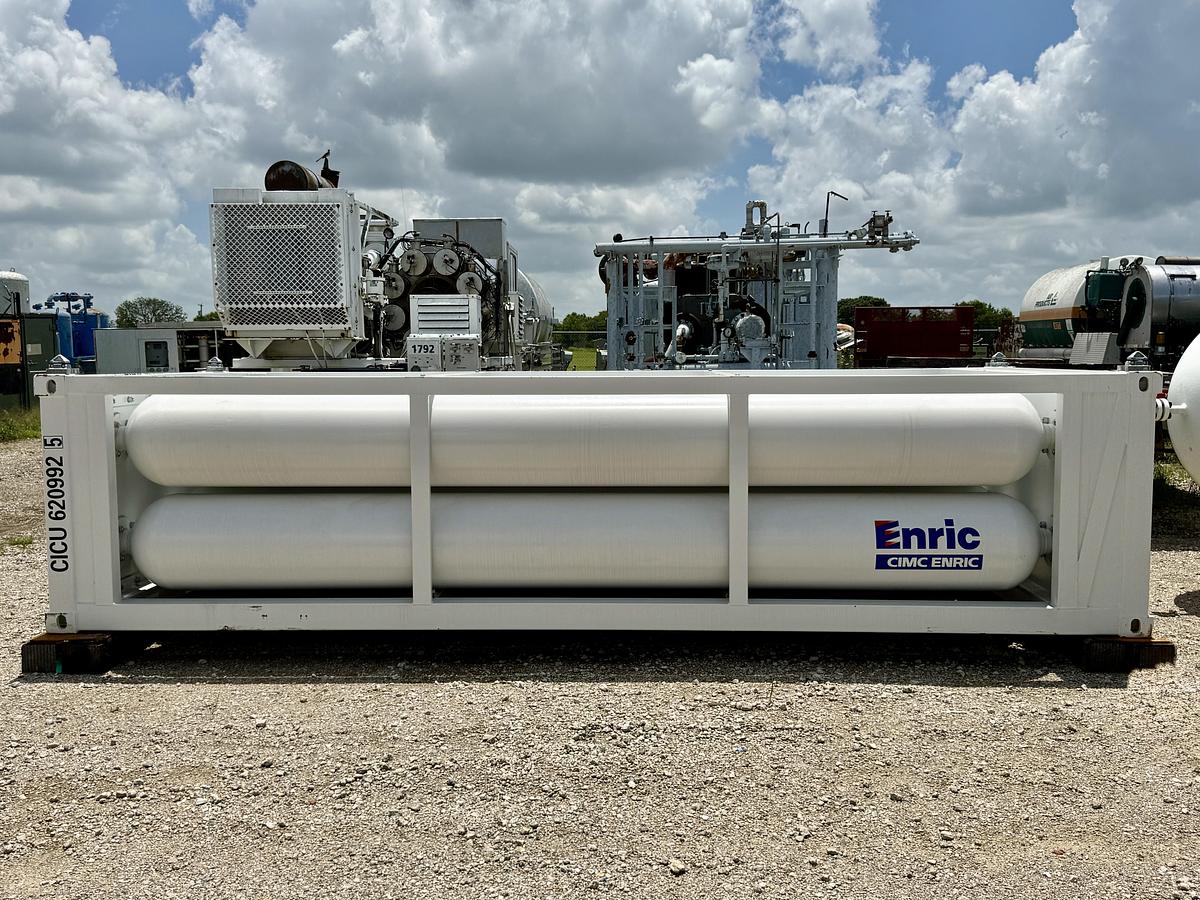

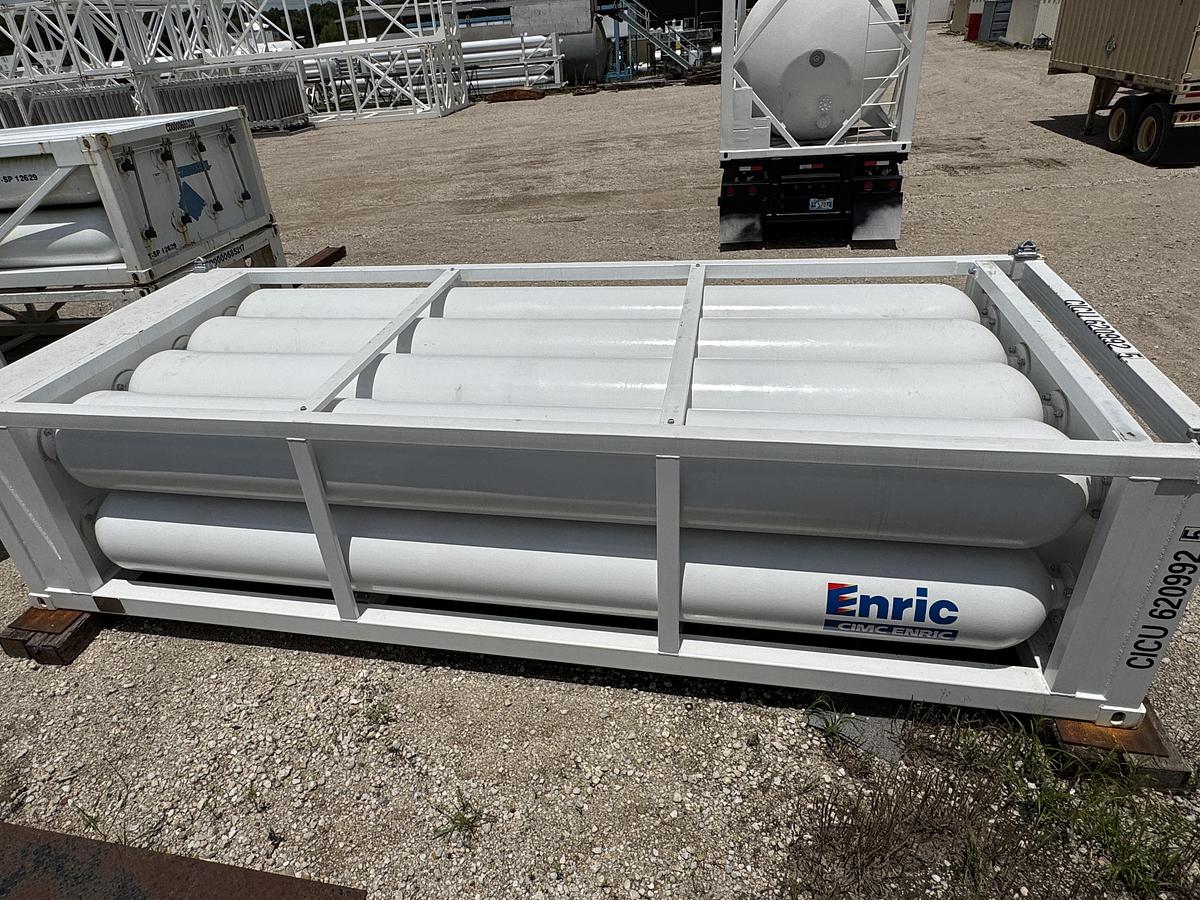

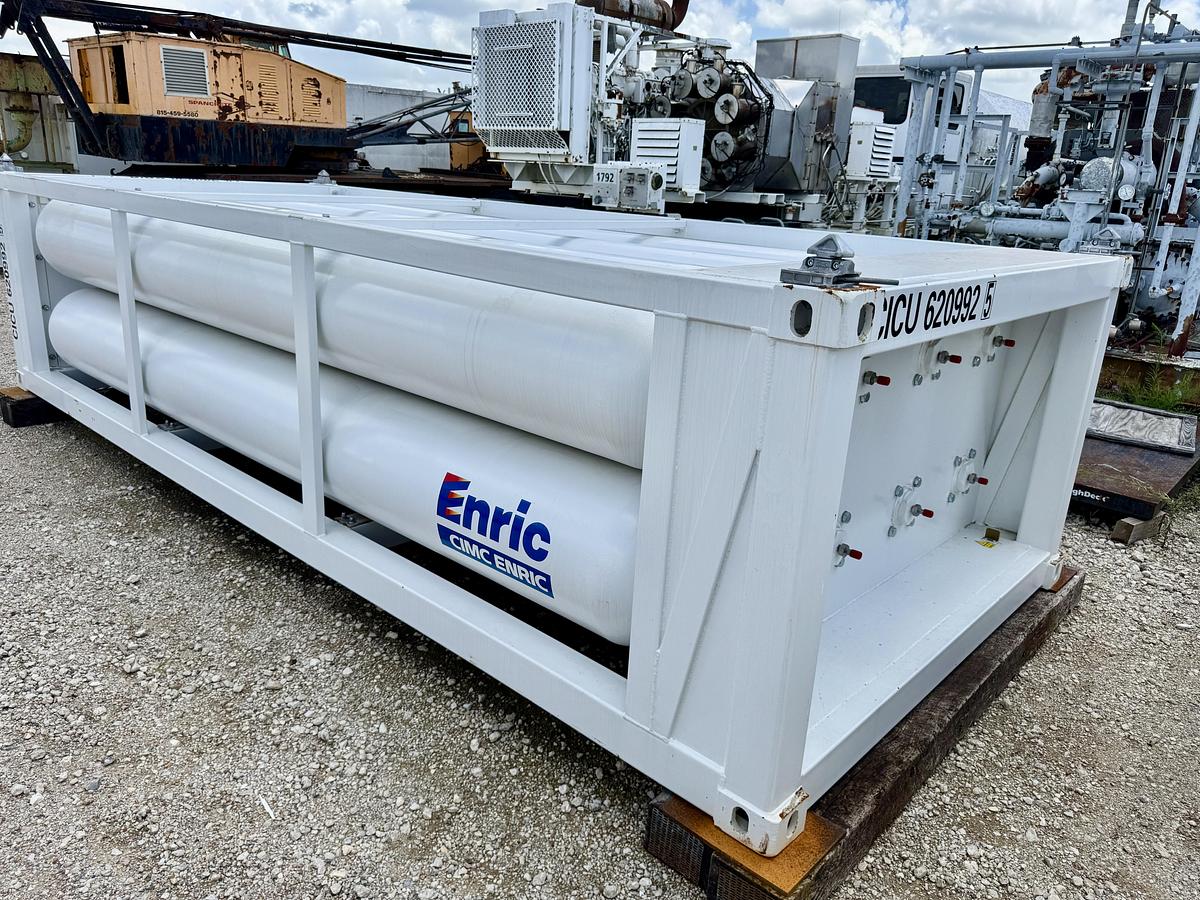

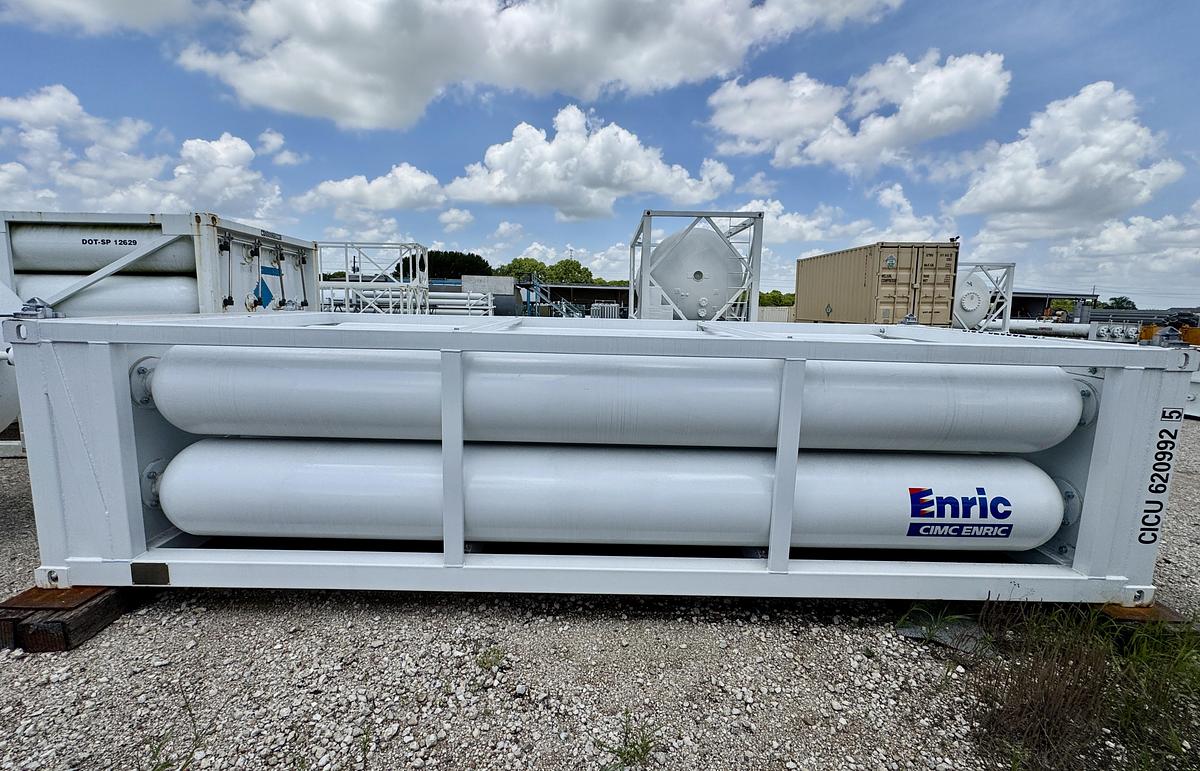

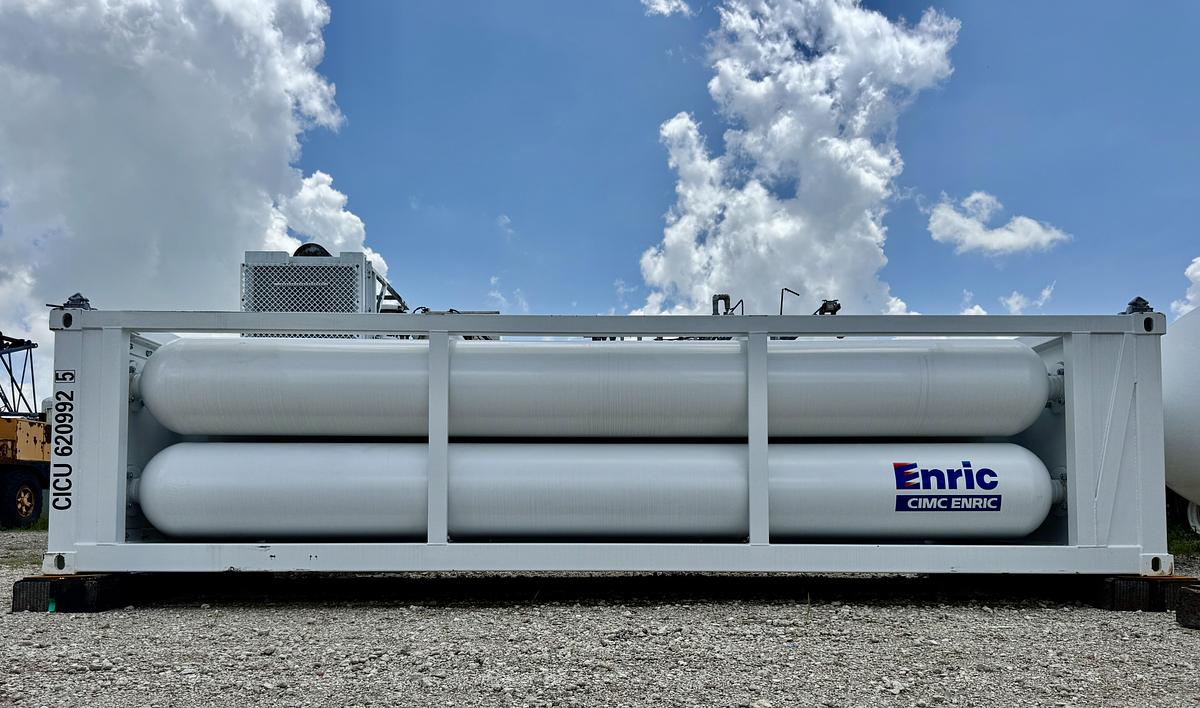

(10) High-pressure cylinders mounted in an ISO frame

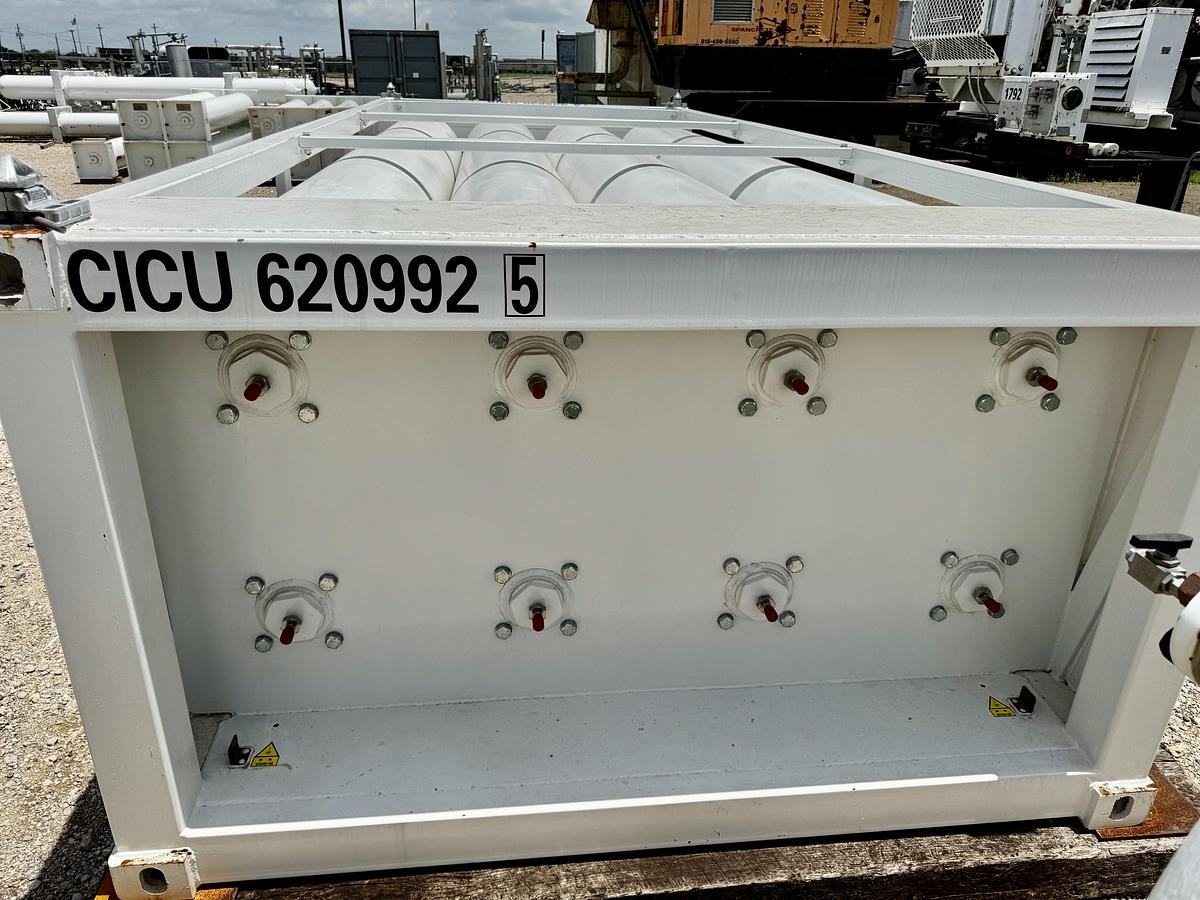

Flanged and threaded port connections with red-capped valves

Fully enclosed protective steel frame with painted finish

Forklift pockets and top lifting lugs for easy transport

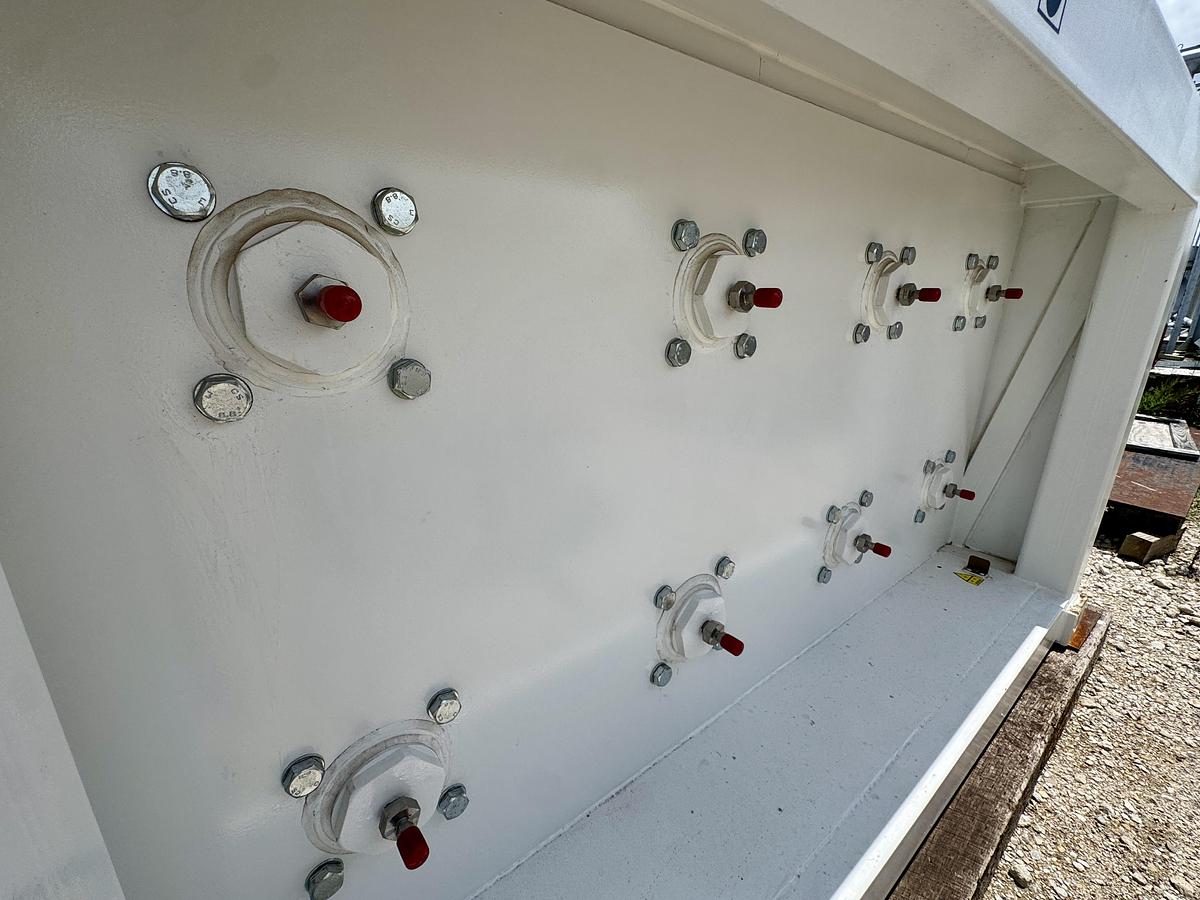

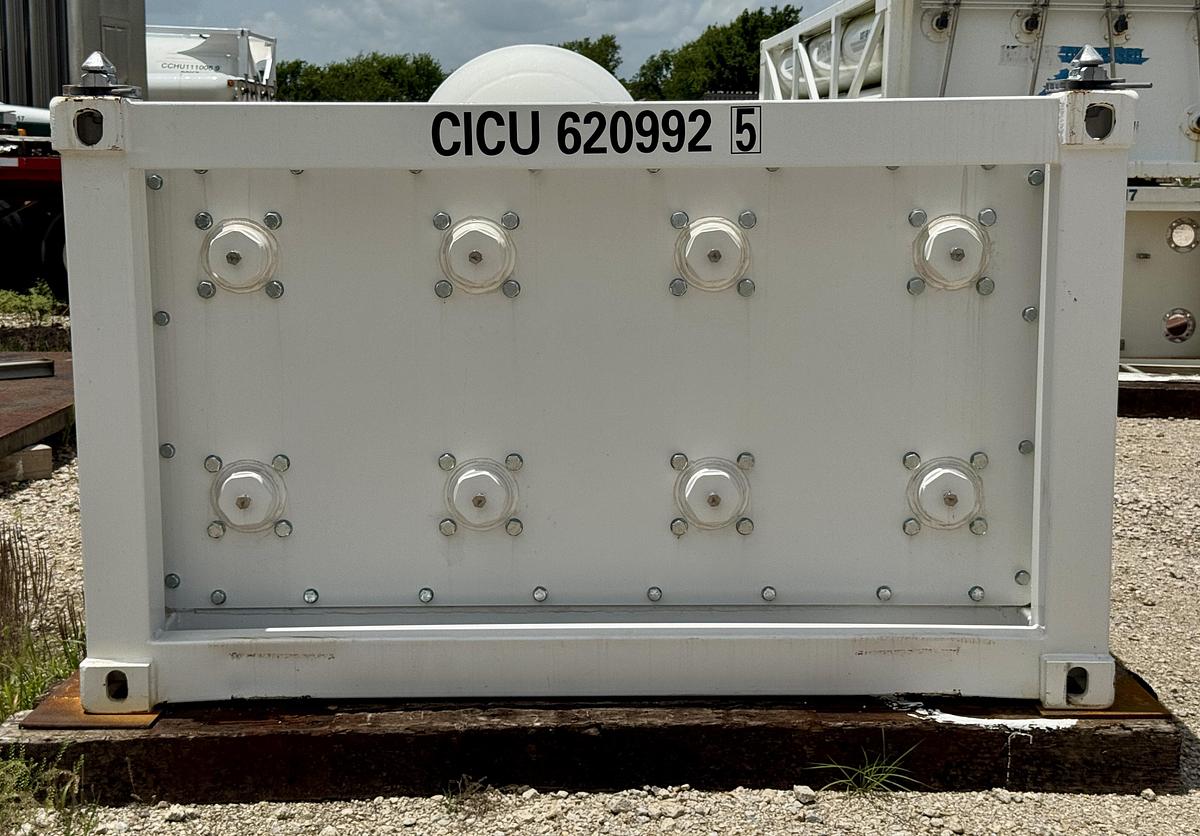

Rear manifold panel with 10-port configuration

Pre-purchase inspections are welcome during normal business hours upon appointment scheduled in advance. We would be happy to provide complimentary transportation pickup from DFW Airport and back if you would like to fly in and inspect the item in person. Additionally, we can conduct FaceTime / Teams/Zoom calls to review the item in person for any domestic /international procurement. Please be mindful that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard, South of Dallas, Texas. We can assist with shipping arrangements, and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sales support to set your project up for success. We will require a verifiable Cashier's check as a payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared to the company account, before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
