Air Products 100M Standard Nitrogen Plant – Joy TA-50 Centrifugal Compressor | 115 TPD GAN | 99.99% Purity | ASME Package

Technical Description

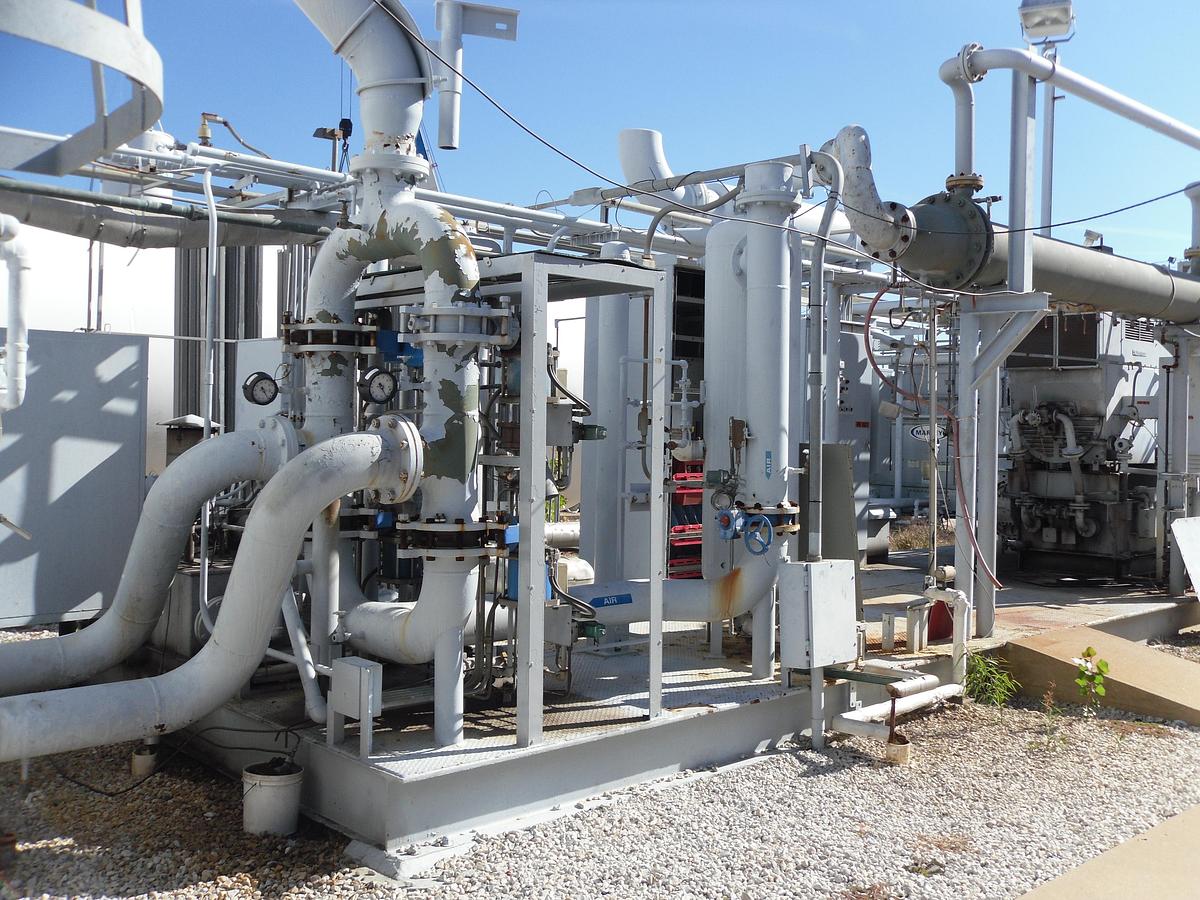

For sale is a 100M Standard Nitrogen Plant, engineered by Air Products and Chemicals, Inc. and designed for 115 TPD gaseous nitrogen (GAN) production at 99.99% purity. The system features a Joy TA-50 three-stage centrifugal main air compressor and associated process equipment configured in a skid package. Originally built in 1984, this plant employs a reversing heat exchanger process with a cryogenic cold box design to ensure high reliability and efficiency for industrial gas production.

Key Specifications:

Capacity: 115 TPD gaseous nitrogen

Purity: 99.99%

Process: Reversing heat exchangers, cryogenic separation

Main Compressor: Joy TA-50HZ, 3-stage centrifugal design

Delivered Capacity: 20,710 lb/hr dry gas

Inlet Pressure: 14.15 psia

Inlet Temperature: 98 °F

Discharge Pressure: 131 psia

Relative Humidity: 40%

Cooling: Water-cooled, 85°F inlet coolant

Dimensions (Main Compressor + Motor): 155” L × 93” W × 69” H

Weight: Approx. 23,400 lbs (compressor + drive motor)

Major Equipment Installed:

Inlet air filter

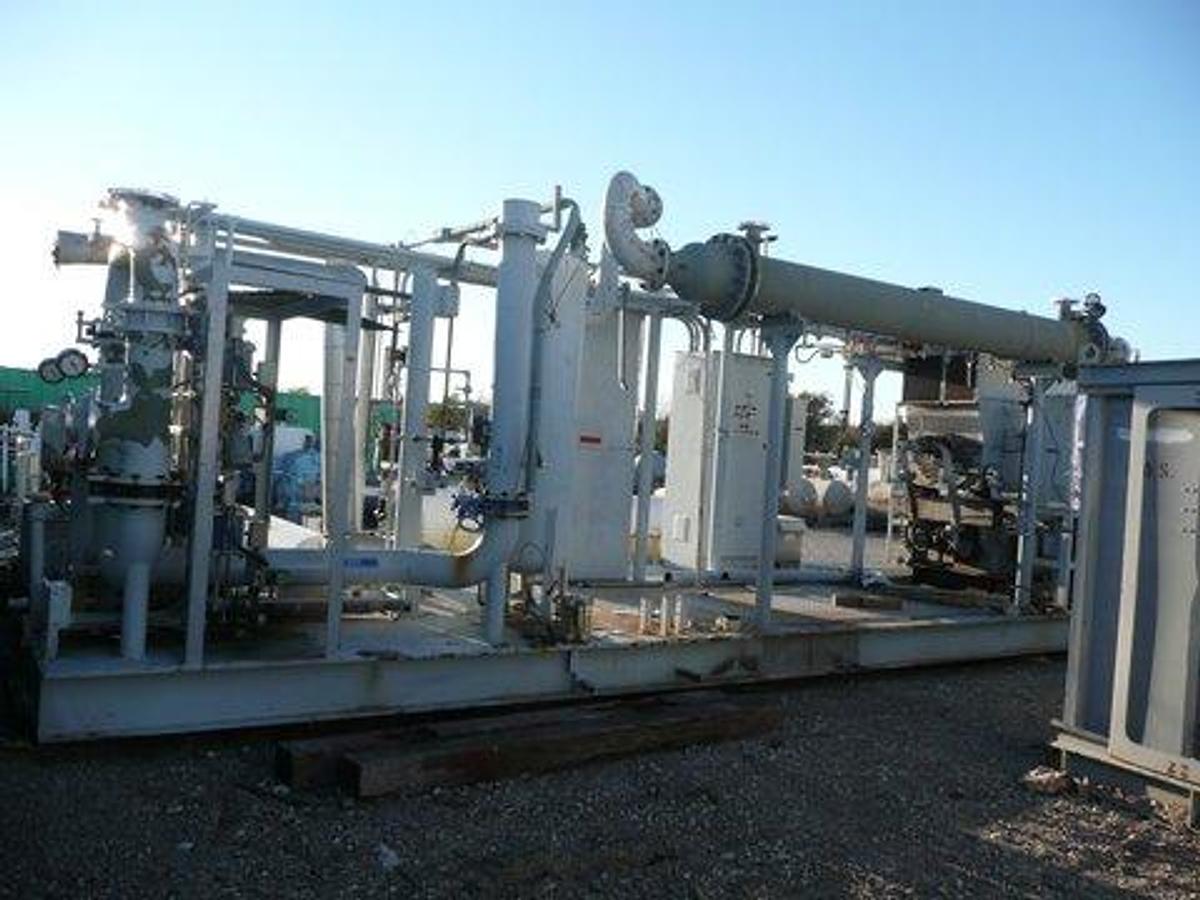

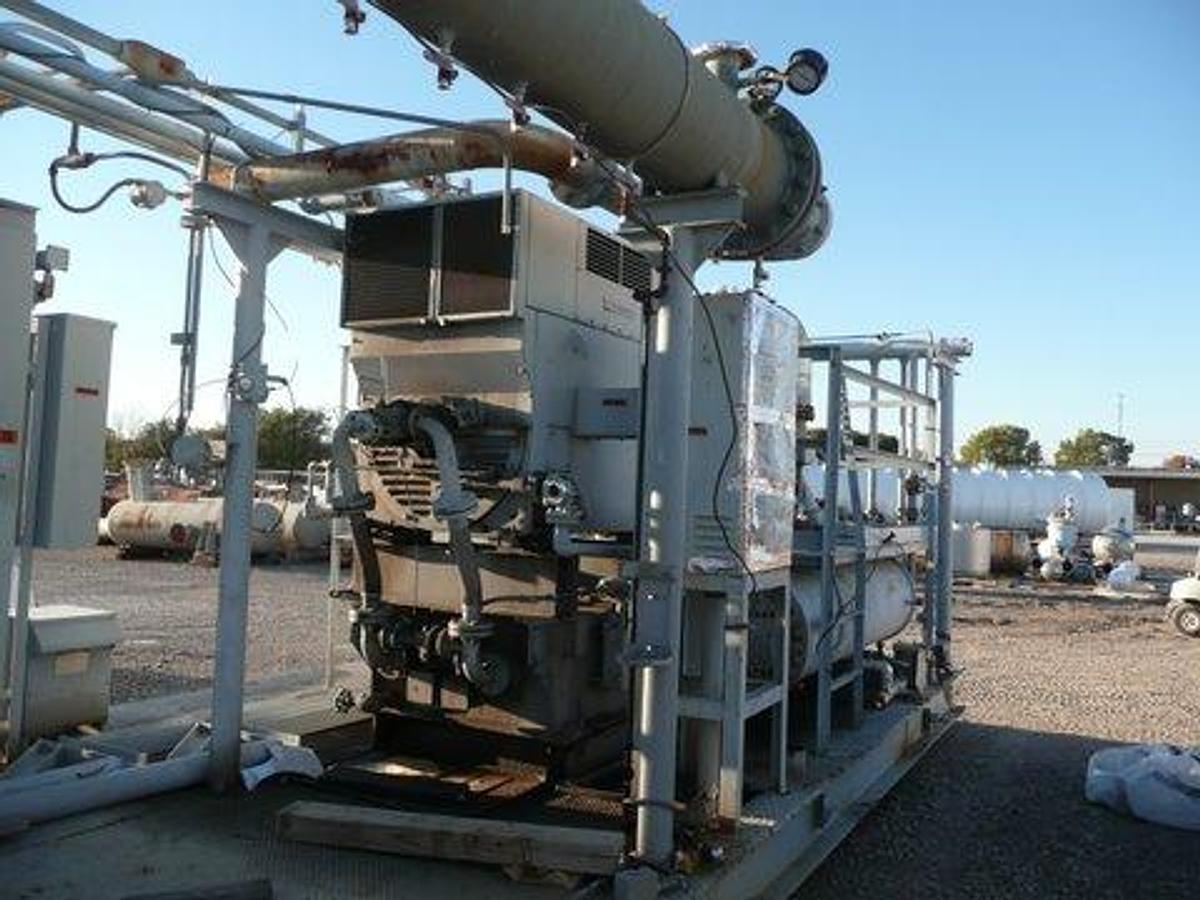

Main air compressor and drive motor

Aftercooler and condensate separator

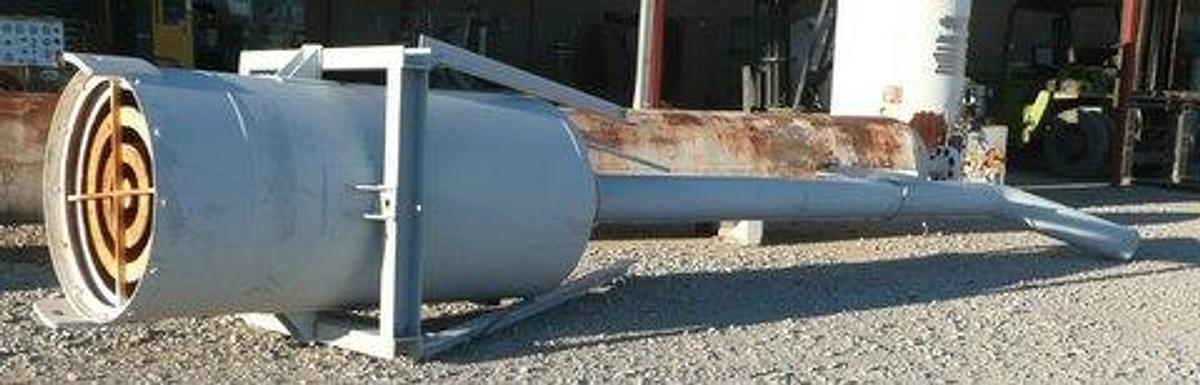

Vent silencer and switch valve silencer

Lube oil console

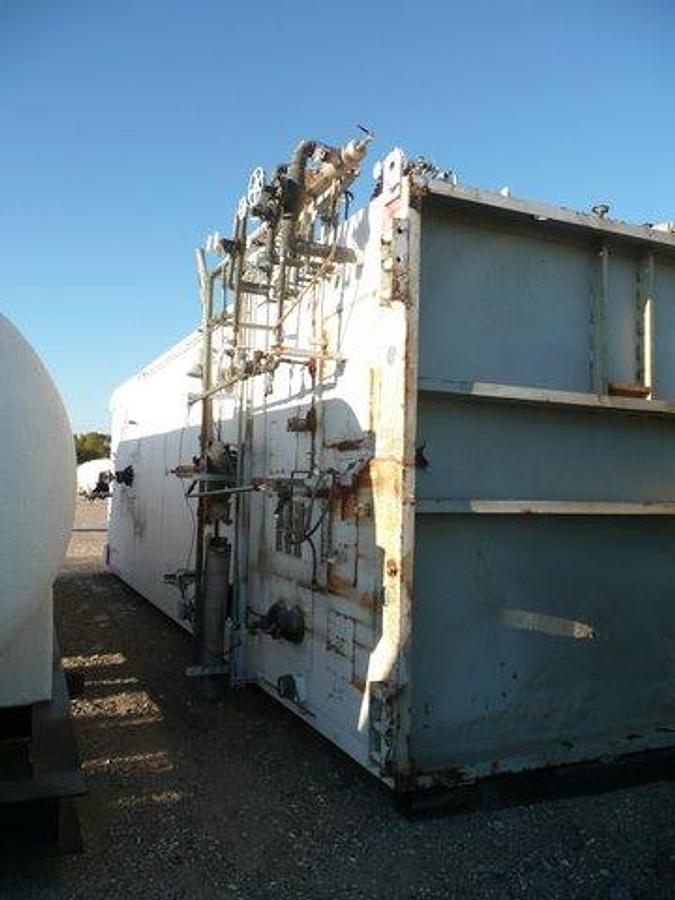

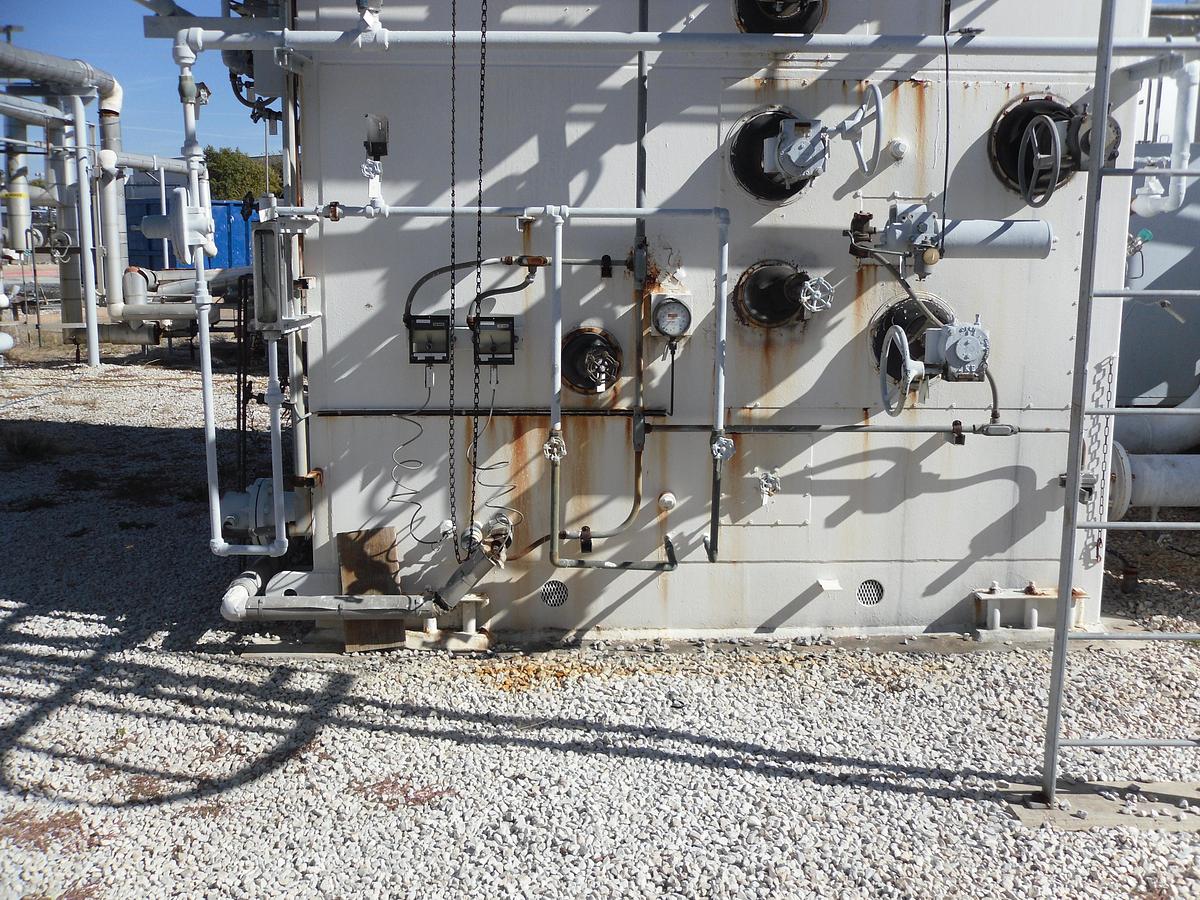

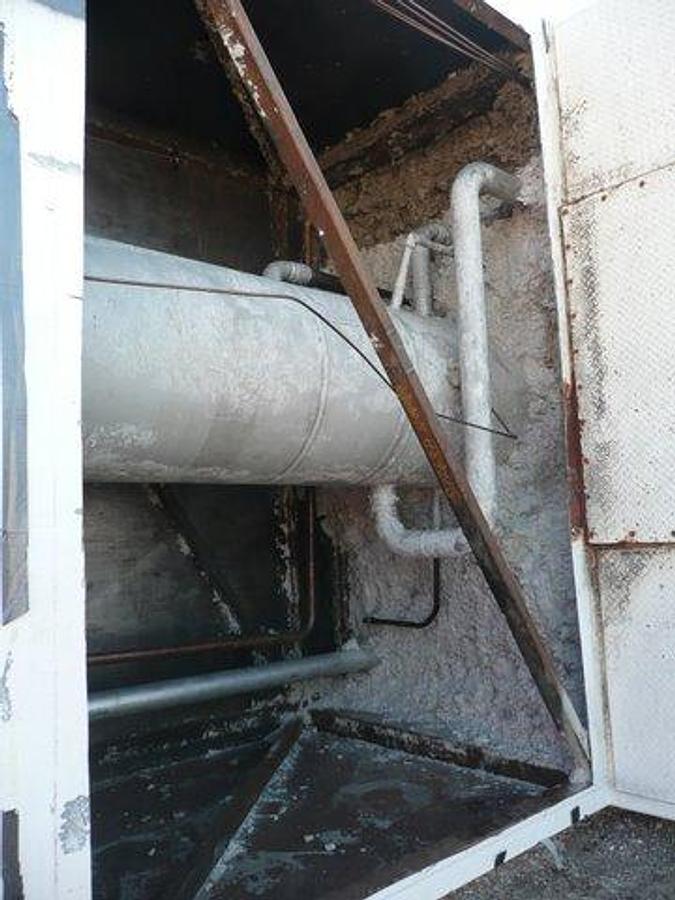

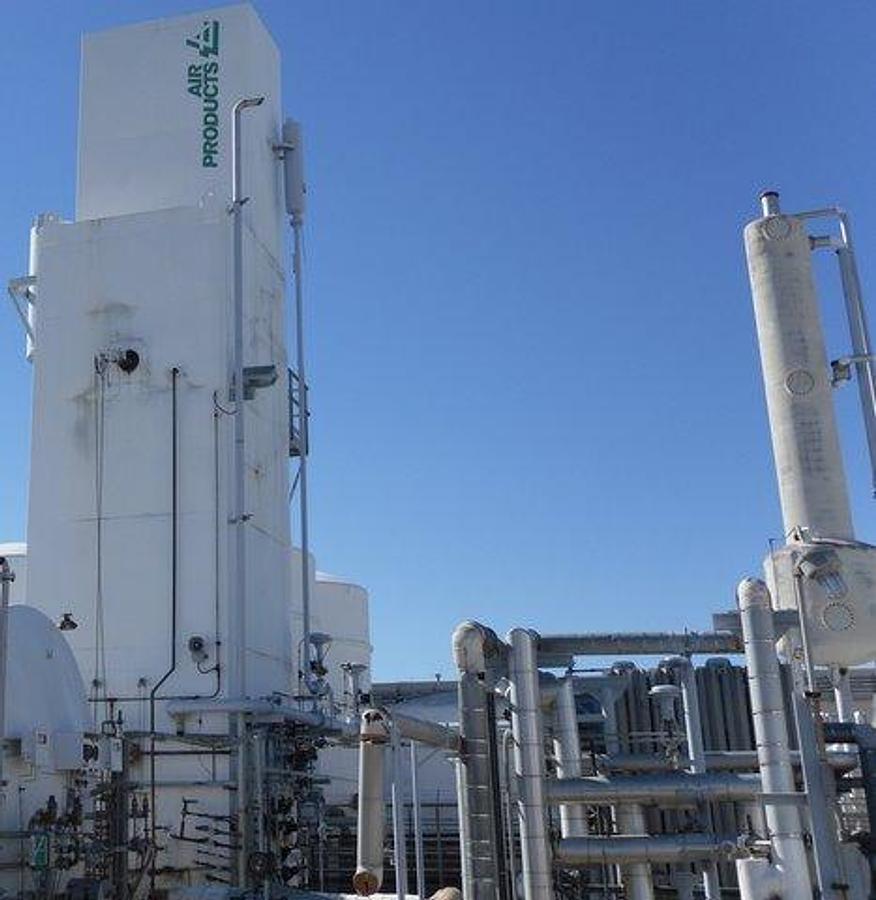

Cold box with warm and cold heat exchanger cores

HP column and scrub column with reboiler condensers

Turbo expander with oil brake

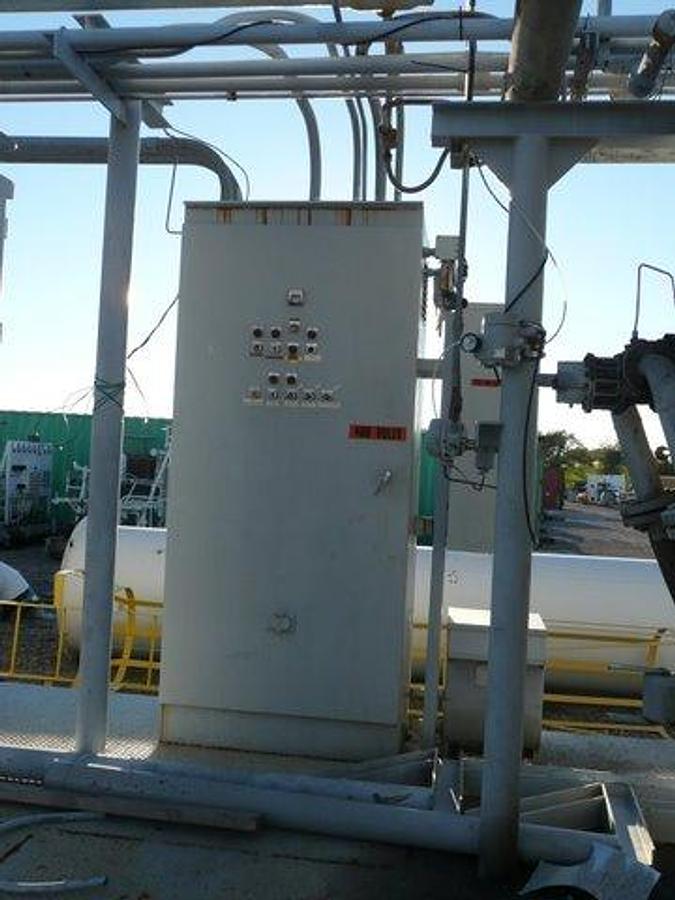

Defrost heaters and instrumentation panels

Features & Benefits

Proven Air Products cryogenic nitrogen plant for reliable high-purity gas output.

Flexible operation with turndown to 15,530 lb/hr, including surge margin protection

100m-DataPack

Heavy-duty stainless steel impellers and an ASME-built skid for long-term service.

Comprehensive equipment package with compressor, cold box, turbo expander, and auxiliaries.

Ideal for redeployment in industrial gas, petrochemical, electronics/semiconductor, or cryogenic supply operations.
