Parker Fiber-Bed Nitrogen Generation System – 60,000 SCFH Capacity – HiFluxx ST15020 Membrane Technology

This Parker Hannifin Fiber-Bed Nitrogen Generation System delivers up to 60,000 SCFH of high-purity nitrogen (95–99%) using advanced non-cryogenic hollow-fiber membrane technology. Designed for industrial reliability and efficiency, the system converts clean, dry compressed air into nitrogen for a wide range of applications in oil & gas, food & beverage, pharmaceuticals, chemicals, electronics, heat treatment, marine, and mining industries.

System Overview

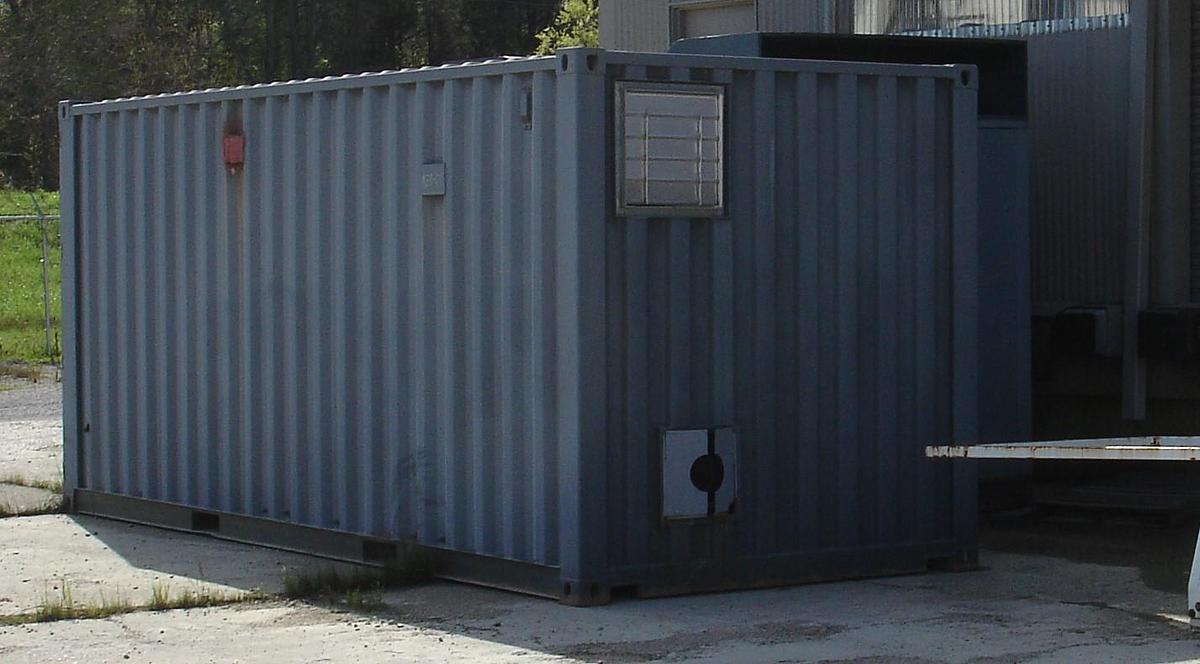

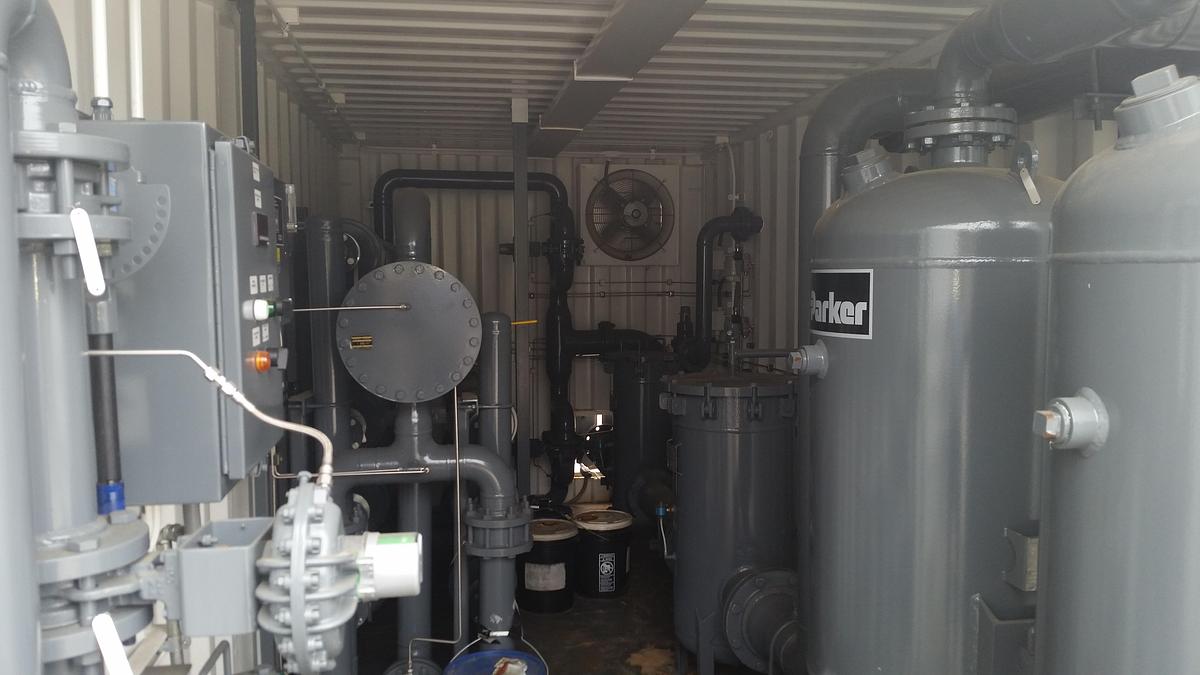

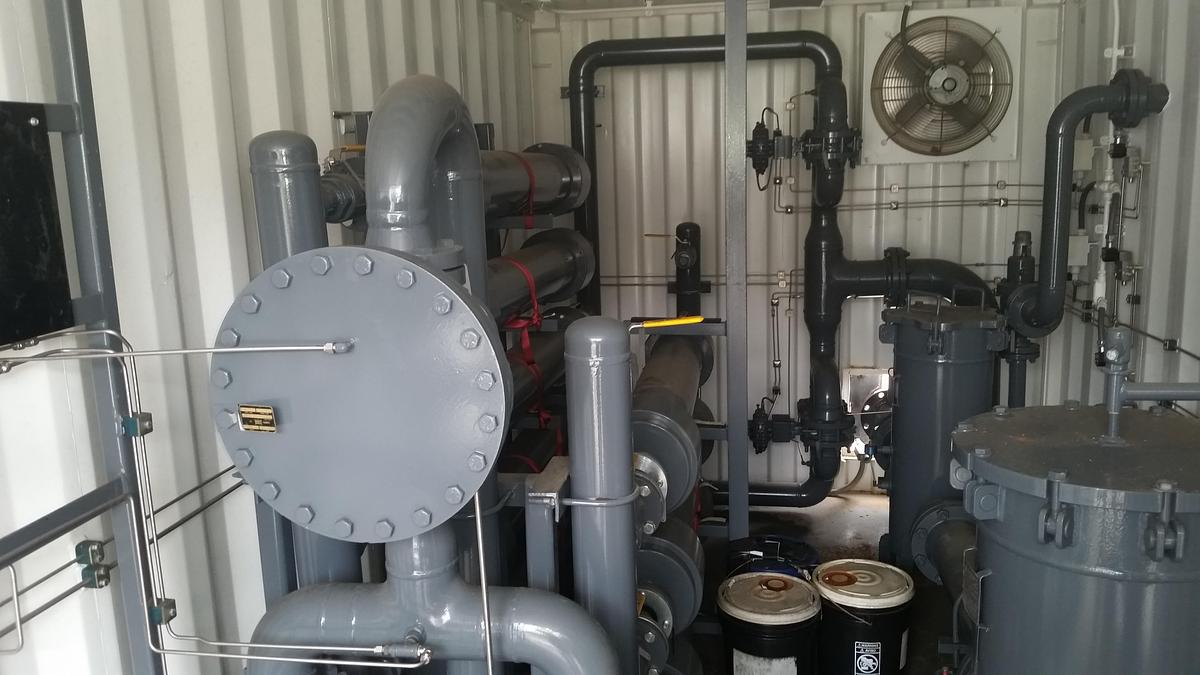

The unit is a freestanding, fully engineered nitrogen generator incorporating Parker HiFluxx ST15020-1 membrane modules, pre-filtration, carbon adsorption, and final filtration stages. Compressed air flows through the hollow-fiber membranes, where oxygen, moisture, and other gases permeate through the membrane walls, leaving a concentrated nitrogen stream. The oxygen-enriched exhaust is safely vented, and the purified nitrogen is filtered, pressure-regulated, and delivered to your process.

Key Features & Benefits

High Capacity: Delivers up to 60,000 SCFH (1,700+ Nm³/hr) nitrogen output depending on purity and inlet pressure.

Flexible Purity Control: Adjustable for 95% to 99% purity by regulating flow and pressure.

Energy Efficient: Operates at low inlet pressures (4–8 bar g), reducing compressor load and energy costs.

Reduced CO₂ Emissions: No heating elements required for membrane activation.

Low Maintenance: No moving parts in membrane modules, no user-serviceable internal components.

Quick Start-Up: Instant nitrogen purity upon start-up—no warm-up time.

Durable Construction: Aluminum membrane housings with robust fiber resistant to particle contamination.

Compact Footprint: Efficient system design requires fewer membrane modules for the same output.

Low Noise: Quiet operation for indoor or outdoor industrial installations.

Technical Specifications

Nitrogen Purity: 95–99%

Capacity: Up to 60,000 SCFH (flow rate varies with purity and inlet pressure)

Membrane Type: Parker HiFluxx ST15020-1 hollow-fiber modules

Operating Pressure: 4–8 bar g (max. 9 bar g)

Operating Temperature: +2°C to +50°C (ambient)

Design Pressure: 14 bar g

Inlet Air Requirements: Clean, dry, oil-free compressed air with ≤0.01 mg/m³ oil vapor and particulate filtered to 0.01 µm

Connections: 6" #150 flange inlet / 3" #150 flange outlet

Dimensions (per membrane module): 1740 mm H x 280 mm Ø

Weight (per membrane module): 46 kg

Applications

Oil & Gas: Pipeline purging, offshore platform inerting, well stimulation support.

Food & Beverage: Packaging, storage tank blanketing, preservation of perishable products.

Pharmaceutical & Chemical: Reactor inerting, solvent blanketing, product transfer under inert atmosphere.

Electronics: Soldering, wave reflow processes, prevention of oxidation in manufacturing.

Metals & Heat Treatment: Annealing, sintering, and other oxygen-sensitive processes.

Marine & Offshore: Tanker inert gas systems, engine room fire prevention.
