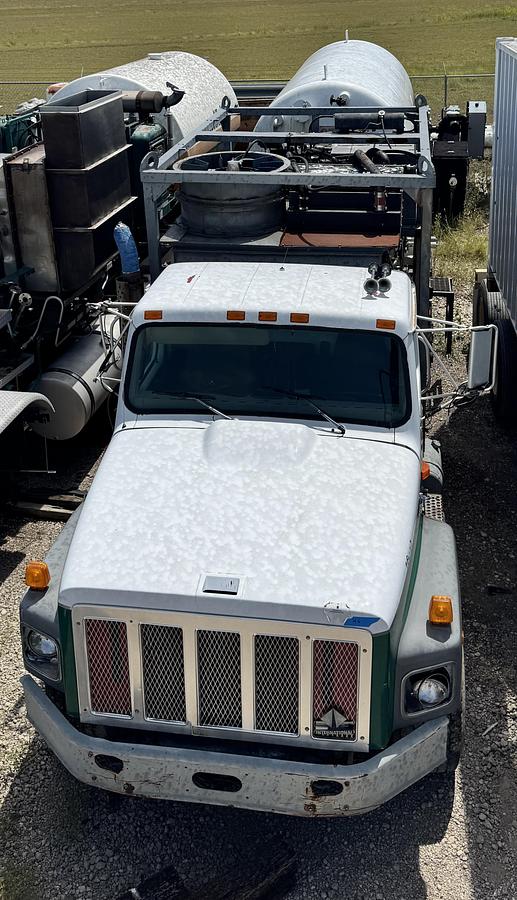

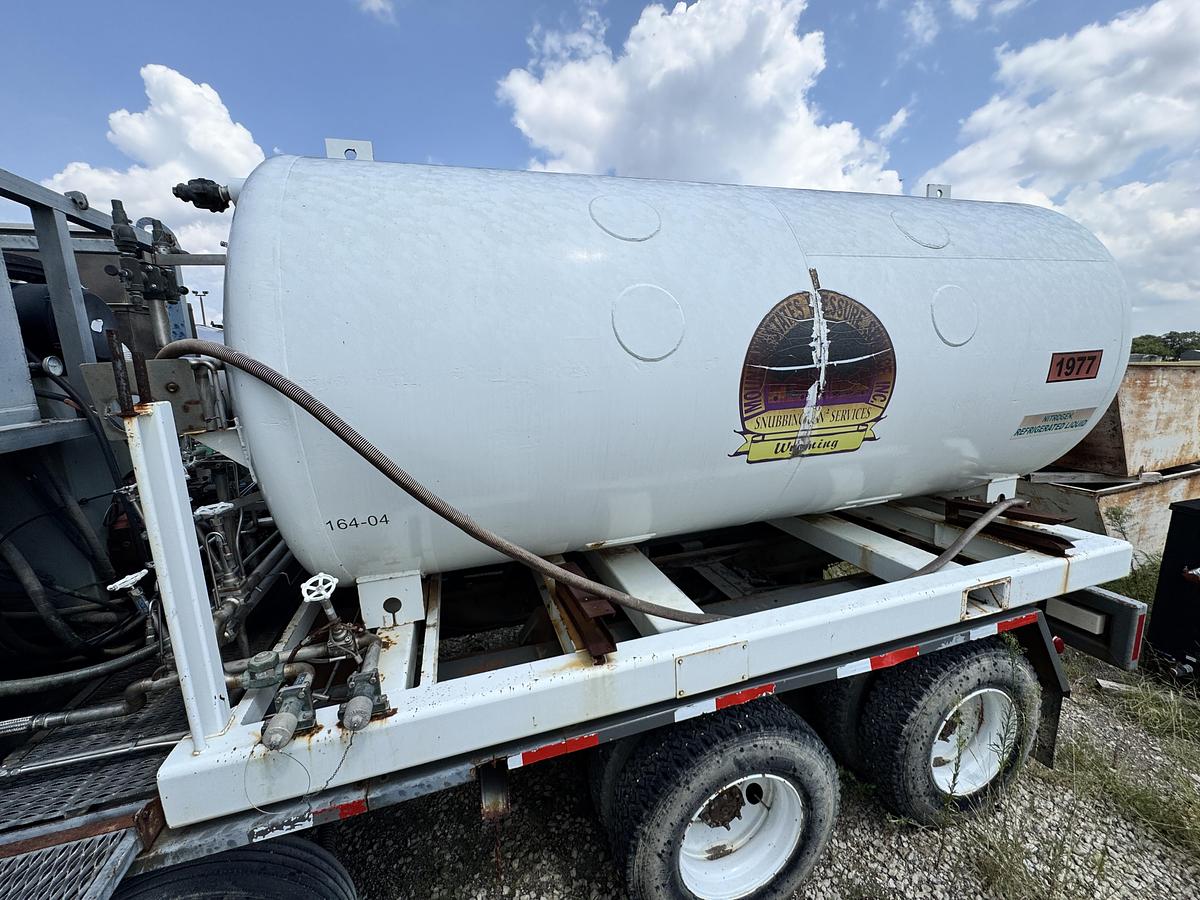

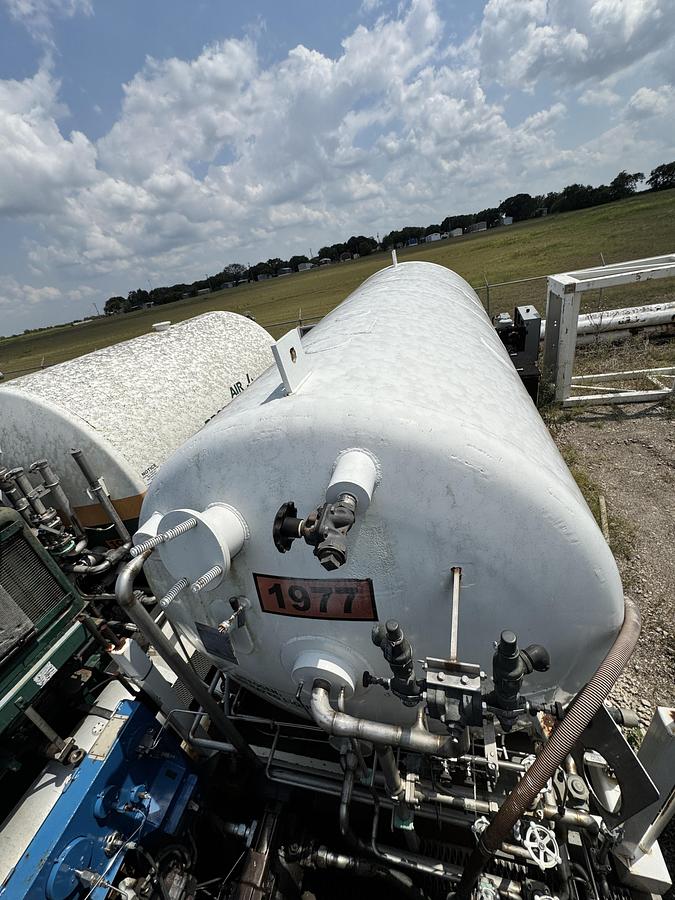

Cambridge Standard Steel 1980 3000 Gallon Cryogenic Nitrogen Skid Tank – ASME Certified

This Cambridge-manufactured cryogenic skid-mounted transport tank is engineered for oilfield service and industrial cryogenic applications, providing reliable storage and transport of liquid nitrogen (LIN). With a 3,000-gallon capacity, ASME U-stamped certification, and 40 PSI working pressure, this tank is built for heavy-duty oilfield use, including nitrogen injection, purging, and pressure pumping. Its skid-mounted design makes it ideal for mobile deployment, truck rig-up, or stationary nitrogen service in harsh field conditions

Tank Specifications

Capacity: 3,000 Gallons (11,356 Liters)

Maximum Allowable Working Pressure (MAWP): 40 PSI at -320°F cryogenic service

Maximum Allowable Temperature: 100°F at 50 PSI

Shell Thickness: 0.134 in.

Head Thickness: 0.280 in.

Construction Code: ASME Section VIII, Division 1 – U-Stamp, NB Registered

Inner Vessel: Stainless Steel, vacuum-jacketed for insulation and reduced boil-off

Outer Jacket: Carbon Steel, insulated and reinforced for field service

Relief & Safety Systems

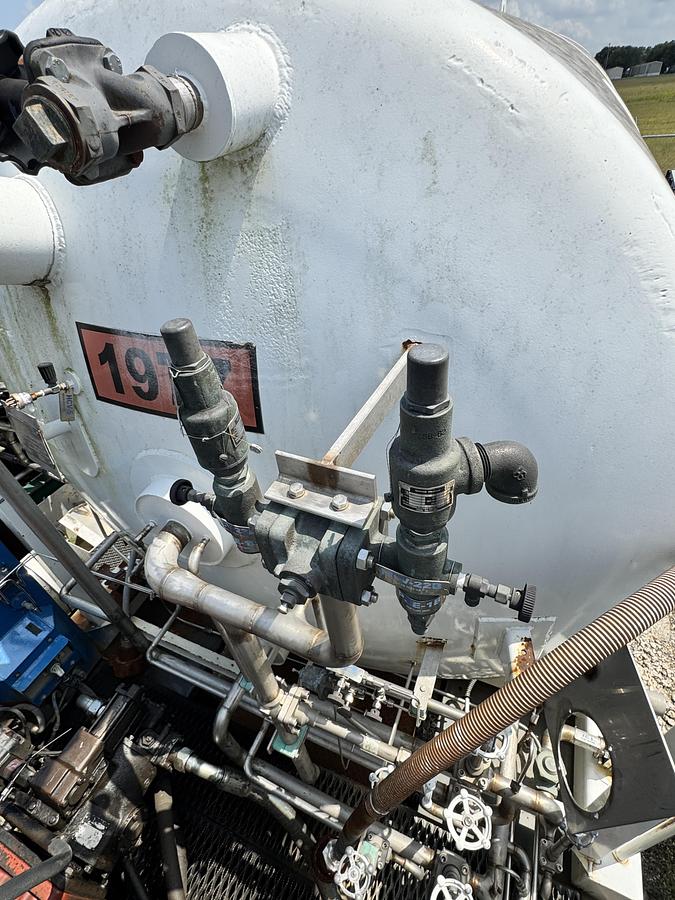

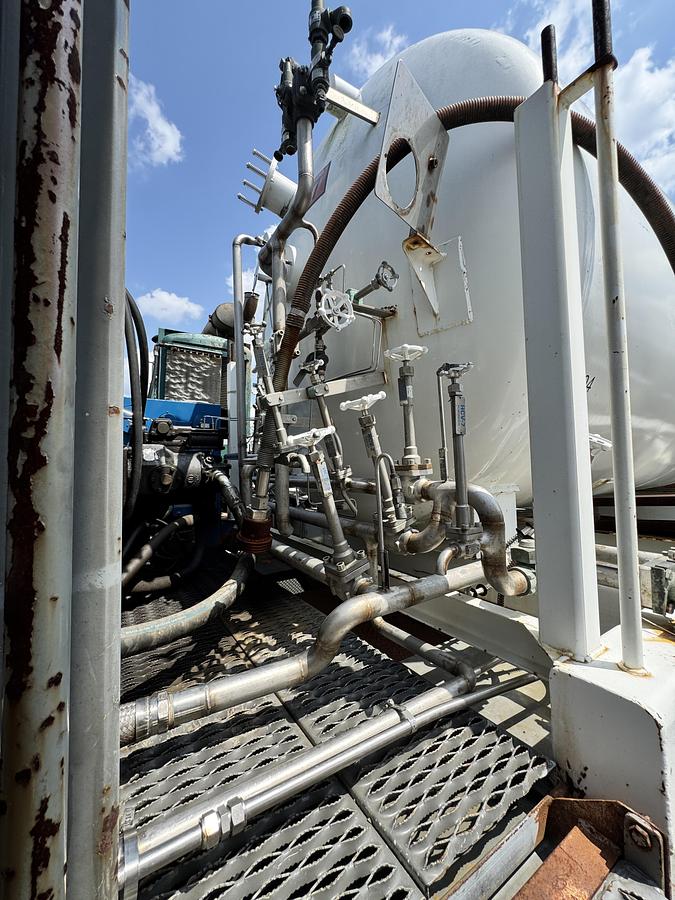

Equipped with cryogenic safety relief valves and vent piping per ASME/NB requirements

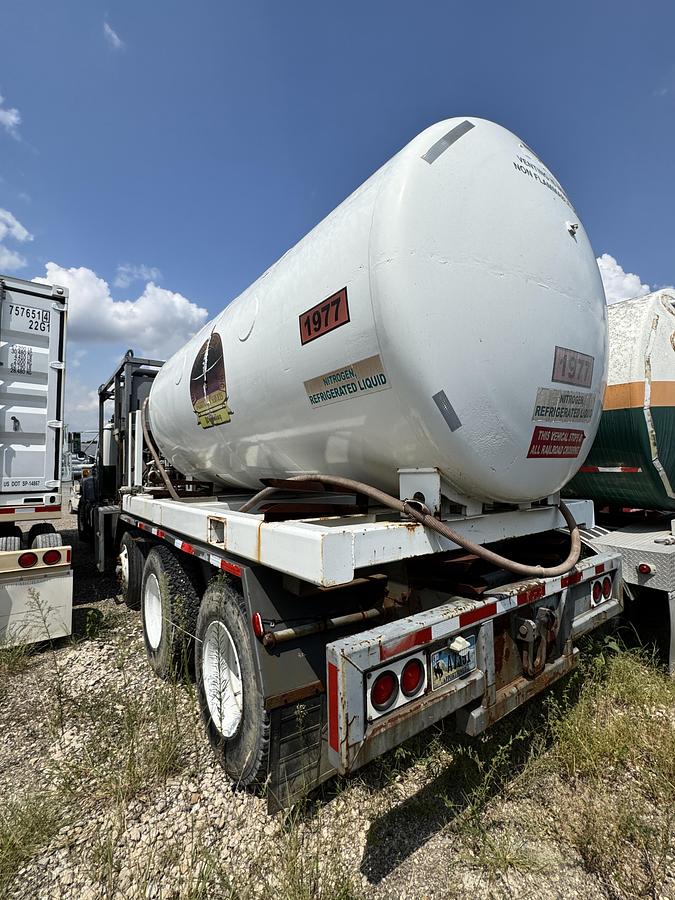

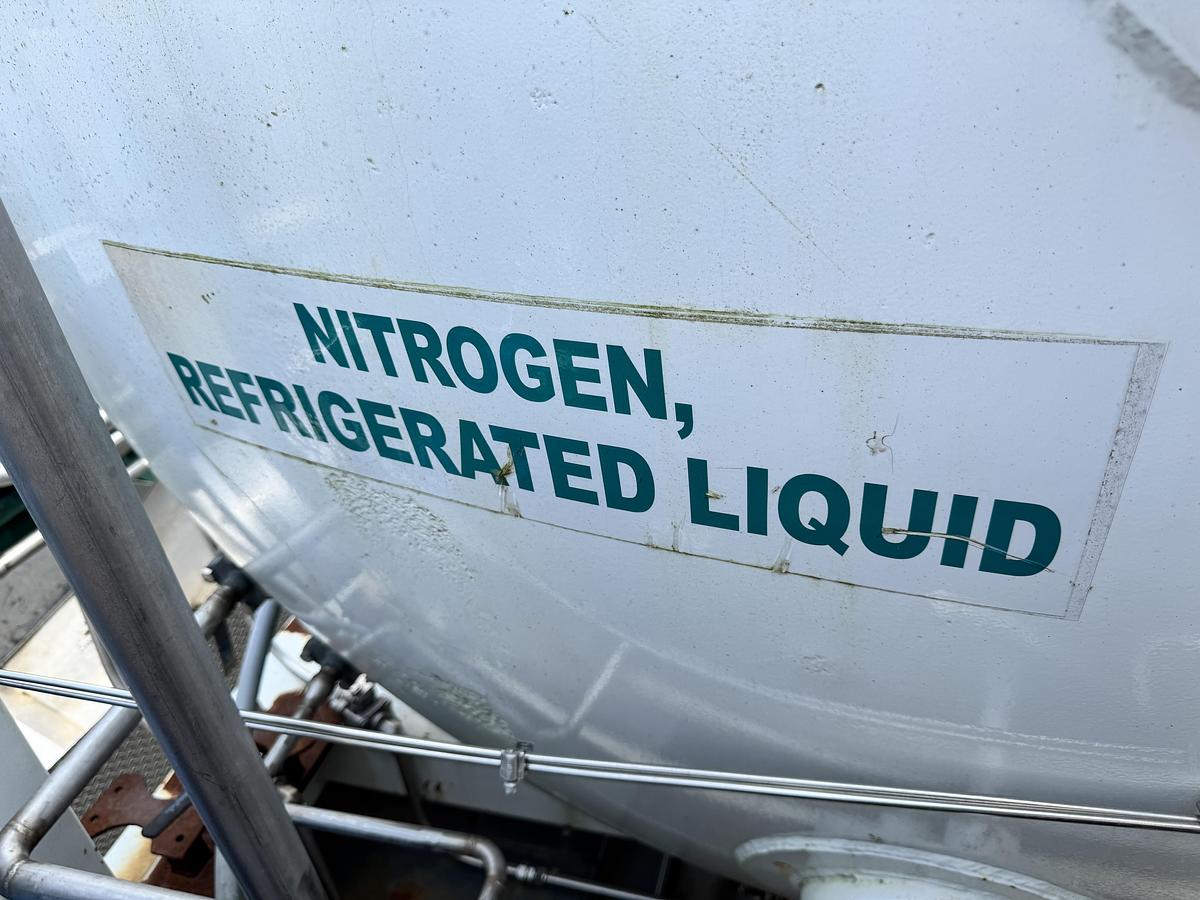

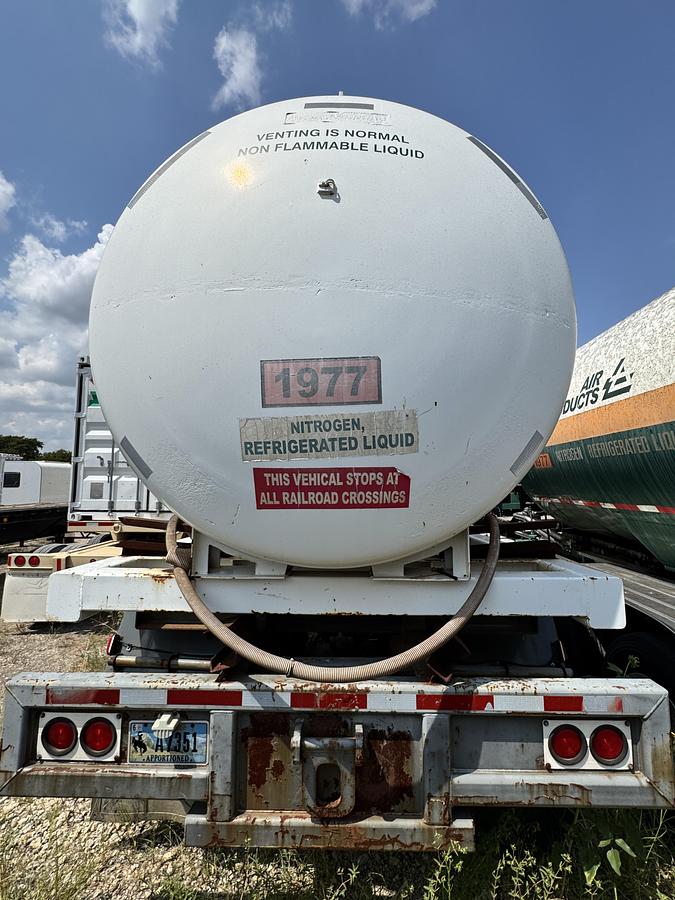

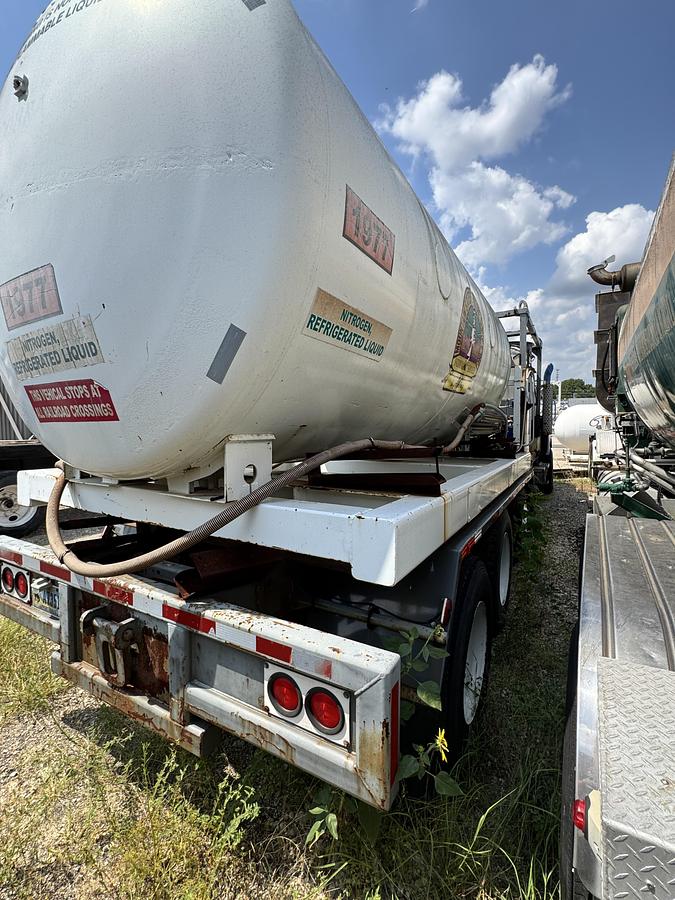

Placards: “Nitrogen, Refrigerated Liquid, Non-Flammable”

Designed for controlled venting during service and transport

Mounting & Transport

Configuration: Skid-mounted for oilfield transport and stationary nitrogen service

Heavy-duty skid frame with reinforced lifting eyes and tie-down points

Compatible with flatbed trucks, trailers, or direct site installation

Applications

Oilfield nitrogen injection, fracturing, and purging service

Pipeline pigging, purging, and pressure testing

Industrial nitrogen supply (steel mills, chemical plants, power generation)

Food processing and cryogenic freezing systems

Medical/Pharmaceutical bulk nitrogen distribution

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do FaceTime / Teams/Zoom calls to go over the item in person for any domestic /international procurement. Please be mindful that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard, South of Dallas, Texas. We can assist with shipping arrangements, and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sale support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared in the company account before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect ourselves and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
