Helium Storage Vessel – 62.4 Cu Ft | 2,450 PSIG MAWP | U.S. Steel Construction

Description:

High-pressure ASME-certified storage vessel built by U.S. Steel and rated for helium, oxygen, and natural gas service. Designed for a Maximum Allowable Working Pressure (MAWP) of 2,450 psig at 200°F, this vessel is ideal for industrial gas applications that require safe, reliable, and high-pressure storage. In addition to helium (He), oxygen (O₂), and natural gas (CH₄), the vessel is compatible with other gases, including Nitrogen (N₂), Argon (Ar), Hydrogen (H₂), and compressed Air. Perfect for cryogenic service, research facilities, and industrial gas suppliers.

Specifications:

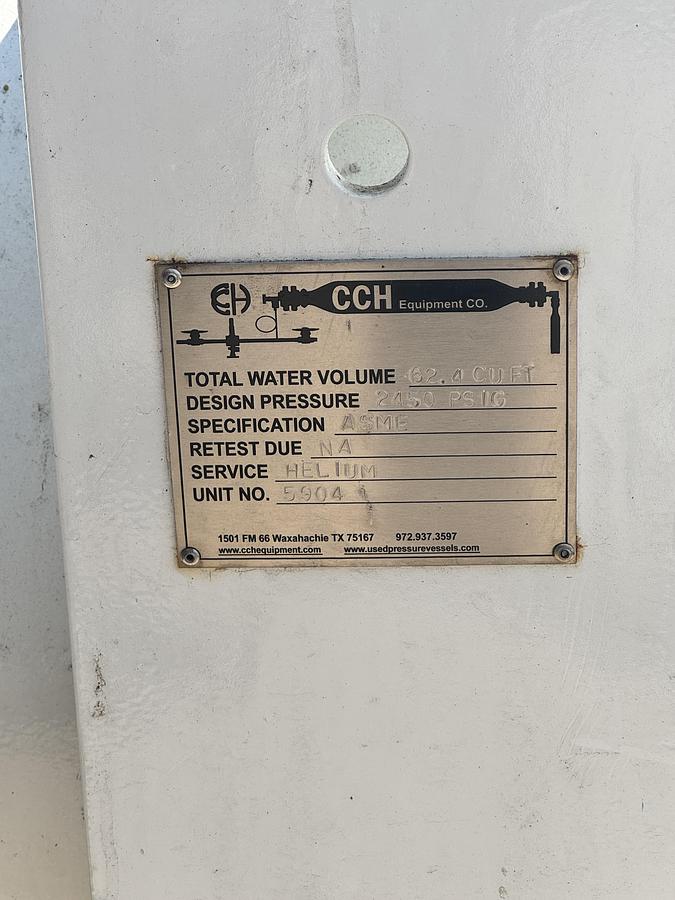

Total Water Volume: 62.4 Cu Ft

Design / MAWP: 2,450 PSIG @ 200°F (Appendix 14-70 GF-3)

Construction: ASME Section VIII, Div. 1 Certified, U.S. Steel Fabrication

Primary Service: Helium, Oxygen, Natural Gas

Additional Compatibility: Nitrogen, Argon, Hydrogen, Compressed Air

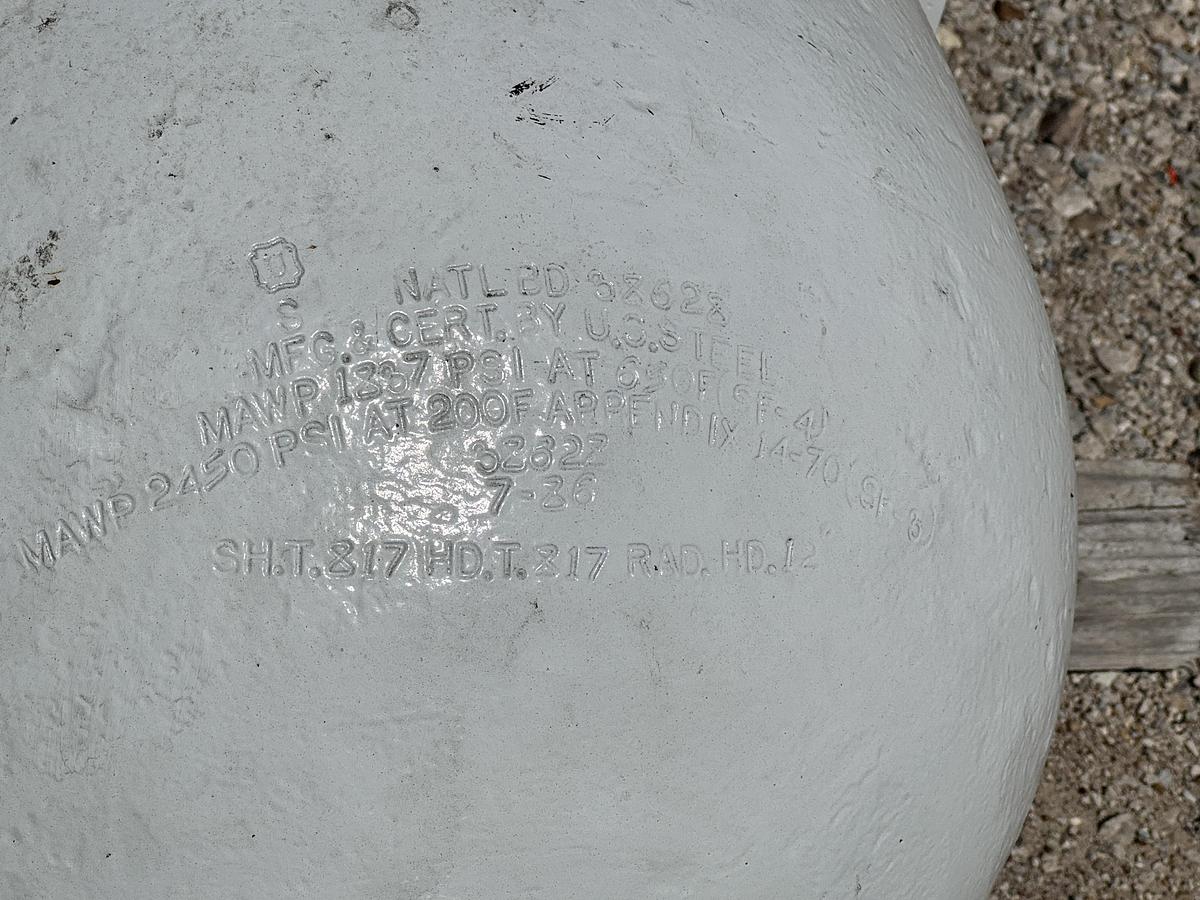

Shell Thickness: 0.817 in

Head Thickness: 0.217 in (RAD HD)

Specification: ASME Stamp "U" National Board Registered

Retest: N/A (current certification)

Unit No.: 5904

Features & Benefits:

ASME-certified design ensures long-term safety and reliability

Suitable for helium, oxygen, and natural gas storage at high pressure

Robust steel fabrication with a thick shell and head for durability

Ready for integration into gas distribution systems, tube skids, or trailers

Applications:

Helium supply and recovery systems

Oxygen storage for industrial or medical use (with proper cleaning)

Natural gas fueling and distribution systems

Cryogenic and industrial gas processing plants

Aerospace, semiconductor, and research applications

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do FaceTime / Teams/Zoom calls to go over the item in person for any domestic /international procurement. Please be mindful that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard, South of Dallas, Texas. We can assist with shipping arrangements, and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sales support to set your project up for success. We will require a verifiable Cashier's check as a payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared in the company account, before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect ourselves and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
