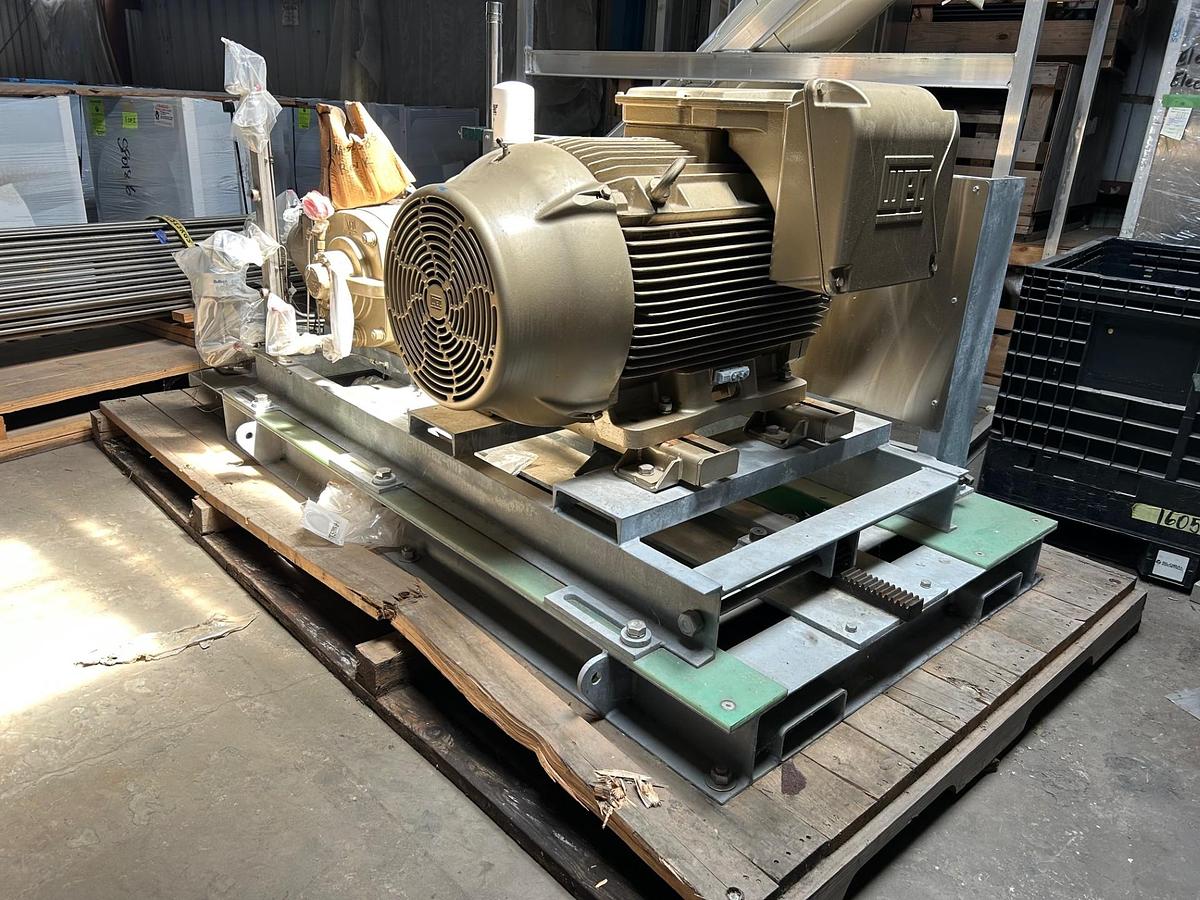

Nikkiso MP-100 Triplex Cryogenic Liquid Hydrogen Pump up to 55 GPM and 500 Bar

NEW! Never Removed from Original Crate.

Nikkiso MP-100 Triplex Cryogenic Pump.

Original Design Parameters: 7.2 kg/m at 500 bar.

• Bore X Stroke: 1.97" x 2.25". Please see the included brochure
• Motor: 150 HP 460V 3 Phase Inverter Duty
• CLASS 1, DIV 2, GROUP A,B,C,D

Applications

• Storage filling

• Special medium to heavy-duty

applications

• Continuous duty applications

• LH2 fueling station applications

• Light-duty vehicle fueling

• Bus fueling

• HD truck fueling

Features & Benefits

• Modular, compact displacement pumps available in 1, 2, 3 or 5 cylinder

configurations provide a wide range of flows

• Vacuum jacketed cold end for minimal cool-down losses and economical

operation, ideal for liquid hydrogen

• Pressurized oil lubricated drive with integral oil pump and reservoir, allows

higher bearing loads/prevent oil leakage

• Compatible with external oil cooler or lube system for continuous duty applications

• State-of-the-art internal sealing design for high efficiency and minimized losses

• Equipment is rated for hazardous locations

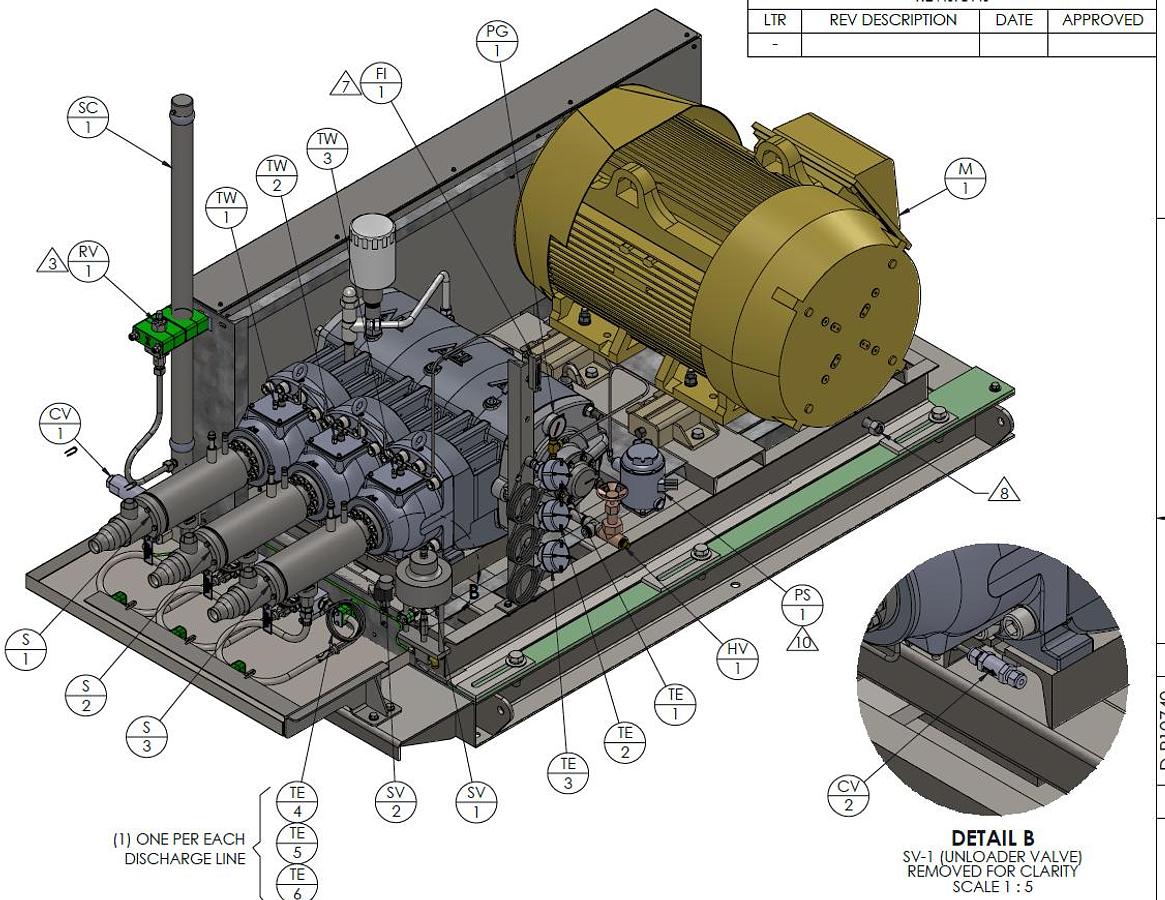

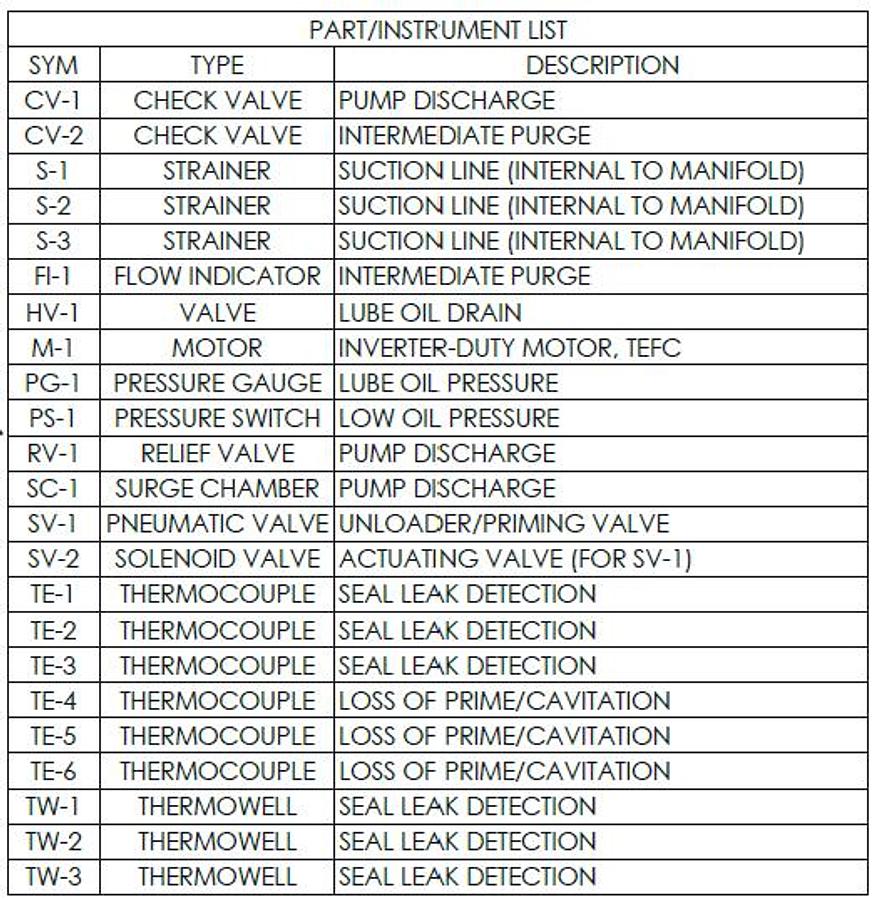

Scope of Supply

• Vacuum jacketed cold end with pressure oil lubricated drive end

• Vacuum jacketed suction adapter provides integrated bayonet design

Distance piece with purge ports

• Hot dipped galvanized steel skid

• TEFC motor

• High-pressure relief valve with discharge line and surge chamber

• Drip pan kit for LH2 applications

• Suction/vapor return manifold for multiple cylinder configurations
