Chart Vertical LNG Storage Tank – 15,000 Gallon 175 PSI – Vacuum 7.7 mtor - ASME/NFPA 52 Ready to go

Chart 15,000 Gallon Vertical LNG Cryogenic Storage Tank – 175 PSI

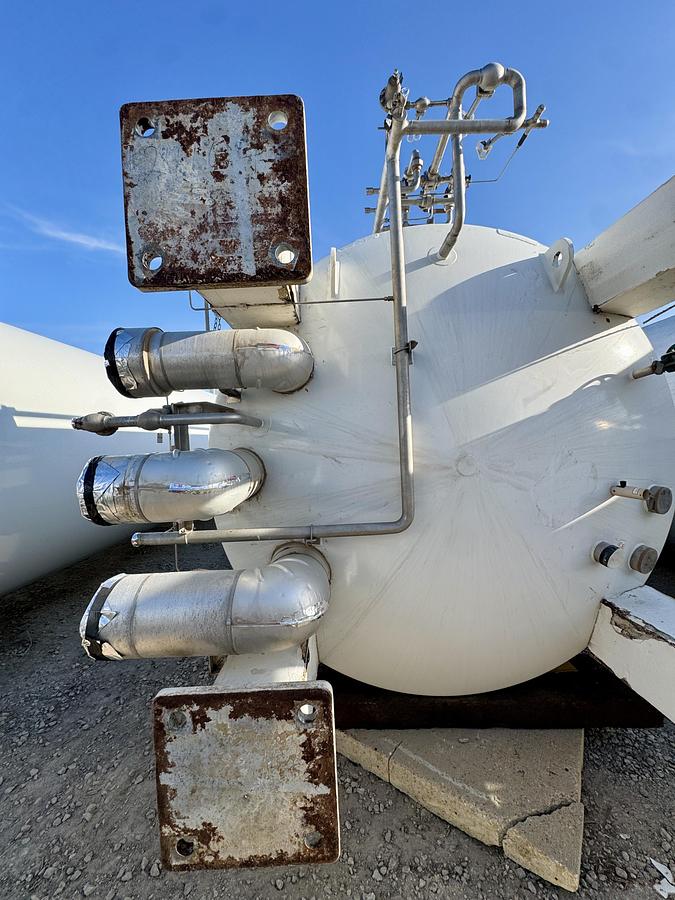

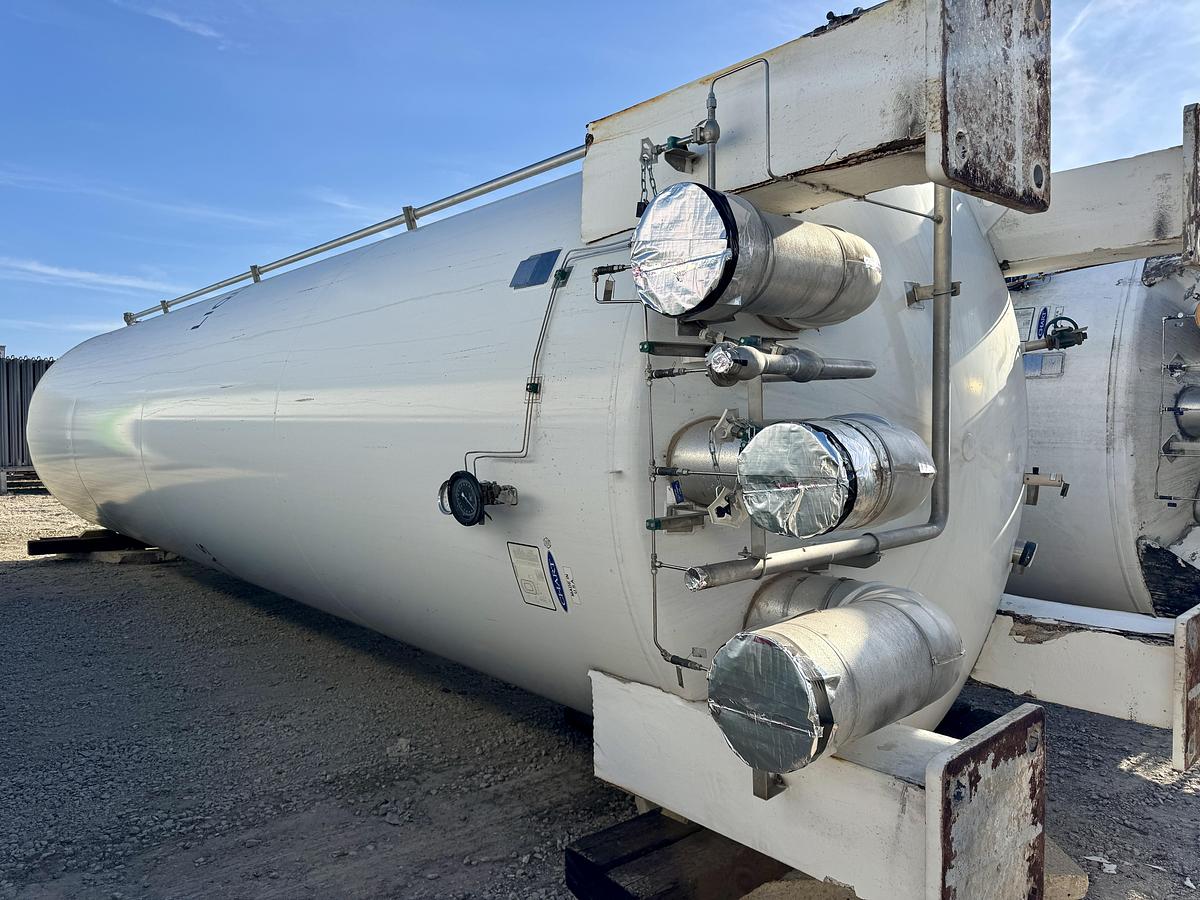

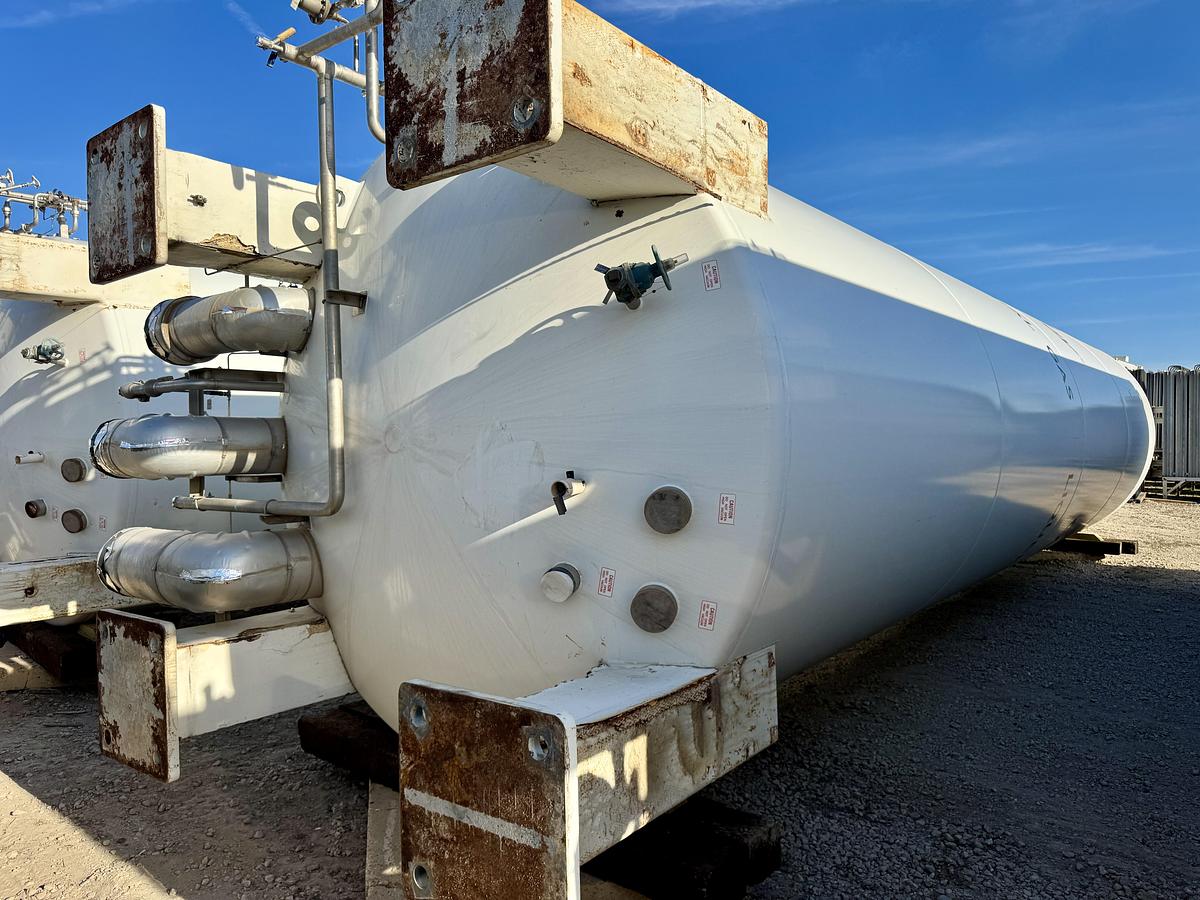

This 2011 Chart Industries VS-15000 SC-174-CS vertical LNG storage tank has a certified net liquid capacity of 15,000 gallons and a 175 PSI MAWP at 120°F. The ASME-coded vessel features an SA240 304 stainless steel inner vessel, carbon steel outer jacket, multi-layer vacuum insulation, and a minimum design metal temperature of -320°F at 175 PSI.

Technical Specifications

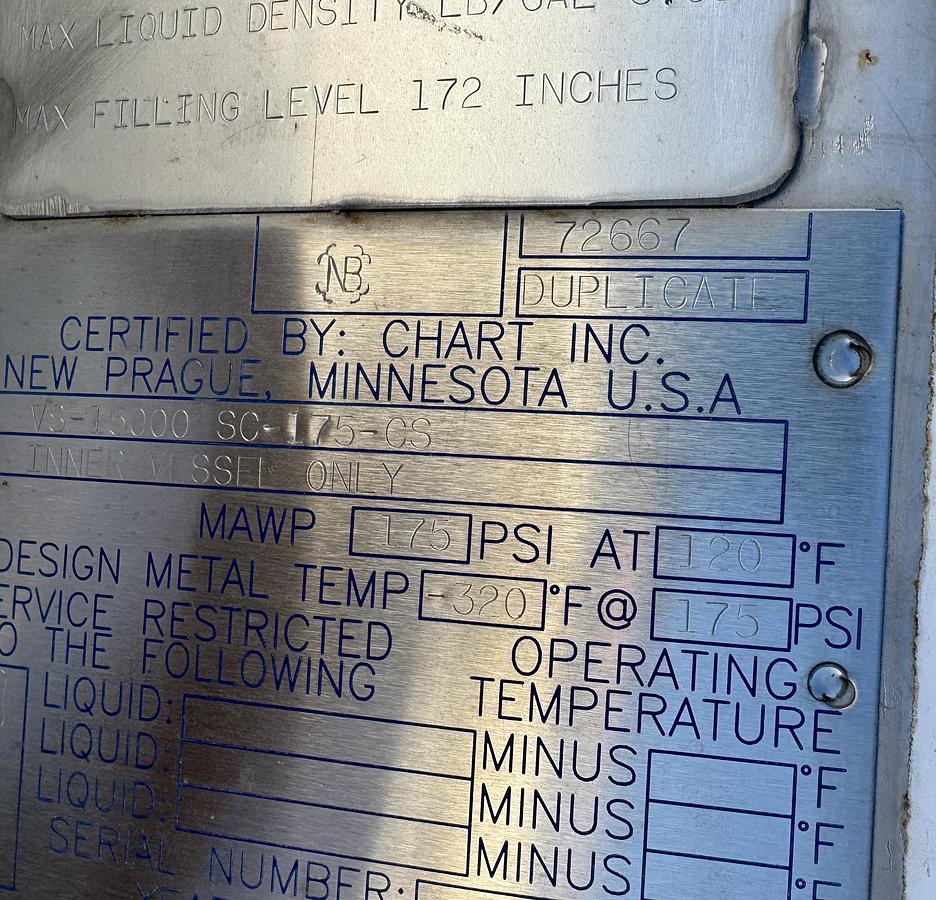

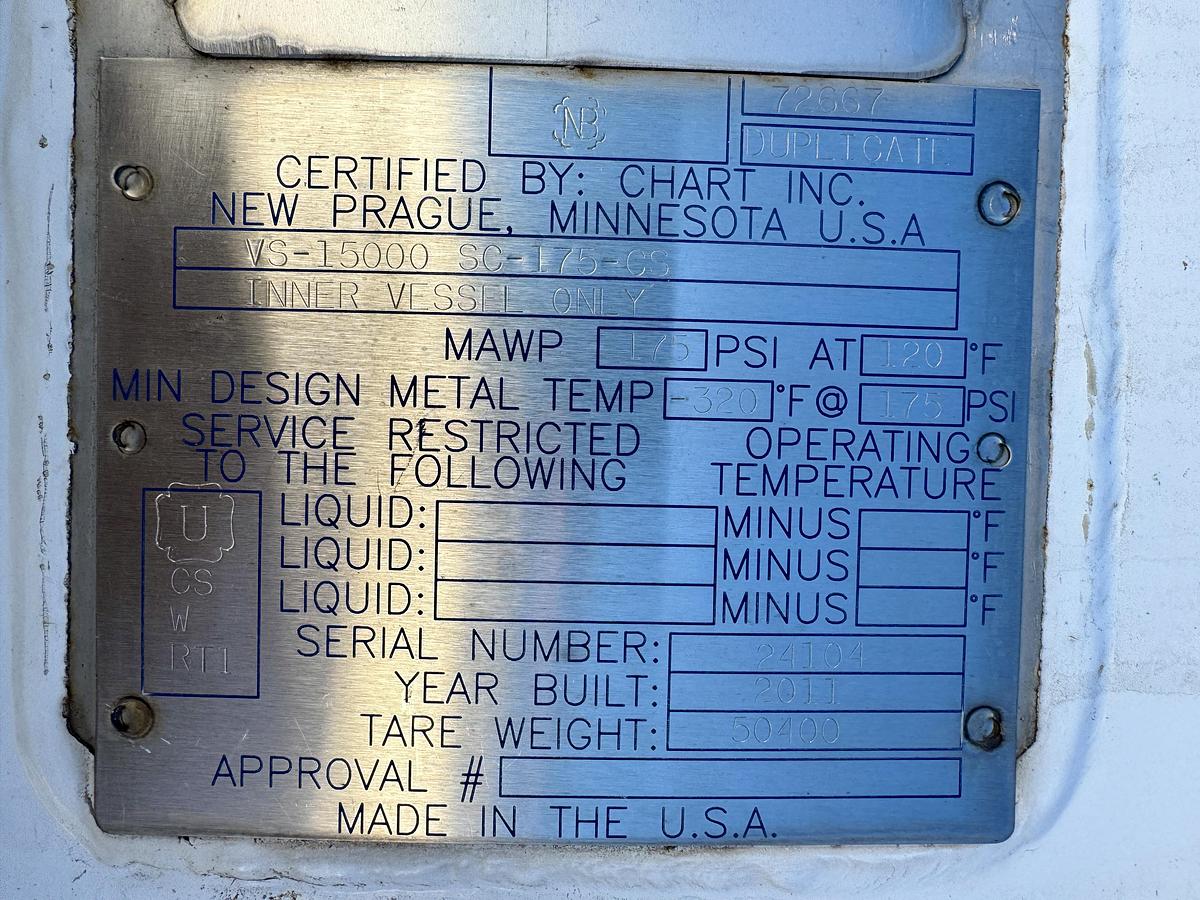

Manufacturer: Chart Industries (USA)

Model: VS-15000 SC-174-CS

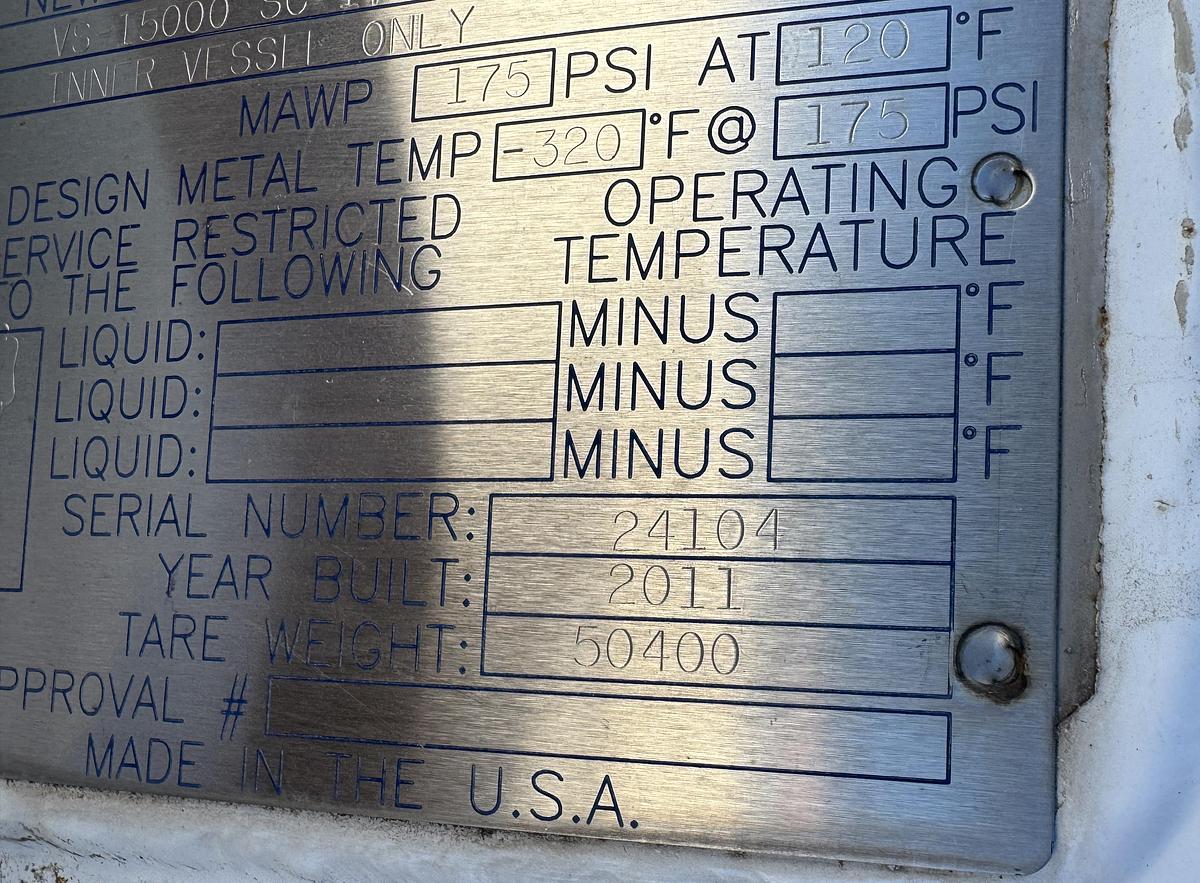

Serial Number: 24104

National Board Number: 72667

Year Built: 2011

Service: LNG (Nameplate Rated)

Certified Net Liquid Capacity: 15,000 Gallons

Tare Weight: 50,400 Lbs

MAWP: 175 PSI @ 120°F (Inner Vessel Only)

Minimum Design Metal Temperature (MDMT): -320°F @ 175 PSI

Relief Valve Minimum Capacity: 28 CFM (Air)

Design & Construction

Design Code: ASME Section VIII, Division 1

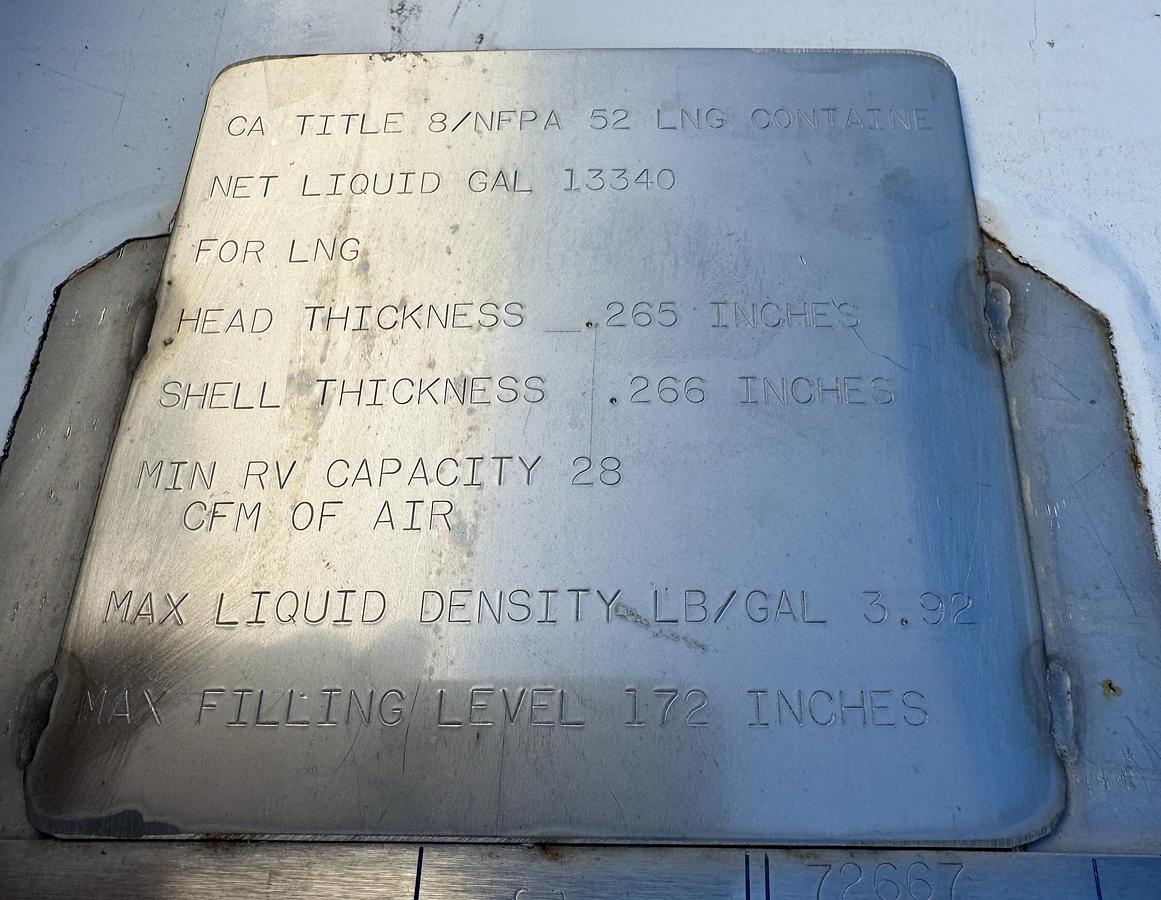

Service Compliance: CA Title 3 LNG Container / NFPA 52 LNG

Inner Vessel Material: SA240 304 Stainless Steel

Outer Jacket Material: Carbon Steel

Shell Thickness: 0.266 Inches

Head Thickness: 0.265 Inches

Insulation System: Multi-layer vacuum insulation

Tank Type: Vertical Cryogenic LNG Storage Tank

Condition & Documentation

Condition: Sold as-is

Previous Service: Removed from an operational LNG site in 2026

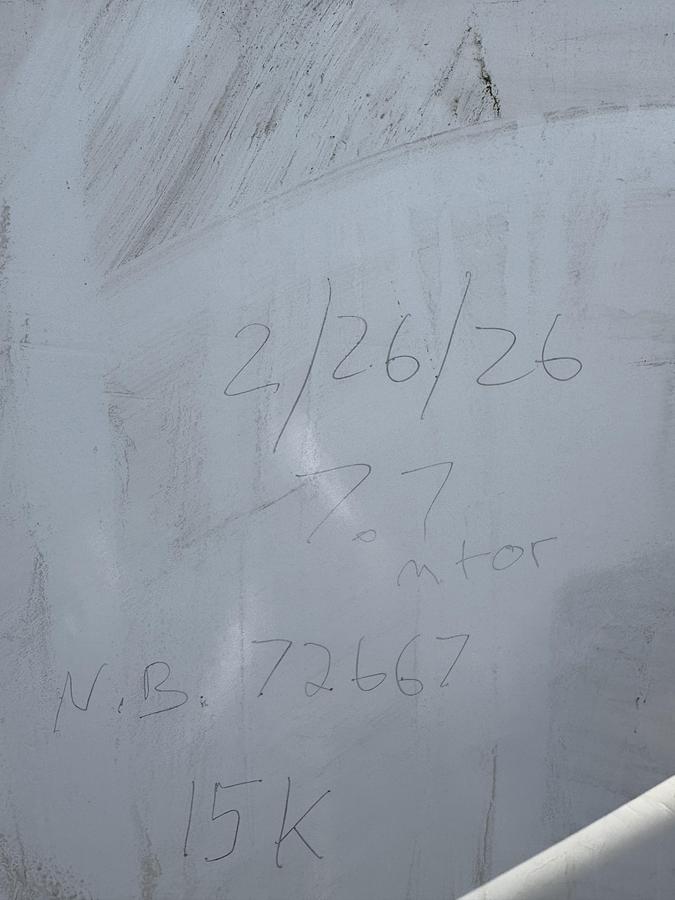

Current Vacuum Reading: 7.7 mTorr

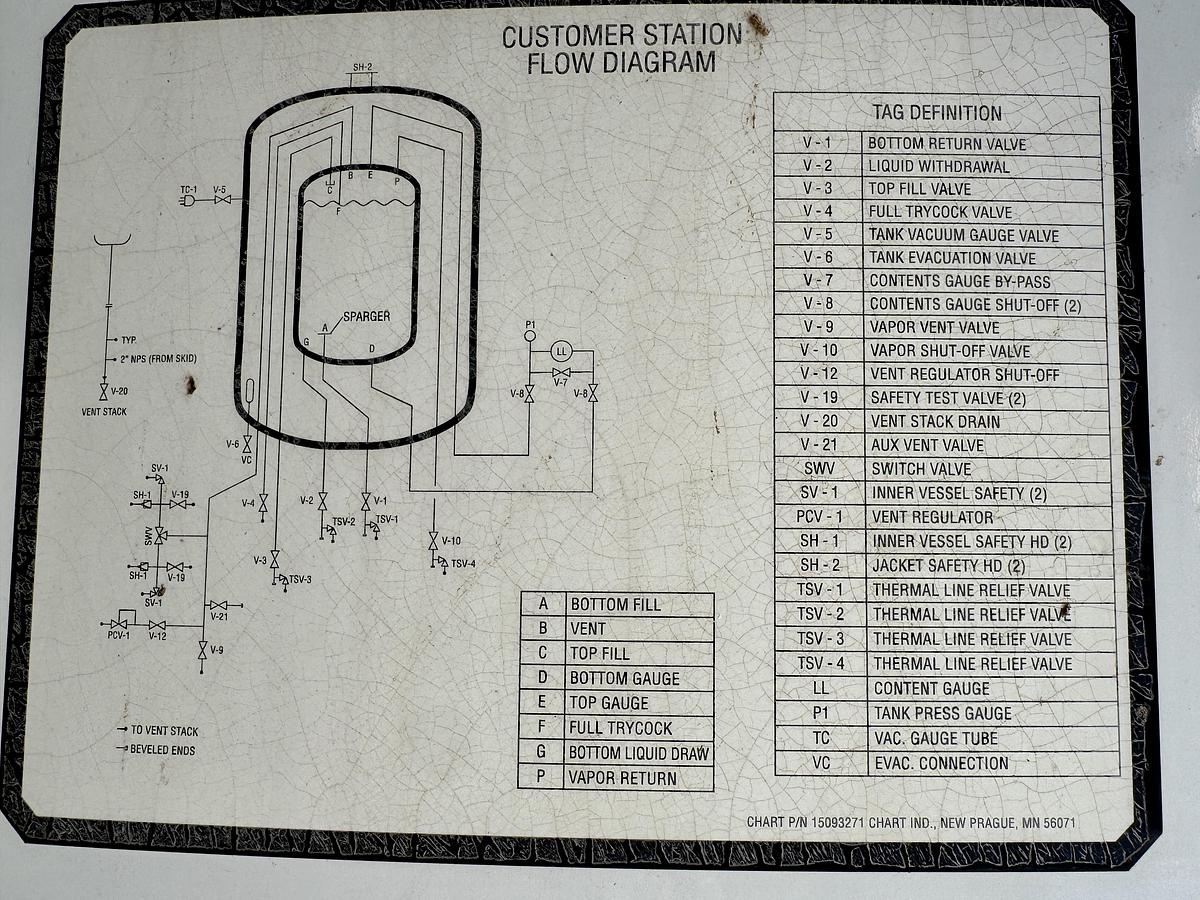

Documentation: Engineering drawings, schematics, and National Board report available

Additional Equipment: Matching LNG ACD pumps, vaporizers, and dispensers available separately

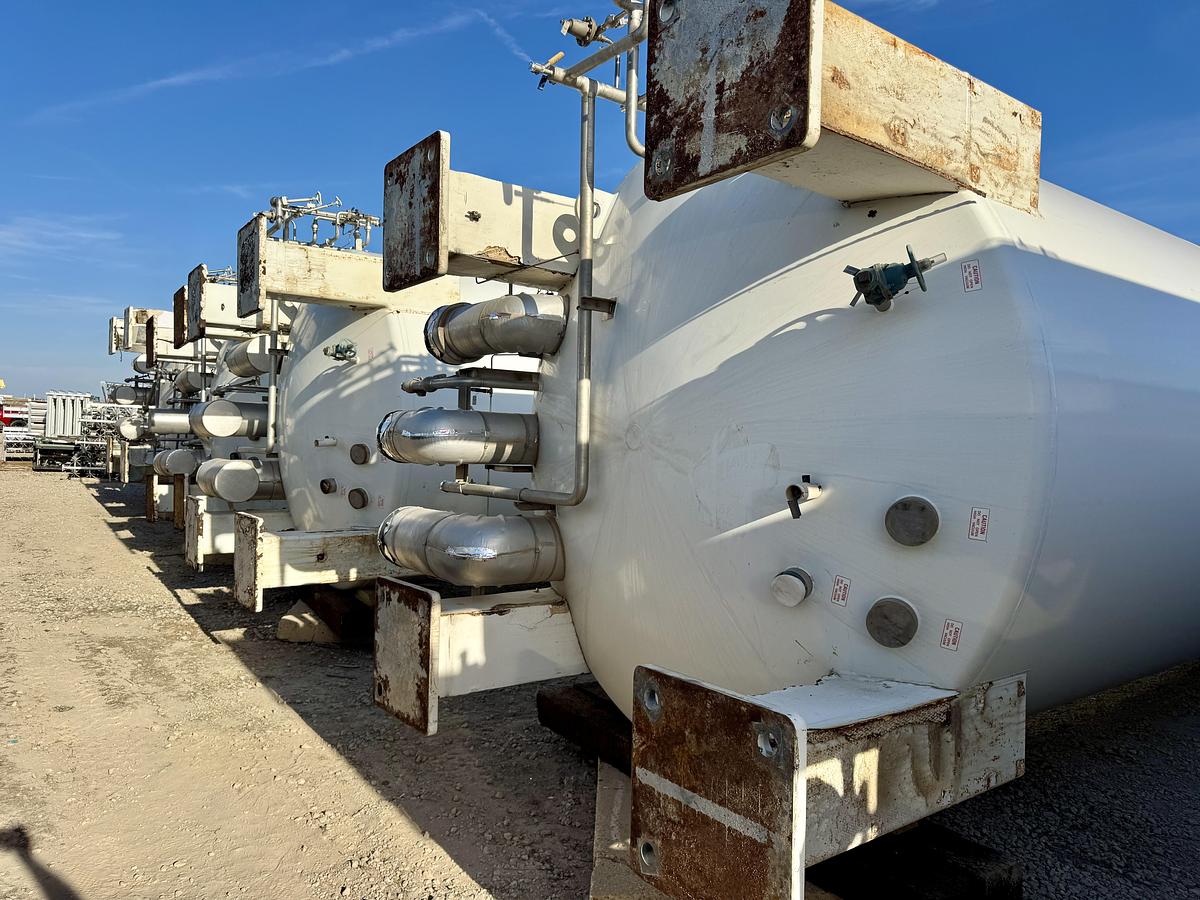

Availability: Multiple 15,000-gallon LNG storage tanks available

Pre-Purchase Inspections

We welcome pre-purchase inspections during normal business hours, by appointment only. If you’re planning to fly in to view or inspect the equipment in person, we are happy to arrange that with proper notice.

Shipping Arrangements

This unit is sold EXW (Ex Works) our Waxahachie, TX yard. The buyer is responsible for arranging and paying for all shipping and freight. We provide yard access for your carrier by appointment and will load units up to 15,000 lbs at no charge when scheduled in advance.

This unit’s empty weight is 50,400 lbs, so a crane is required and is the buyer’s responsibility to arrange and pay for.
