Cryogenic Double Boost Pump Skid with Cryogenic Industries TC34 Pump (LN2 / LAR / LNG)

North Star Cryogenic Double Boost Pump Skid with Cryogenic Industries TC34 Pump (LN2 / LAR / LNG)

Skid Description:

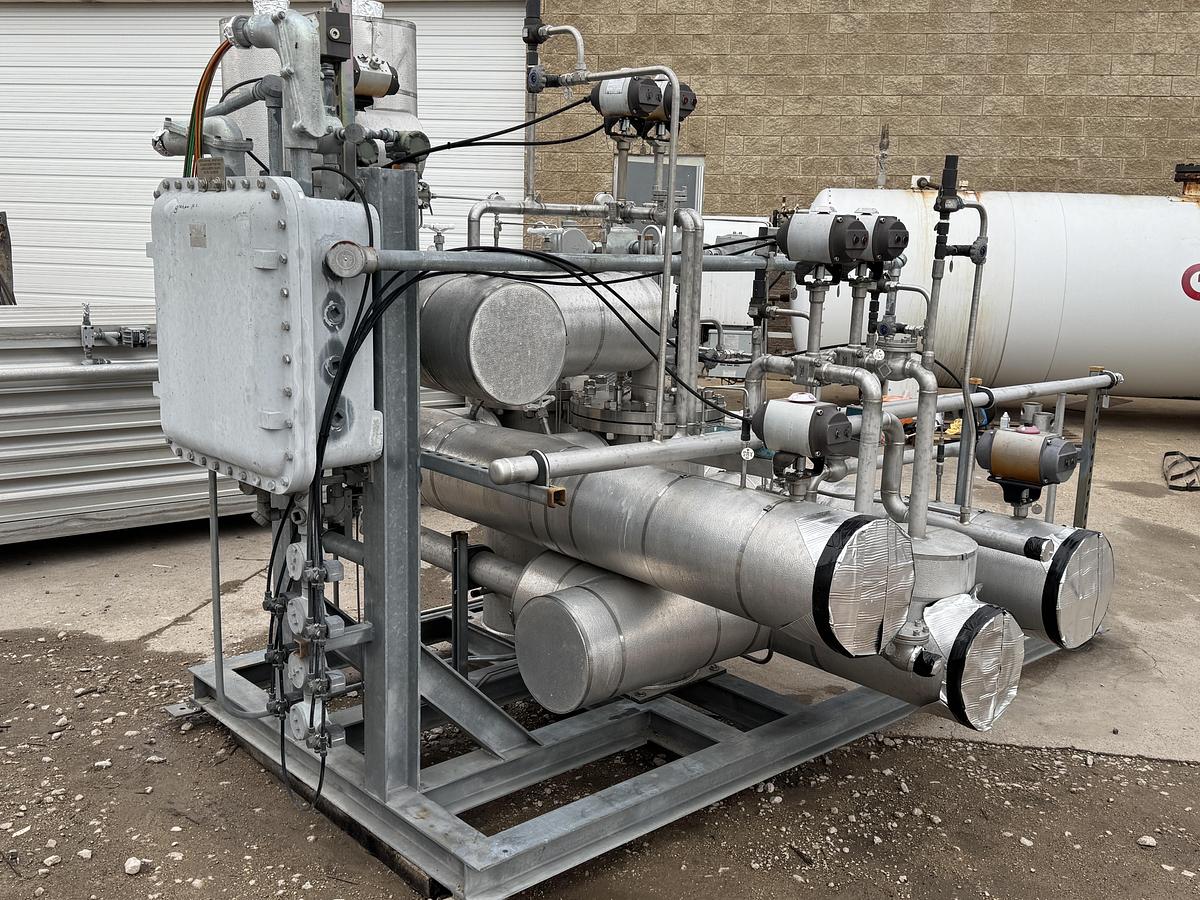

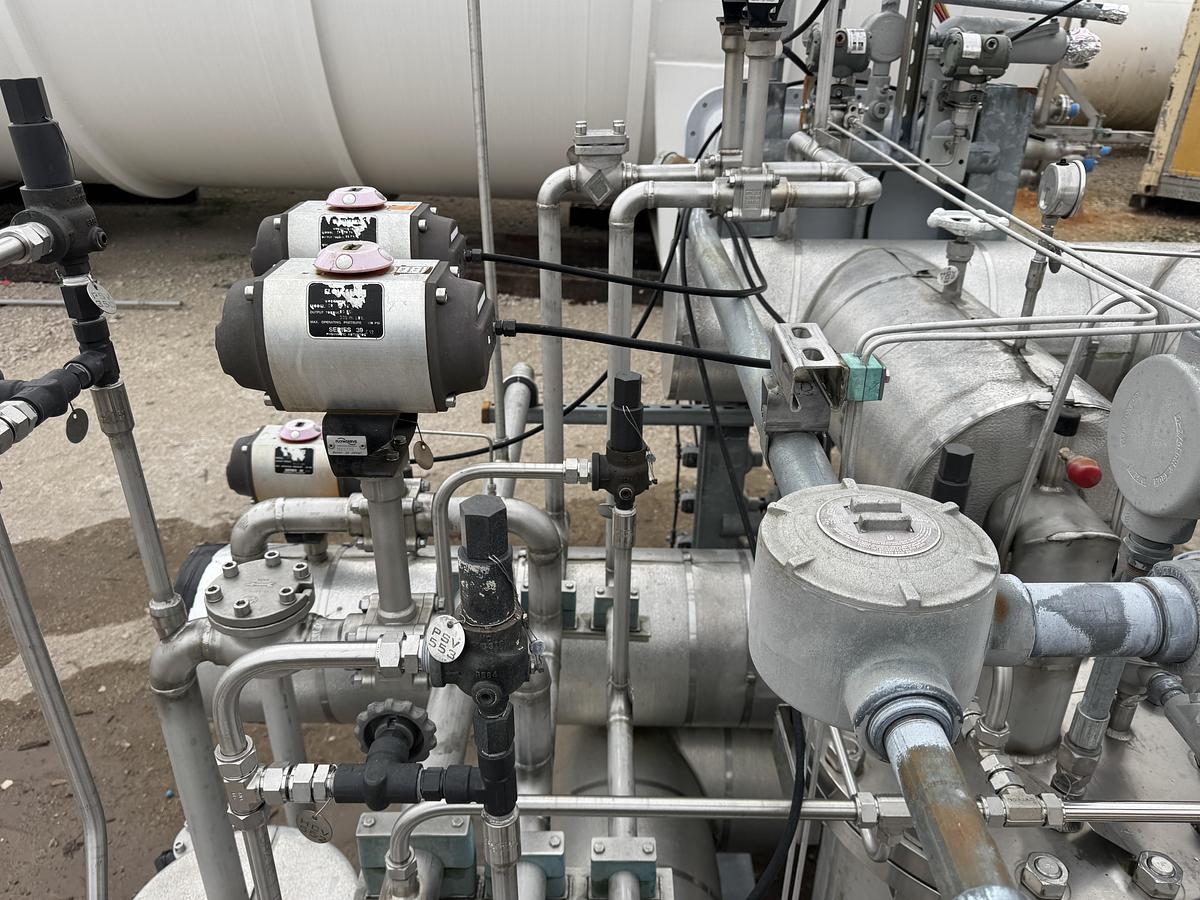

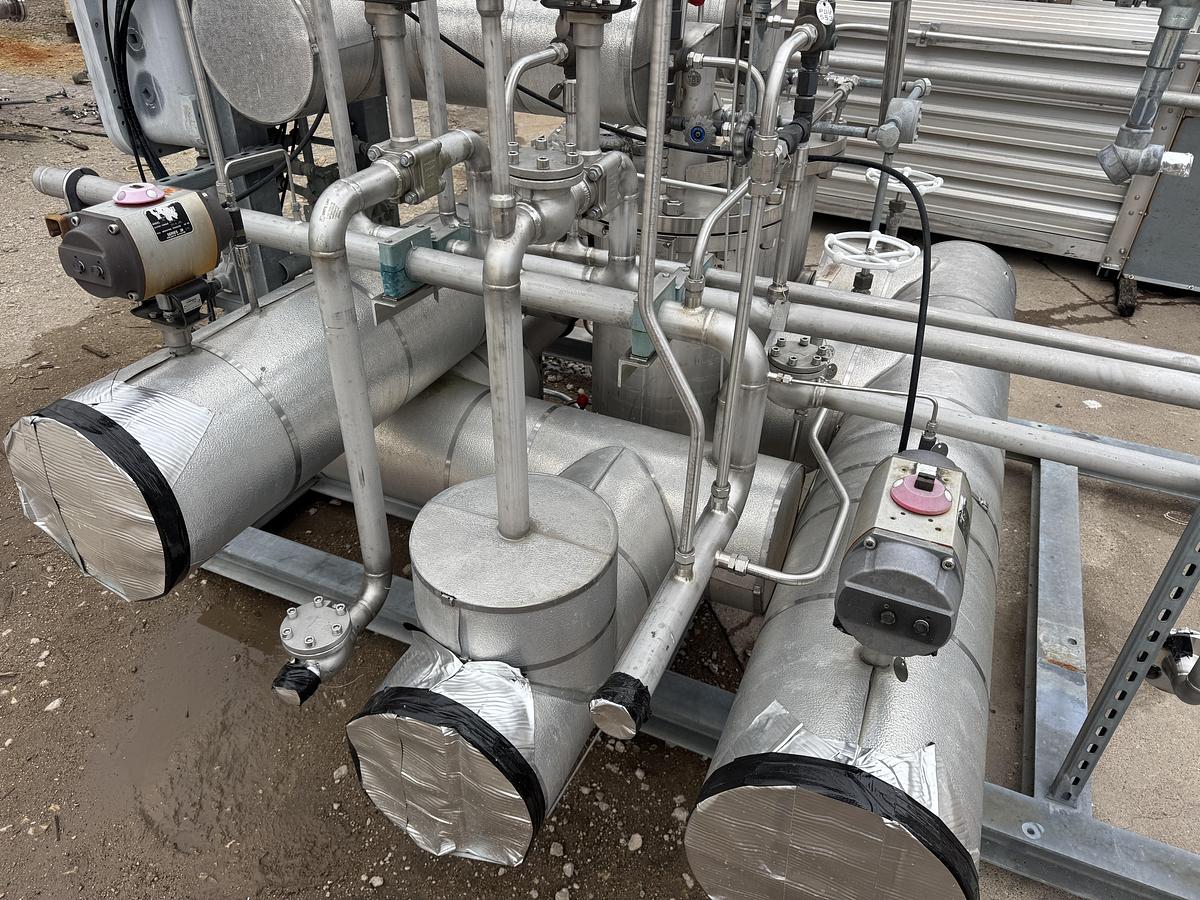

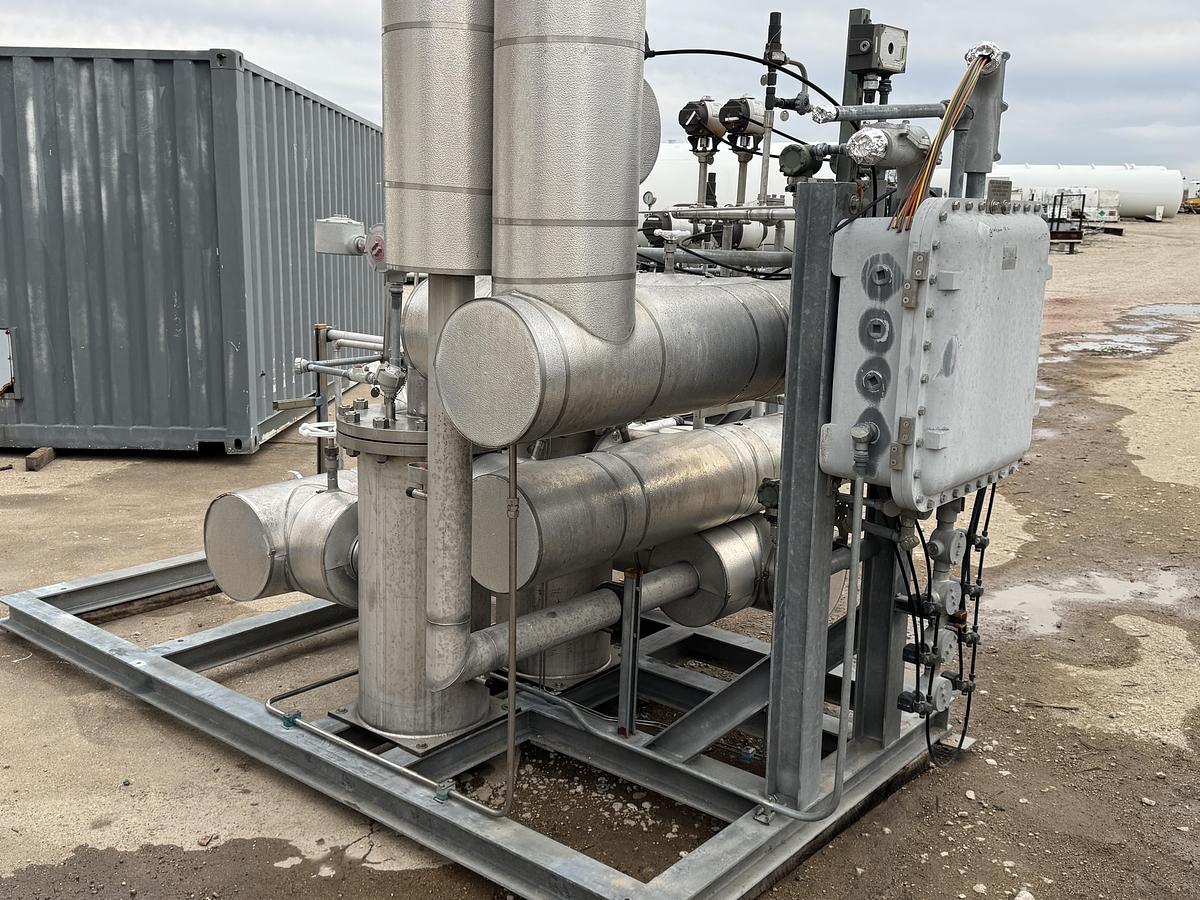

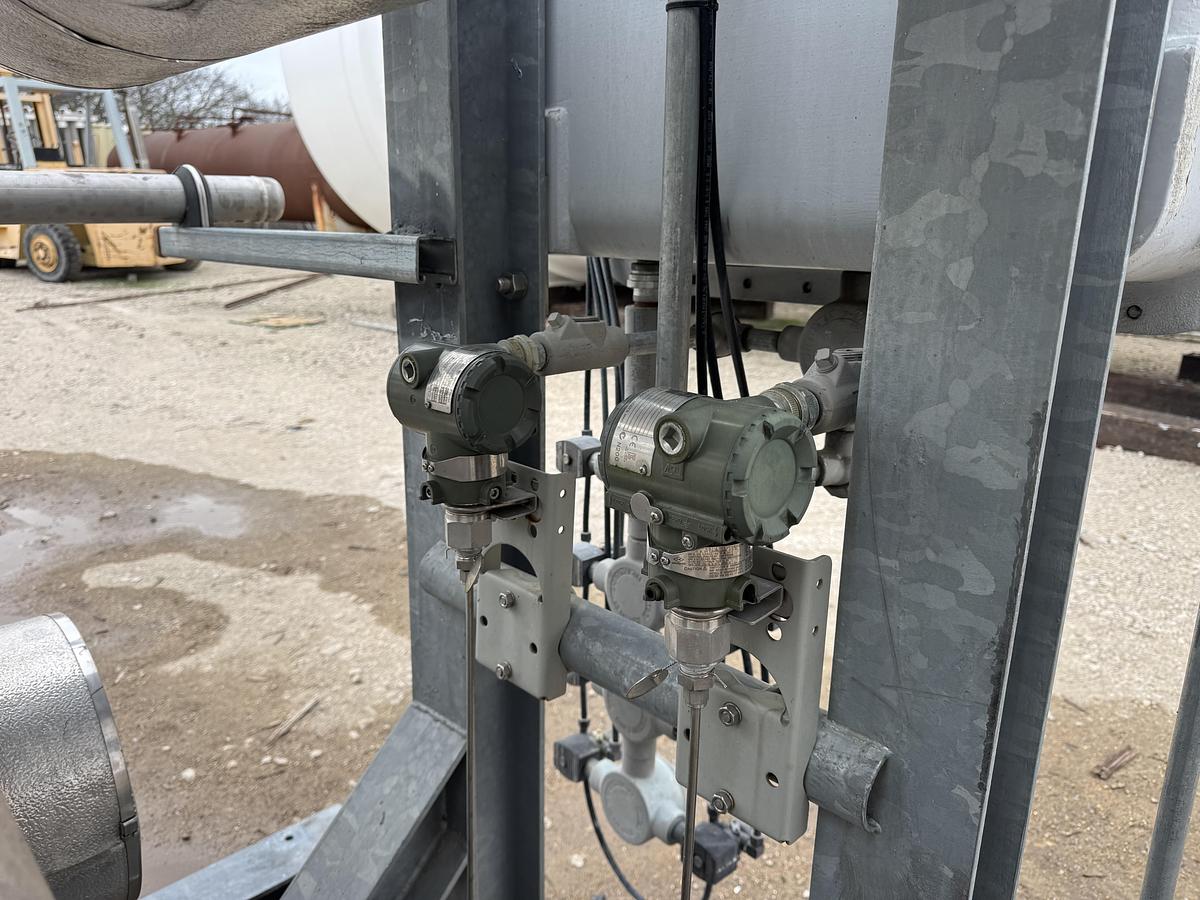

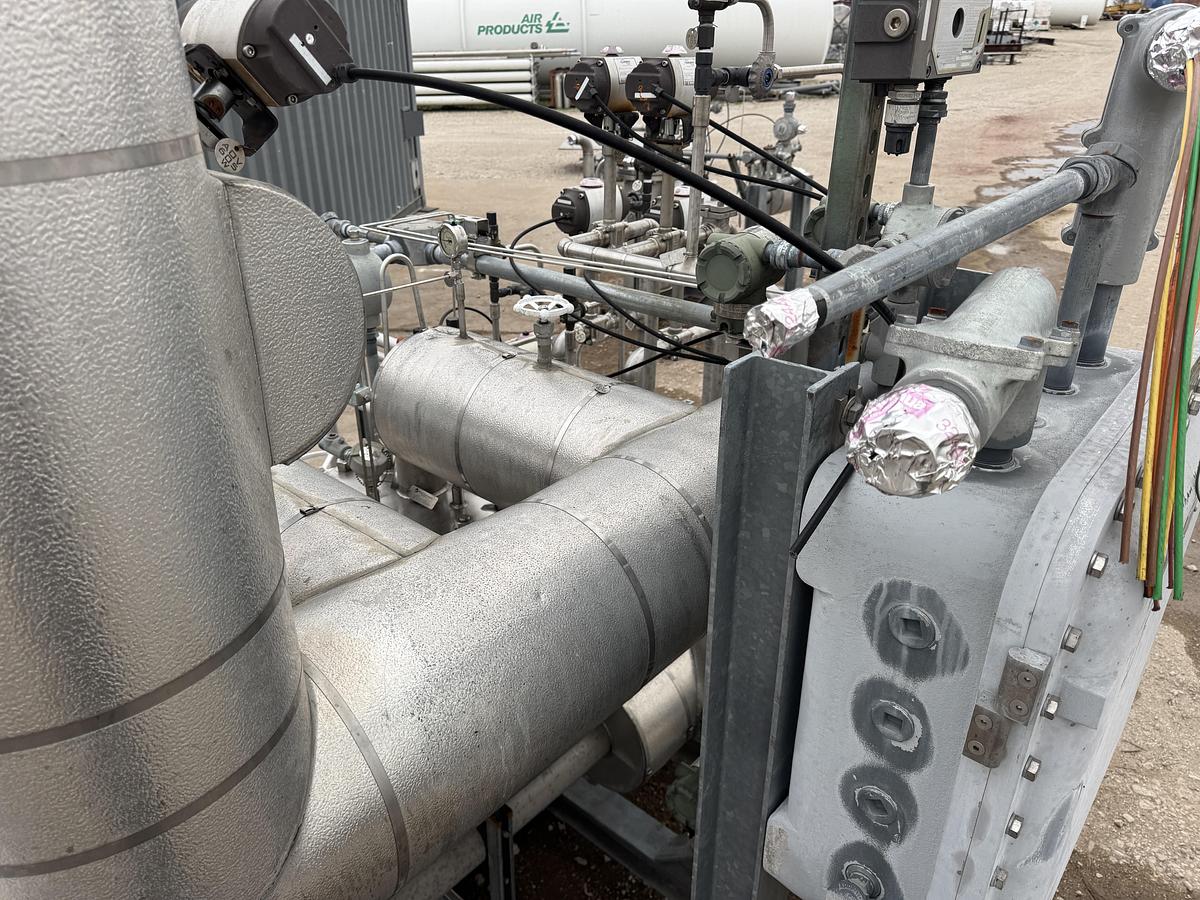

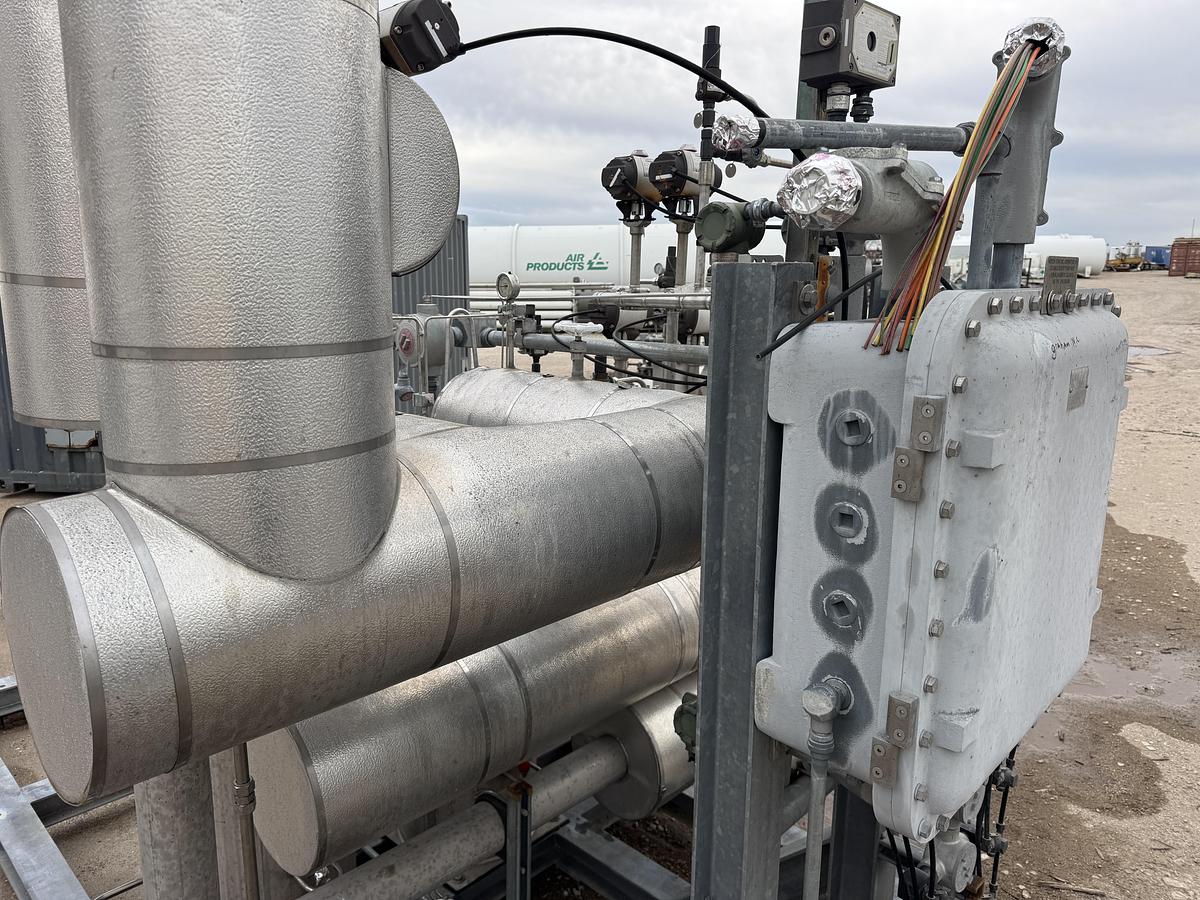

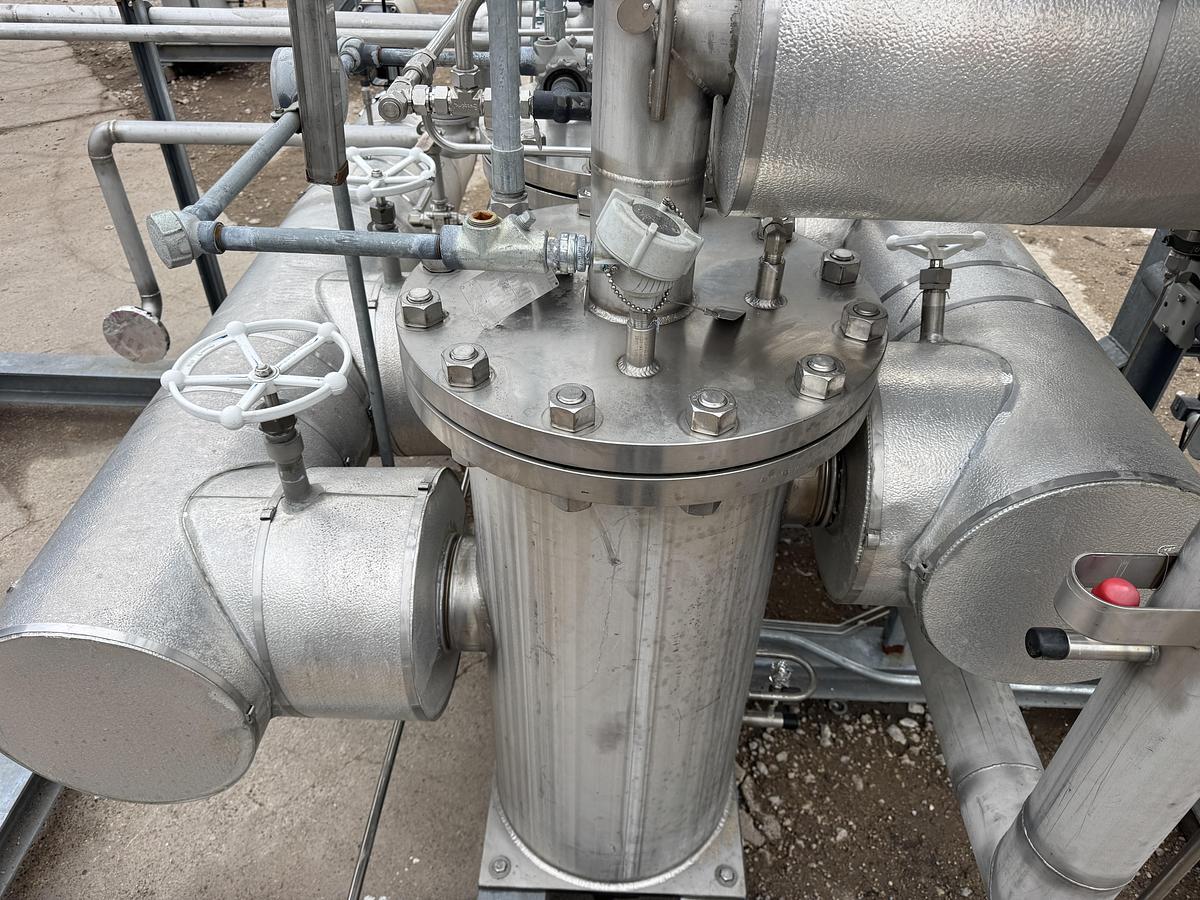

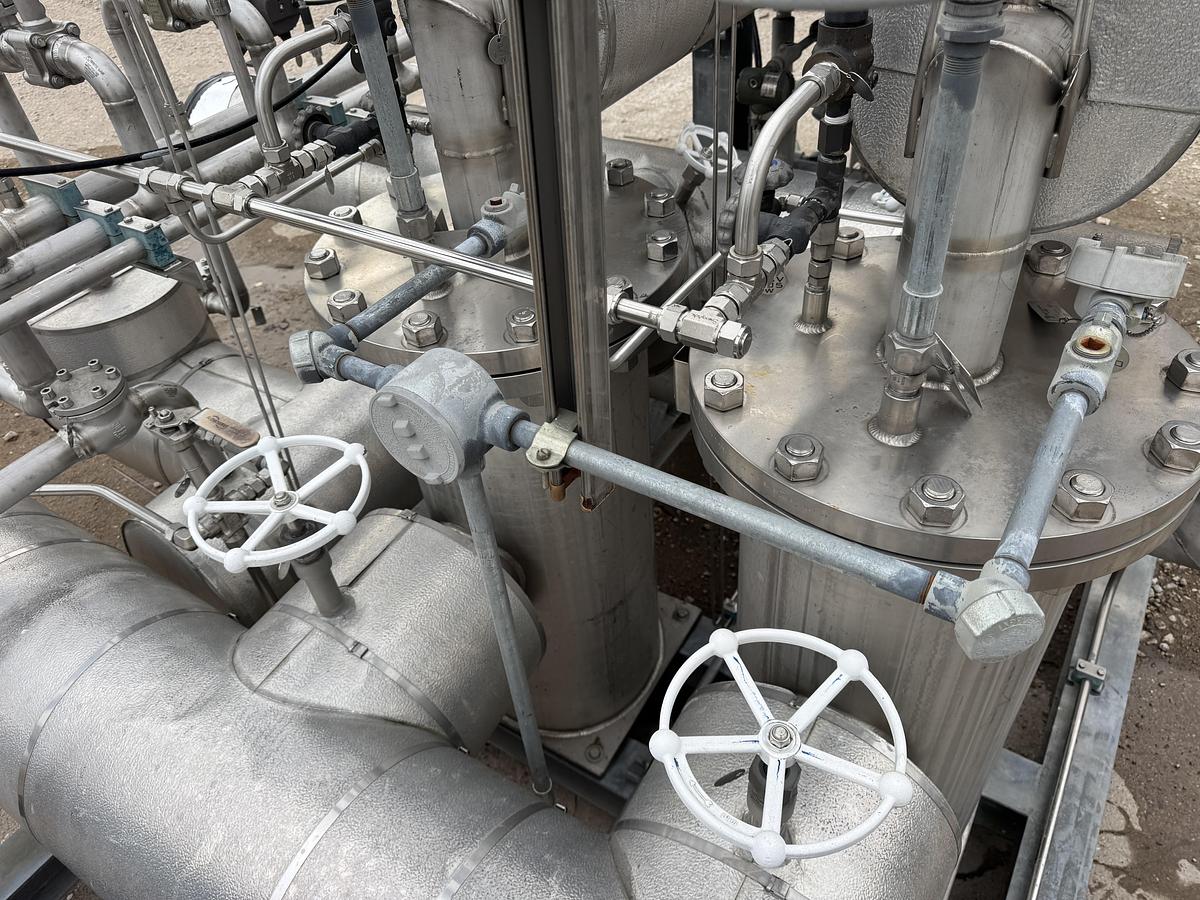

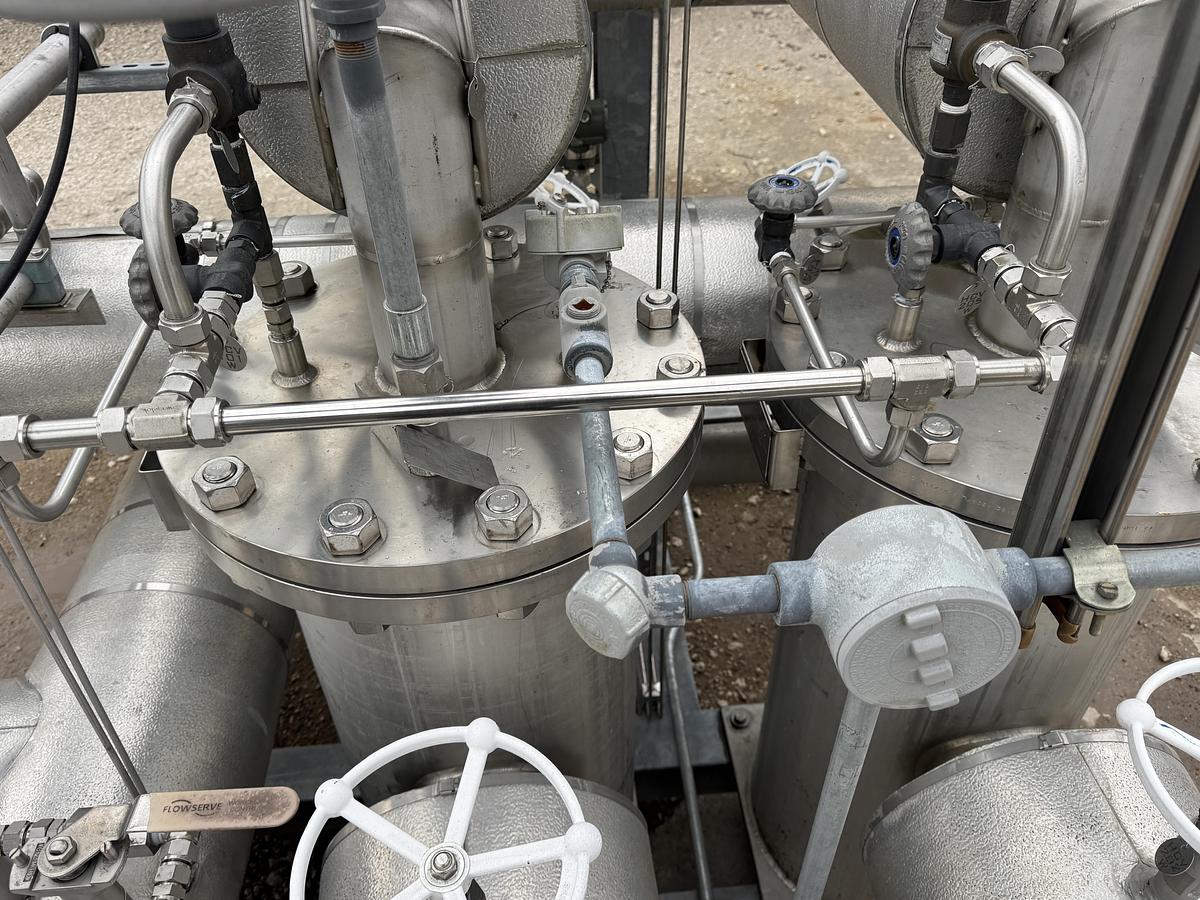

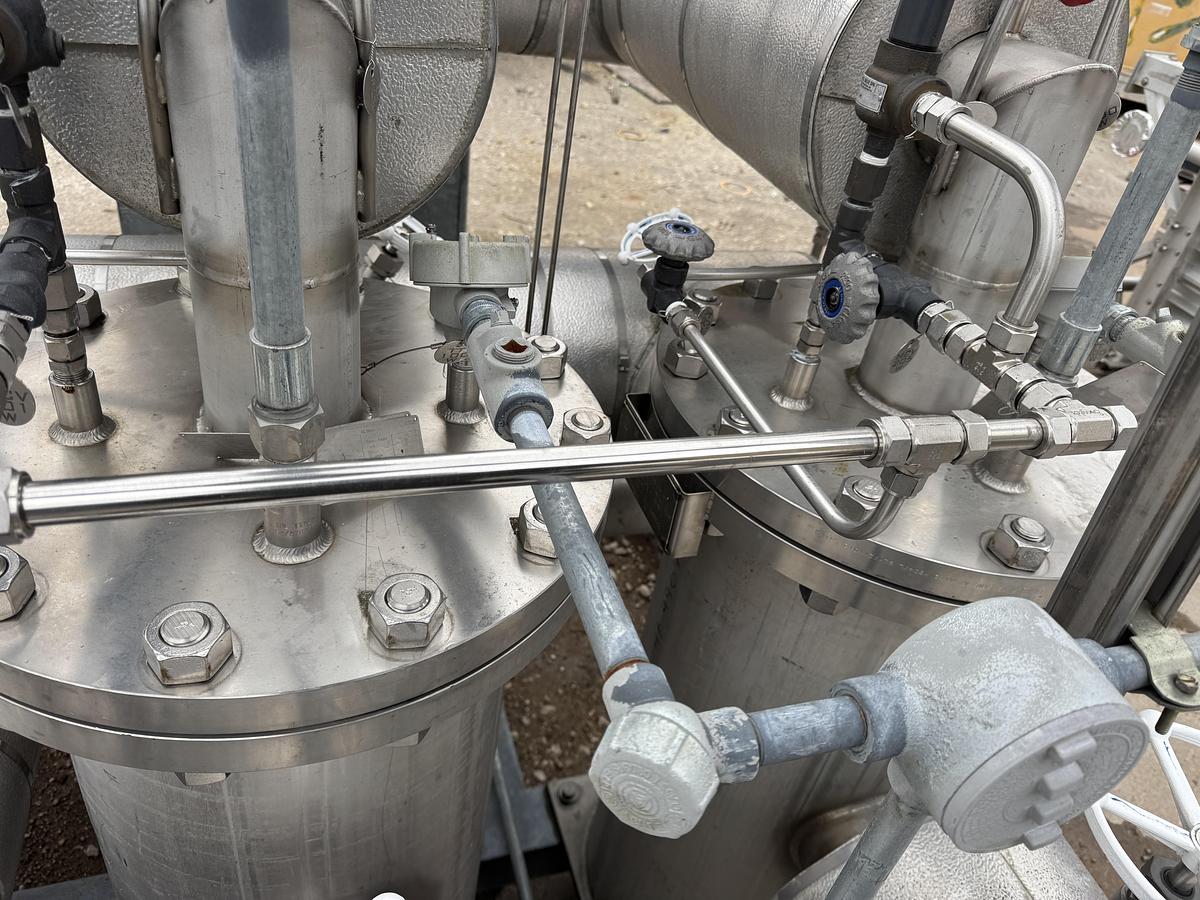

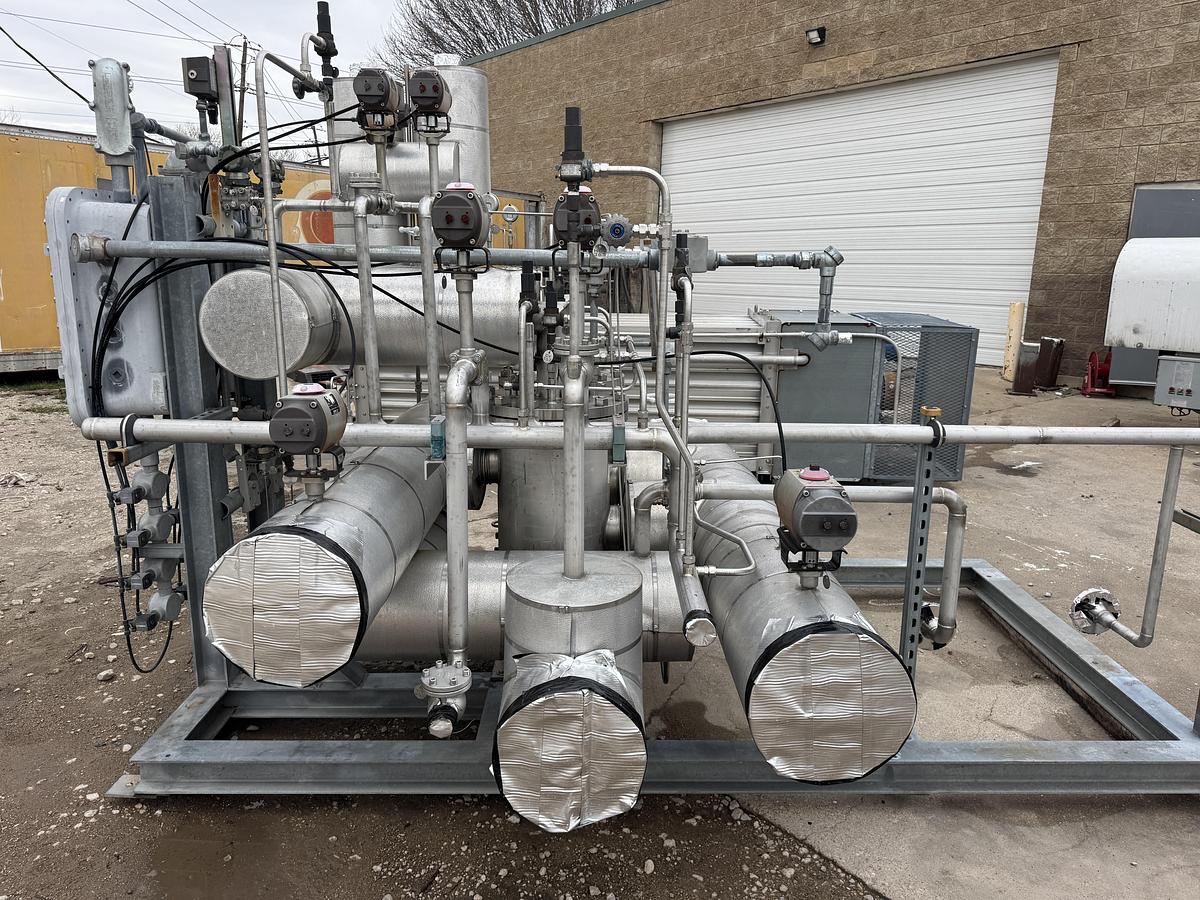

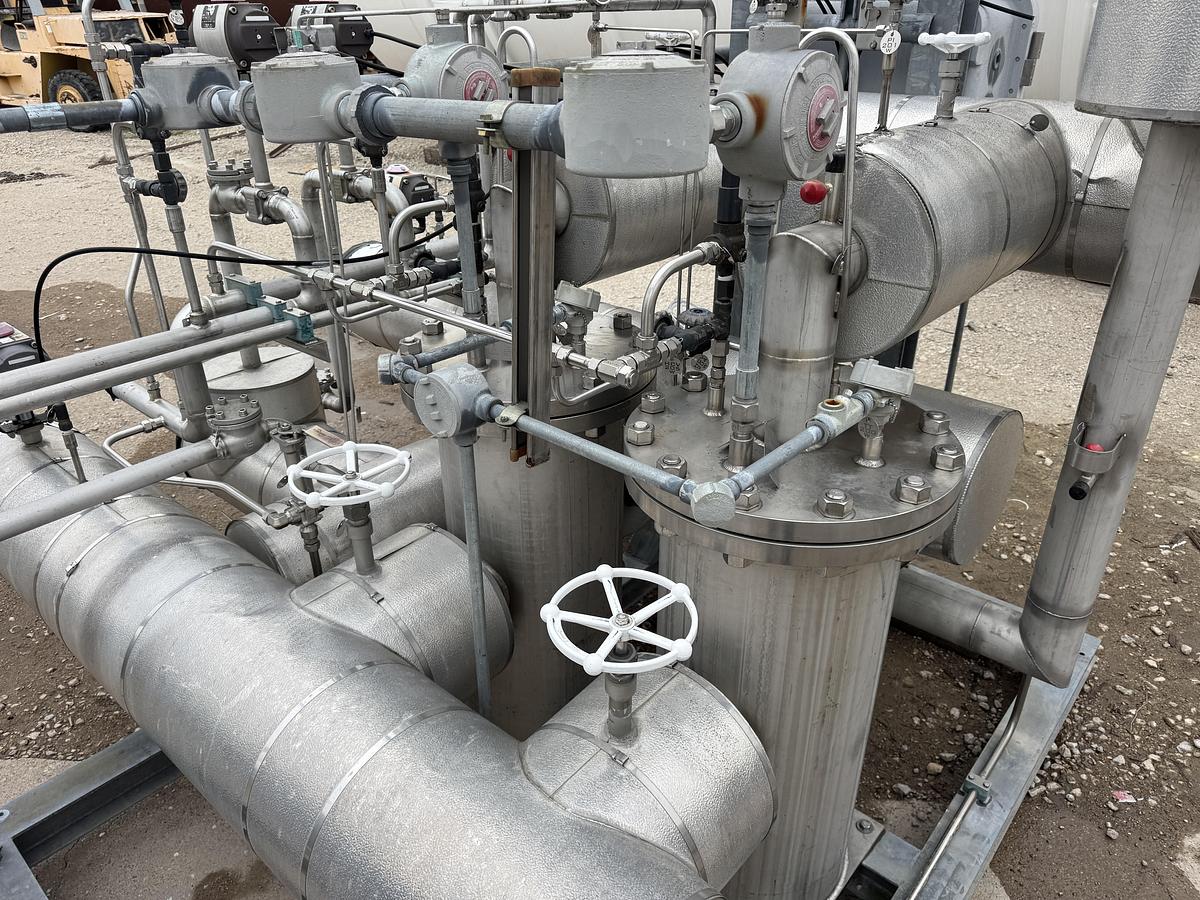

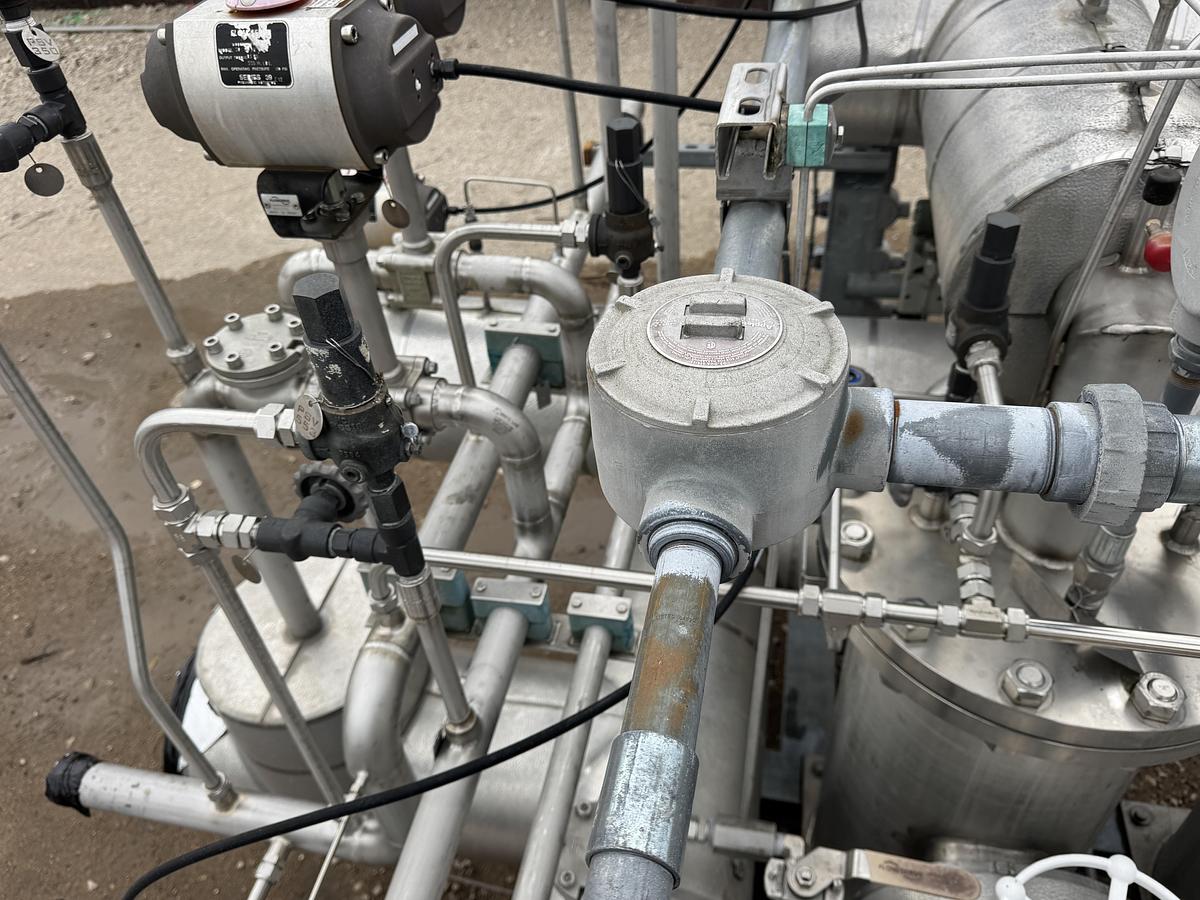

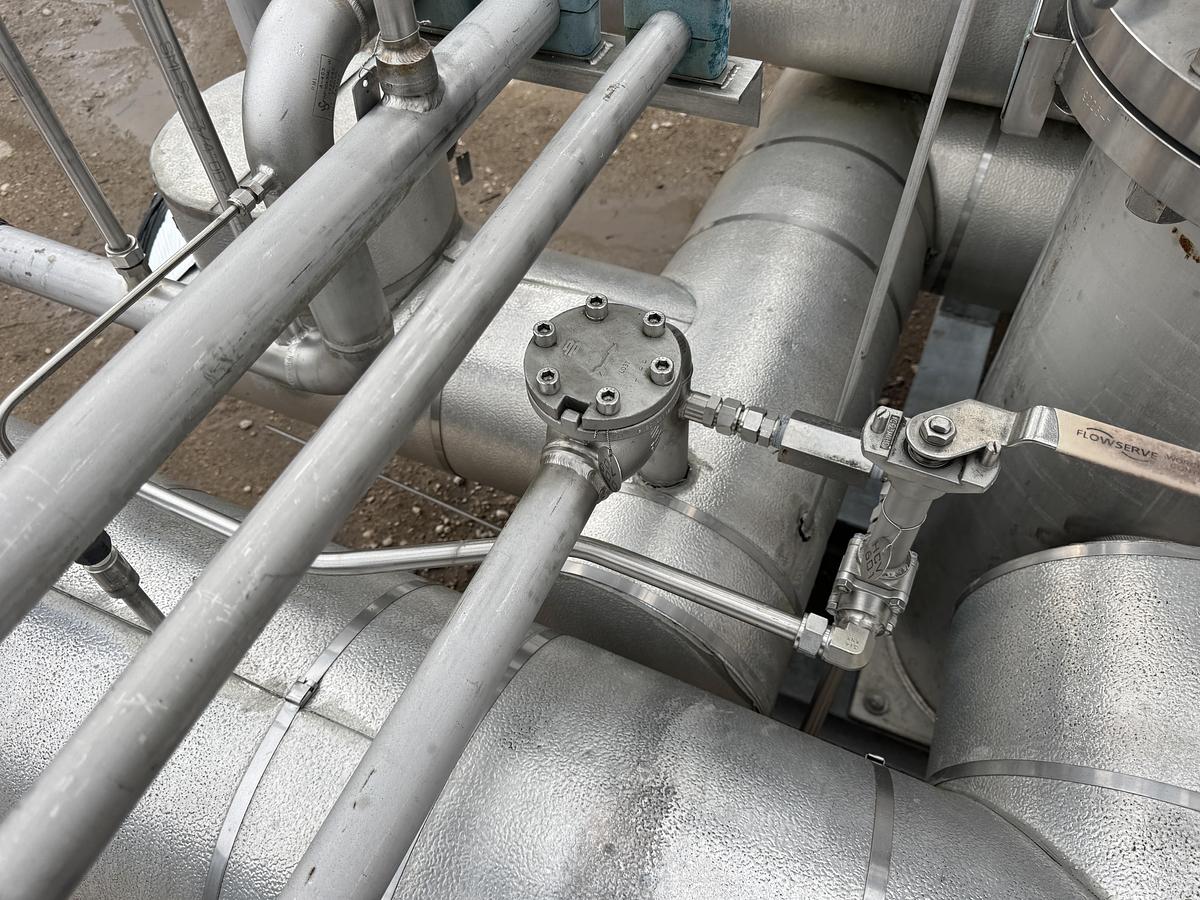

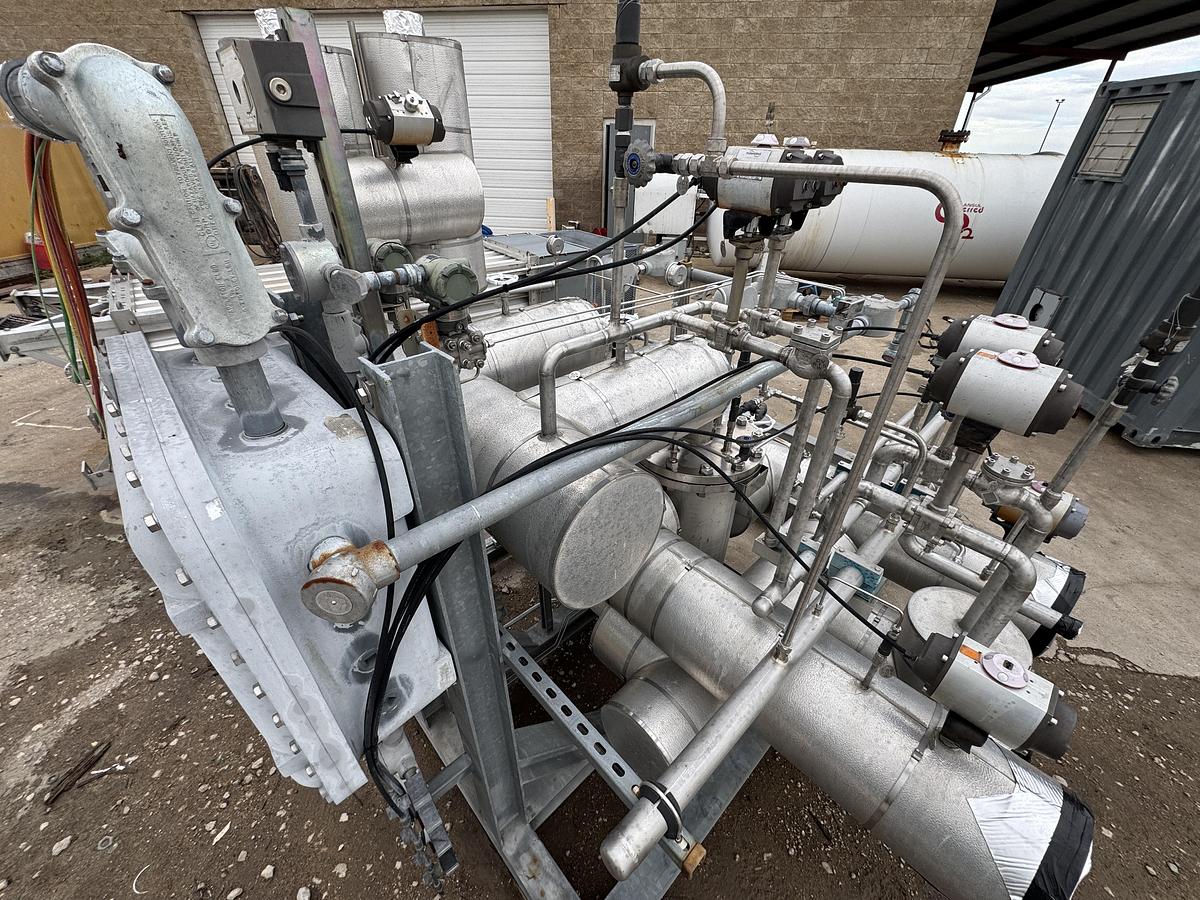

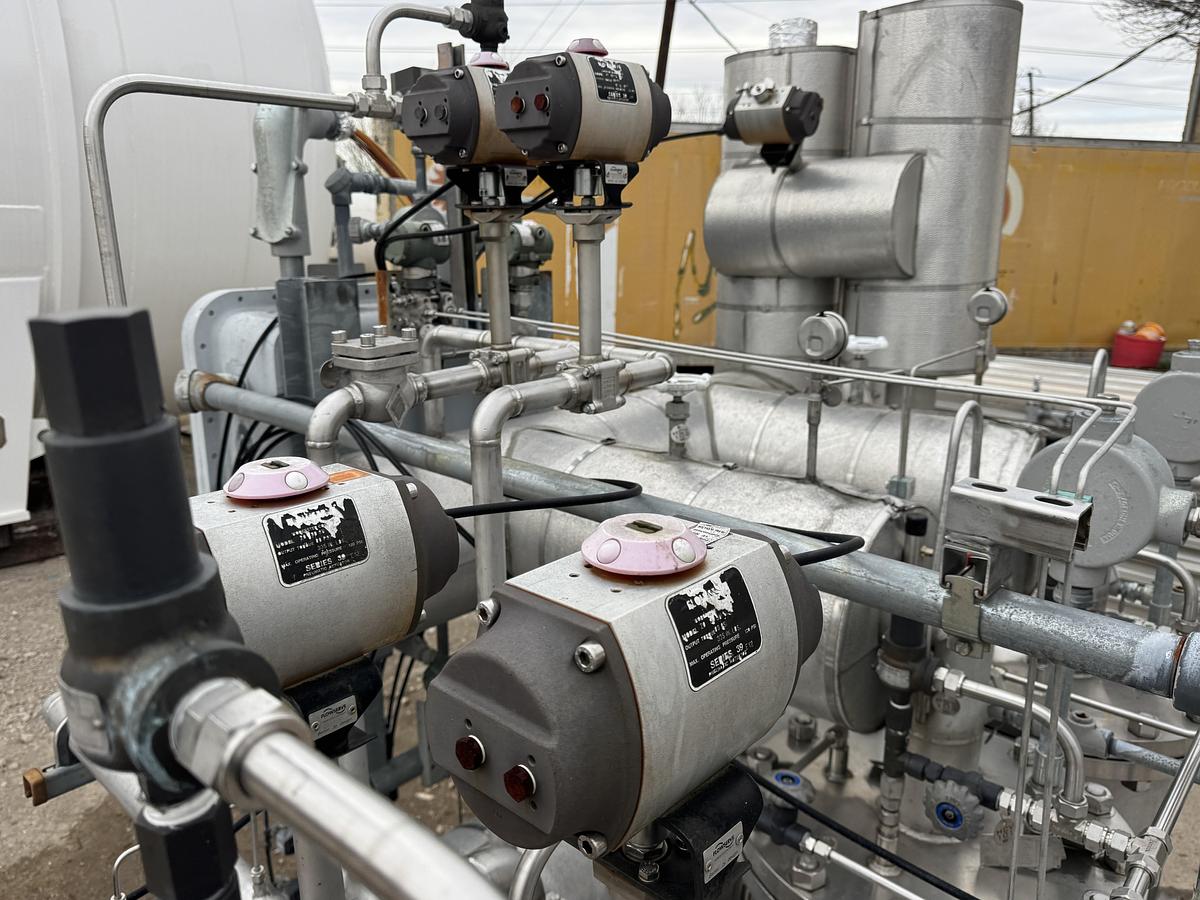

This unit is a factory-built North Star double boost pump skid designed for cryogenic liquid transfer and pressure boost service. The skid is equipped with a Cryogenic Industries TC34 centrifugal cryogenic pump driven by a matched submersible AC motor and includes integrated cryogenic piping, valves, instrumentation tie-ins, and structural skid framework. The assembly is intended for LNG and industrial cryogenic service where controlled flow and pressure increase are required.

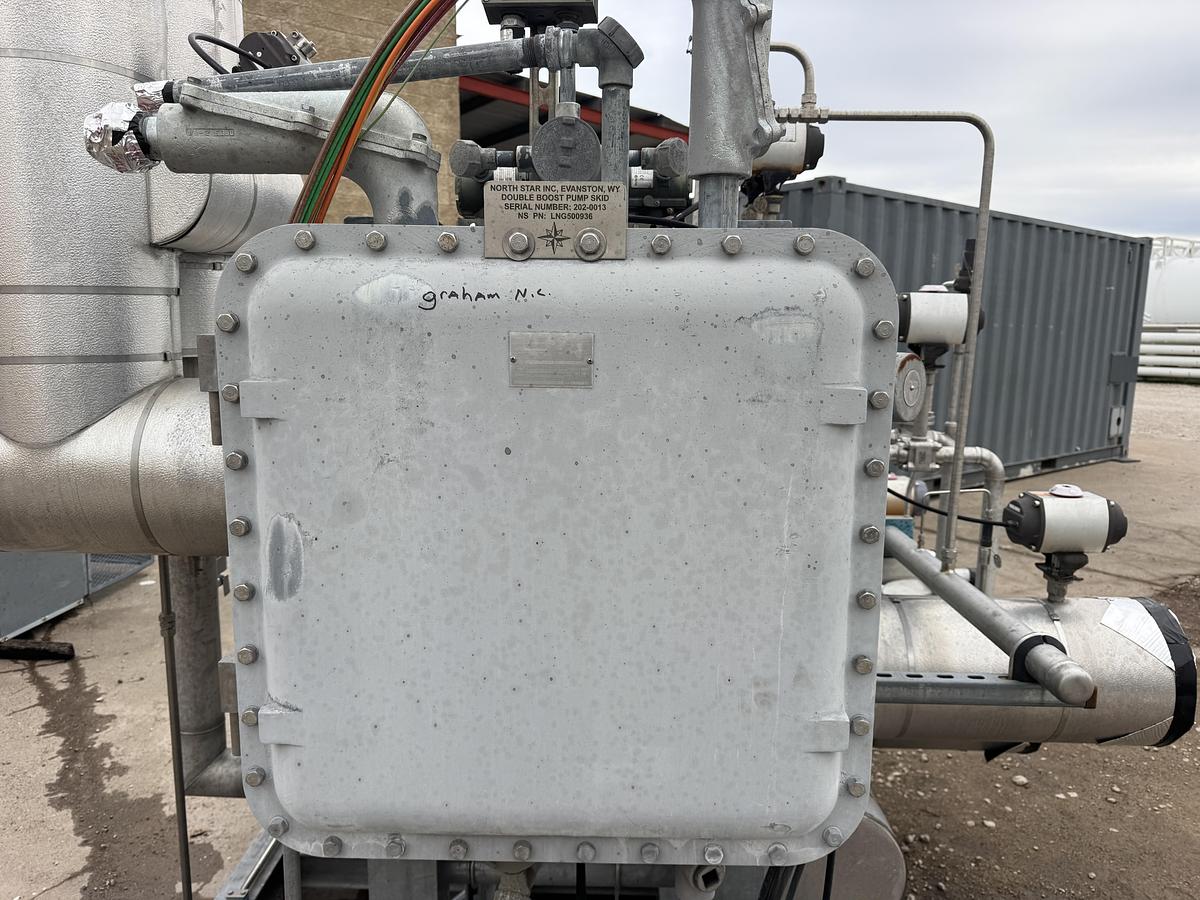

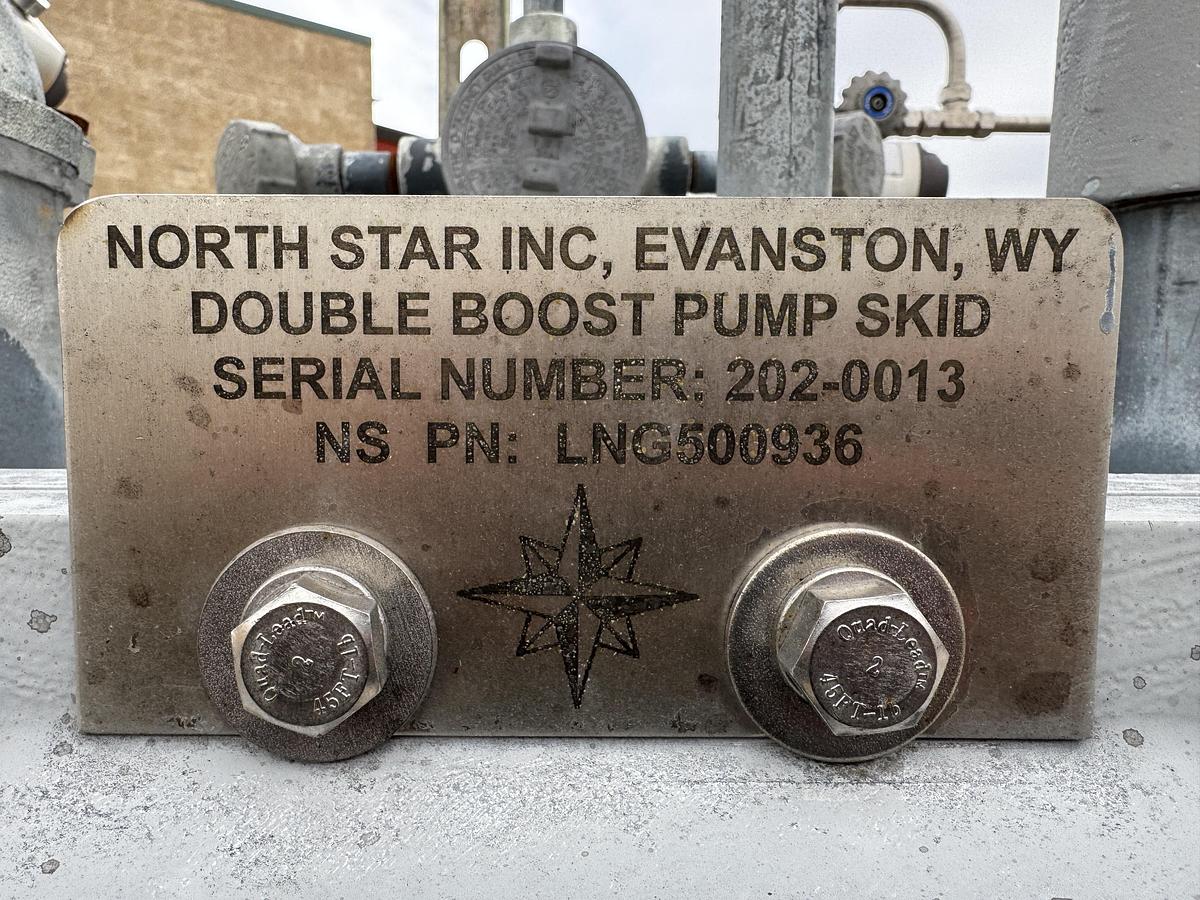

Manufacturer: North Star Inc., Evanston, WY

Equipment Type: Double Boost Pump Skid

North Star Serial Number: 202-0013

North Star Part Number: LNG500936

Condition: Used

Service Compatibility:

LN2

LAR

LNG

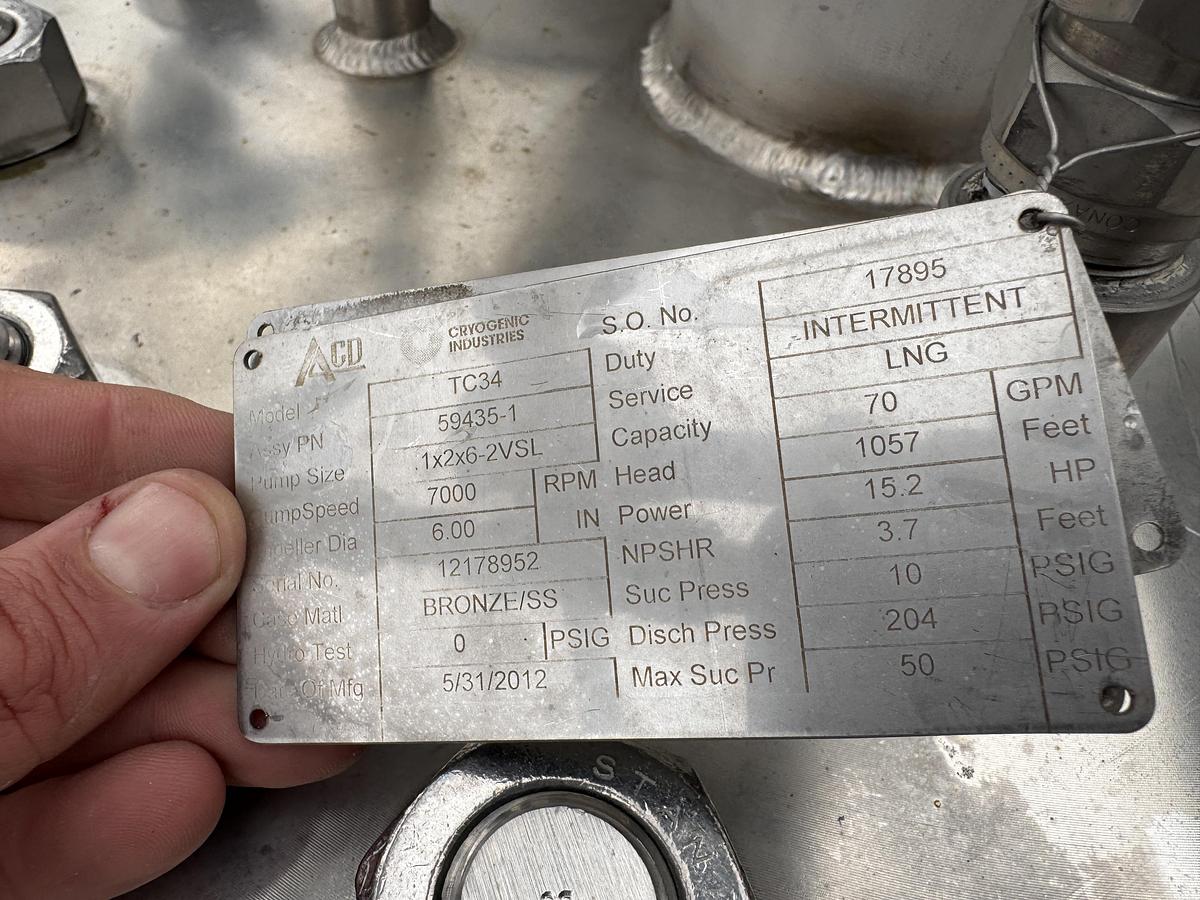

Installed Pump Assembly:

Pump Manufacturer: Cryogenic Industries

Pump Model: TC34

Assembly Part Number: 59435-1

Pump Size: 1x2x6-2VSL

Pump Serial Number: 12178952

Pump S.O. Number: 17895

Date of Manufacture: 05/31/2012

Duty: Intermittent

Pump Specifications:

Capacity: 70 GPM

Head: 1057 Feet

Pump Speed: 7000 RPM

Impeller Diameter: 6.00 Inches

Pump Input Power: 15.2 HP

Materials of Construction:

Wetted Materials: Bronze / Stainless Steel

Pressure Ratings:

Suction Pressure: 10 PSIG

Discharge Pressure: 204 PSIG

Maximum Suction Pressure: 50 PSIG

NPSH:

NPSHR: 3.7 Feet

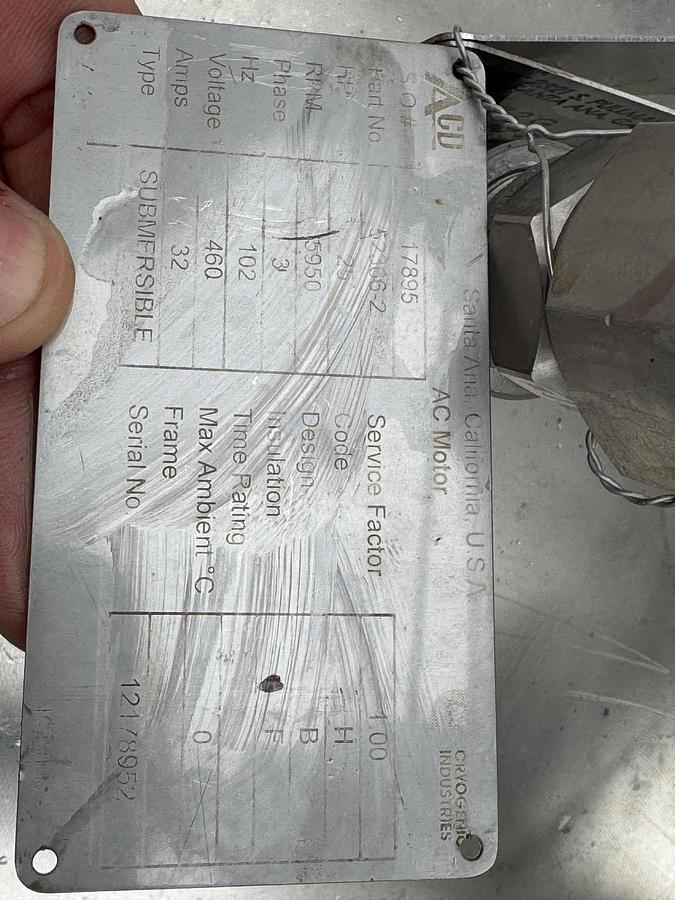

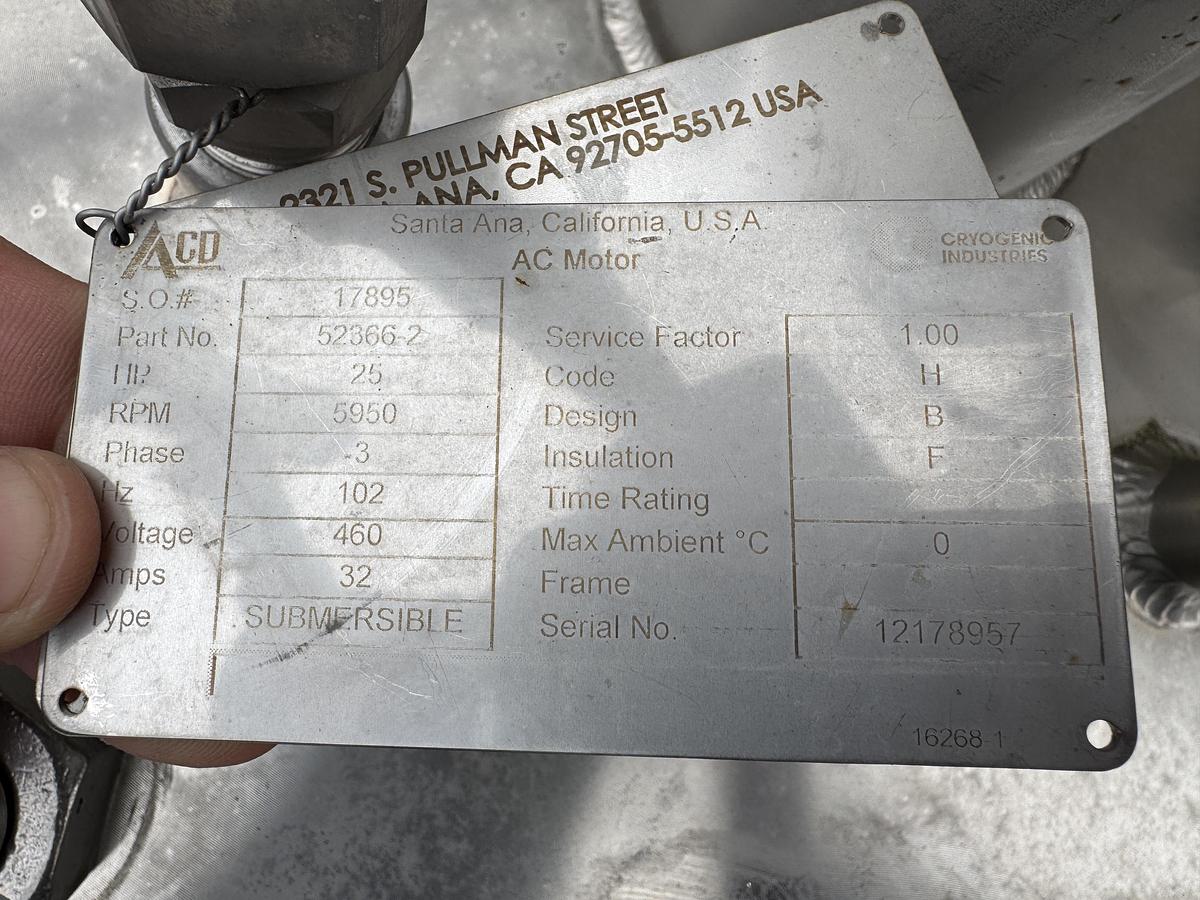

Installed Motor:

Motor Manufacturer: Cryogenic Industries

Motor Type: AC Submersible Motor

Motor Part Number: 52366-2

Motor Serial Number: 12178957

Motor S.O. Number: 17895

Motor Electrical Specifications:

Motor Horsepower: 25 HP

Motor Speed: 5950 RPM

Voltage: 460

Phase: 3

Frequency: 102 Hz

Full Load Amps: 32

Motor Construction and Ratings:

Type: Submersible

Service Factor: 1.00

NEMA Code: H

NEMA Design: B

Insulation Class: F

Maximum Ambient Temperature: 0 Celsius

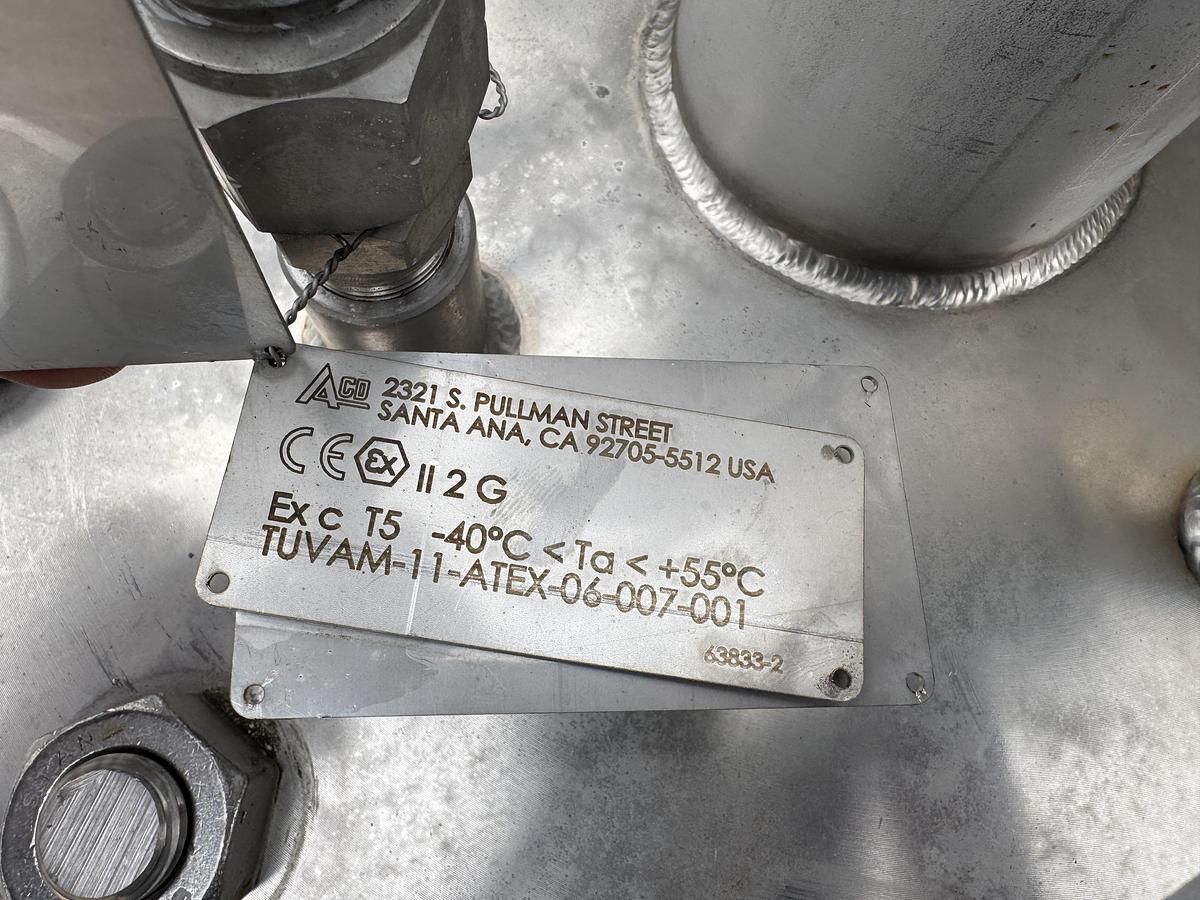

Hazardous Area / ATEX Compliance:

ATEX Classification: II 2G

Protection Method: Ex c

Temperature Class: T5

Ambient Temperature Range: -40°C < Ta < +55°C

ATEX Certificate: TÜV AM 11 ATEX 06 007-001

Notes:

This listing represents a complete North Star factory-built double boost pump skid with installed Cryogenic Industries TC34 pump and matched submersible motor.

Pump and motor share the same S.O. number, confirming a matched assembly.

Unit is sold as-is.

Inspection availability and additional documentation to be confirmed.
