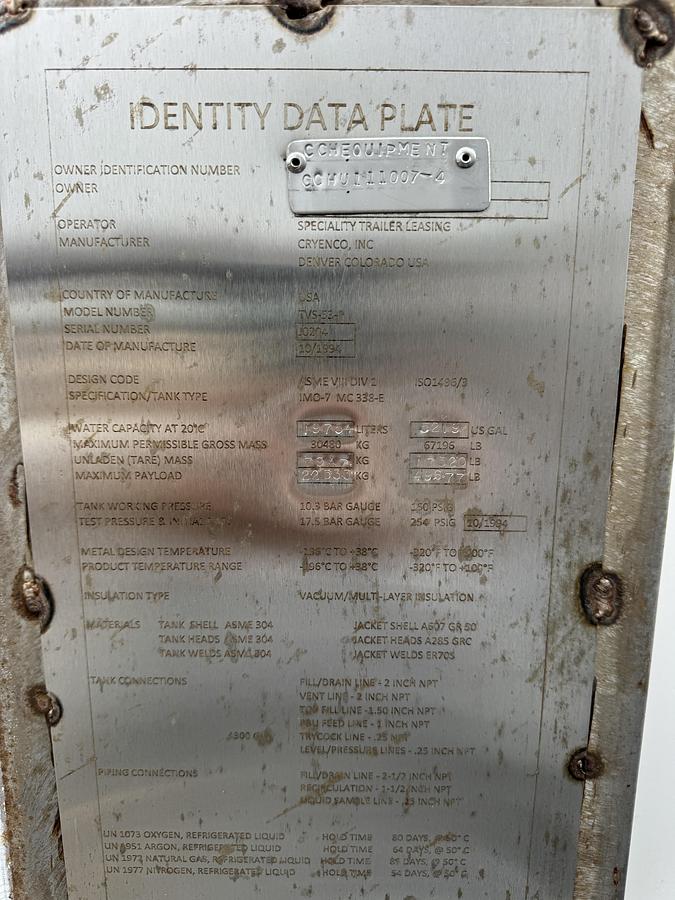

Tank Specifications:

Manufacturer: Cryenco Inc.

DOT Spec: MC-338 / IM-07 Cryogenic ISO Tank

Design Pressure: 150 PSI

Design Temperature: -320°F

Capacity: ~22,000 liters (≈5,800 gallons)

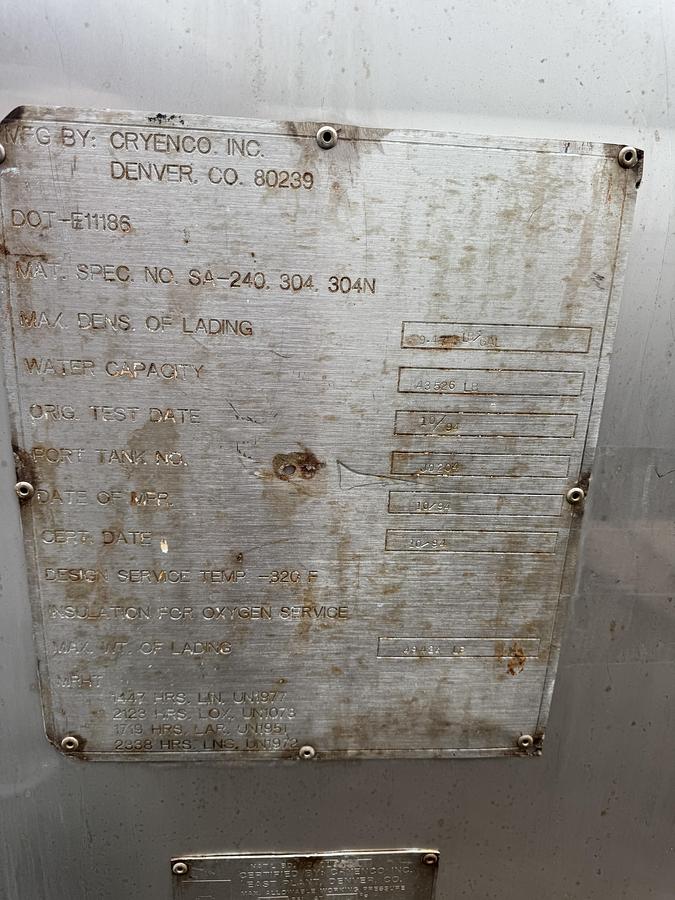

Material Spec: SA-240, 304 Stainless Steel

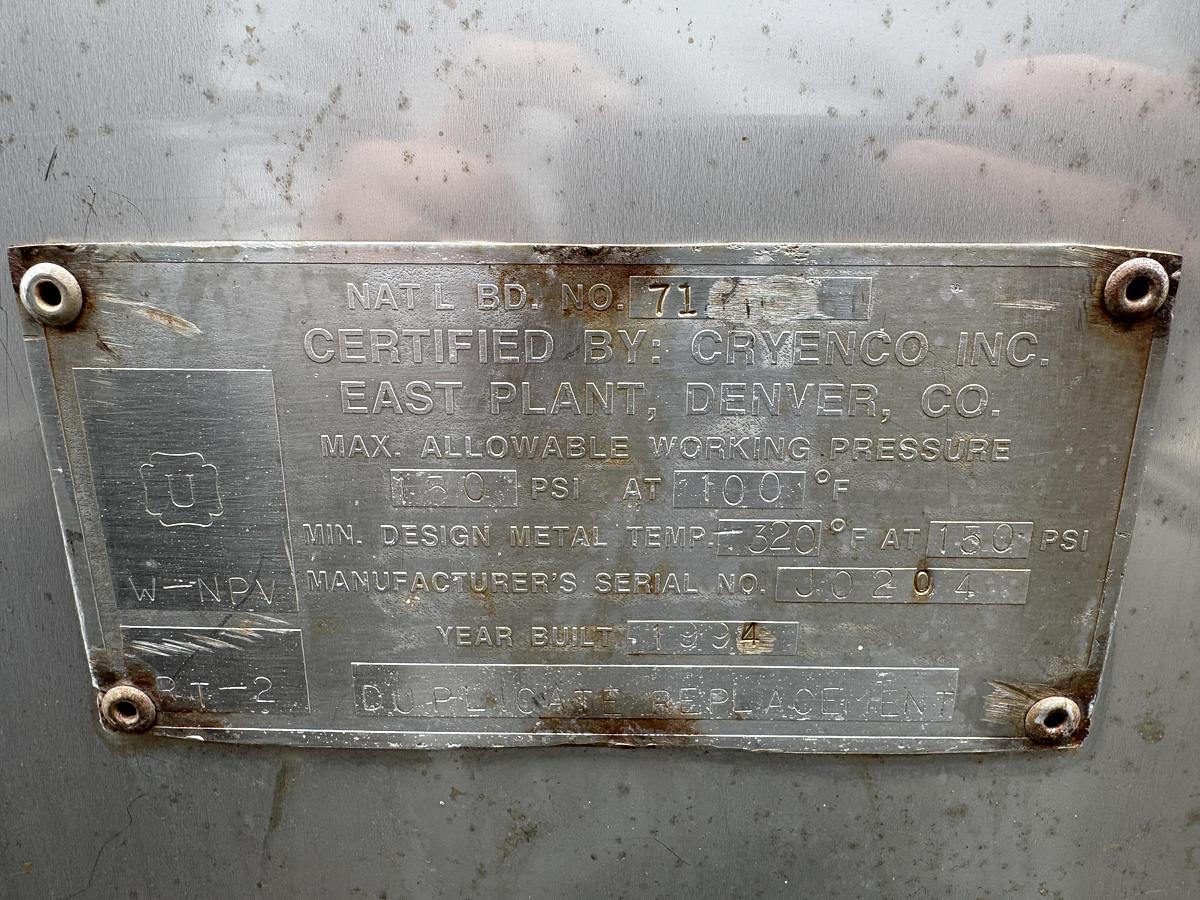

Tank Serial No.: 2040

Year Built: 1994

Water Capacity: 67,197 lbs

Design Service Temperature: -320°F

Max Allowable Working Pressure: 150 PSI @ 100°F

Inner Shell: 304 Stainless Steel – Vacuum Super-Insulated

Outer Jacket: Carbon Steel Jacket

Insulation: Vacuum / Multi-Layer Insulation

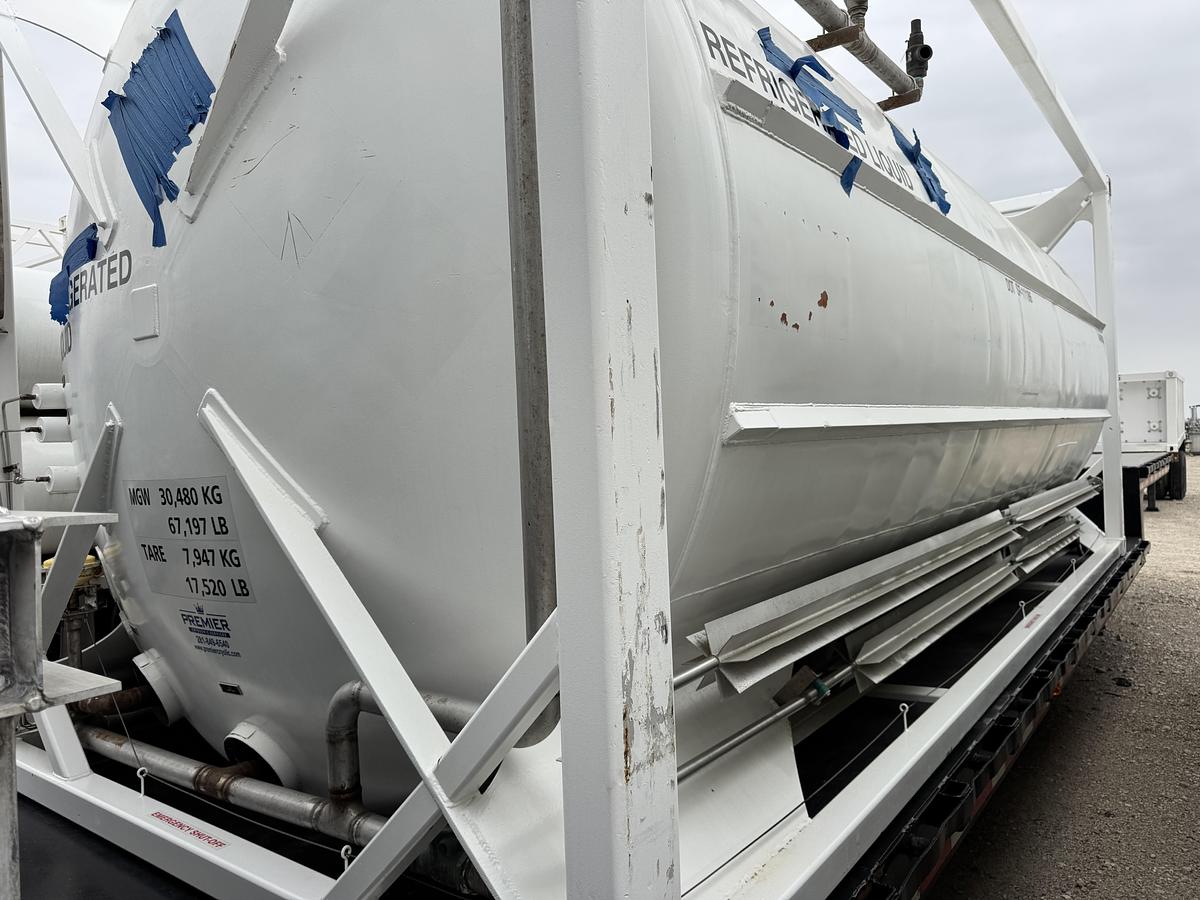

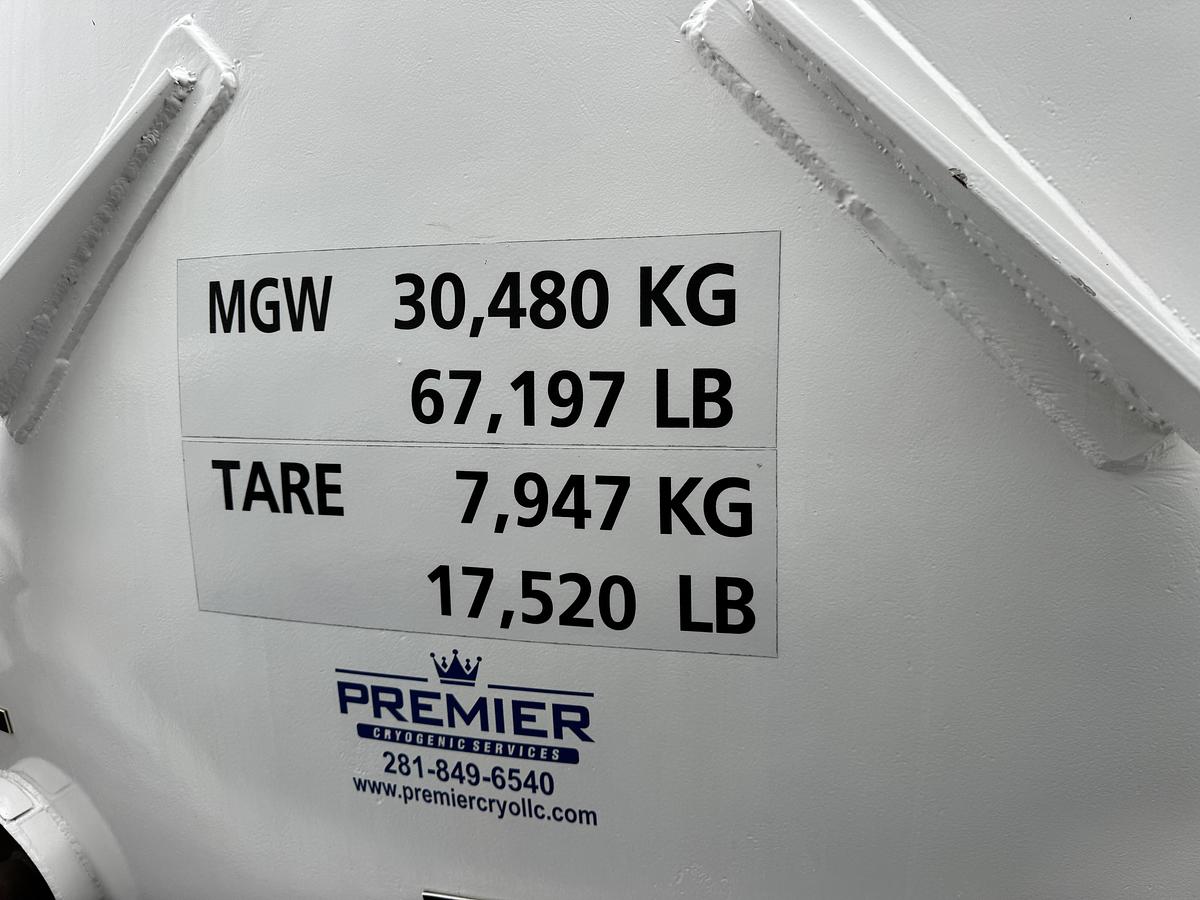

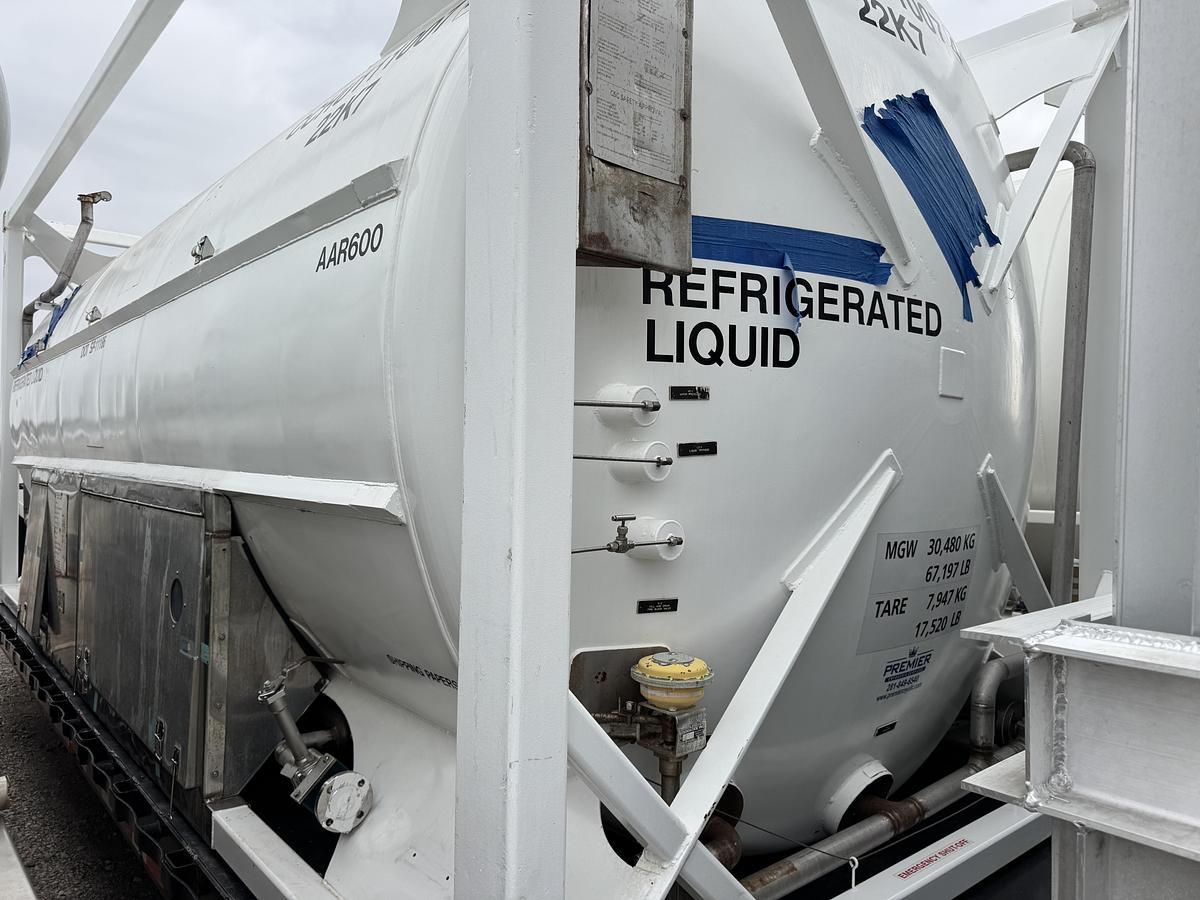

Maximum Gross Weight (MGW): 67,197 lbs

Tare Weight: 17,520 lbs

Maximum Payload: approx. 49,677 lbs

Estimated Tank Weight: 17,520 lbs

Dimension: 20’ ISO Frame x 8’ W x 8’6” H

Code: ASME Section VIII Div.1

Transport Code: MC-338 / IM-07

Cryogenic Compatibility:

Designed for use with:

• Liquid Nitrogen (LIN)

• Liquid Oxygen (LOX)

• Liquid Argon (LAR)

• Liquefied Natural Gas (LNG)

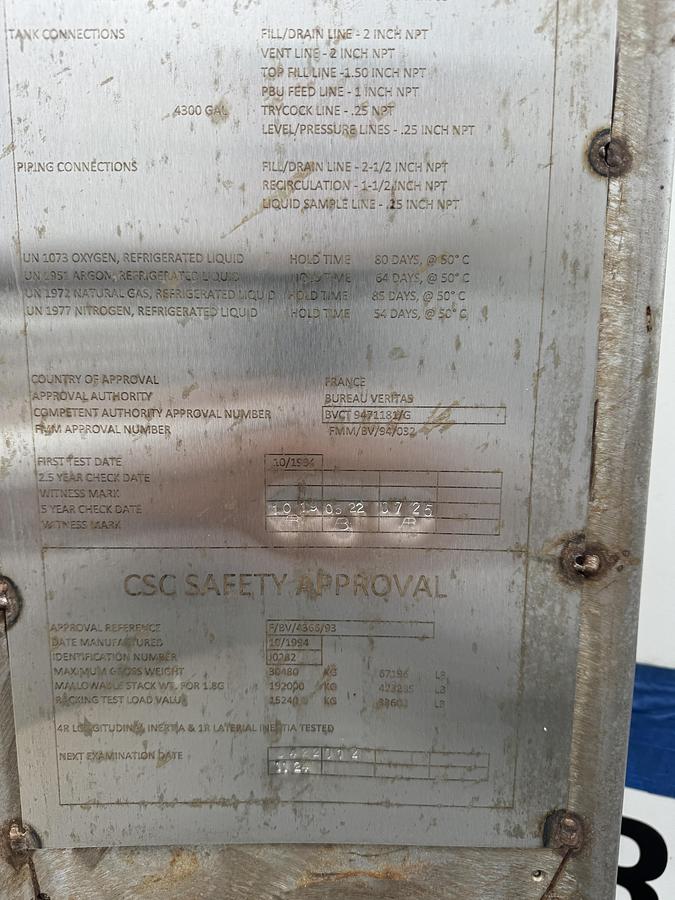

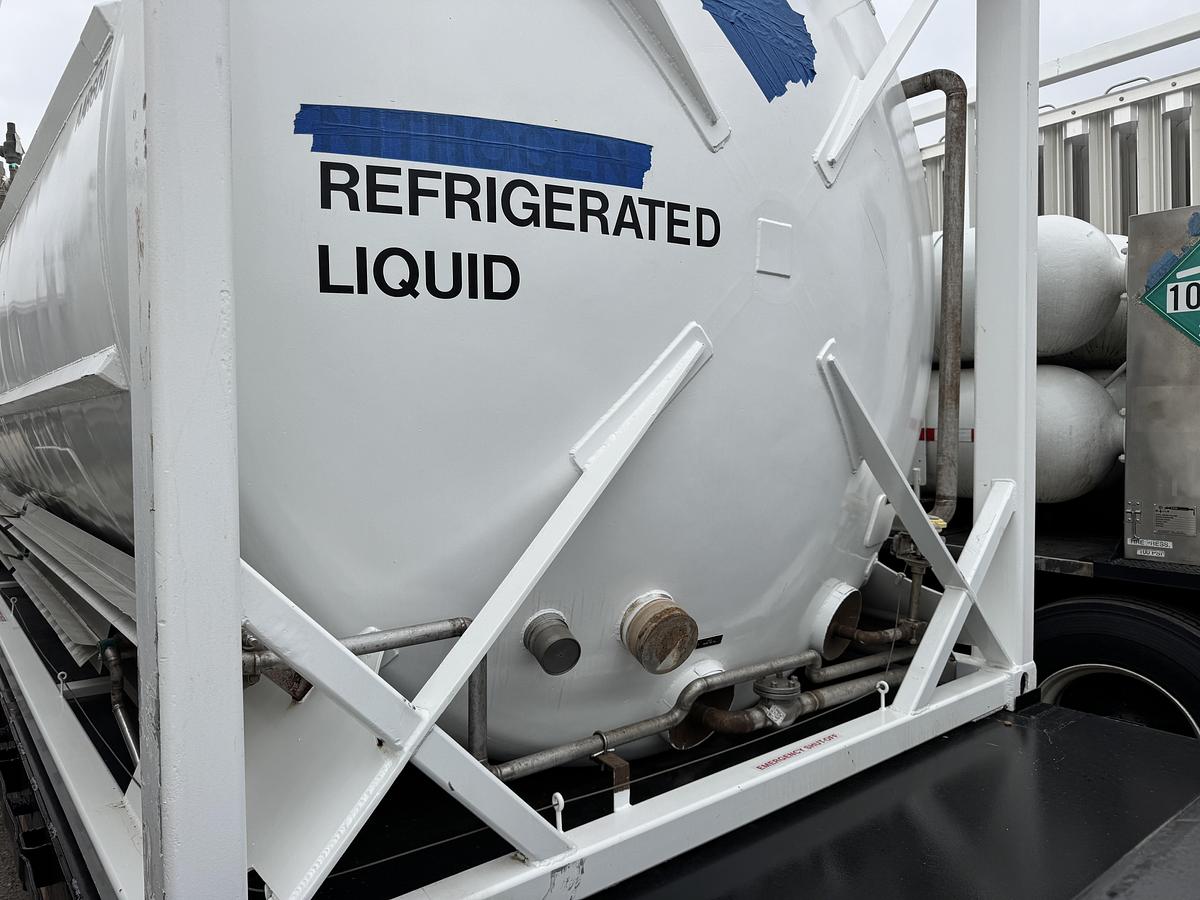

UN Approved for Cryogenic Refrigerated Liquids including:

• UN 1073 – Oxygen, Refrigerated Liquid

• UN 1972 – Natural Gas, Refrigerated Liquid (LNG)

• UN 1977 – Nitrogen, Refrigerated Liquid

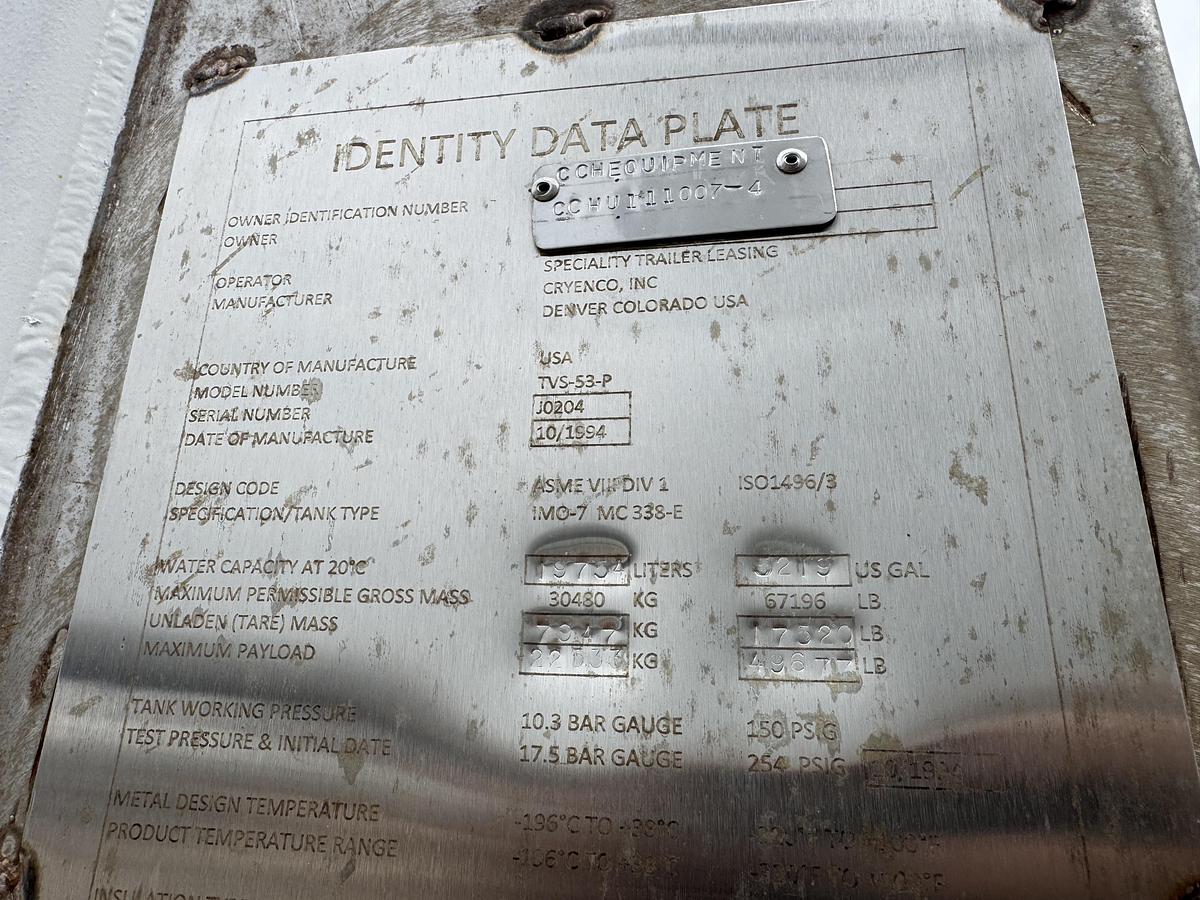

ISO Container Specifications:

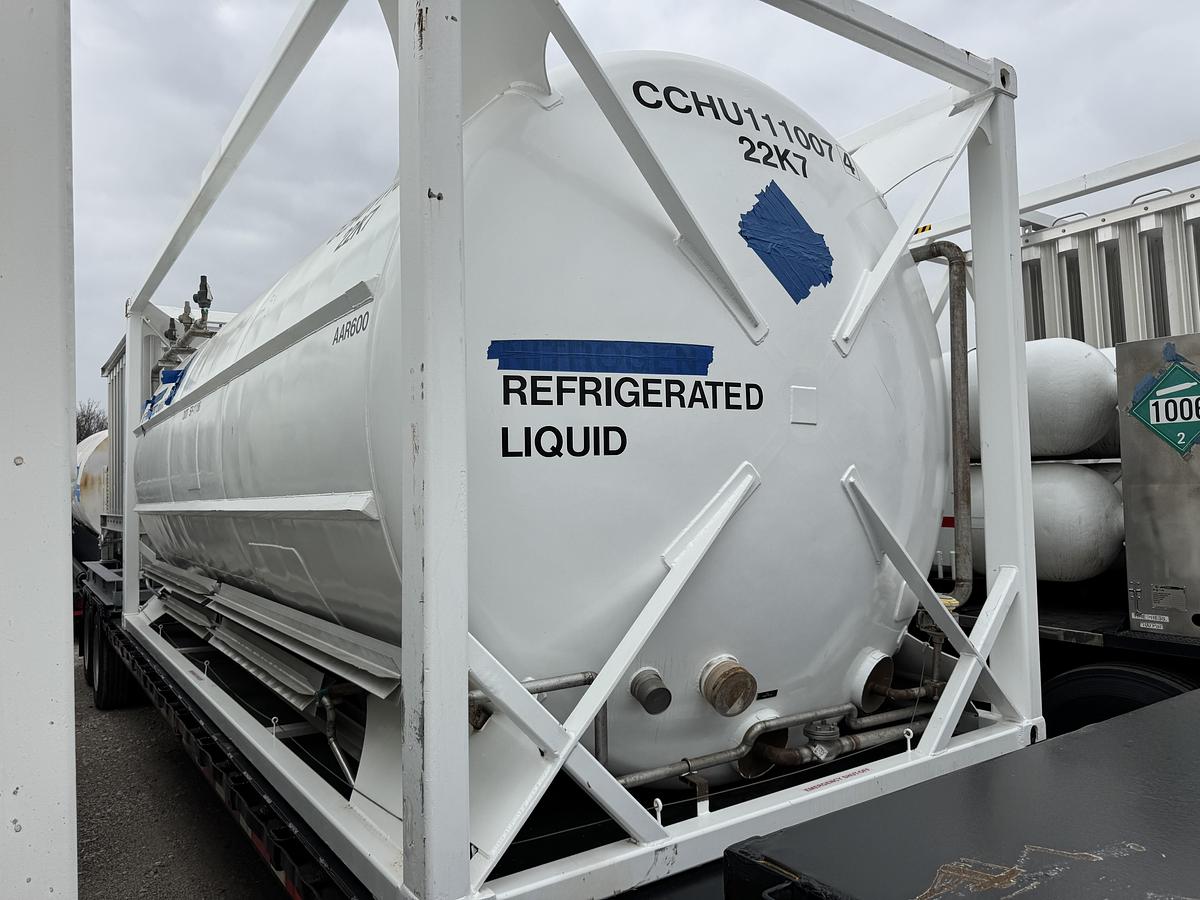

Container ID: CCHU111007-4

ISO Tank Code: 22K7

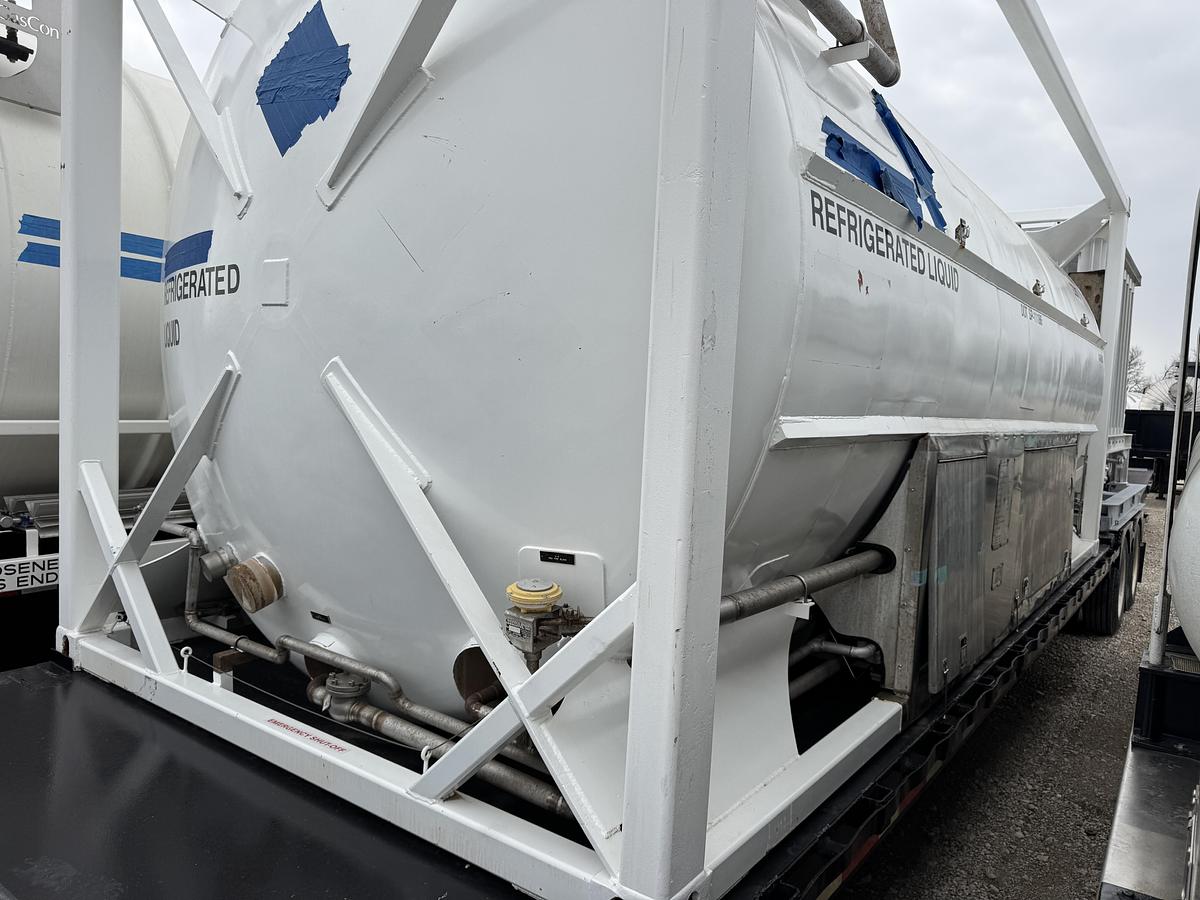

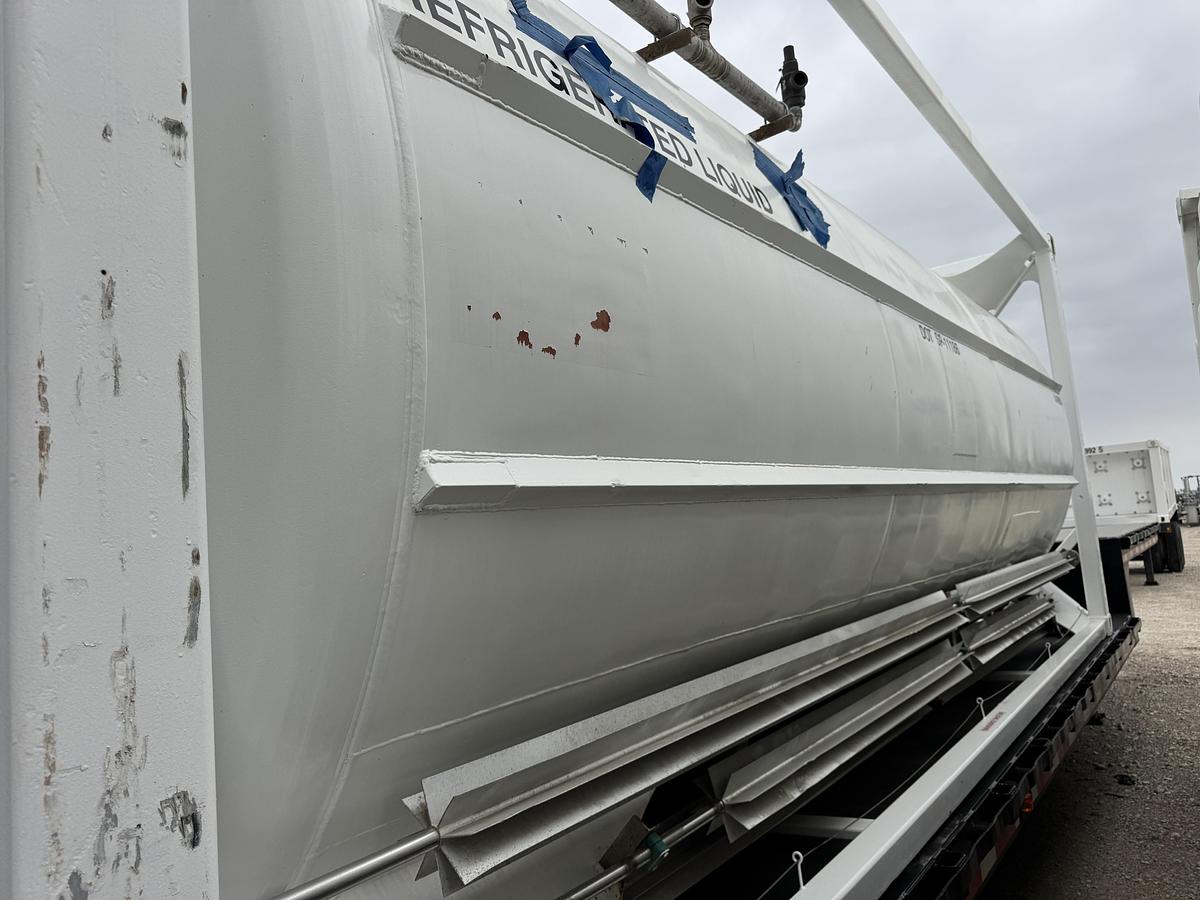

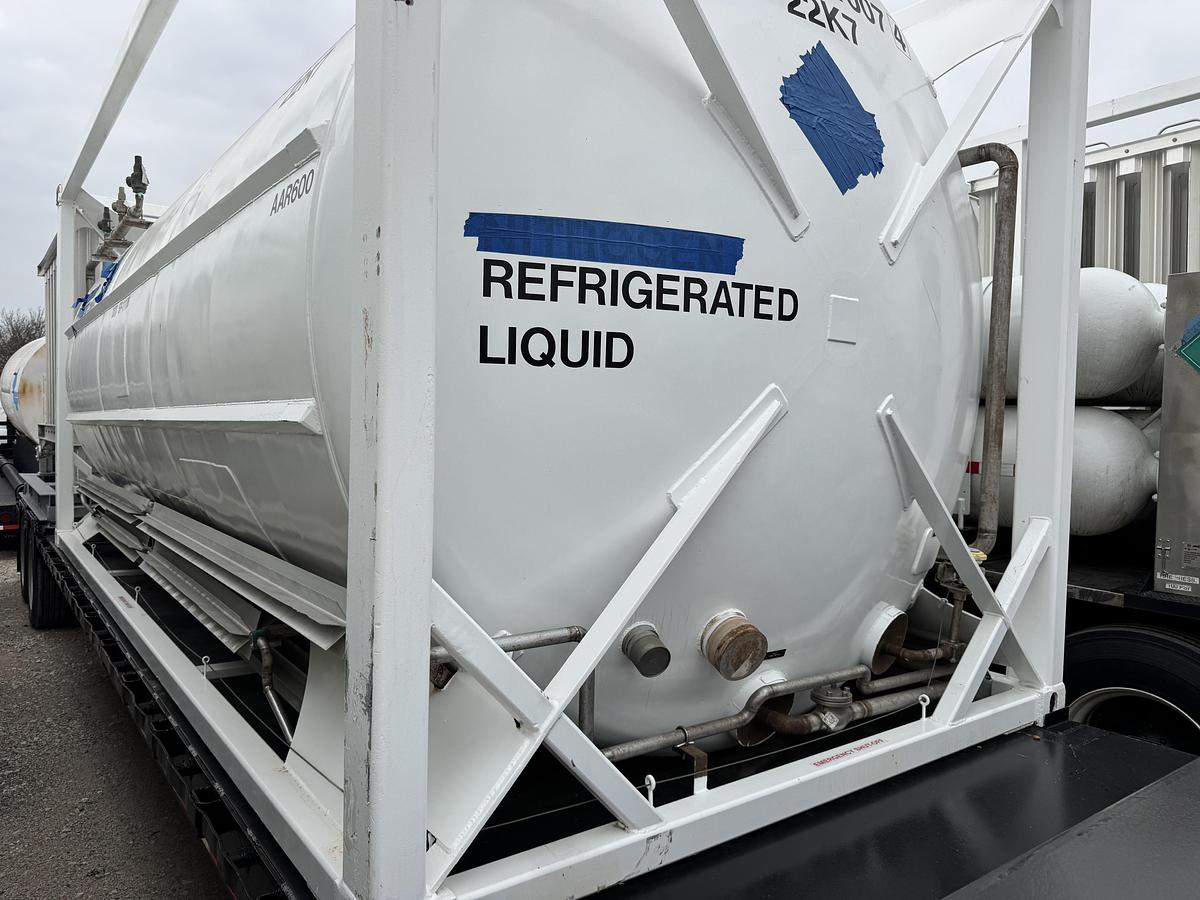

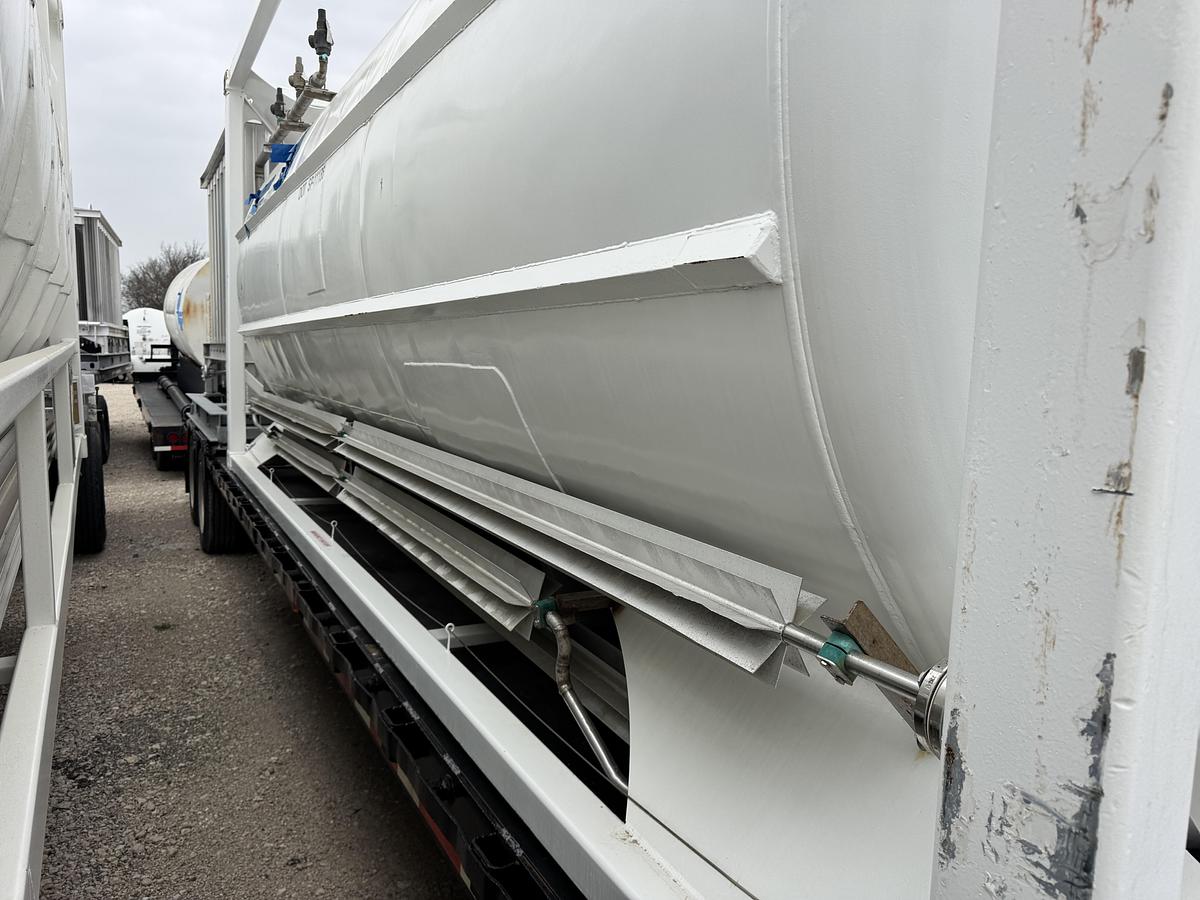

Configuration: ISO frame mounted cryogenic transport tank

Structure: Heavy-duty transport frame designed for road, rail, or container handling

Working Pressure: 150 PSI

Test Pressure: 254 PSI

Minimum Design Metal Temperature: -320°F

Pre-Purchase Inspections:

We welcome pre-purchase inspections during normal business hours, by appointment only. If you’re planning to fly in to view or inspect the equipment in person, we are happy to arrange that with proper notice.

Shipping Arrangements:

We’re happy to assist with shipping logistics and can provide loading services for equipment located at our yard when scheduled in advance.

Buyers are responsible for arranging transportation, but we are happy to coordinate with your freight company to ensure safe loading.

Payment Terms:

Full payment is required before the release of any equipment. We always prefer to meet our buyers in person to discuss project needs and ensure you receive the right equipment and support for your success.

A verifiable cashier’s check is required if you’re paying in person. If you plan to use a third-party shipping company, a wire transfer must be completed and cleared in full before the equipment is released.
