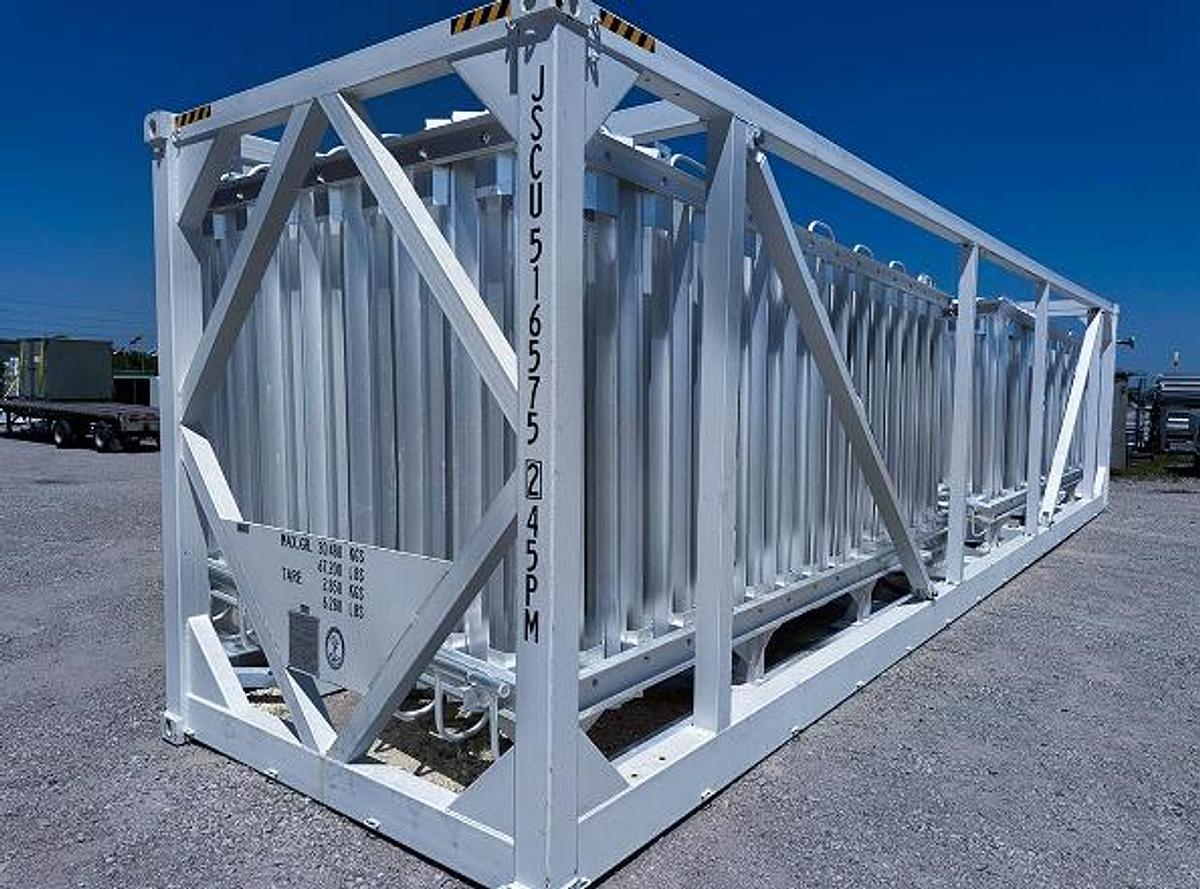

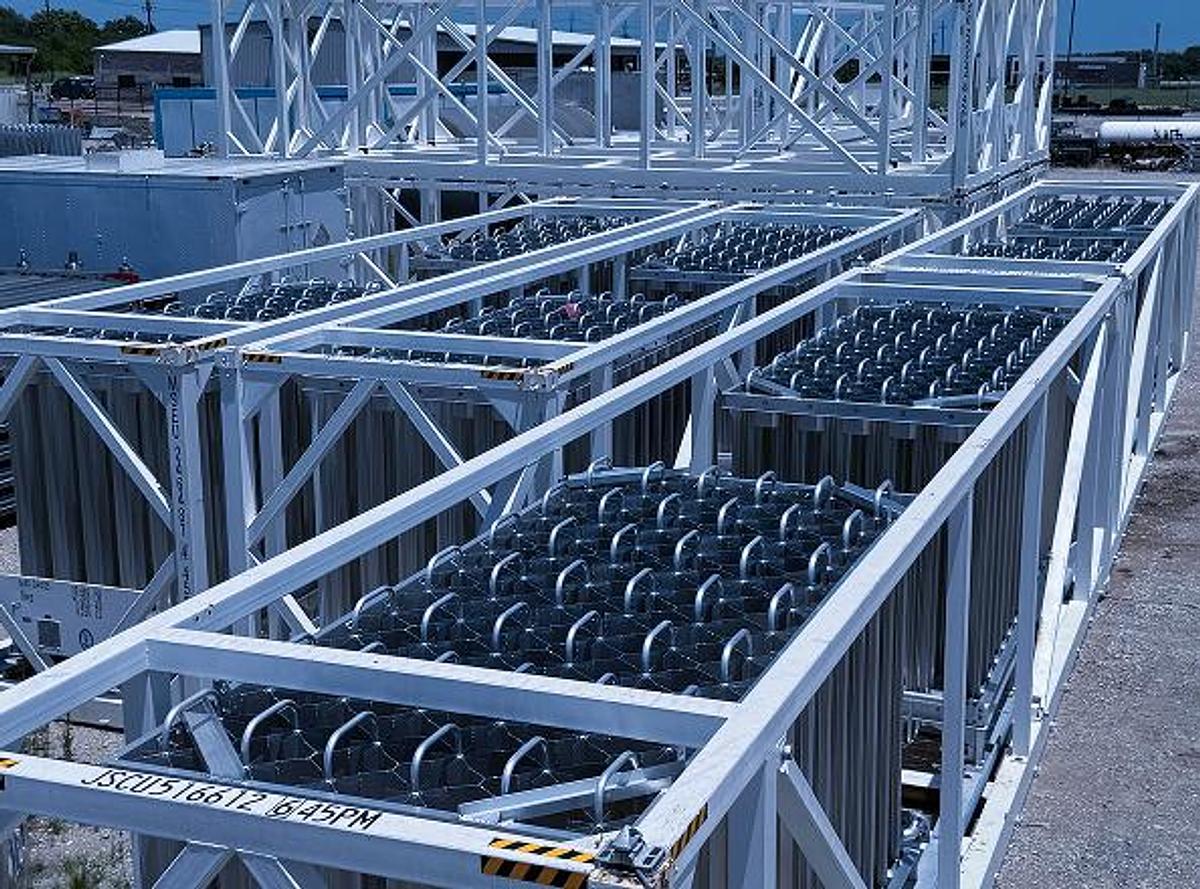

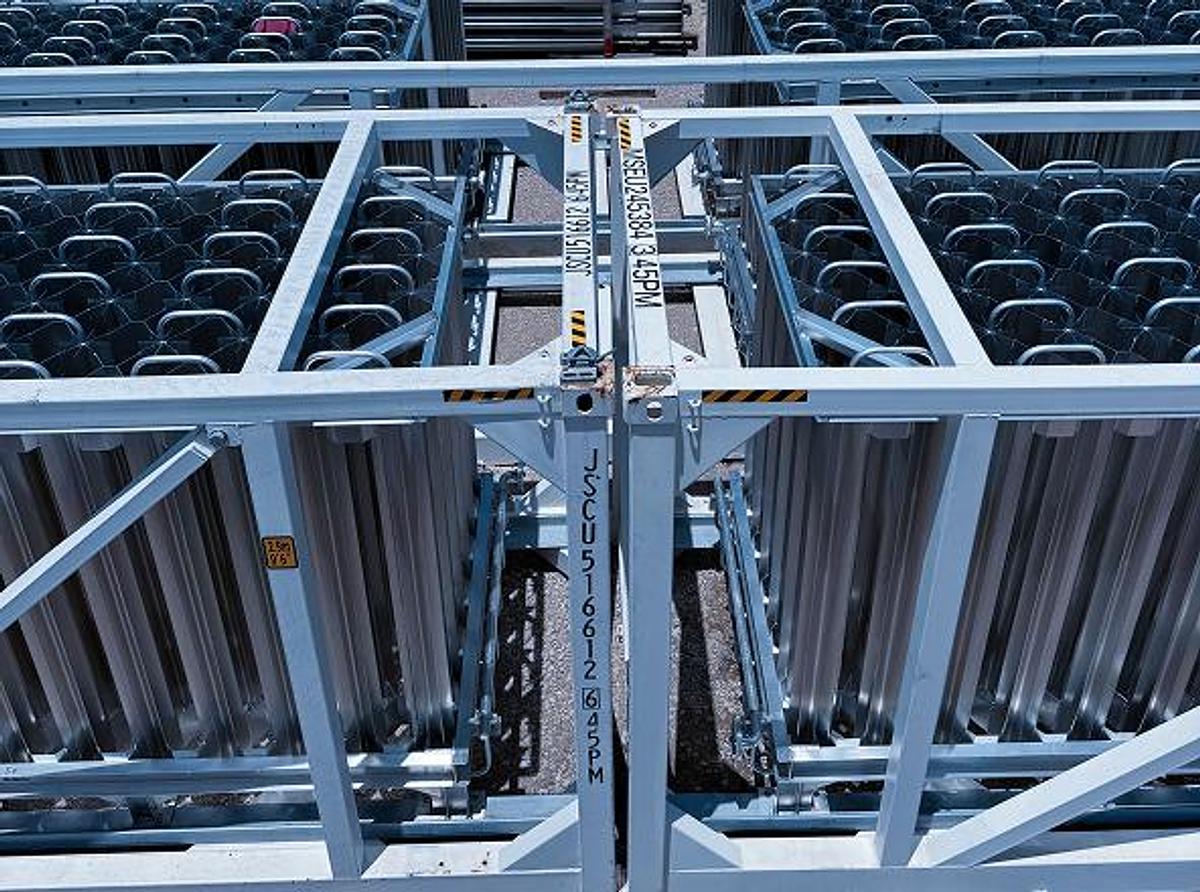

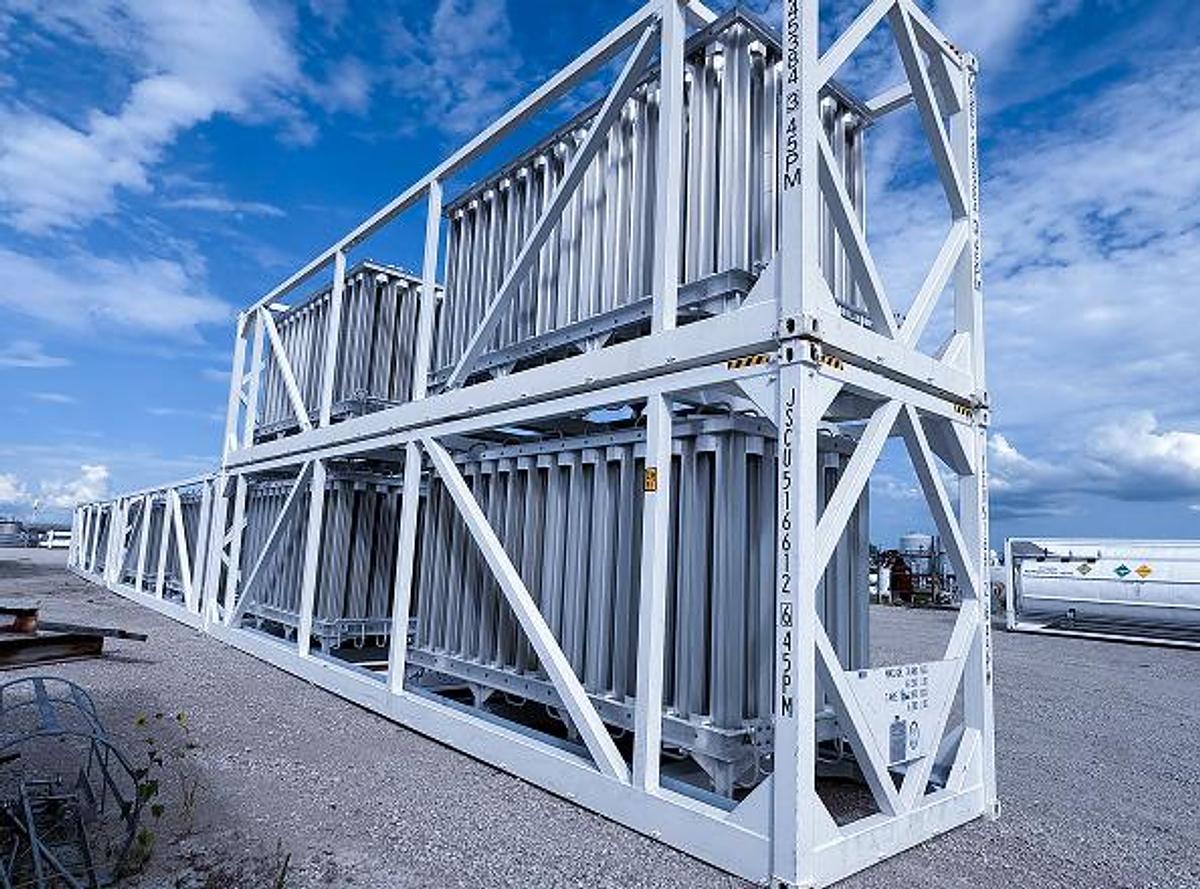

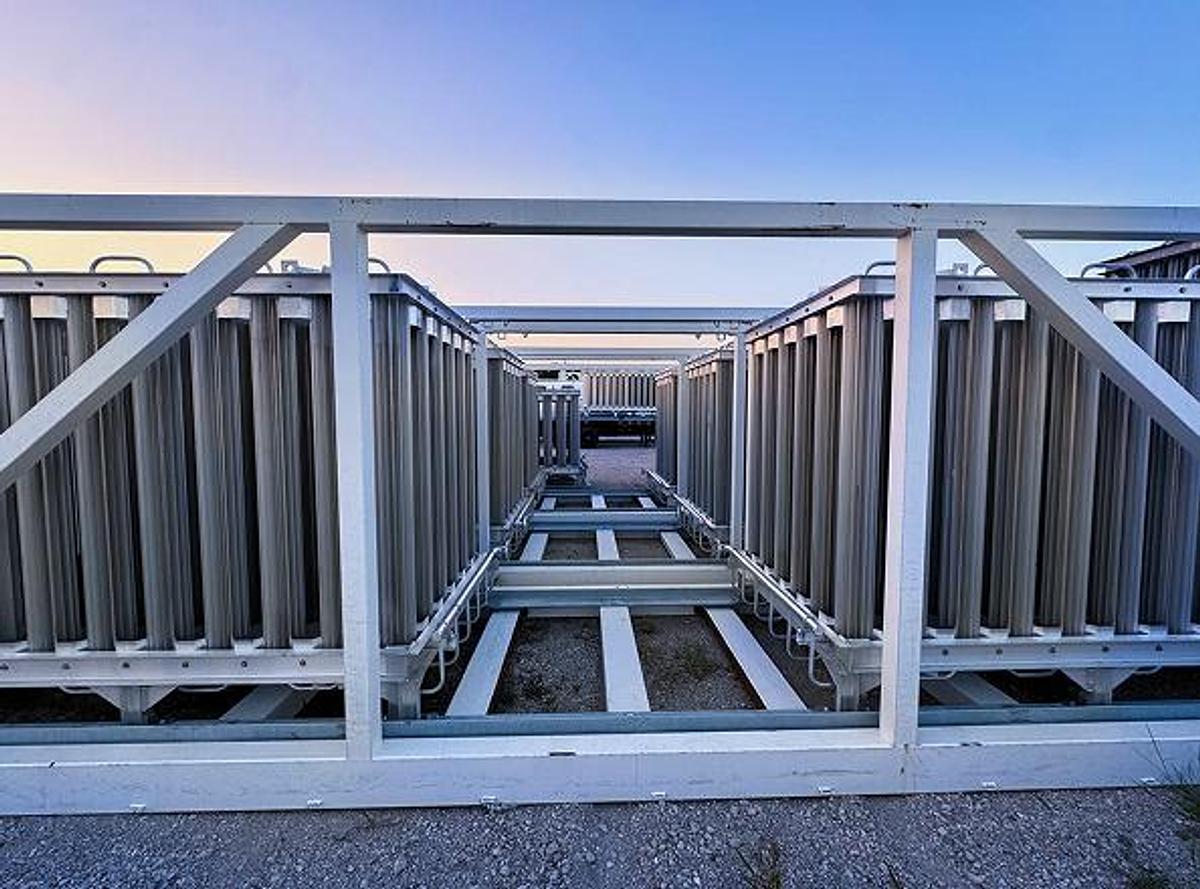

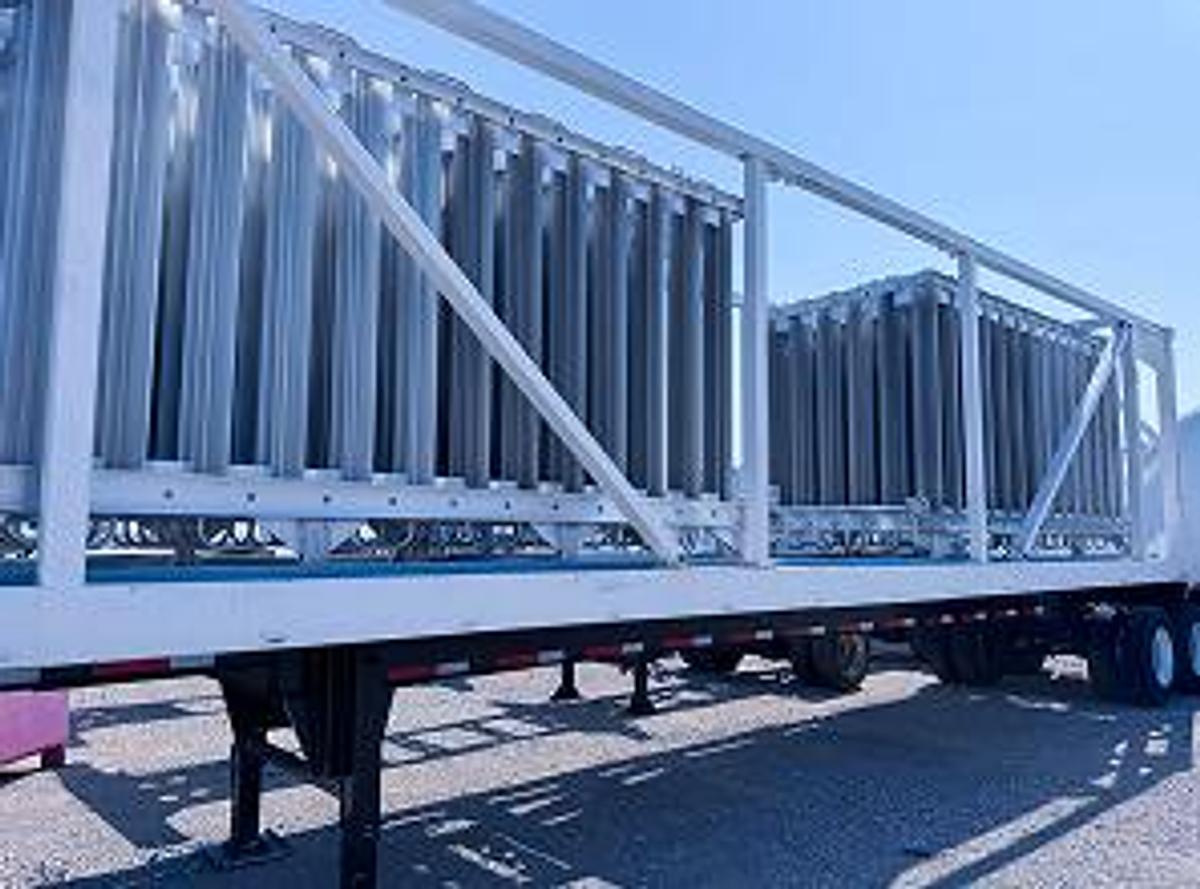

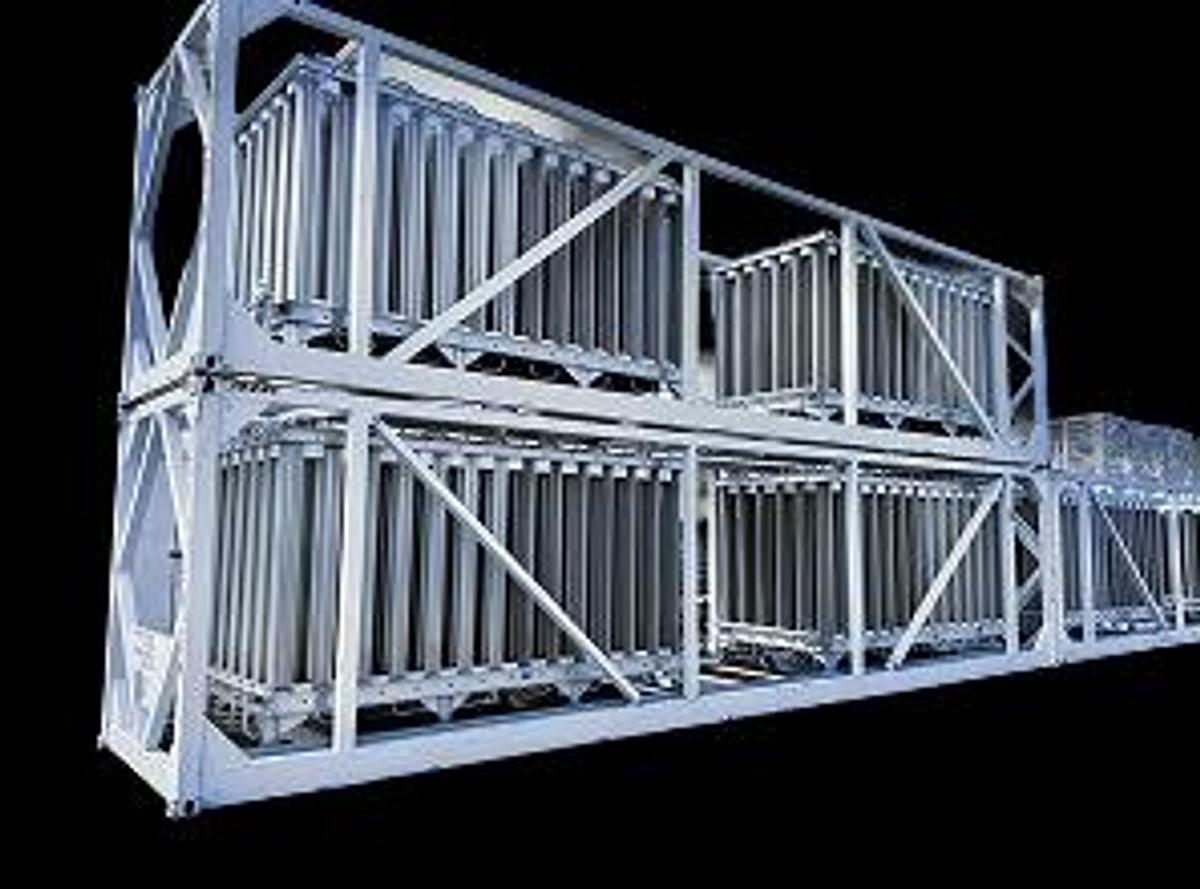

Cryogenic Ambient Vaporizer 108,000 SCFH – LNG / LOX / LIN / LAR – 700 PSI – ISO Frame

The HBVP-108K Ambient Vaporizer is a high-capacity, mobile cryogenic vaporization system engineered for scalable and efficient regasification across industrial gas and LNG applications. Built on a 40-ft ISO frame, this unit is designed for rapid deployment and seamless integration with cryogenic storage systems.

Capable of vaporizing LOX, LIN, LAR, and LNG, the HBVP-108K delivers up to 108,000 SCFH (nitrogen rated) while maintaining consistent and reliable performance without requiring external power.

Key Features

• Flow Rate: Up to 108,000 SCFH
• Max Design Pressure: 700 PSIG
• Service: LOX, LIN, LAR, LNG
• Design Temperature: -320°F
• Base: 40-ft ISO Frame (transport-ready)

System Design & Functionality

• Plug-and-play system – no welding required
• No external power required (ambient air vaporization)
• Designed to run in series or alternate between units
• Forklift and crane lifting provisions for easy handling
• Standard ISO locking footprint for transport and deployment

Mechanical Construction

• All-aluminum construction for corrosion resistance
• Alloy 6063 extrusions, 6061 structural components
• 5052 piping components
• Welded base with crimped fin array for thermal flexibility
• Wide fin spacing for optimal natural convection
• Combination of internal finned extrusions for enhanced heat transfer

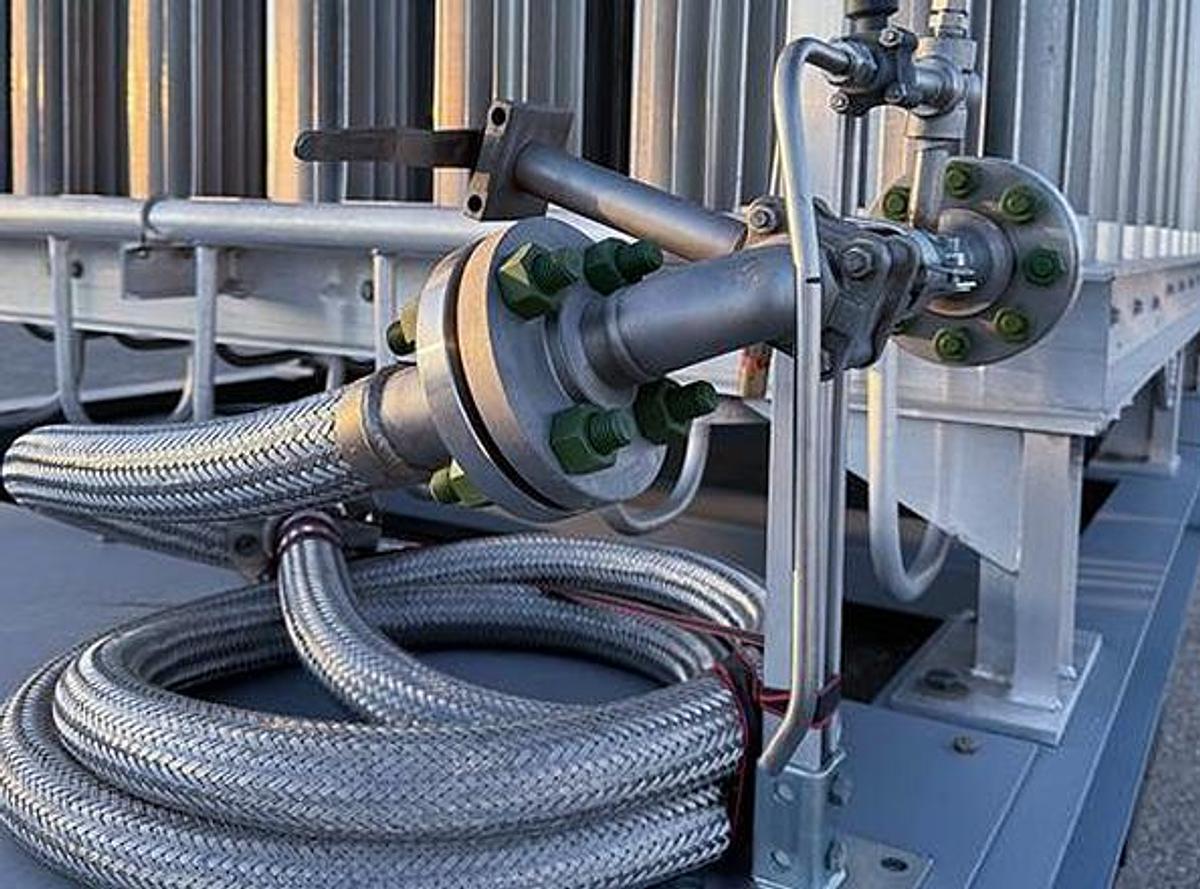

• ANSI CL300 RF flange connections (1.5” / 2”)

Design & Compliance

• Built to ASME B31.3 standards
• MAWP: up to 700 PSIG
• Outlet temperature: 20°F approach to ambient
• Seismic compliant: ASCE/SEI 7
• Wind load: 120 mph rating
• Oxygen-cleaned, sealed, and tagged

Dimensions & Weight

• Size: 40’ L x 8’ W x 9’ 7” H
• Weight: 12,230 lbs
• Footprint: 40-ft ISO Frame

Applications

• LNG regasification & peak shaving
• Industrial gas supply systems
• Backup fuel supply / temporary gas supply
• Aerospace, electronics, steel, and manufacturing
• Renewable energy and hydrogen-adjacent systems

Additional Notes

Optional components available including:

• Regulators
• Pumps
• Odorizers
• Metering systems

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide complimentary transportation pickup from DFW Airport and back if you would like to fly in and inspect the item in person. Additionally, we can conduct FaceTime / Teams/Zoom calls to review the item in person for any domestic /international procurement. Please be mindful that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is in our yard, South of Dallas, Texas. We can assist with shipping arrangements, and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see /meet the purchaser to ensure we can provide adequate after-sales support to set your project up for success. We will require a verifiable Cashier's check as a payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared to the company account, before releasing the equipment to any 3rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect ourselves and you.

Feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you meet your project needs.
