Hyzon 200kW Hydrogen Fuel Cell Complete System w/ Parts & Battery

2024 Hyzon 200kW Hydrogen Fuel Cell Complete System with Battery and Spare Parts

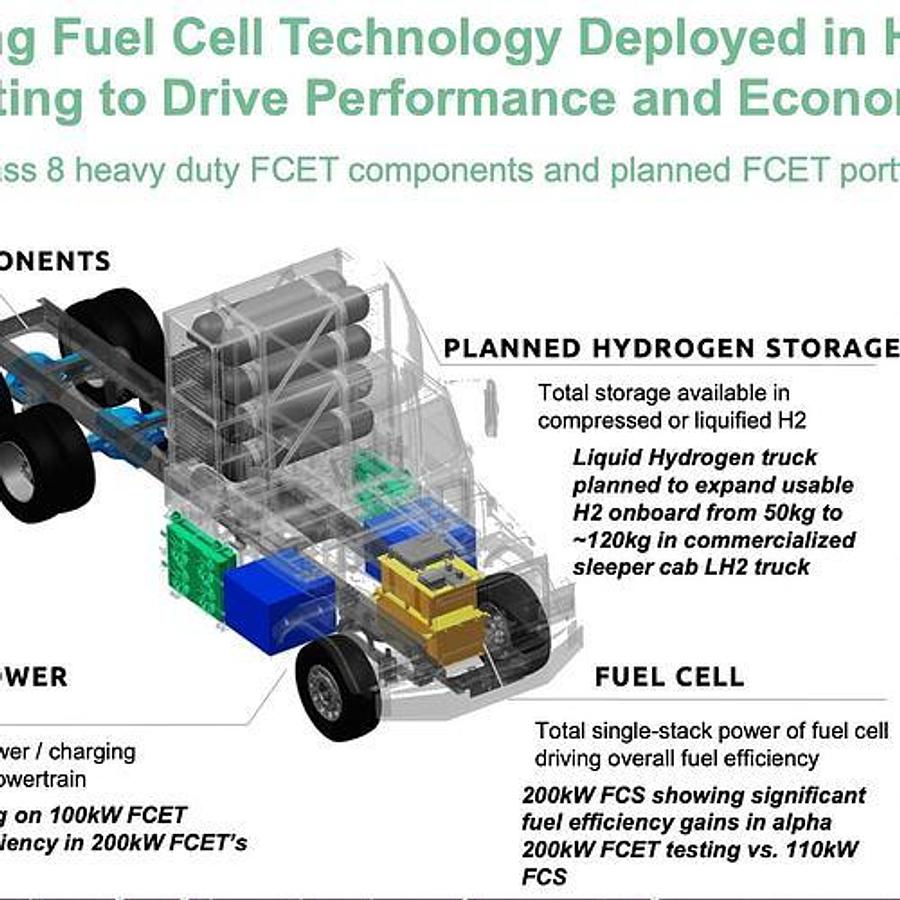

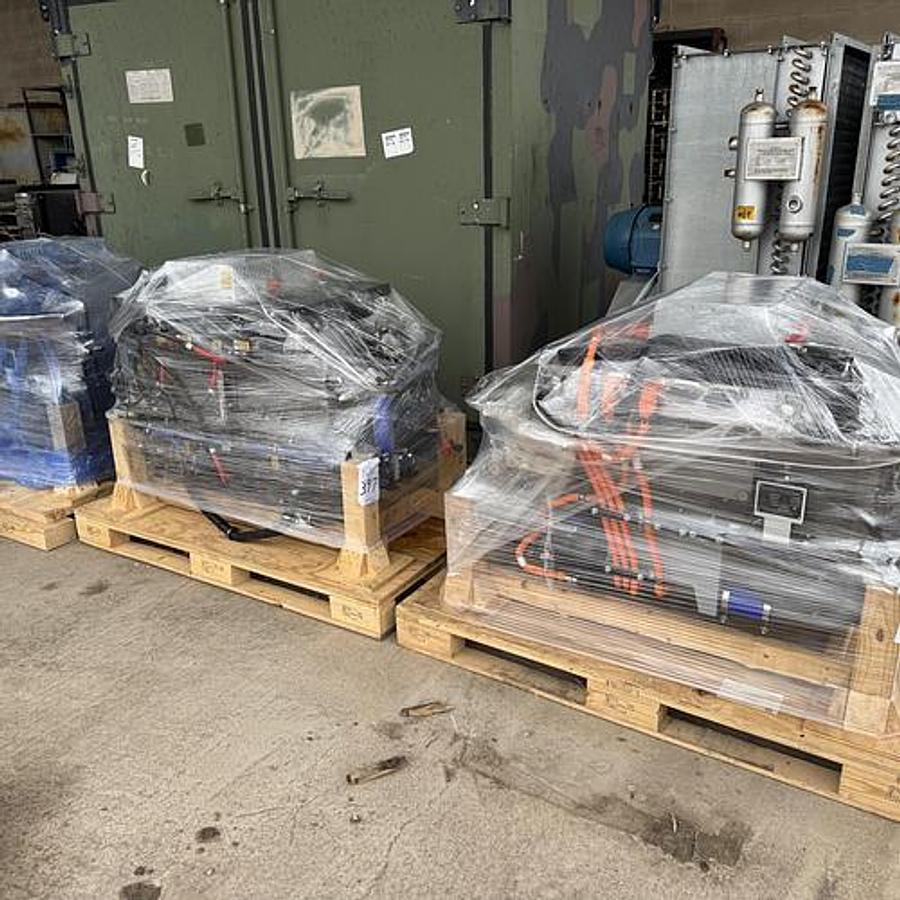

This listing includes three major components that together make up a complete Hyzon hydrogen fuel cell powertrain system designed for Class 8 heavy-duty tractor trucks:

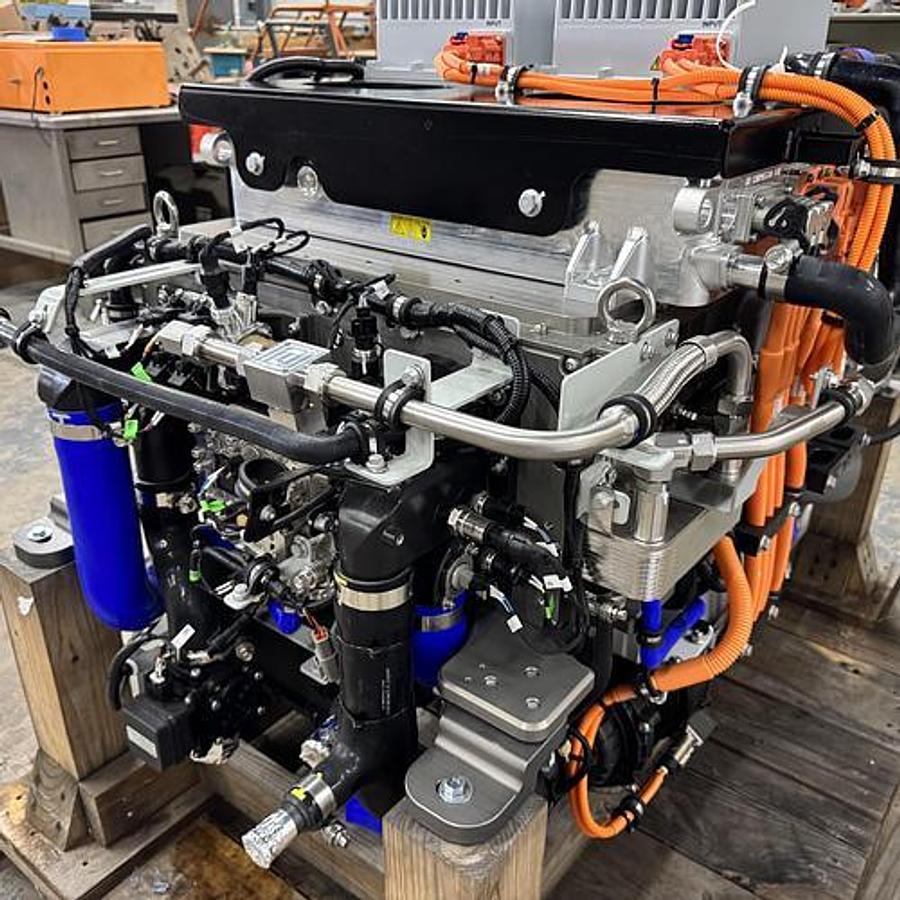

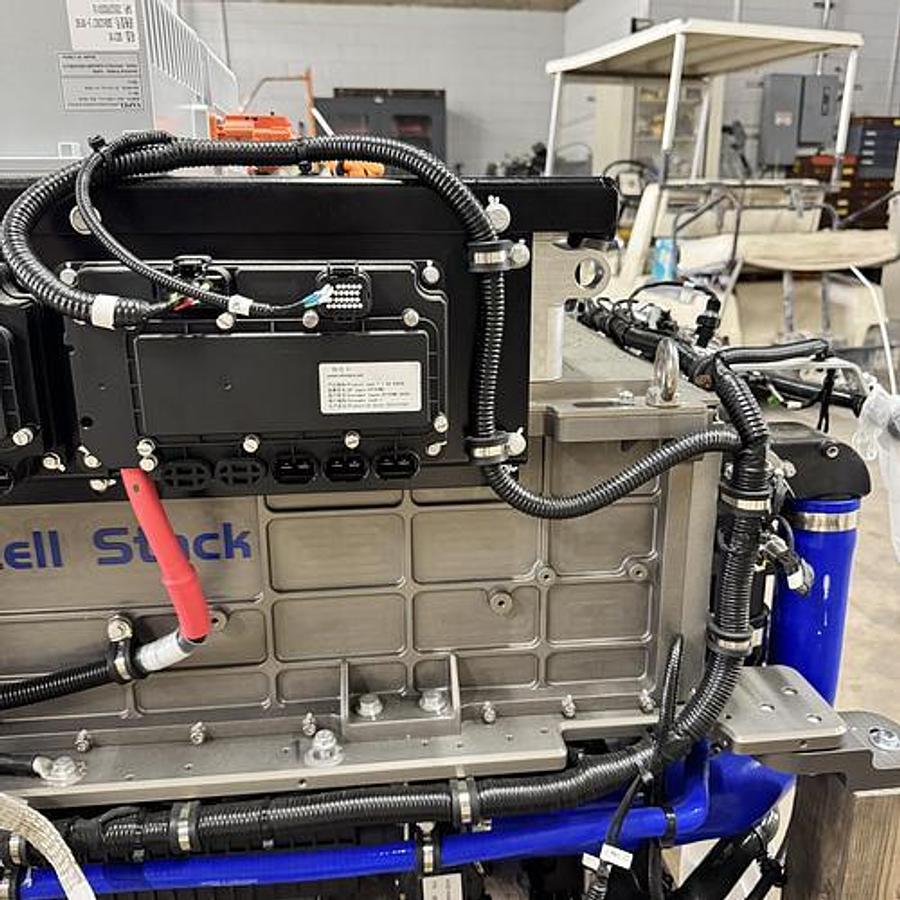

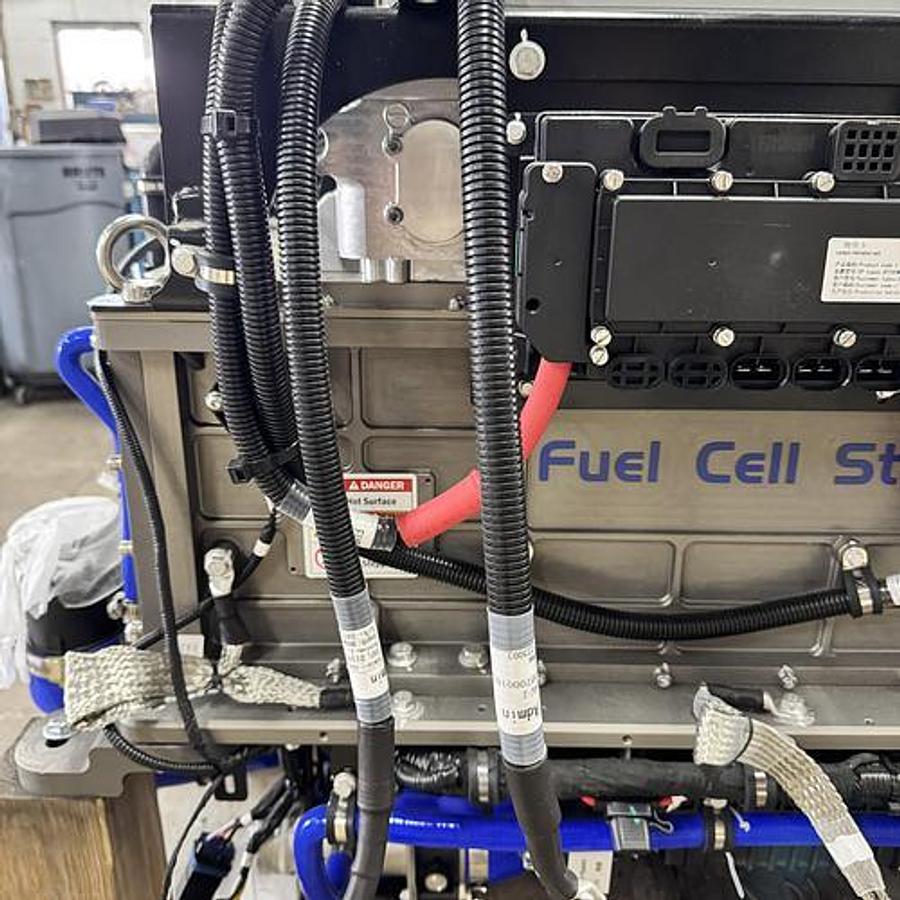

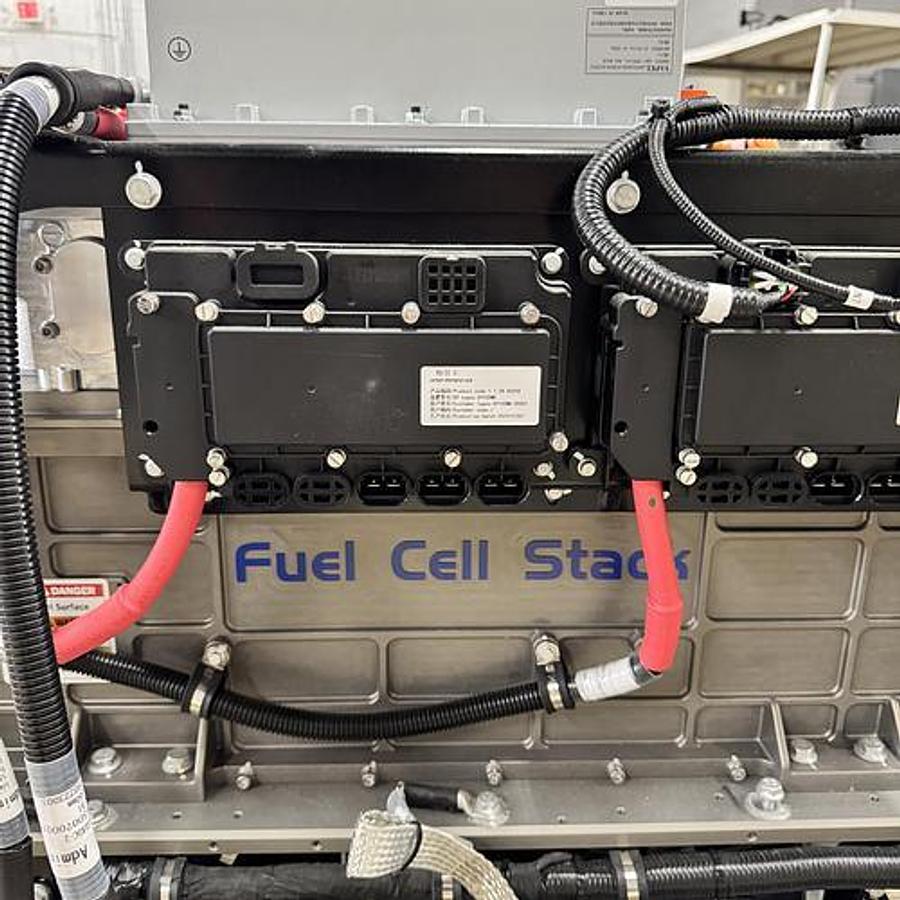

1. Fuel Cell System — Model VLIII200-50 (New) A 2024 Hyzon single-stack 200-Kilowatt hydrogen fuel cell system. This market-leading proprietary system delivers 200 Kilowatts of power output while being 30% lighter, 30% smaller, and 25% more cost efficient than traditional dual-stack alternatives, with a 20% increase in miles per kilogram of hydrogen.

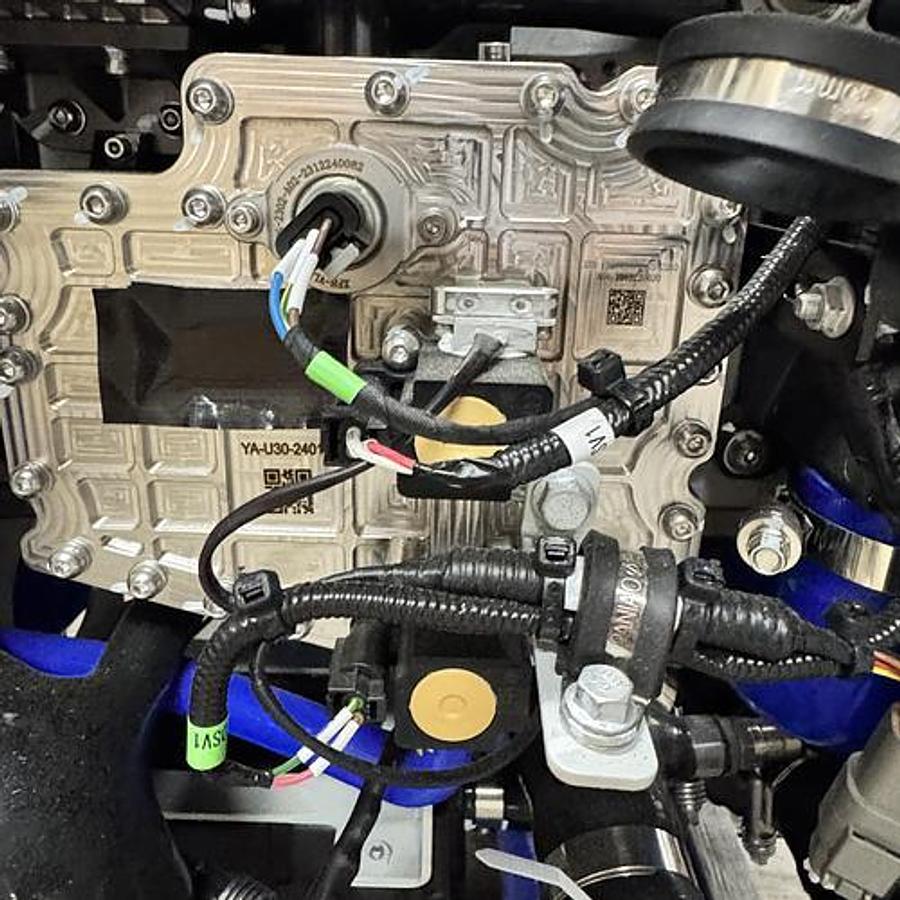

2. Fuel Cell System Spare Parts Kit (Used) A complete 2024 Hyzon 200-Kilowatt fuel cell system spare parts kit including 38 balance of plant components plus a stack-mounted module containing hydrogen supply injectors, pressure sensors, water separator, purge valves, and recirculation ejector. Everything needed to support and maintain the fuel cell system in the field.

3. Heavy-Duty Class 8 Tractor Truck Lithium-Ion Battery Pack — Model HYB030CFL (Used) A 2024 Hyzon heavy-duty high-voltage lithium-ion battery pack purpose-built for Class 8 hydrogen fuel cell electric tractor trucks. Rated at 307.2 Volts, 30.7 Kilowatt-hours, and 100 Amp-hours, this 507-pound battery provides the power storage and energy buffer required for demanding commercial trucking operations.

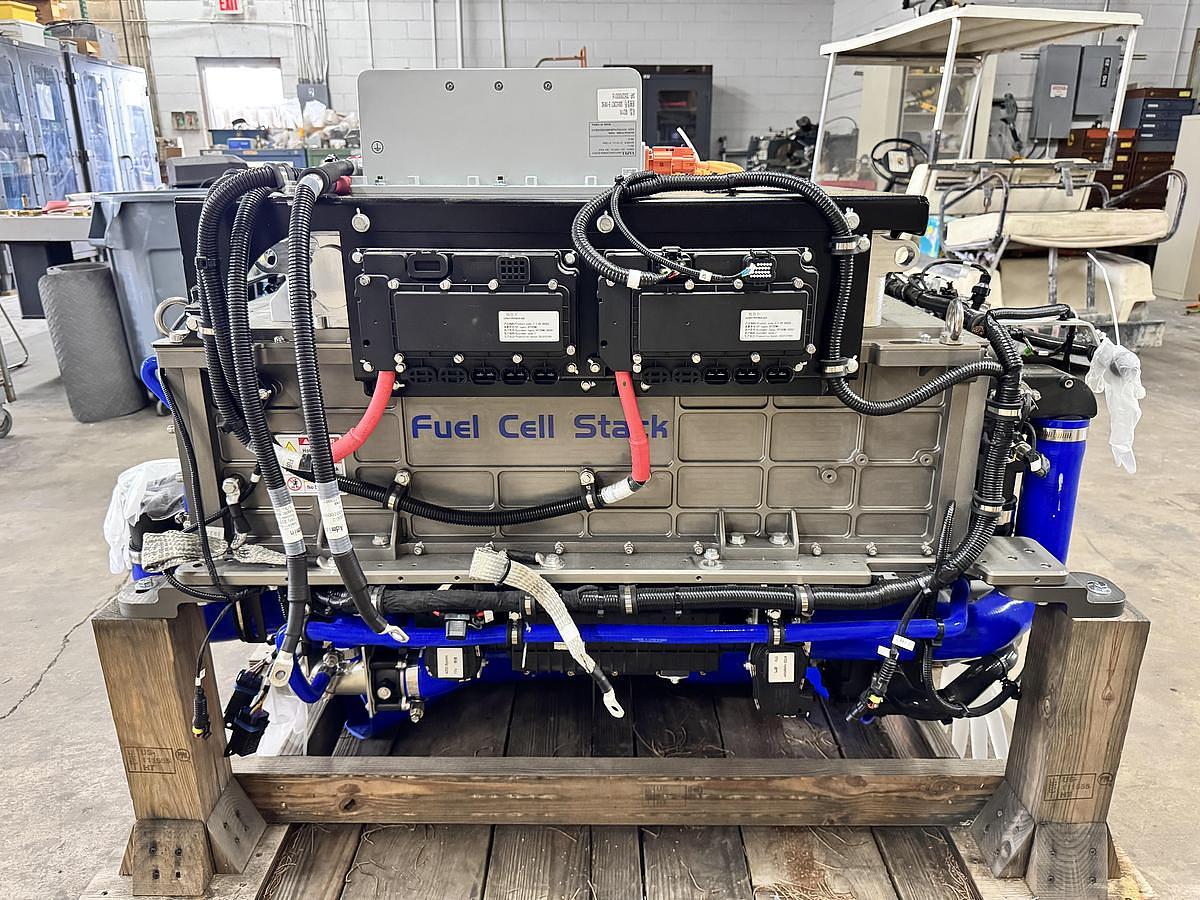

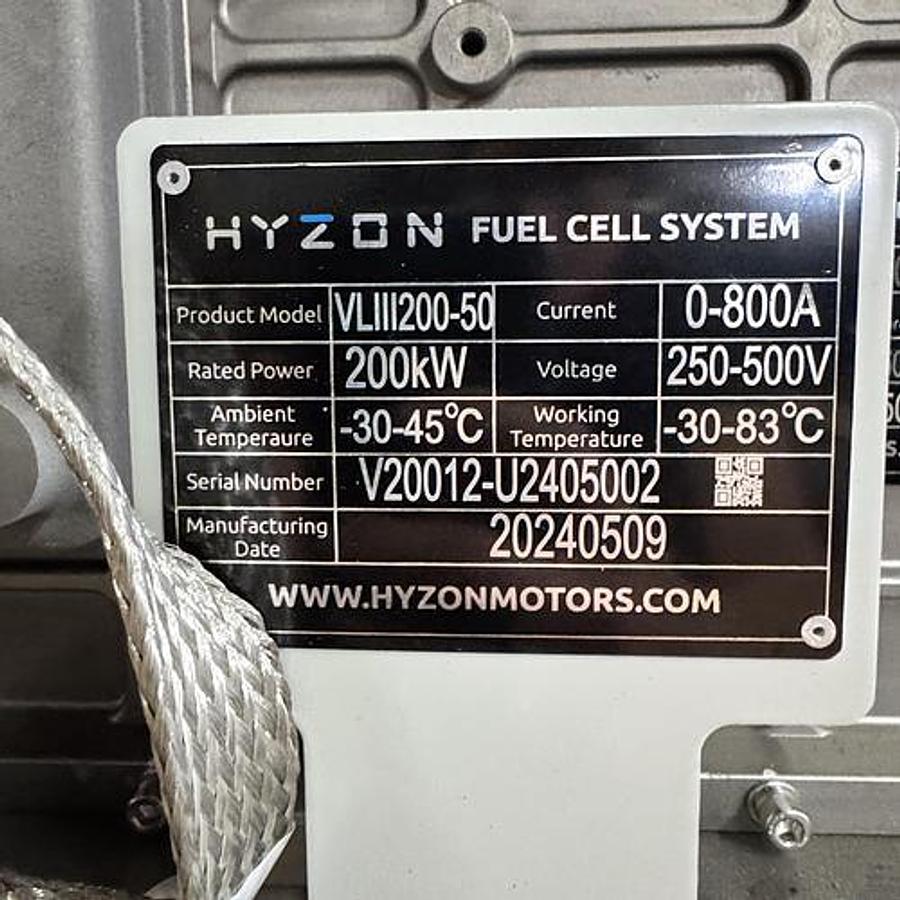

FUEL CELL SYSTEM — Model VLIII200-50:

• Power Output: 200 Kilowatts
• Fuel Type: Hydrogen

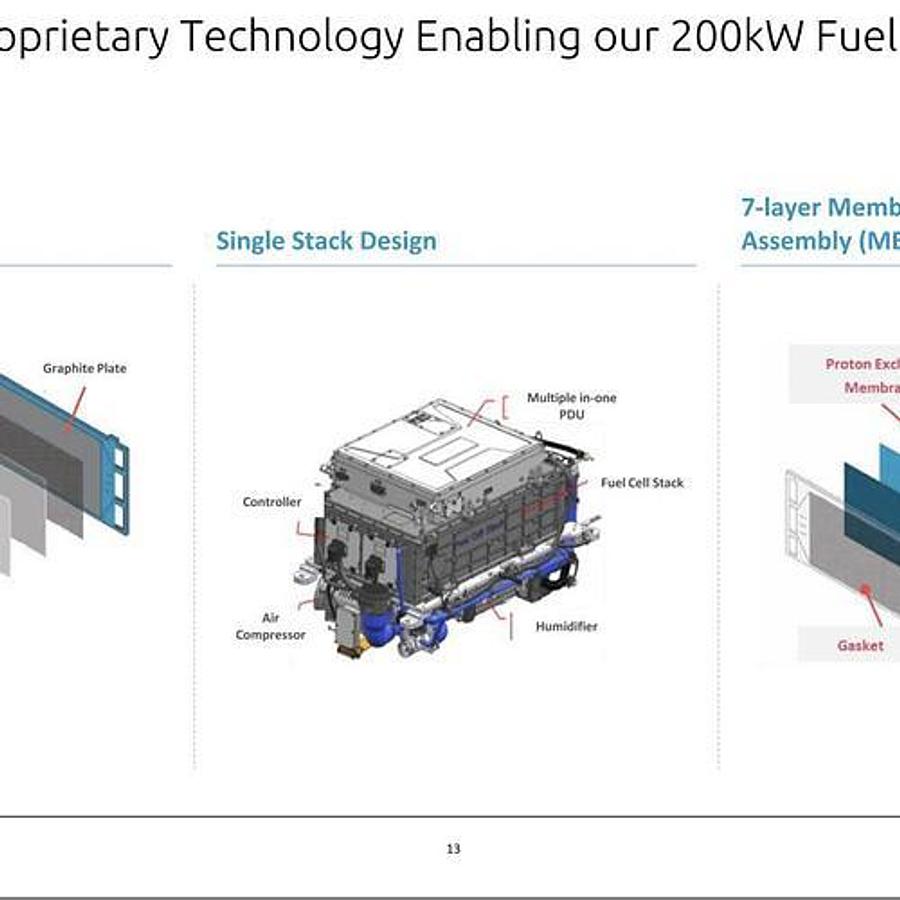

• Design: Single-stack fuel cell system
• Cooling System: Liquid-cooled
• Current: 0-800 Amps
• Voltage: 250-500 Volts
• Membrane Electrode Assembly: Proprietary design

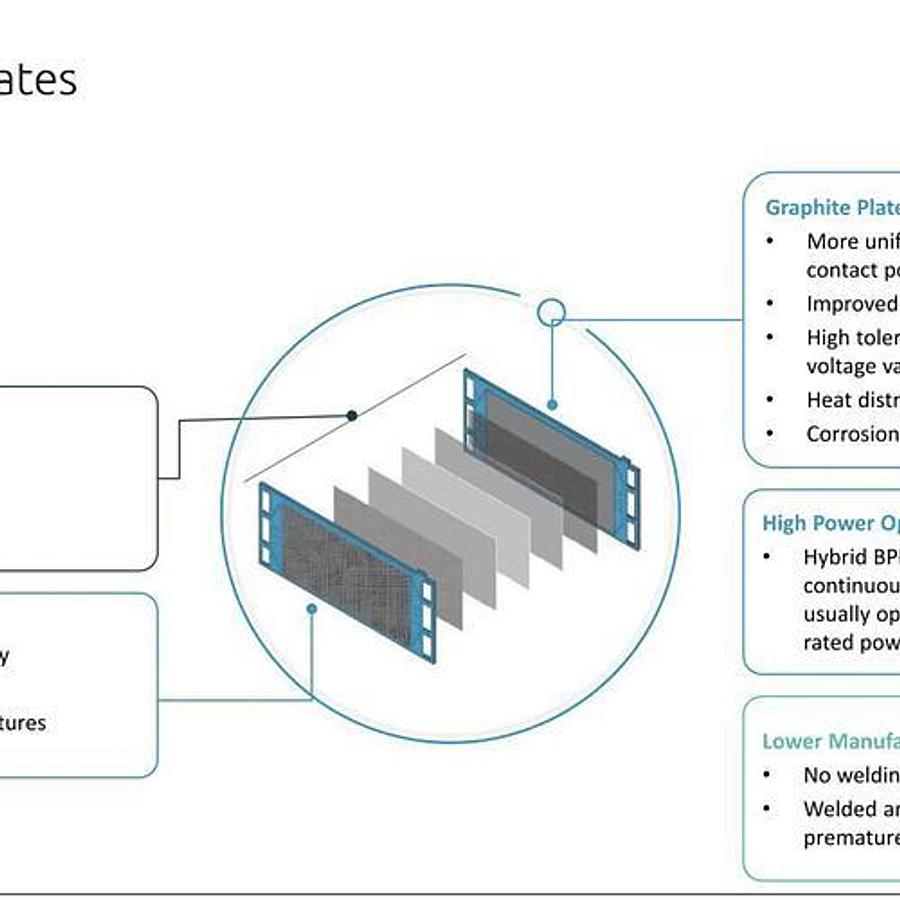

• Bipolar Plate: Hybrid composite material

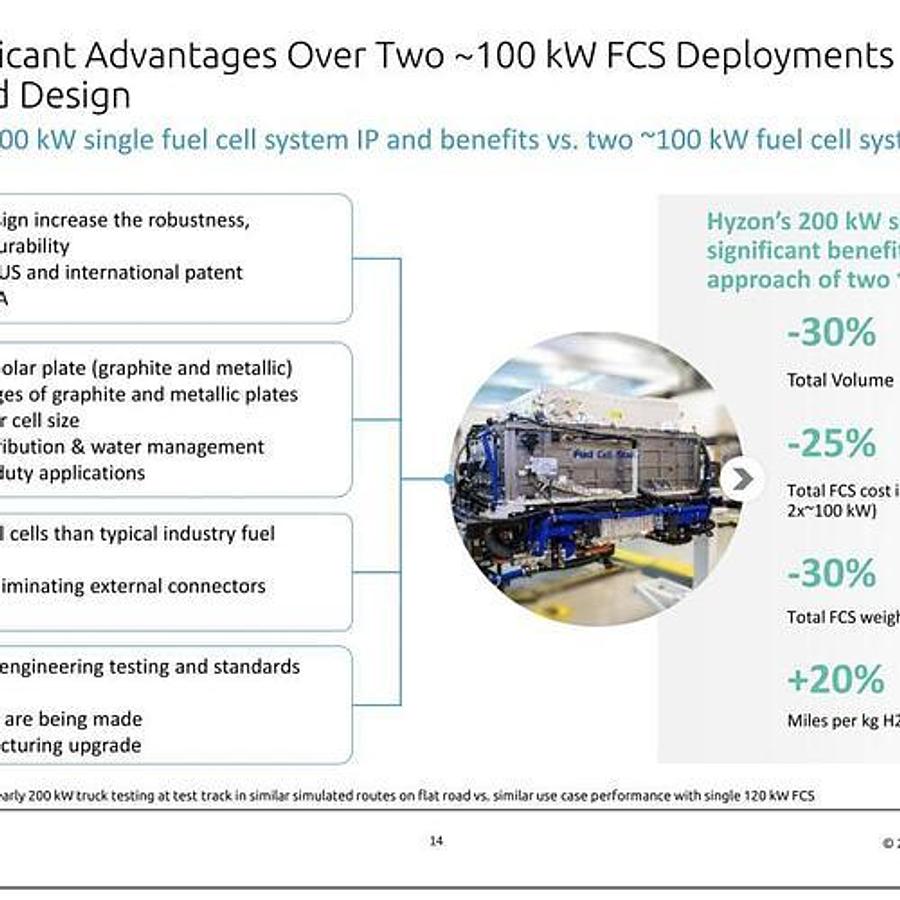

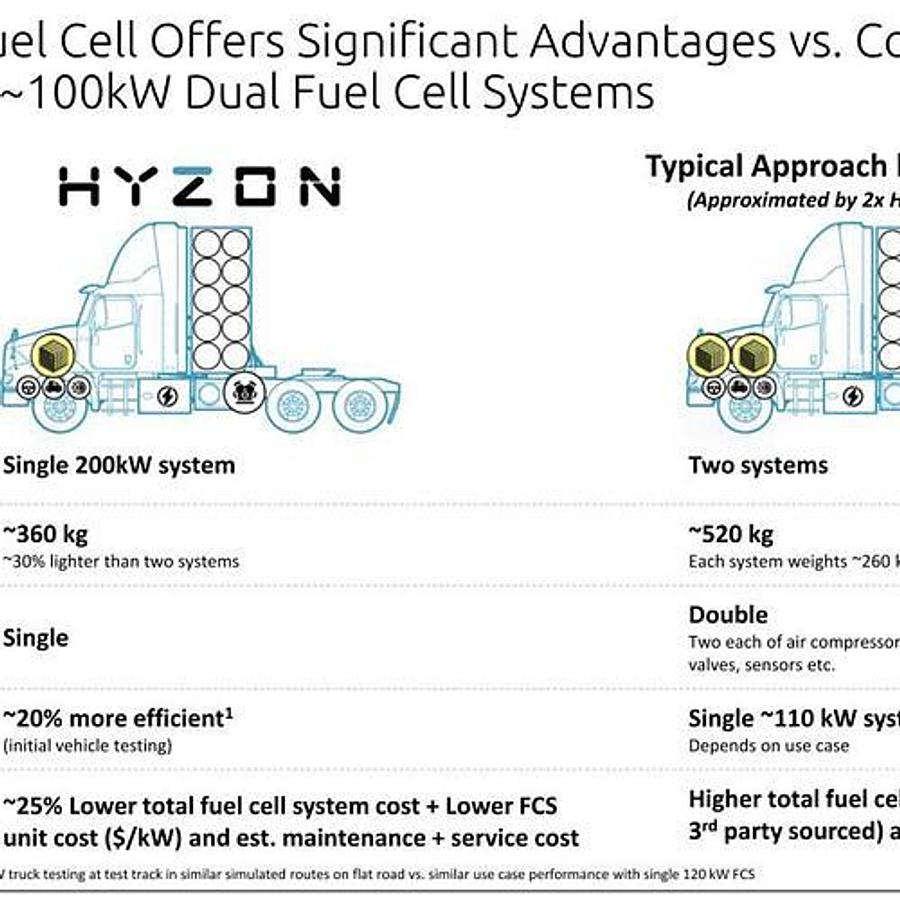

Market-Leading Technology Advantages:

• 25% lower fuel cell cost at the same total power
• 30% lower weight than dual-stack alternatives
• 30% lower volume than dual-stack alternatives
• 20% increase in miles per kilogram of Hydrogen

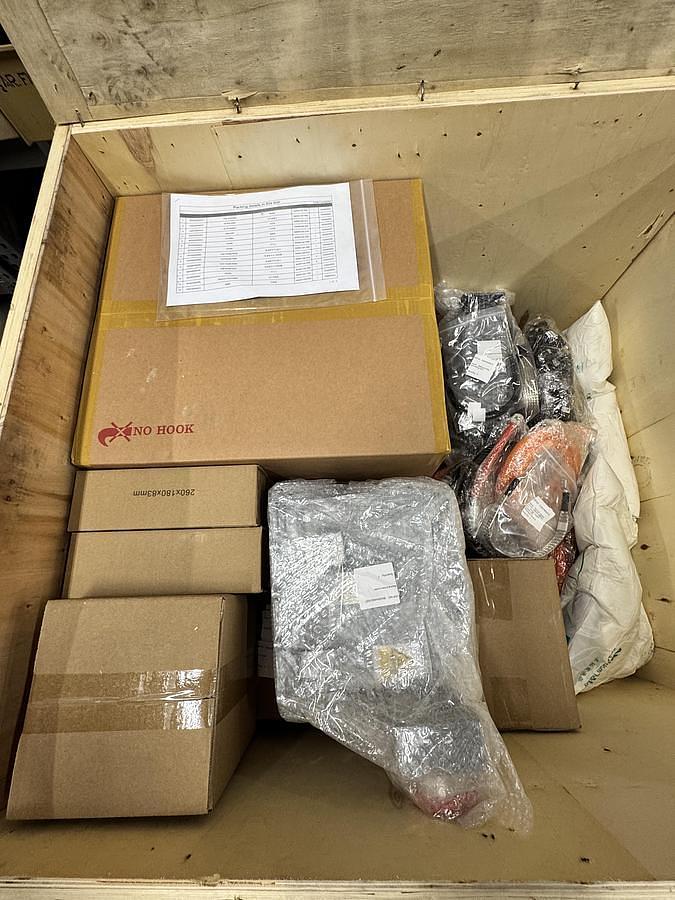

FUEL CELL SYSTEM KIT — Spare Parts

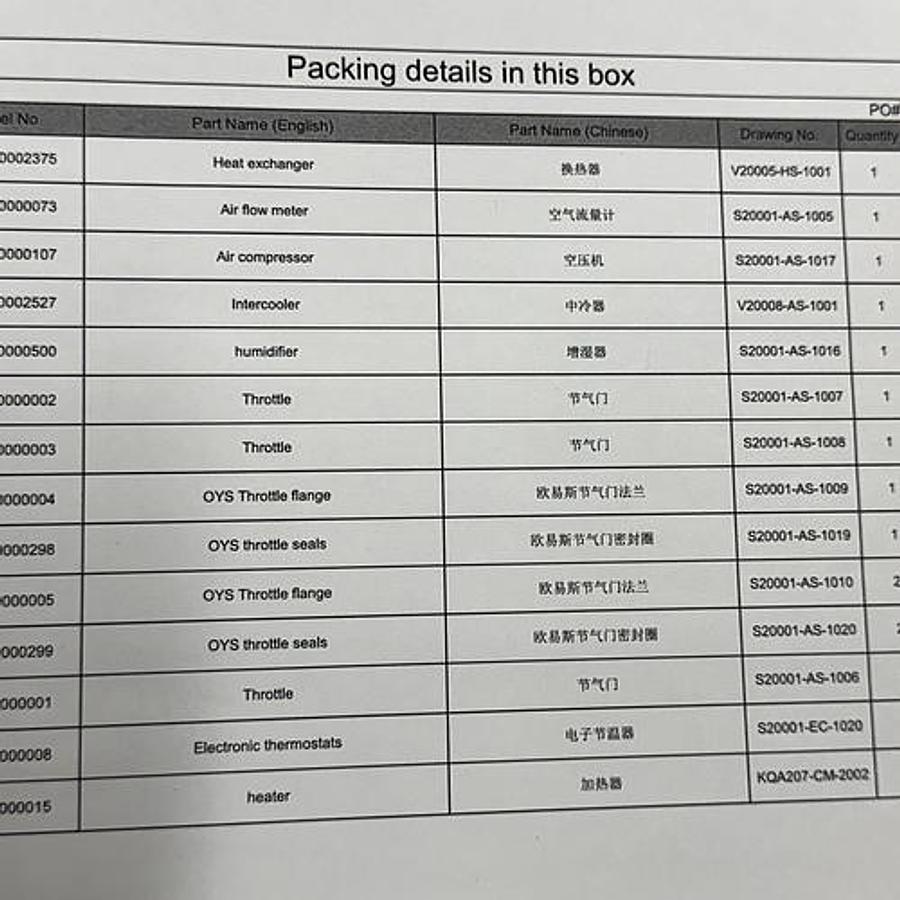

Balance of Plant Components (38 parts total):

1. Heat exchanger
2. Air flow meter

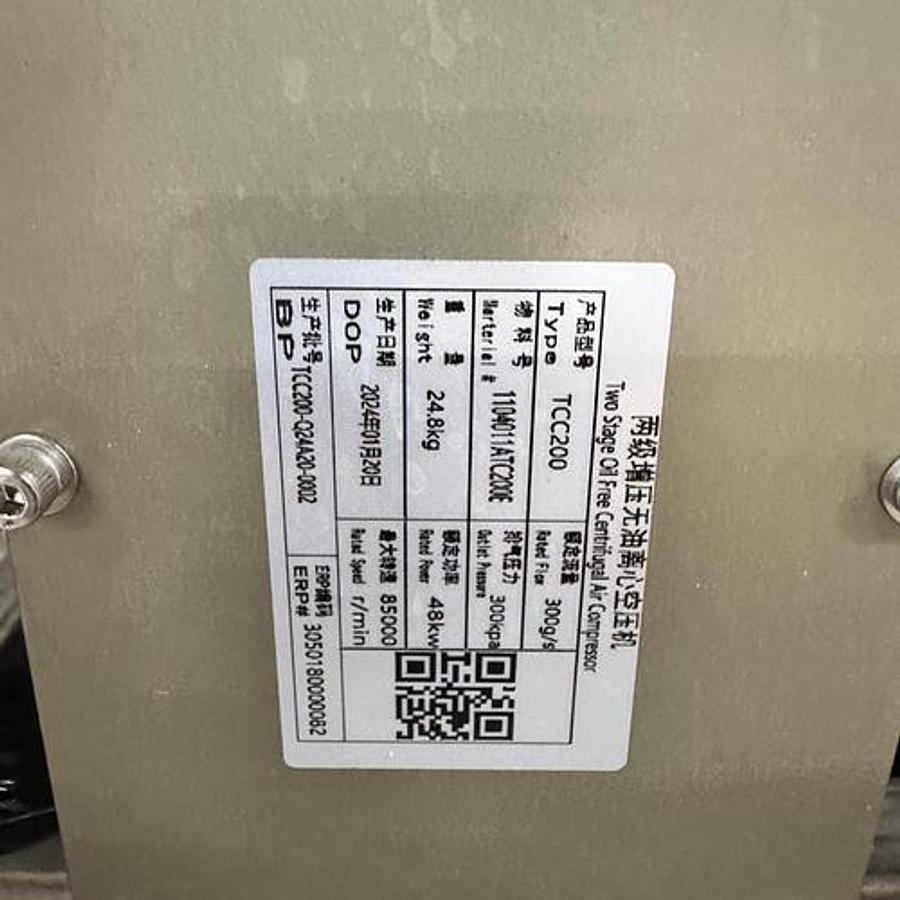

3. Air compressor
4. Intercooler
5. Humidifier
6. Throttle #1
7. Throttle #2
8. Throttle flange #1
9. Throttle seals #1
10. Throttle flange #2
11. Throttle seals #2
12. Throttle #3
13. Electronic thermostat
14. Positive Temperature Coefficient heater

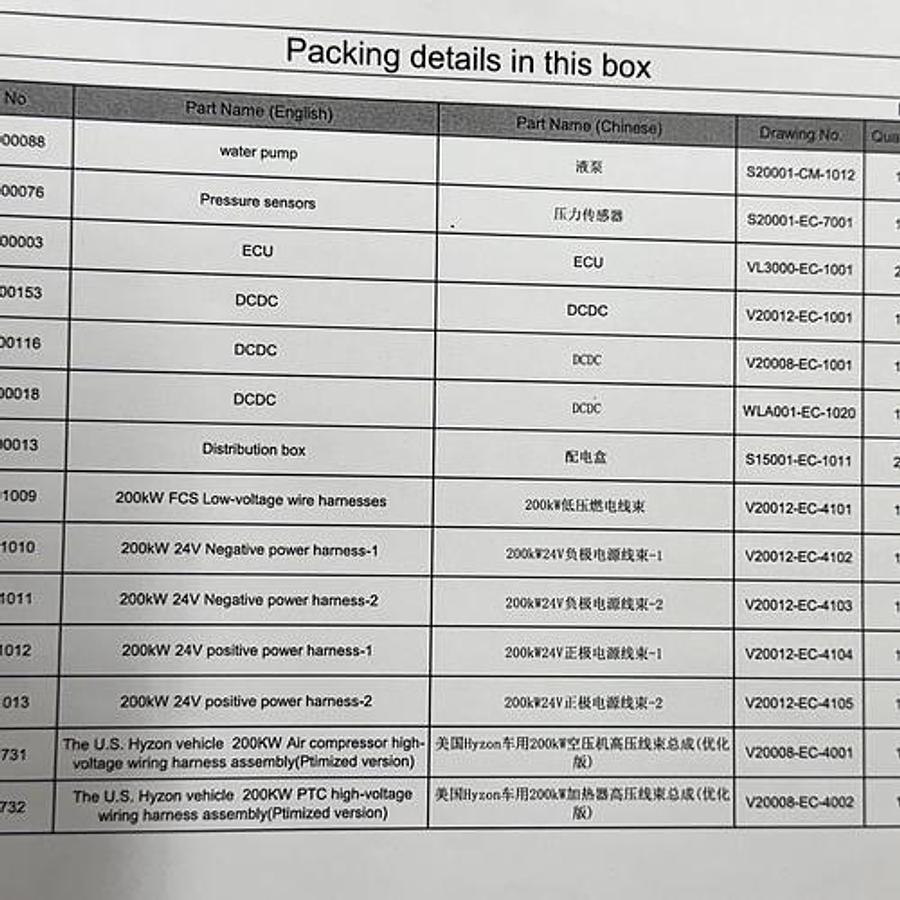

15. Water pump
16. Pressure sensors
17. Electronic Control Unit

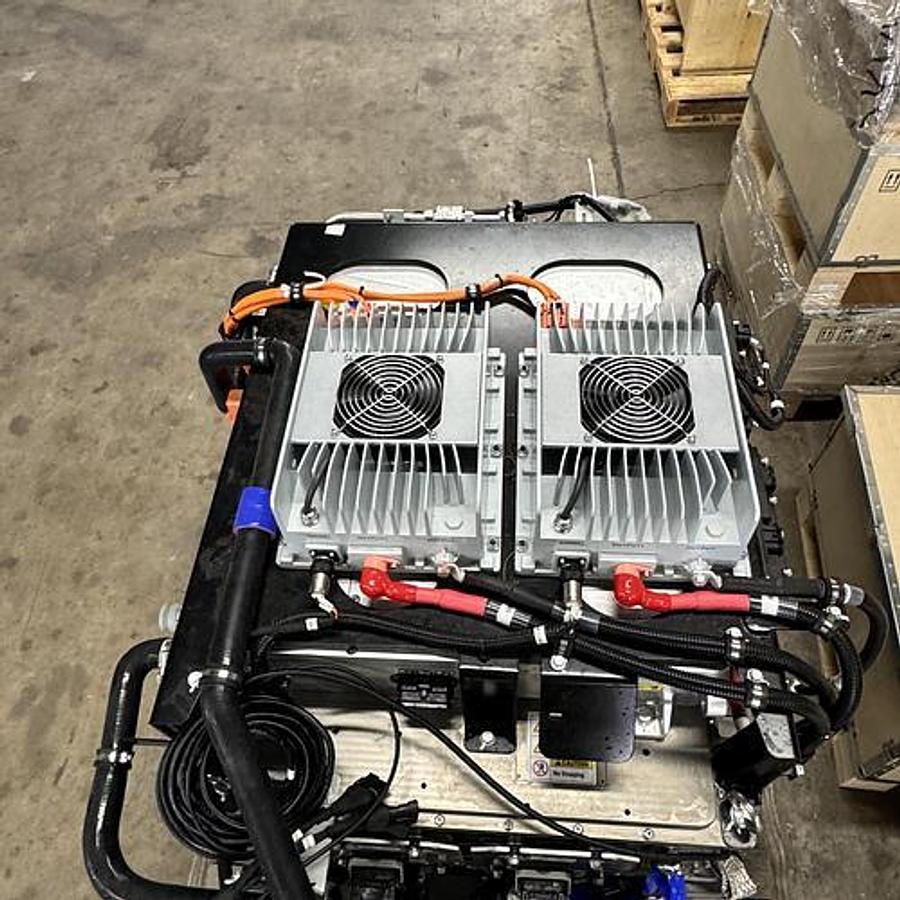

18. DC-to-DC Converter #1
19. DC-to-DC Converter #2
20. DC-to-DC Converter #3
21. Distribution box

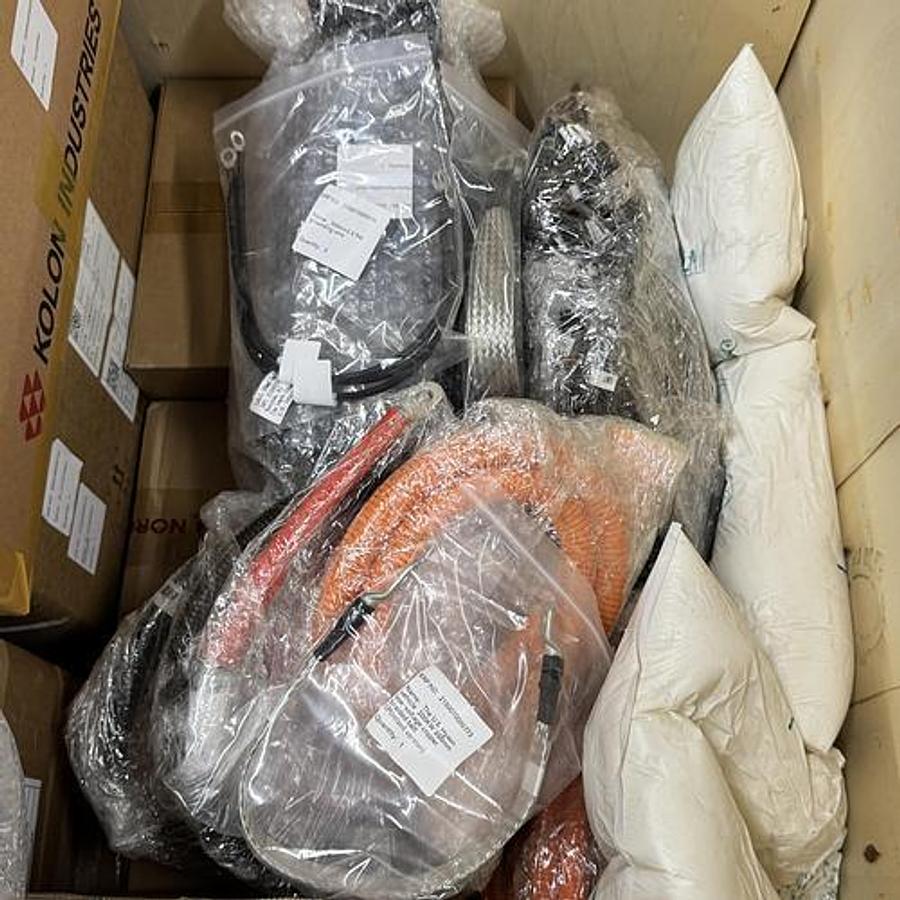

22. 200-Kilowatt Fuel Cell System low-voltage wire harnesses
23. 200-Kilowatt 24-Volt Negative power harness #1
24. 200-Kilowatt 24-Volt Negative power harness #2
25. 200-Kilowatt 24-Volt Positive power harness #1
26. 200-Kilowatt 24-Volt Positive power harness #2
27. 200-Kilowatt Air compressor high voltage wiring harness assembly
28. 200-Kilowatt Positive Temperature Coefficient high-voltage wiring harness assembly
29. 200-Kilowatt Water pump high voltage wiring harness
30. 200-Kilowatt Heat dissipation power conversion harness
31. 500 milliohm flat grounding wire
32. 300-Volt low-voltage copper braided belt
33. 200-Kilowatt/300-Kilowatt low-voltage copper braided belt set (left/right pair)
34. Air compressor complete assembly
35. Humidifier shell
36. Seals (set)
37. Fuel Cell Unit legs #1
38. Fuel Cell Unit legs #2

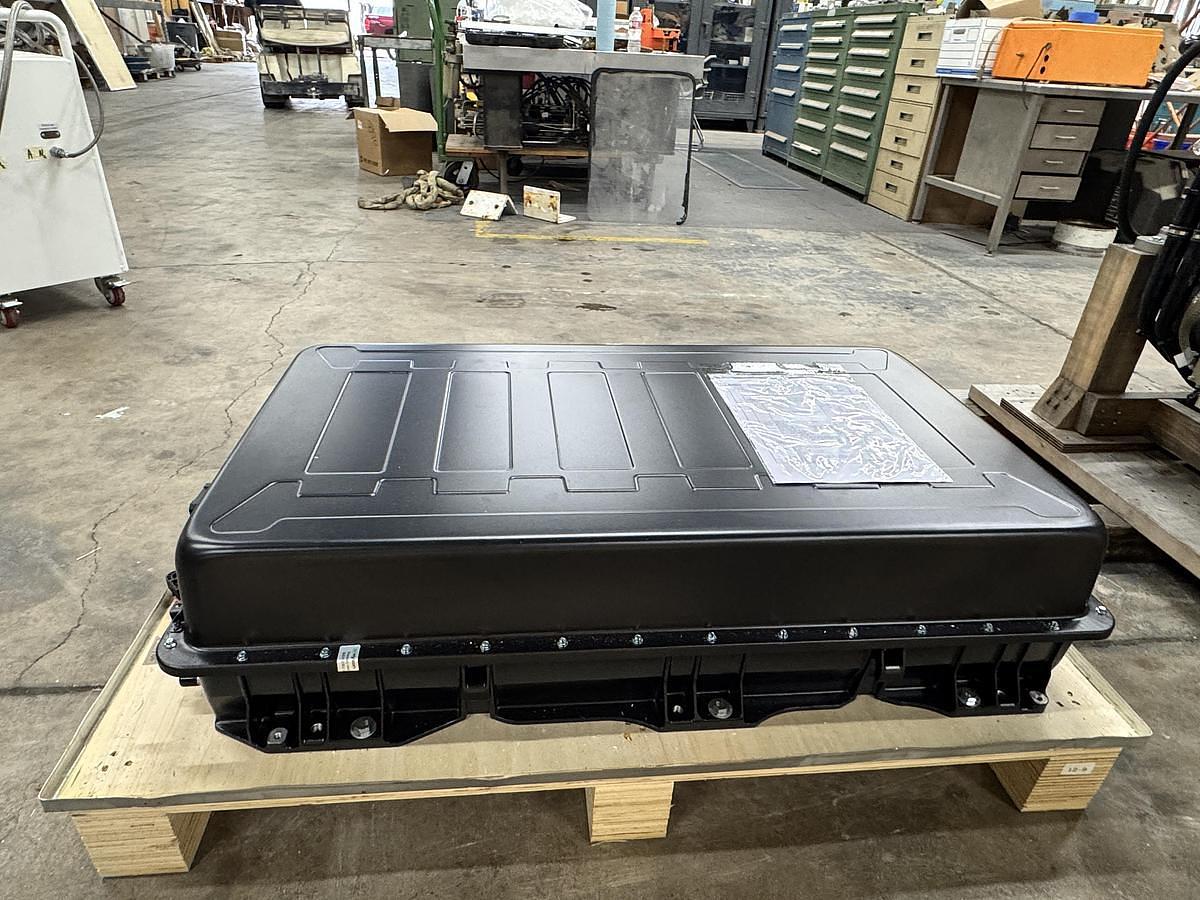

HEAVY-DUTY CLASS 8 TRACTOR TRUCK LITHIUM-ION BATTERY PACK — Model HYB030CFL:

This is a heavy-duty, high-voltage lithium-ion battery pack purpose-built for Class 8 hydrogen fuel cell electric tractor trucks. Designed specifically for the Hyzon hydrogen fuel cell powertrain system, this battery provides the auxiliary power storage and energy buffer required for demanding commercial trucking operations.

• Rated Voltage: 307.2 Volts
• Rated Energy: 30.7 Kilowatt-hours
• Rated Capacity: 100 Amp-hours
• Energy Storage: 30 Kilowatt-hours
• Weight: 507 pounds / 230 Kilograms
• Battery Code: HYZPB11B000A22E7V0000009

Pre-Purchase Inspections: Welcomed during normal business hours by appointment. Virtual inspections available via FaceTime, Microsoft Teams, or Zoom for domestic and international buyers. Complimentary transportation to and from DFW Airport available for in-person inspections.

Shipping: Unit located in Waxahachie, Texas (South of Dallas). Loading assistance provided at no additional charge when scheduled in advance. Capable of loading units up to 15,000 pounds.

Payment: Payment in full required prior to release of equipment. Cashier's check accepted for in-person transactions. Wire transfer required for third-party shipper releases.
