2014 CP Industries 8-Tube Skid

8-Tube Storage Skid – CP Industries (2014) – 2,800 PSI – 520 Cu Ft Water Volume

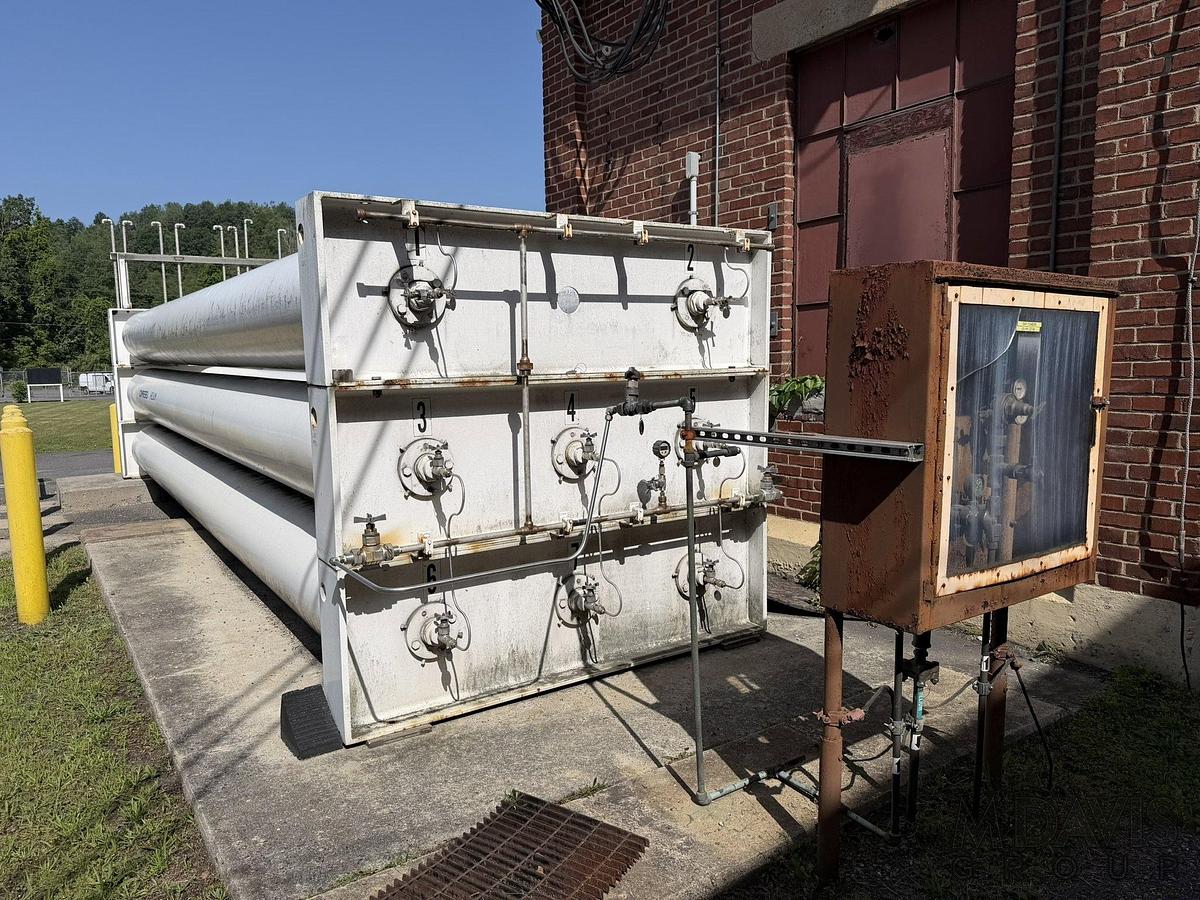

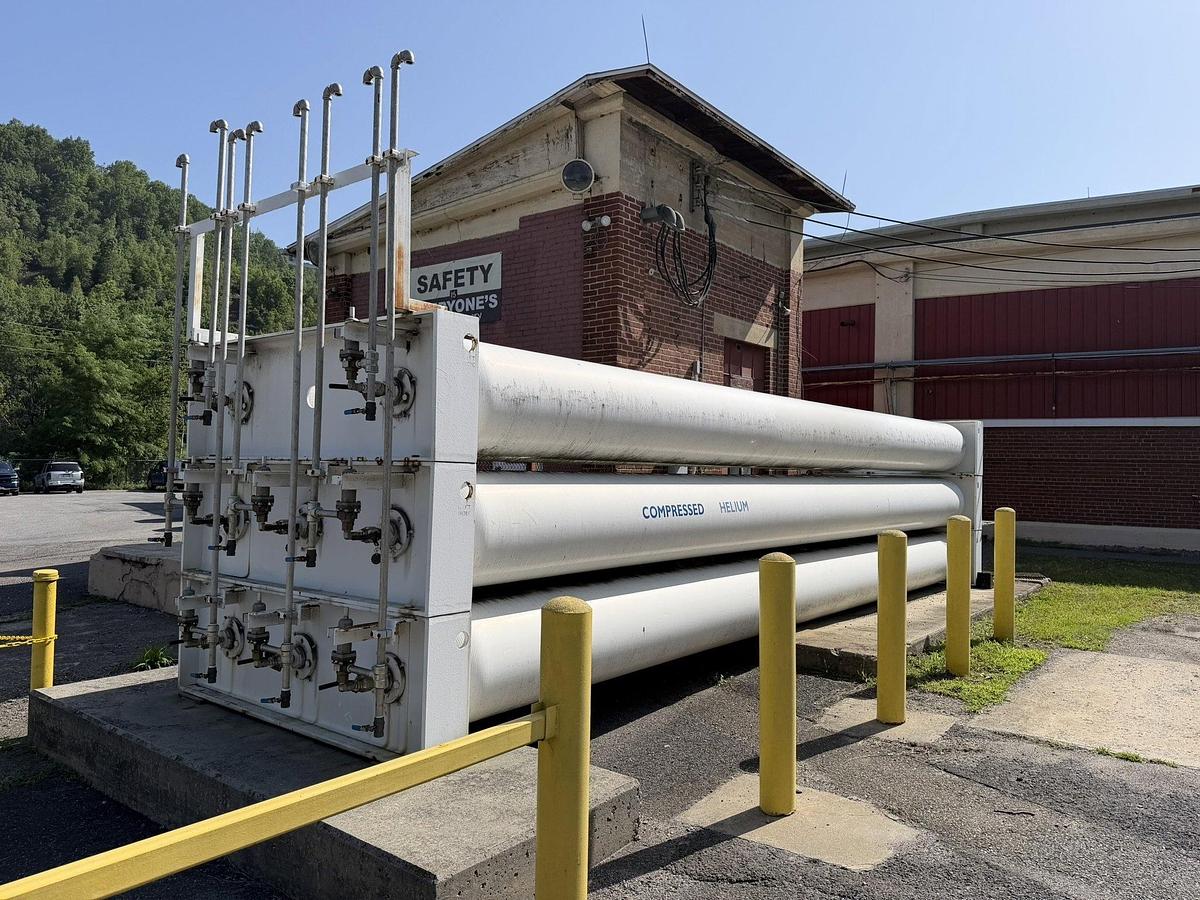

Eight-tube, skid-mounted high-pressure storage assembly built by CP Industries in 2014 to ASME Section VIII, Division 1. Each 24" x 26.5' seamless tube is rated for 2,800 psi MAWP, and the skid holds an estimated 520 cu ft of total water volume. The unit was previously in helium service.

Technical Specifications

Configuration: (8) horizontal tubes, three tiers (2 / 3 / 3), manifolded, mounted in a painted steel frame

Manufacturer: CP Industries, McKeesport, PA

Year Built: 2014

Design Code: ASME Section VIII, Division 1 (2010 Edition, Addenda 2011a)

Tube Material: SA-372 Grade J, Class 70, seamless, integrally forged heads and necks

Tube Dimensions: 24" OD x 26'-5" overall length, 0.934" nominal shell thickness

MAWP: 2,800 psi at 200°F

Hydrostatic Test Pressure: 4,200 psi

Minimum Design Metal Temperature: -40°F at 2,800 psi

Water Volume: Approx. 65 cu ft per tube (est.), approx. 520 cu ft total (est.)

Connections: Two threaded 2-3/4" inlet/outlet openings per tube

Previous Service: Helium

Service Limitations: Dry gas storage, non-corrosive service; not rated for hydrogen or CNG

Condition: Used, sold as-is

Pricing: Contact Gas Equipment 4 Sale for pricing.

Pre-Purchase Inspections: Pre-purchase inspections are welcome during normal business hours upon appointment scheduled in advance. We would be happy to provide complimentary transportation pickup from DFW Airport and back if you would like to fly in and inspect the item in person. Additionally, we can conduct FaceTime / Teams / Zoom calls to review the item for any domestic / international procurement. Please be mindful that we are in Dallas and therefore on US Central Time (CT) for any communication arrangements.

Shipping Arrangements: Equipment is sold EXW (Ex Works). The buyer is responsible for all shipping and freight arrangements and costs. When scheduled in advance, we will load equipment up to 15,000 lbs at no charge; this skid is over 15,000 lbs, so the buyer must arrange and pay for a crane. The unit is located at Dallas Texas.

Payment: Payment in full EXW our yard is required for equipment procurement. We prefer to see/meet the purchaser to ensure we can provide adequate after-sales support to set your project up for success. We will require a verifiable Cashier’s check as payment if you are planning to come in person. We will require a wire transfer in full, with the transaction cleared to the company account, before releasing the equipment to any third-party shipper. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.

Contact Us: Feel free to call or contact Gas Equipment 4 Sale with any questions. We will be happy to jump on a call and see if or how procuring this unit can help you meet your project needs.
