NEW ACT 10,019 Gallon Vertical Liquid Hydrogen (LH2) Storage Tank – 175 PSIG

NEW ACT 10,019 Gallon Vertical Liquid Hydrogen (LH2) Storage Tank – 175 PSIG

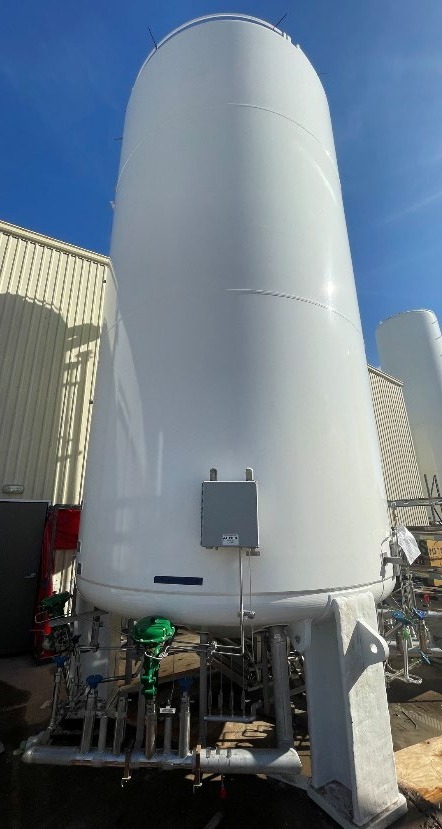

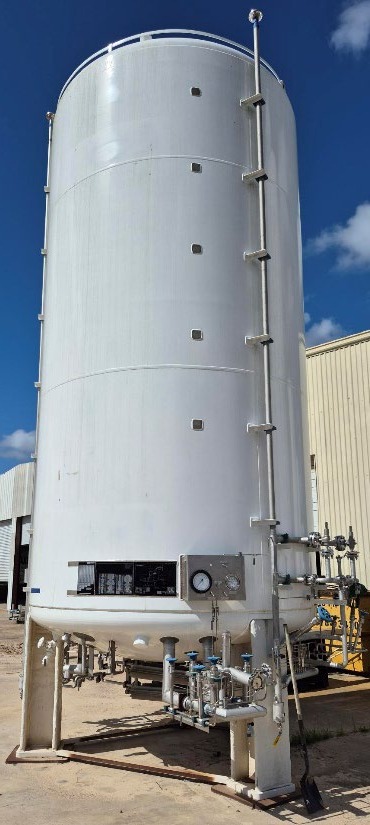

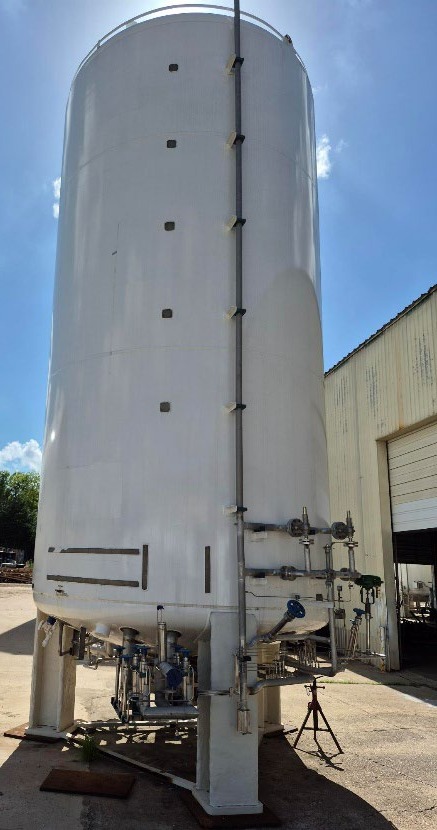

This Applied Cryo Technologies vertical bulk LH2 tank (Model LH2-100-175-P-V) has a 10,019-gallon gross cold volume and a 175 PSIG MAWP, built to ASME Section VIII, Division 1 and CGA 341 / CGA H-3. It includes a process discharge connection for liquid supply, GH2 supply to compressors, and automated pressure building and relieving, with ACT Super Insulation and a 1%/day normal evaporation rate (NER).

Technical Specifications

Manufacturer: Applied Cryo Technologies (ACT)

Model: LH2-100-175-P-V

Product Service: Liquid Hydrogen (LH2)

Configuration: Vertical

Maximum Allowable Working Pressure (MAWP): 175 PSIG (12.07 Bar)

Gross Volume (Cold): 10,019 US Gallons (37,926 Liters)

Net Volume (Cold): 10,014 US Gallons (37,907 Liters)

Maximum Lading Weight (90% Cold at Vent at 0 PSIG): 5,351 Lbs (2,427 Kg)

Tare Weight: 49,200 Lbs (22,317 Kg) ±3%

Length (External Piping Included): 14’ 5-7/8” (4.4 M)

Width: 11’ 11-1/8” (3.6 M)

Height: 28’ 9” (8.8 M)

Normal Evaporation Rate (NER): 1% Per Day

Insulation Type: ACT Super Insulation (SI) – Vacuum Insulated

Design Codes: ASME Section VIII, Division 1; CGA 341; CGA H-3 2019; IBC 2012

Structural Ratings: Seismic Zone 4, Soil Class D, Importance Factor 1.25

Available Quantity: 2

Location: Houston, TX

Construction & Features

Design: Vertical Bulk Liquid Hydrogen Storage Tank

Orientation: Vertical

Cryogenic Service: Liquid Hydrogen (LH2)

Liquid Supply: Process Discharge Connection

Gas Supply: GH2 Supply to Compressors

Pressure Control: Automated Pressure Building / Relieving

Insulation: ACT Super Insulation (SI) with Vacuum-Insulated Construction

Pricing

Contact for purchase pricing and availability. Lease and lease-to-own options are available.

Pre-Purchase Inspections

We welcome pre-purchase inspections during normal business hours, by appointment only. If you’re planning to fly in to view or inspect the equipment in person, we are happy to arrange that with proper notice.

Shipping Arrangements

This unit is sold EXW (Ex Works) Houston, TX. The buyer is responsible for arranging and paying for all shipping and freight.

This unit has a tare weight of 49,200 lbs and requires a crane for loading. The buyer is responsible for arranging and paying for all crane services, rigging, and transportation. Yard access for the buyer’s carrier is available by appointment.

Payment Terms

Full payment is required before the release of any equipment. Lease and lease-to-own options are available.

A verifiable cashier’s check is required if paying in person. If you plan to use a third-party shipping company, a wire transfer must be completed and cleared in full before we release the equipment.
