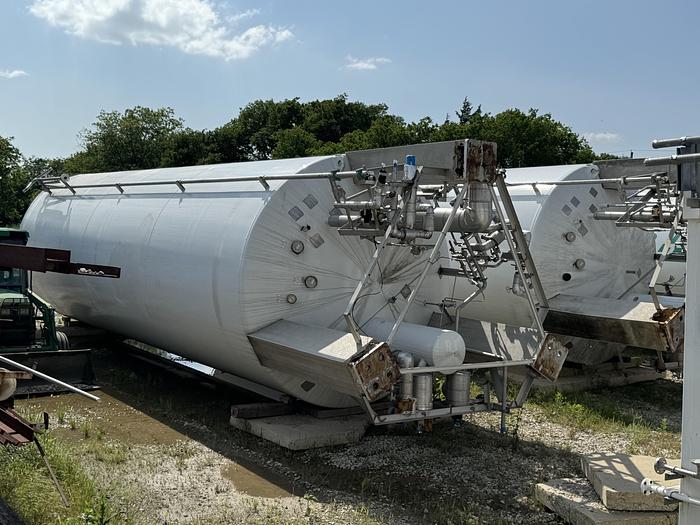

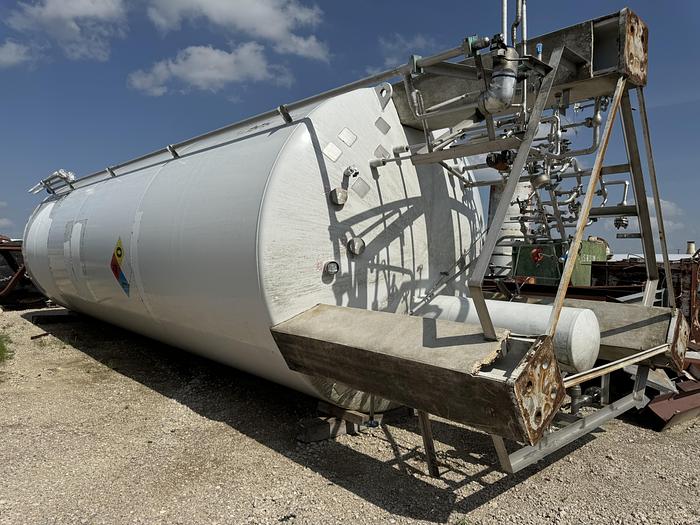

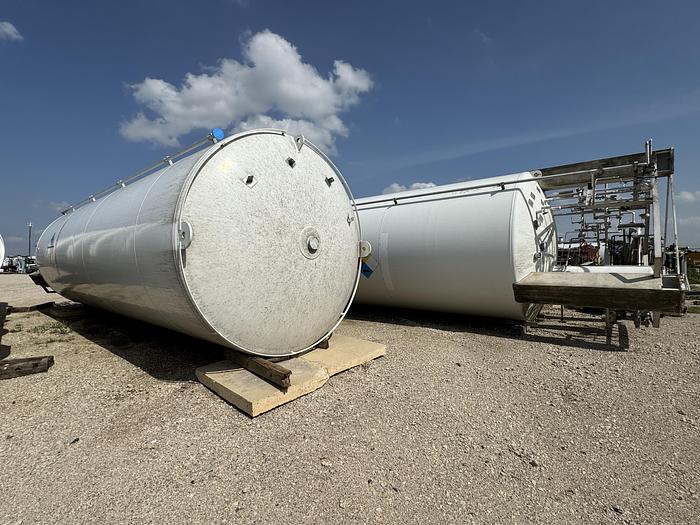

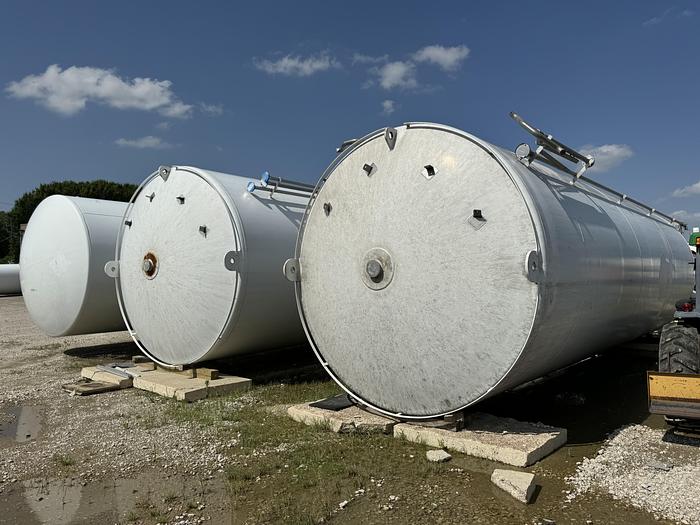

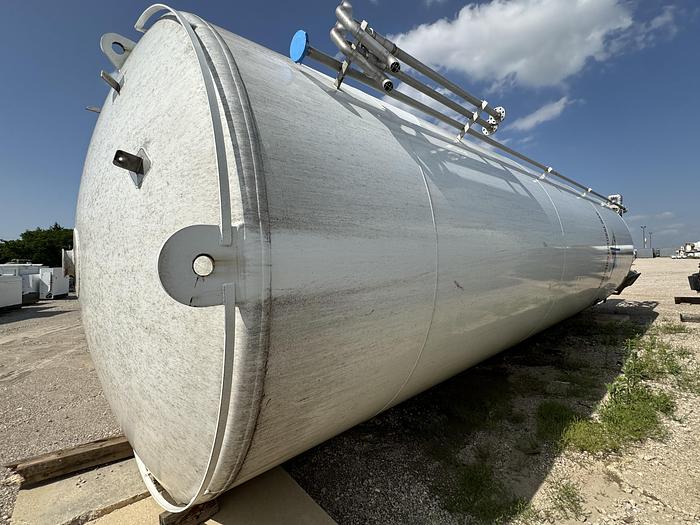

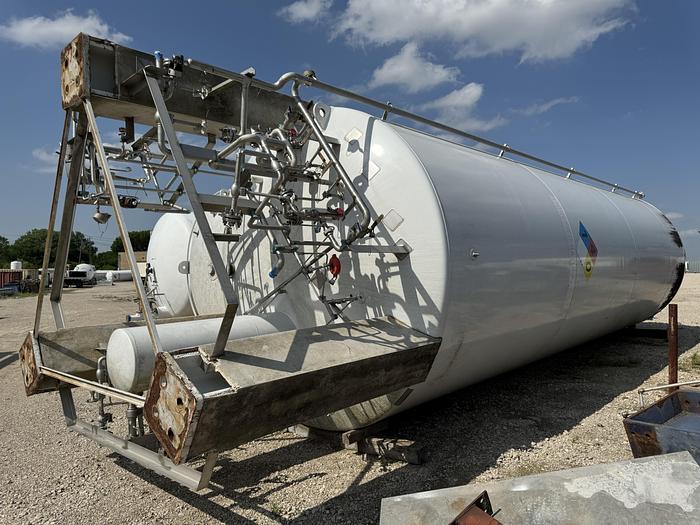

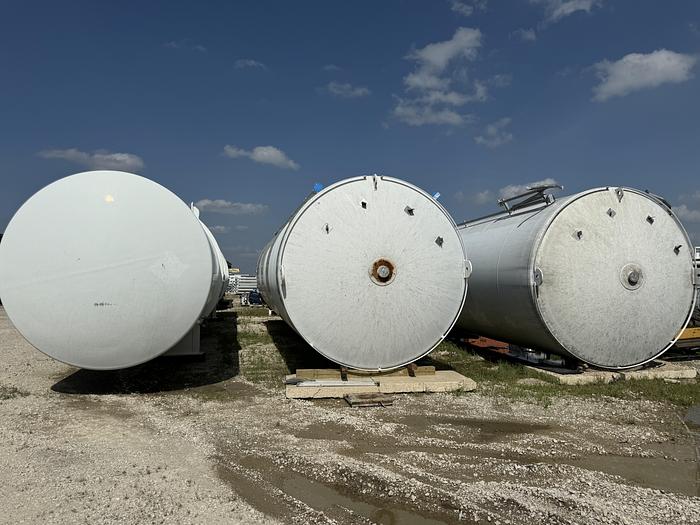

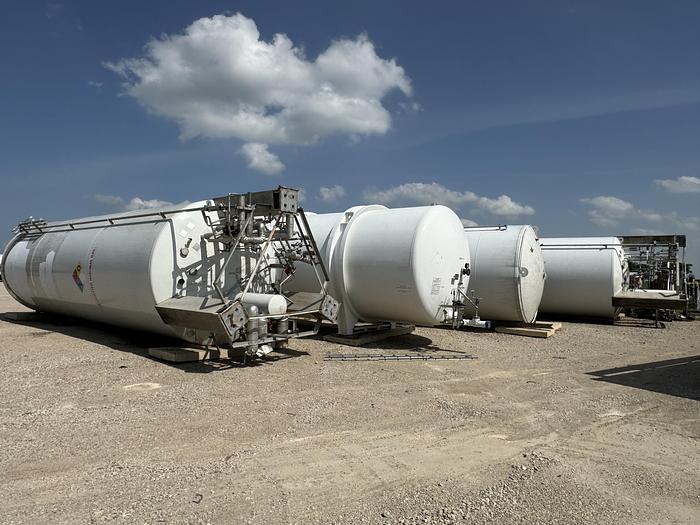

Vertical Cryogenic Tank 18,000 Gallon - LNG Storage VS-18000SC-175CS-S100-LNG

18,010 Gallon Cryogenic Storage Tank – ASME – Stainless Steel Inner Vessel – 2014

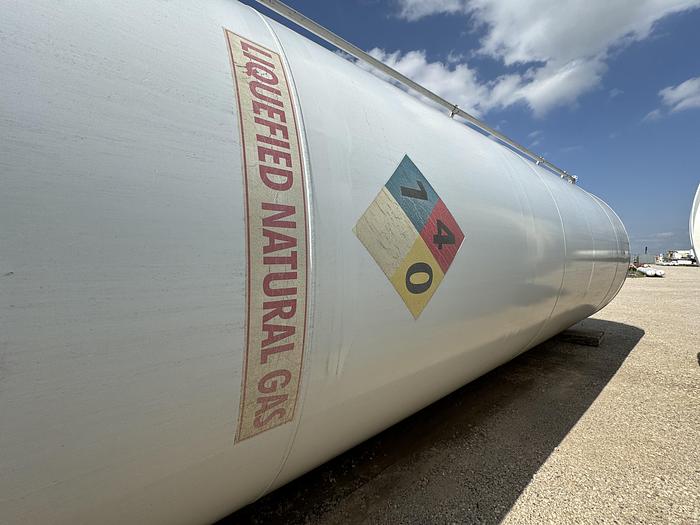

This 2014 cryogenic storage tank has an 18,010-gallon capacity and a design temperature of -320°F. The vessel is constructed with an SA240 304 stainless steel inner vessel and A36 carbon steel outer jacket with multi-layer super insulation and an evacuated annular space. The tank was built to ASME Section VIII, Division 1 with Code Case 2596 Cold Stretch construction.

Technical Specifications

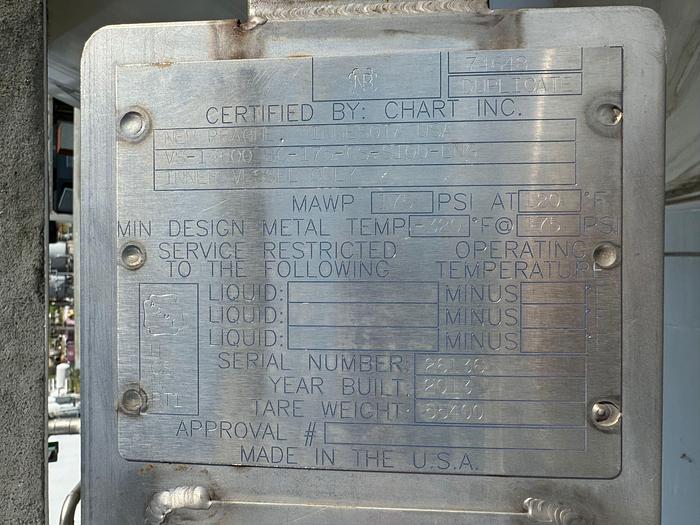

Year Built: 2014

Capacity: 18,010 Gallons

Design Temperature: -320°F

Code: ASME Section VIII, Division 1

Code Case: 2596 – Cold Stretch

Inner Vessel Material: SA240 304 Stainless Steel

Outer Jacket Material: A36 Carbon Steel

Outer Jacket Construction: CGA-341 Thickness and Stiffening

Insulation: Multi-Layer Super Insulation

Annular Space: Evacuated

Exterior Finish: Hentzen Paint System

Dimensions: 12’6” Diameter × 38’6” Length

Estimated Weight: 51,500 Lbs

Components & Instrumentation

Recondensing Coil: Included

Ground Lug: Included

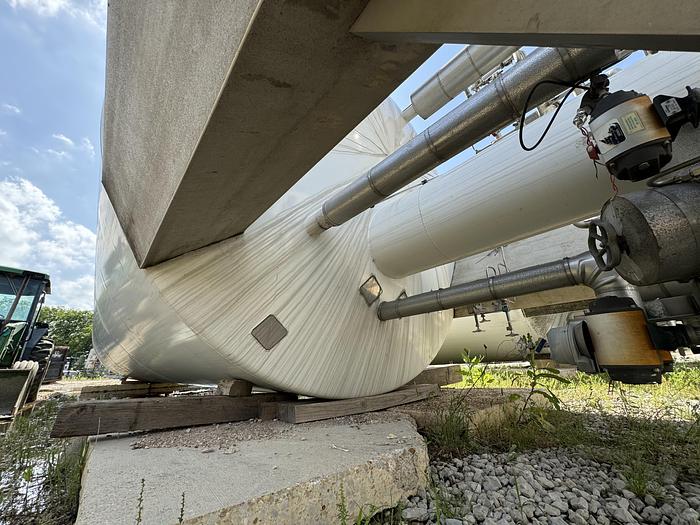

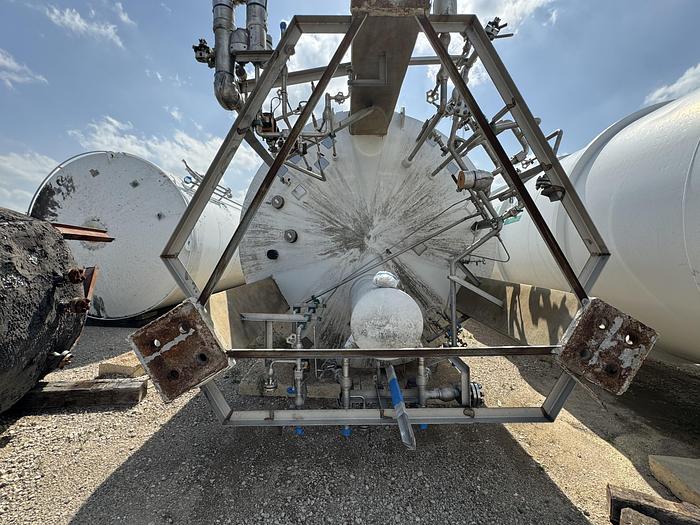

Mounting Legs: Three with Pads

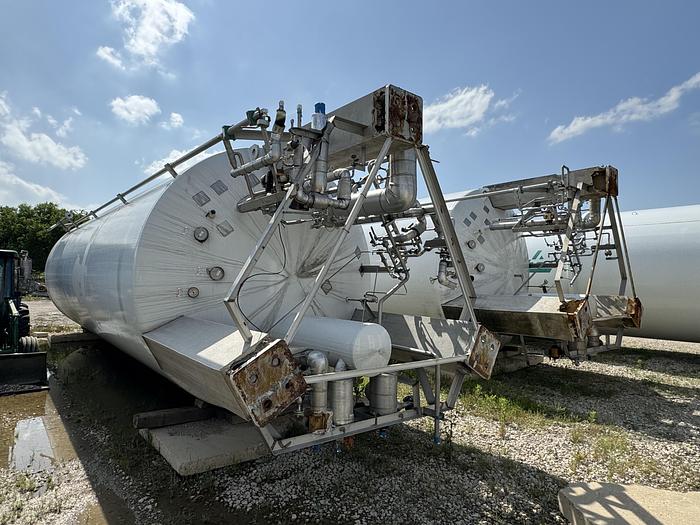

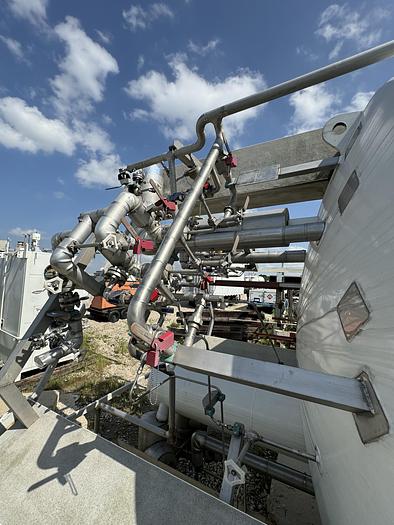

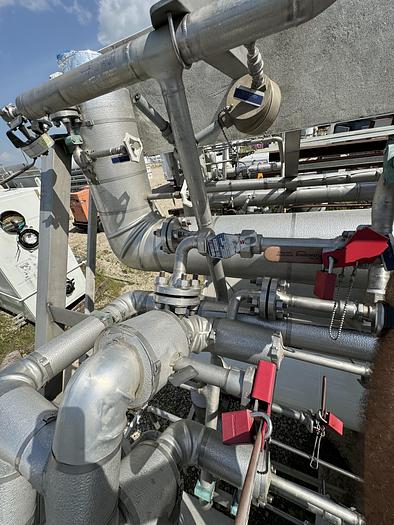

Valves and Components: 304/316L Stainless Steel

Top Fill Circuit: Included

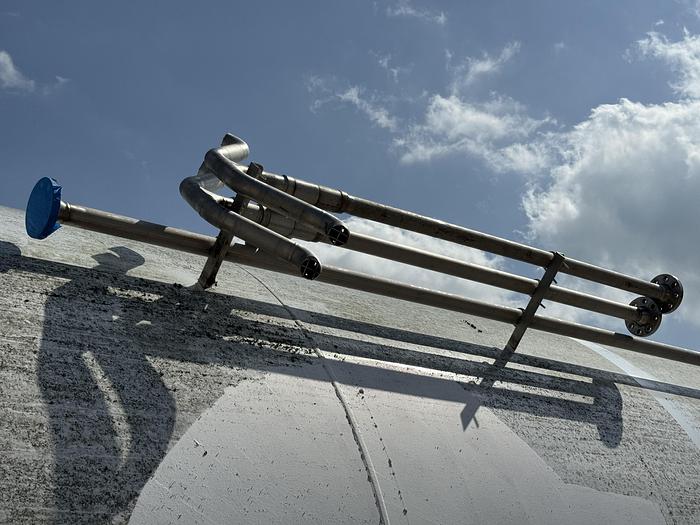

Relief System: Dual ASME Relief System with Vent Stack

Full Trycock Circuit: Included

Pump Feed Circuit: Included

Pump Return Circuit: Included

Analog Level Gauge: Included

Pressure Gauge: Included

Pressure Transmitter: Included

Level Transmitter: Included

Condition & Documentation

Sale Condition: Sold As-Is

Recertification Support: Available Upon Request

Engineering Drawings: Available

Schematics: Available

Pre-Purchase Inspections

We welcome pre-purchase inspections during normal business hours, by appointment only. If you’re planning to fly in to view or inspect the equipment in person, we are happy to arrange that with proper notice.

Shipping Arrangements

This unit is sold EXW (Ex Works) our Waxahachie, TX yard. The buyer is responsible for arranging and paying for all shipping and freight. We provide yard access for your carrier by appointment and will load units up to 15,000 lbs at no charge when scheduled in advance.

This unit’s empty weight is 51,500 lbs, so a crane is required and is the buyer’s responsibility to arrange and pay for.

Payment Terms

Full payment is required before the release of any equipment. Lease and lease-to-own options are available.

A verifiable cashier’s check is required if paying in person. If you plan to use a third-party shipping company, a wire transfer must be completed and cleared in full before we release the equipment.

We always prefer to meet our customers in person, go over equipment features, discuss project needs, and answer any questions. Ensuring you receive the right support for your success is the key to a long-term relationship.
