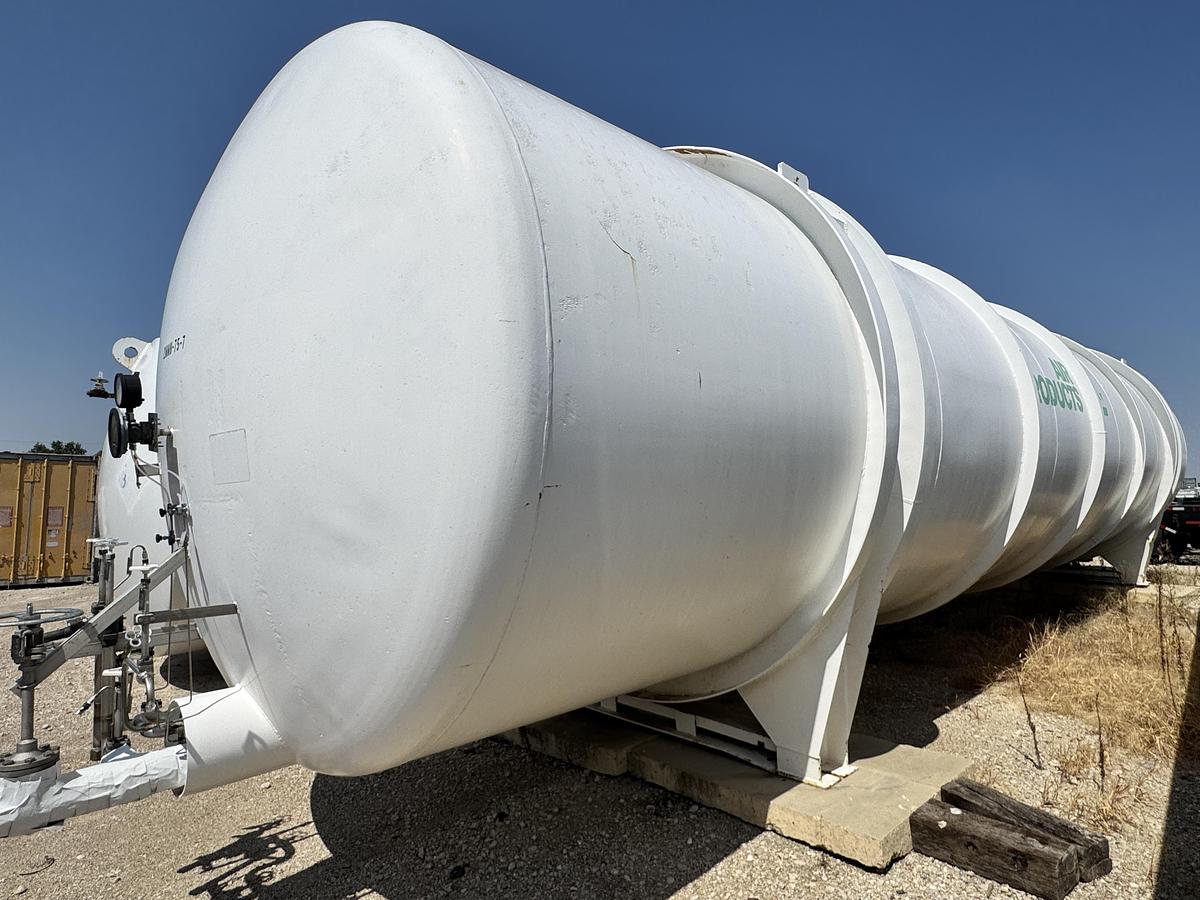

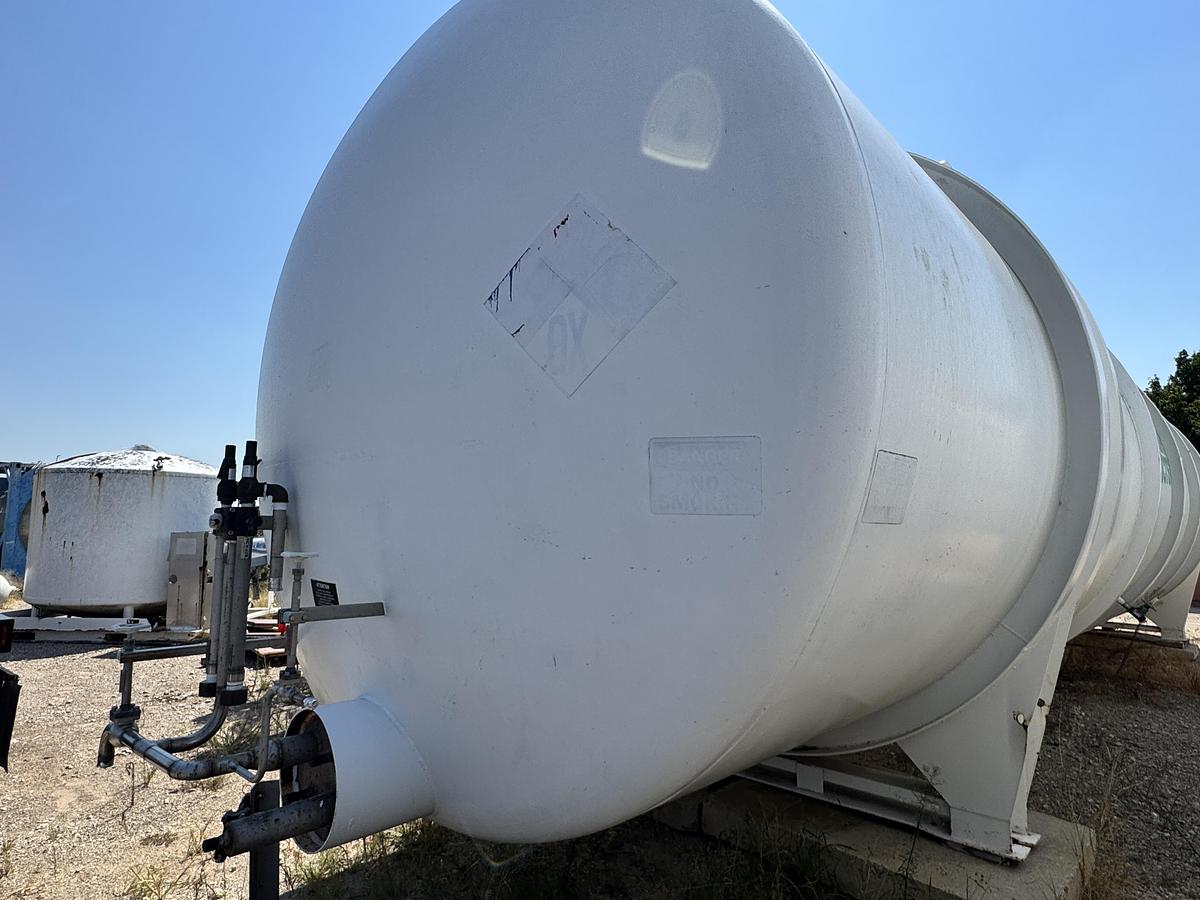

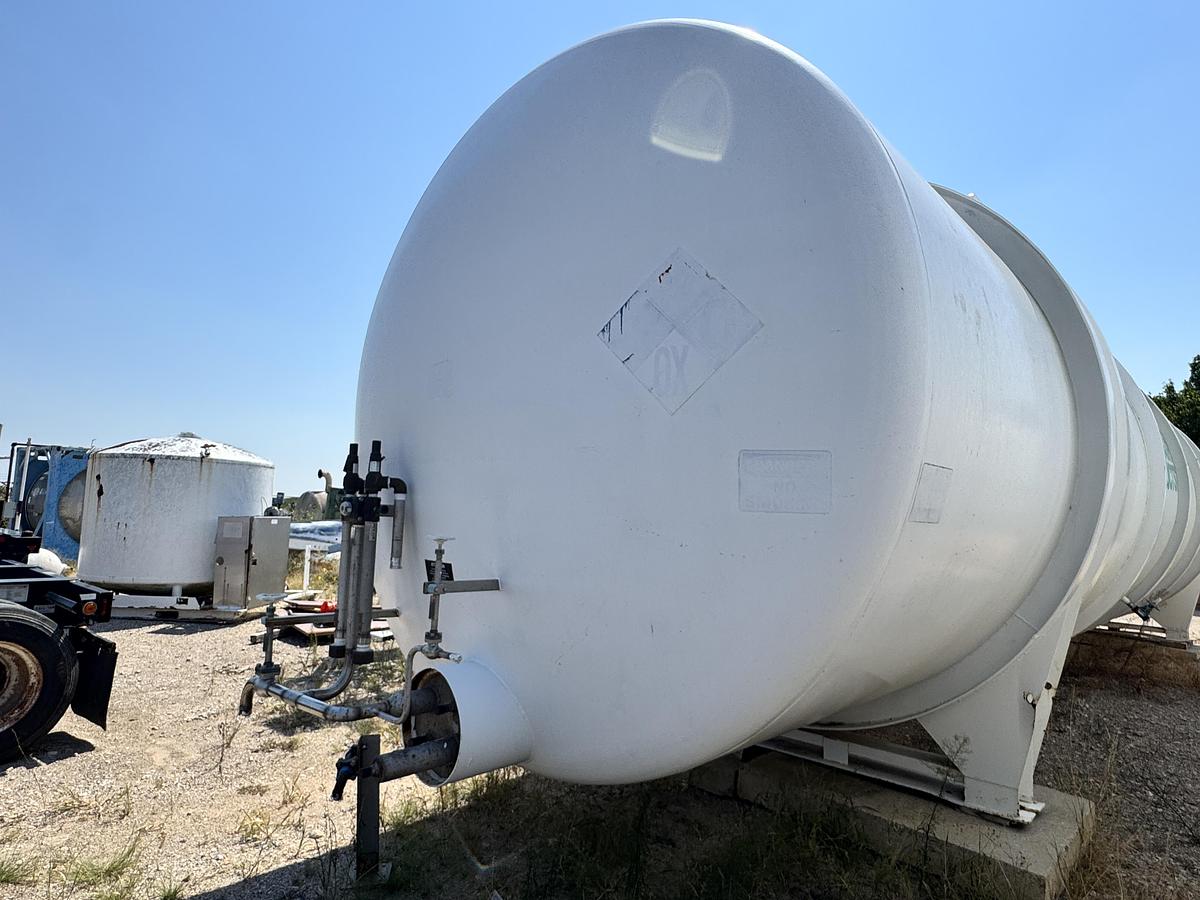

Air Products 20,000 Gallon Liquid Oxygen Storage Tank – 75 PSI – Horizontal Cryogenic Bulk Tank

This Air Products 20,000 Gallon Liquid Oxygen Storage Tank is engineered for long-term, high-capacity storage of LOX in industrial, medical, and aerospace applications. Built to ASME Section VIII standards with a full vacuum-insulated design, this cryogenic storage tank delivers reliable performance and safe operation for continuous oxygen supply systems.

Specifications

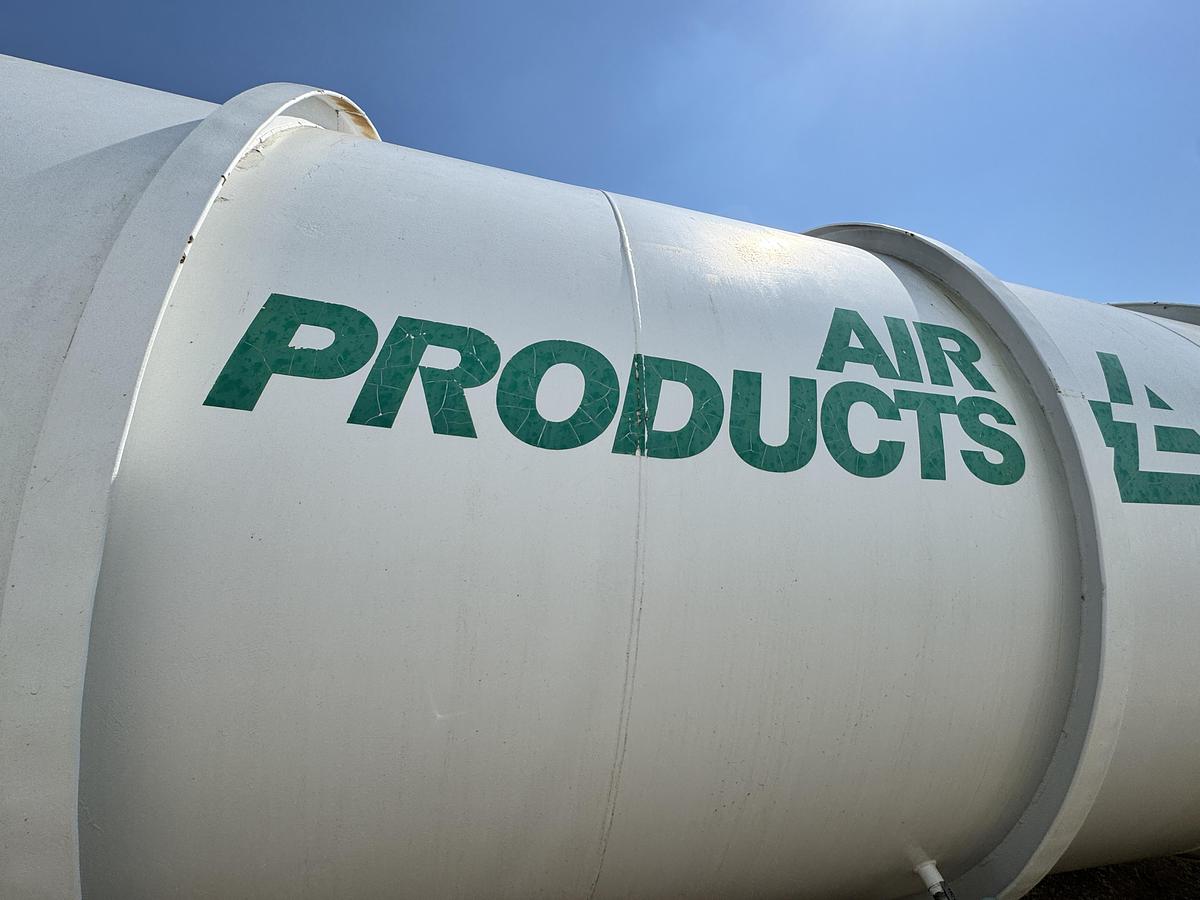

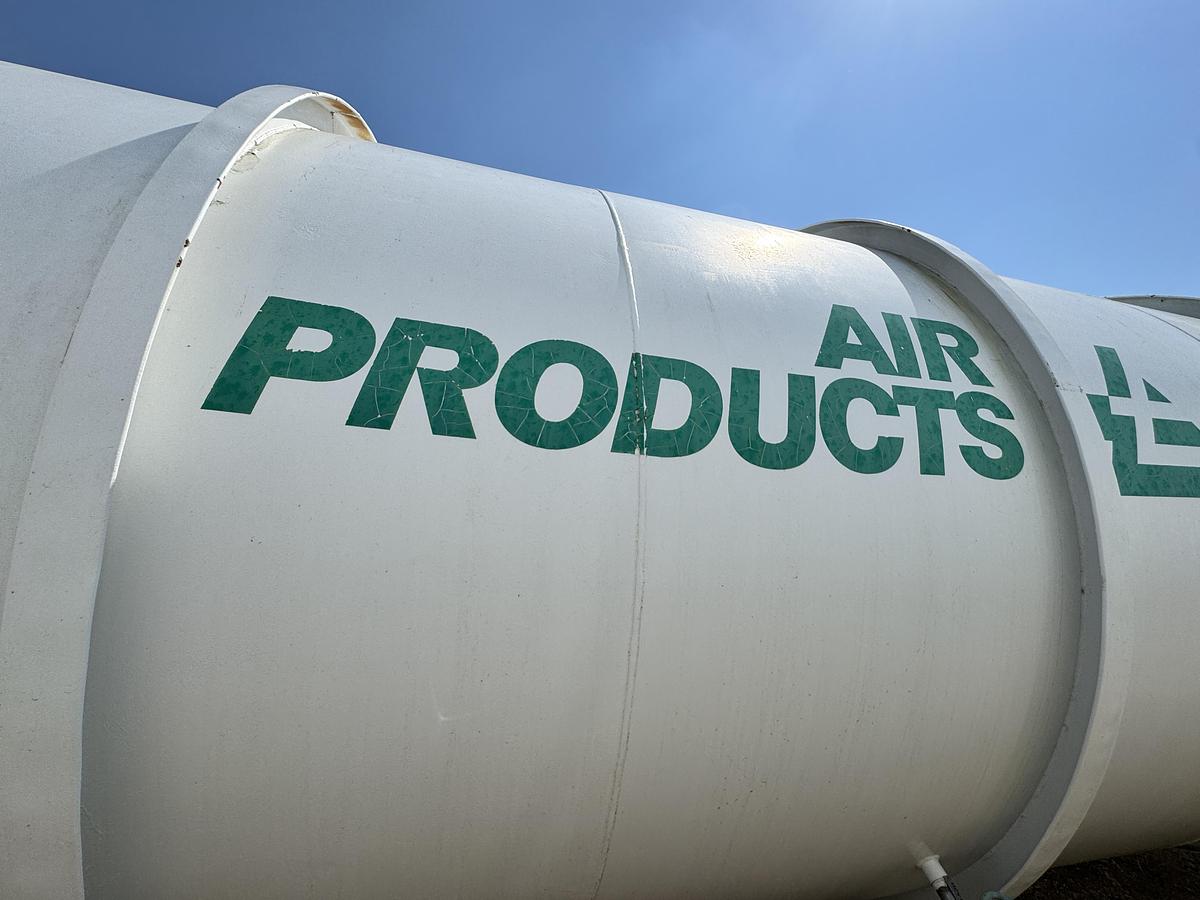

• Manufacturer: Air Products

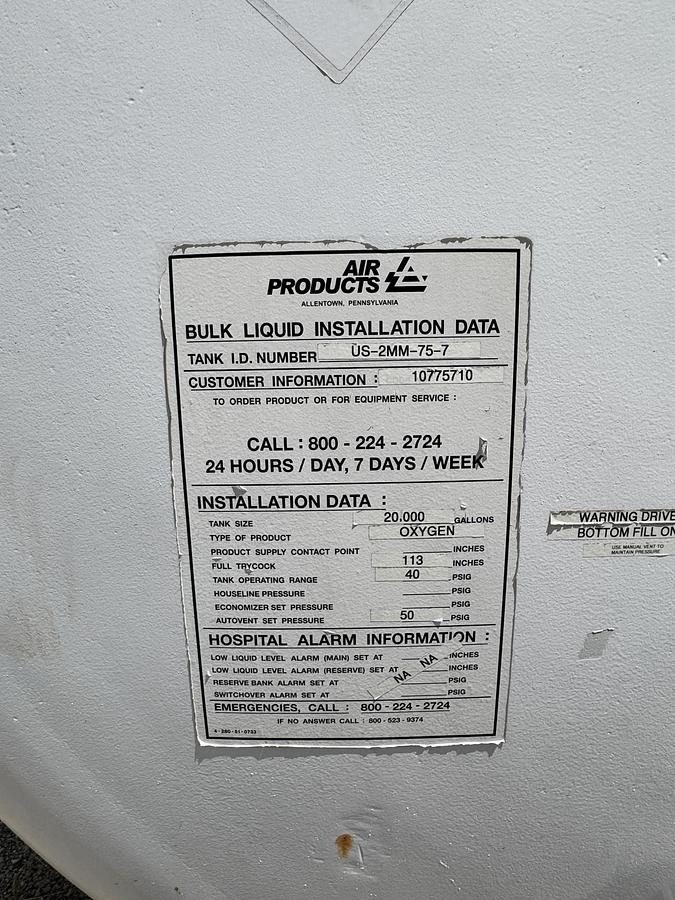

• Tank ID Number: US-2MM-75-7
• Year Built: 1964
• Tank Size / Capacity: 20,000 Gallons (Liquid Oxygen)
• Type of Product: LOX (Liquid Oxygen)
• Full Trycock: 113 Inches
• Tank Operating Range: 40–75 PSIG
• Economizer Set Pressure: 50 PSIG
• Autovent Set Pressure: 50 PSIG
• Design Pressure: 75 PSIG

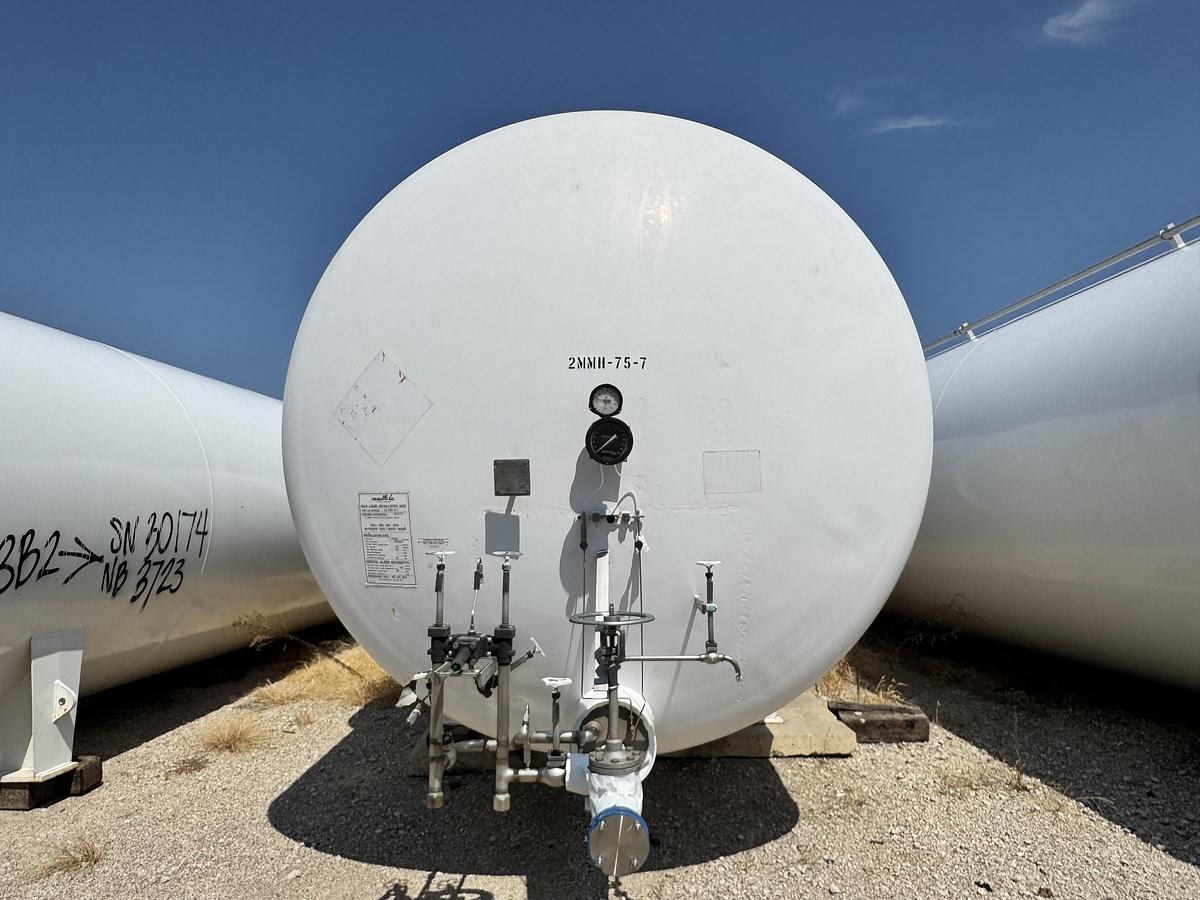

• Orientation: Horizontal bulk storage tank
• Construction: Double-walled, vacuum insulated, carbon steel outer shell with stainless steel inner vessel

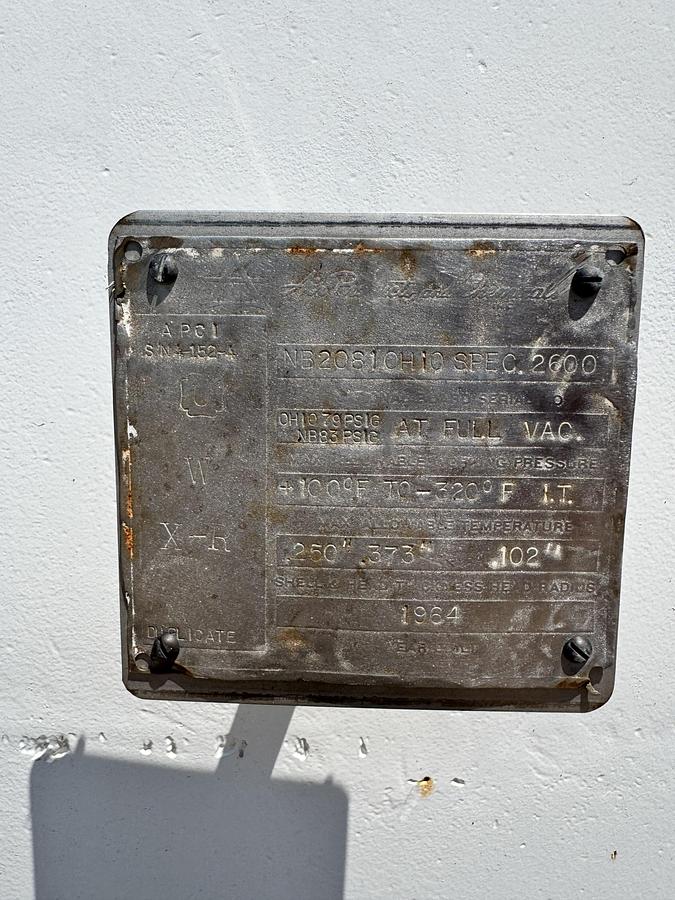

• Certifications: ASME Section VIII, Division 1

Construction & Features

• Vacuum-insulated design for reduced heat leak and long hold times.
• Heavy-duty bulk storage configuration with reinforced shell and head thickness per LOX service requirements.

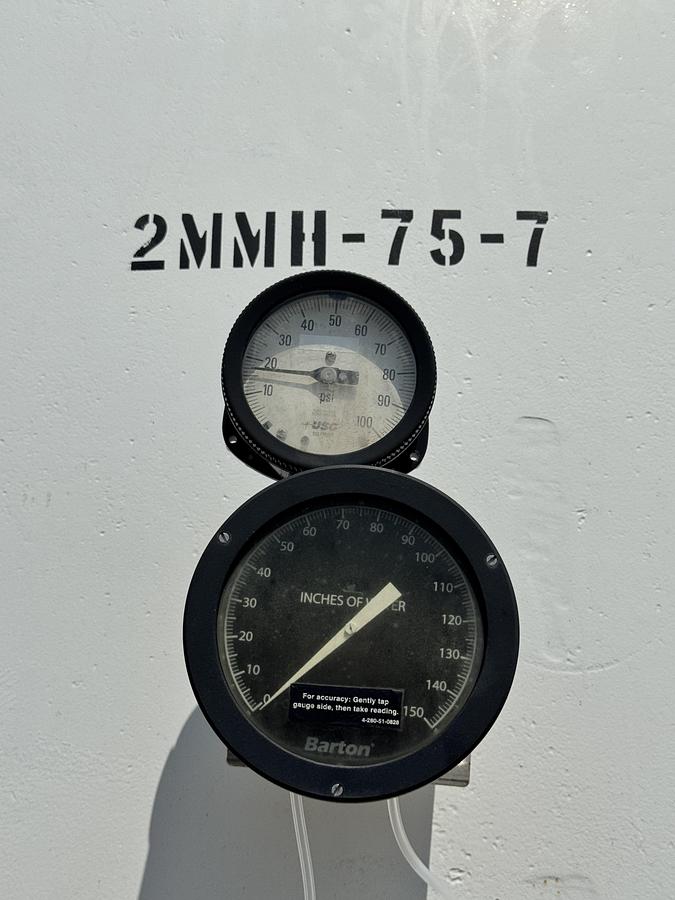

• Instrumentation includes liquid level gauges, economizer, autovent system, safety relief valves, and rupture discs.

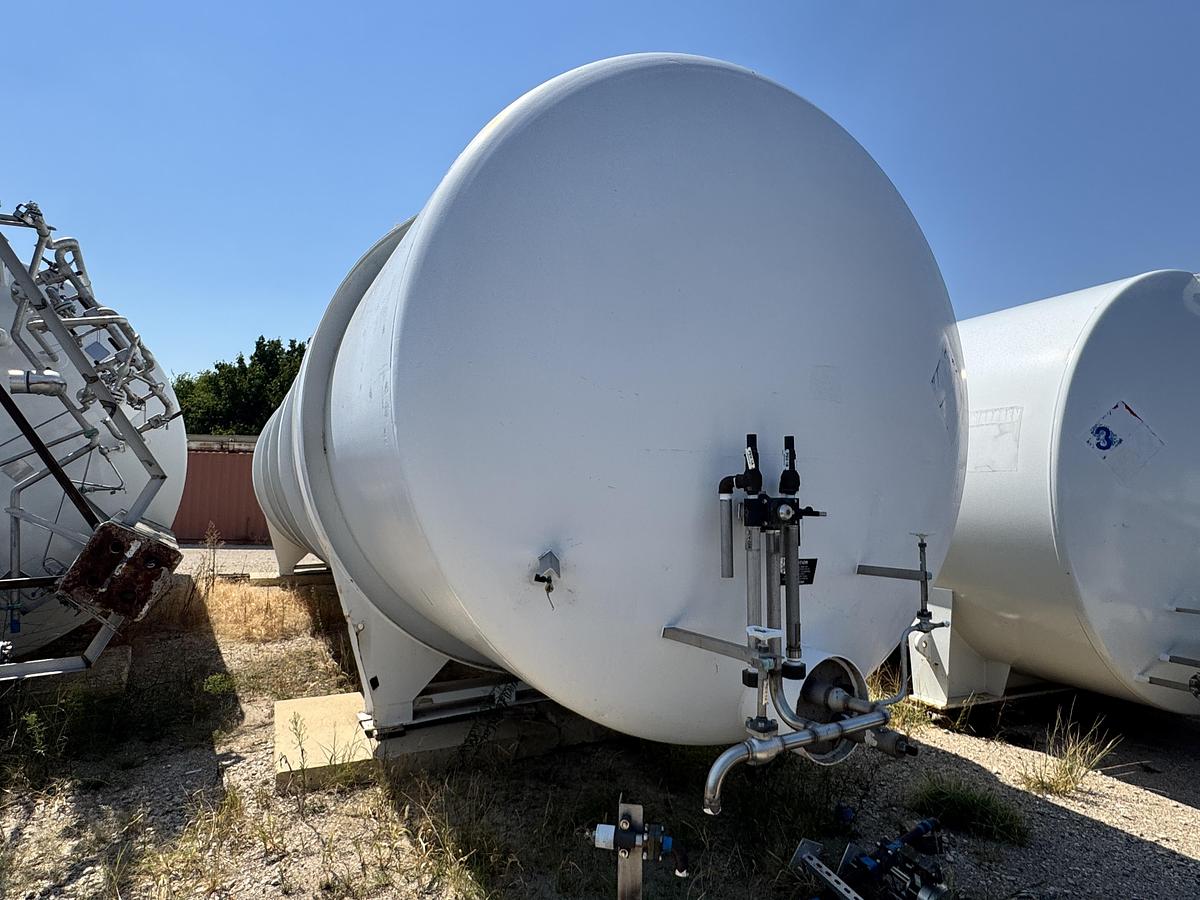

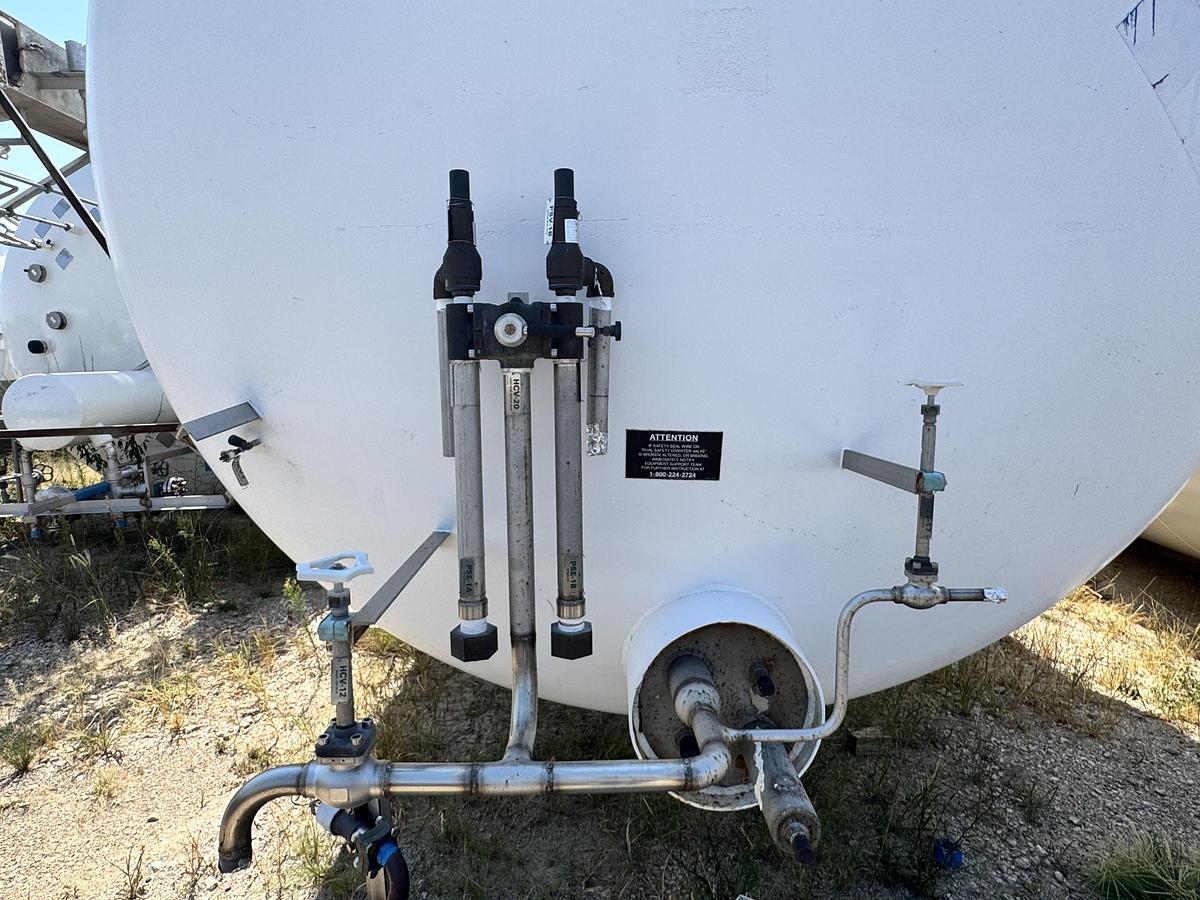

• Front-mounted valve panel with fill, withdrawal, economizer, and venting controls.
• Designed and approved for medical oxygen service, industrial oxygen supply, and aerospace fueling applications.
• Large-capacity horizontal design for continuous oxygen delivery.

Applications

• Hospitals and medical oxygen supply systems
• Aerospace fueling and LOX storage
• Steel mills and metal processing
• Water treatment facilities
• Industrial gas distribution networks
