Air Products 25,000 Gallon Liquid Oxygen Storage Tank – 76 PSI – Horizontal Cryogenic Bulk Tank

This Air Products 25,000 Gallon Liquid Oxygen (LOX) Cryogenic Storage Tank is engineered for bulk storage and reliable supply of LOX for medical, industrial, and aerospace applications. Built to ASME standards, this horizontal tank features vacuum-insulated, double-walled construction to ensure safe and efficient cryogenic storage with minimal product loss.

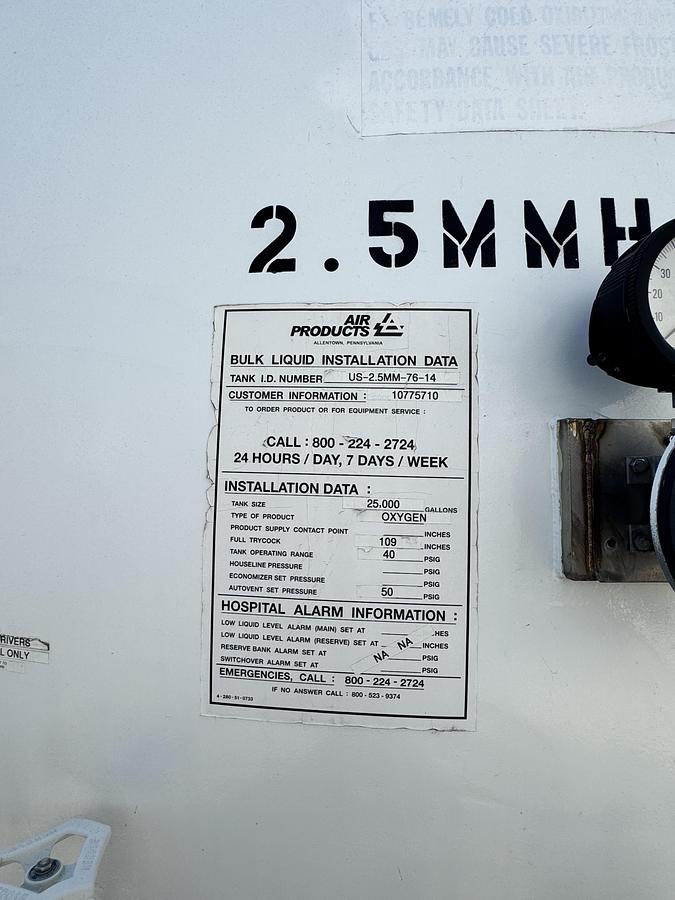

Specifications

• Manufacturer: Air Products
• Tank ID Number: US-2.5MM-76-14

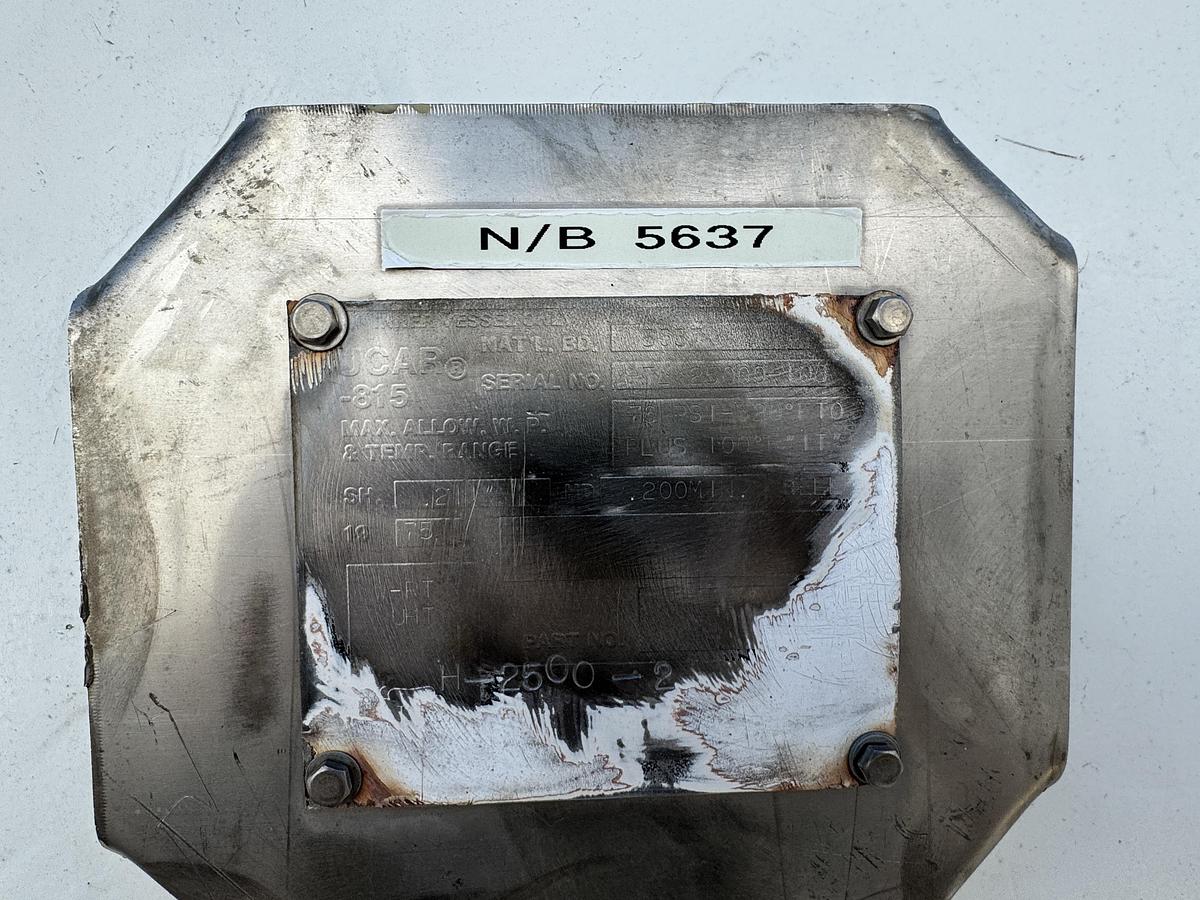

• National Board Number: 5637
• Capacity: 25,000 Gallons (Liquid Oxygen)
• Type of Product: LOX (Liquid Oxygen)
• Design Pressure (MAWP): 76 PSIG
• Tank Operating Range: 40 PSIG
• Full Trycock: 109 Inches
• Economizer Set Pressure: 50 PSIG
• Autovent Set Pressure: 50 PSIG

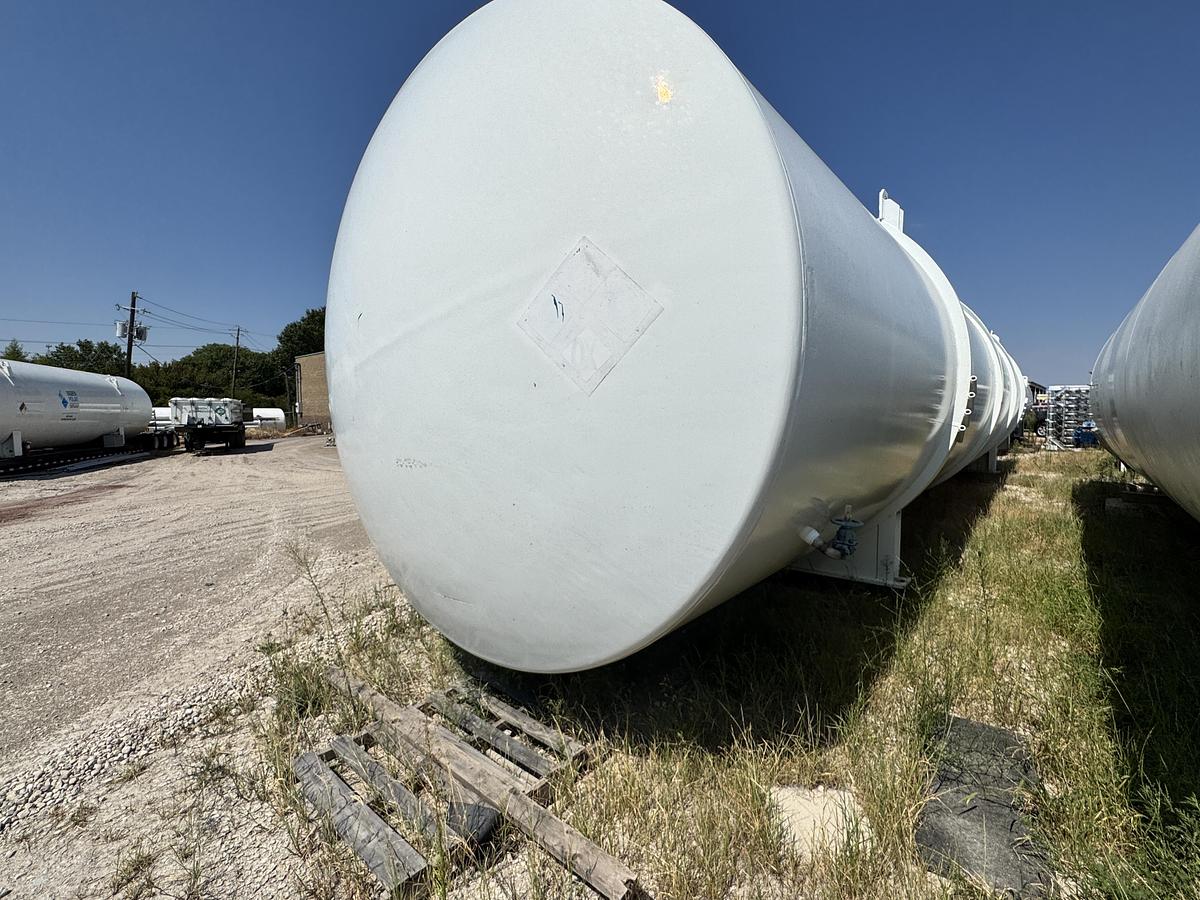

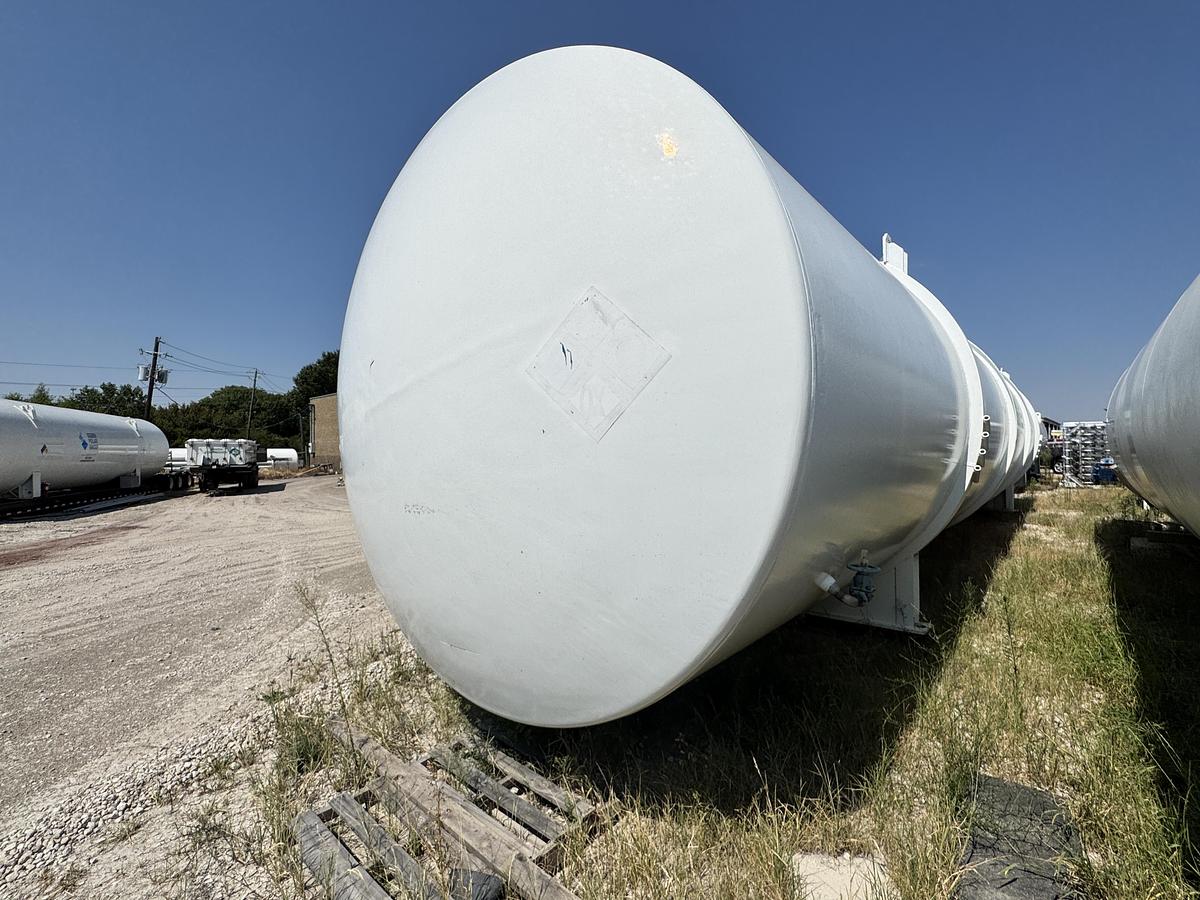

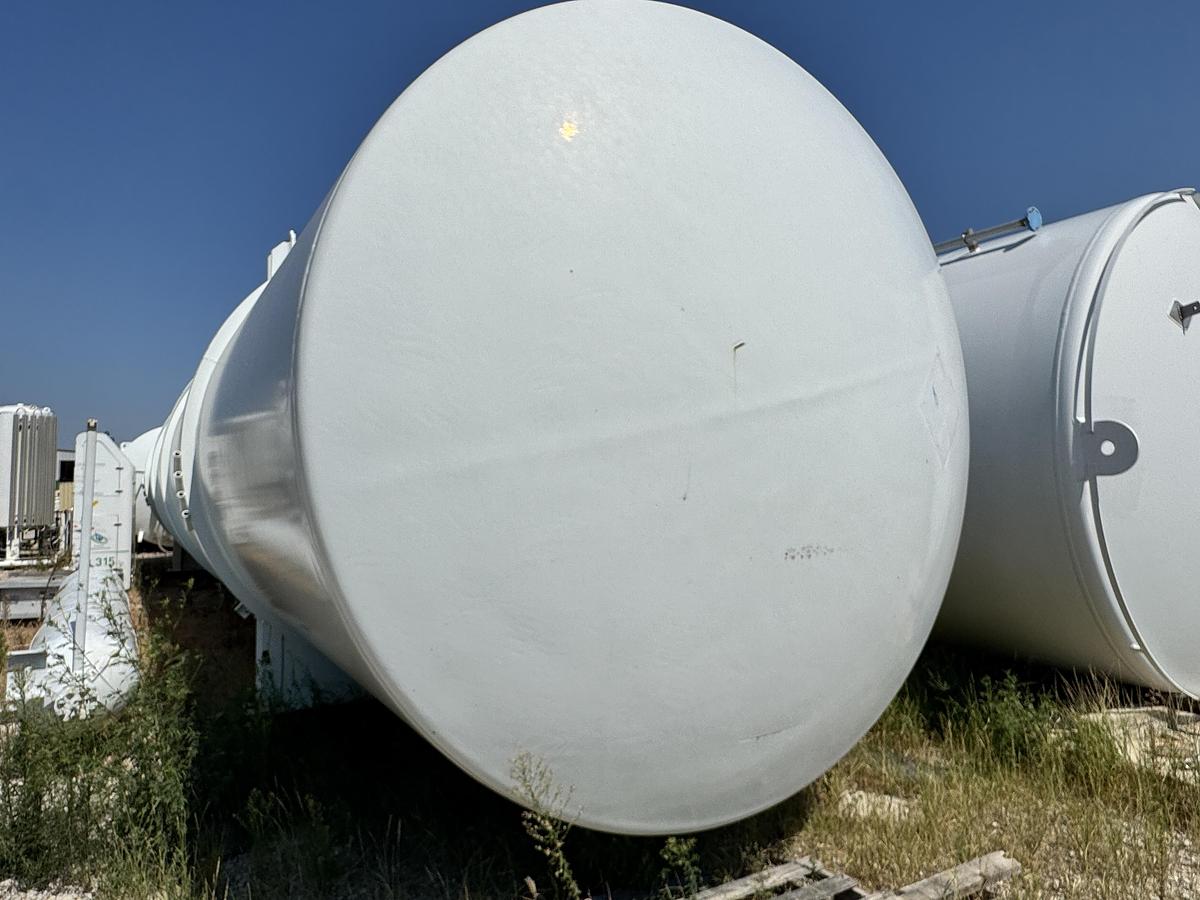

• Orientation: Horizontal, bulk cryogenic tank
• Construction: Double-walled, vacuum insulated with stainless steel inner vessel and carbon steel outer jacket
• Certification: ASME Section VIII, Division 1

Construction & Features

• Large-capacity horizontal design for continuous oxygen supply.
• Vacuum-insulated system reduces boil-off and extends product hold time.
• Heavy-duty bulk tank with reinforced head and shell thickness for cryogenic service.

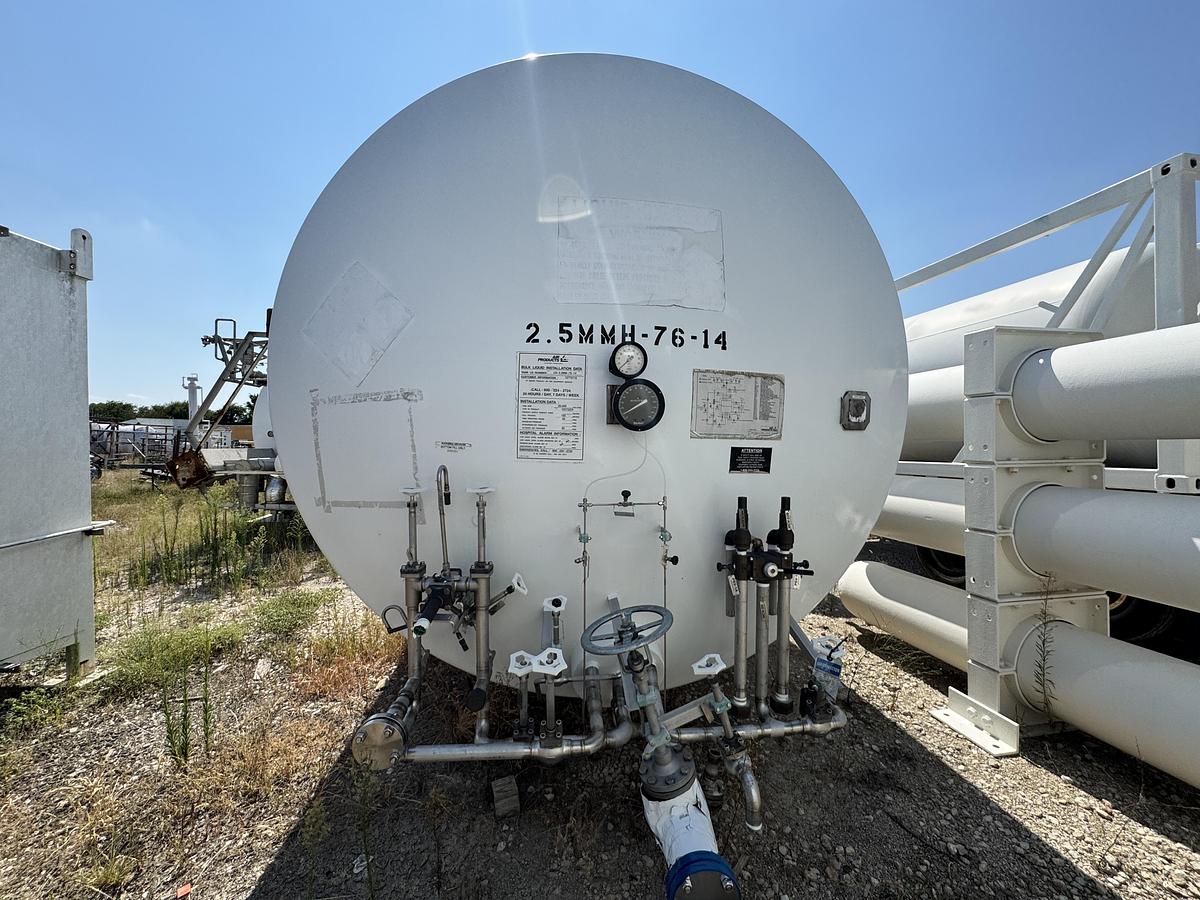

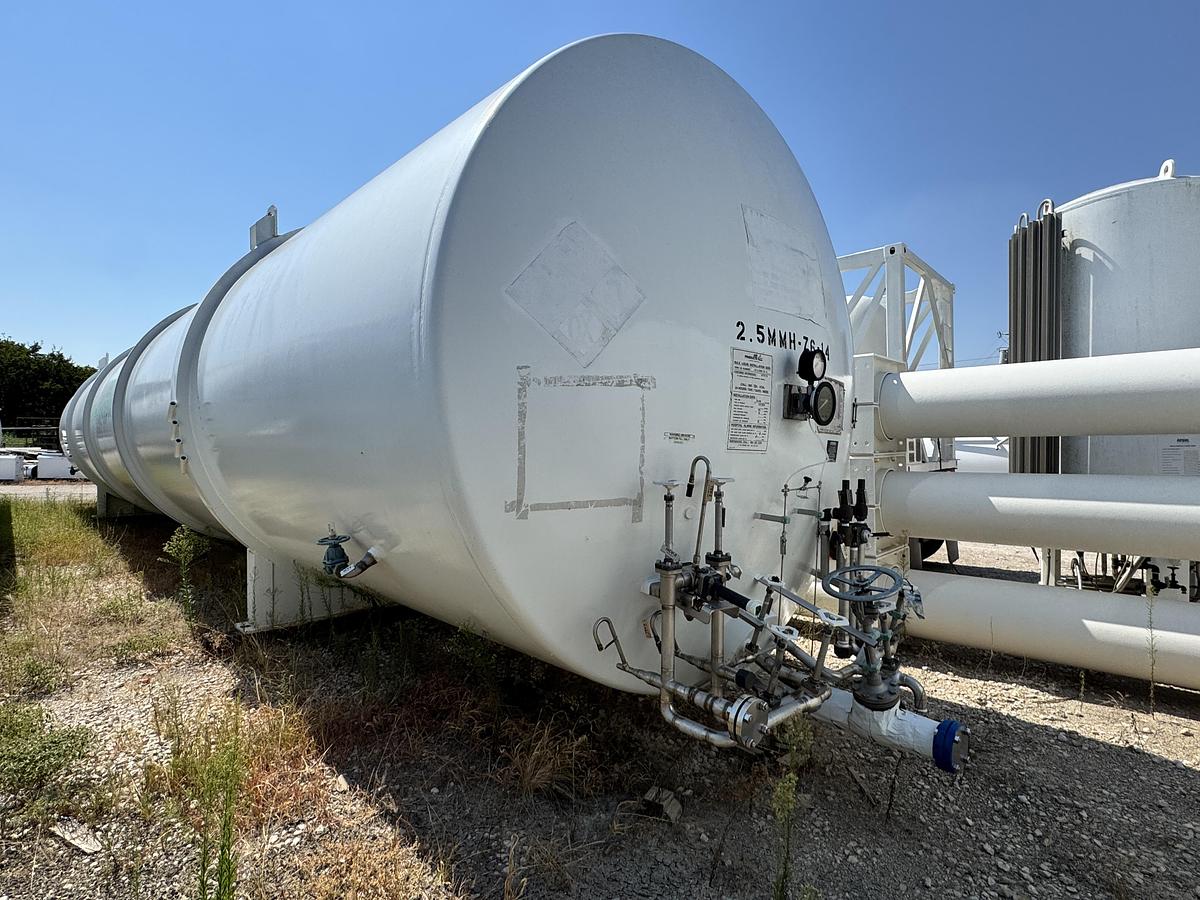

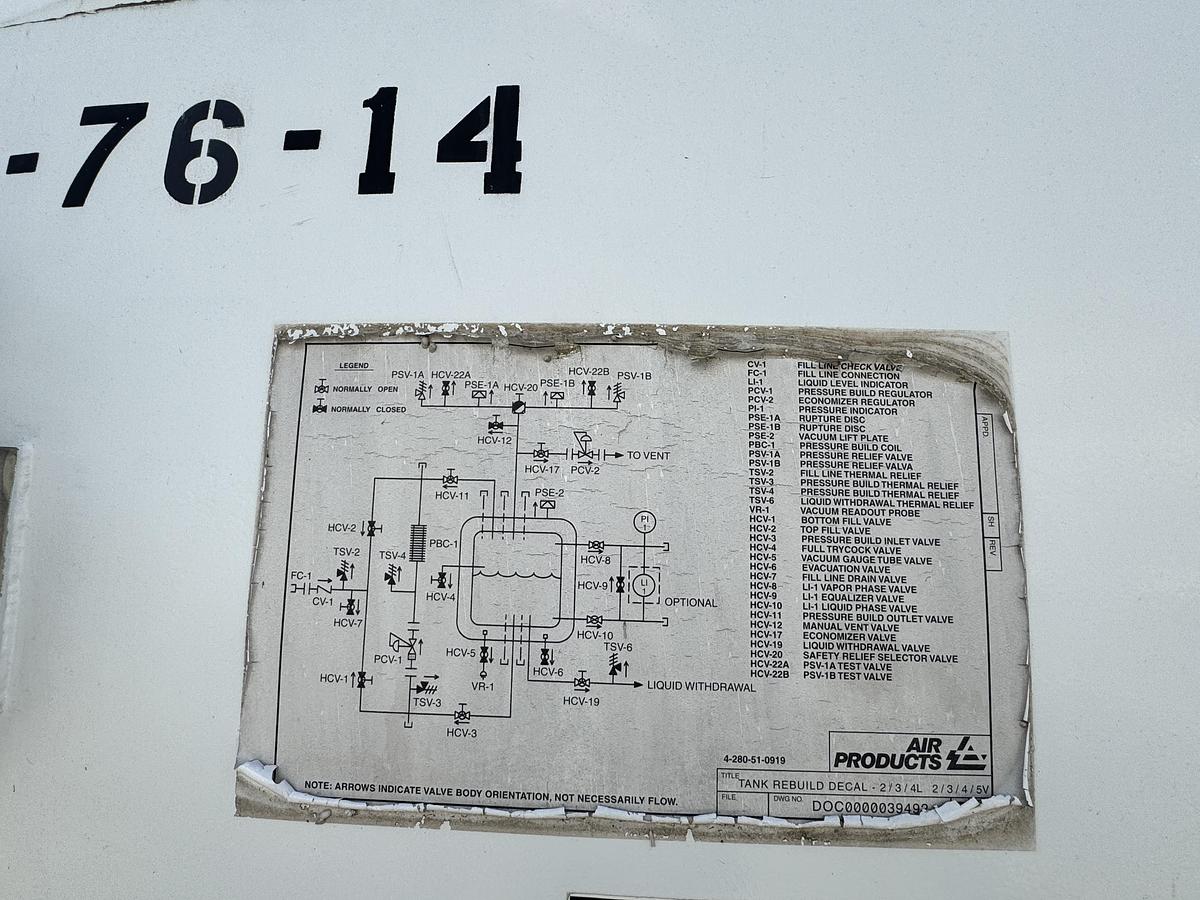

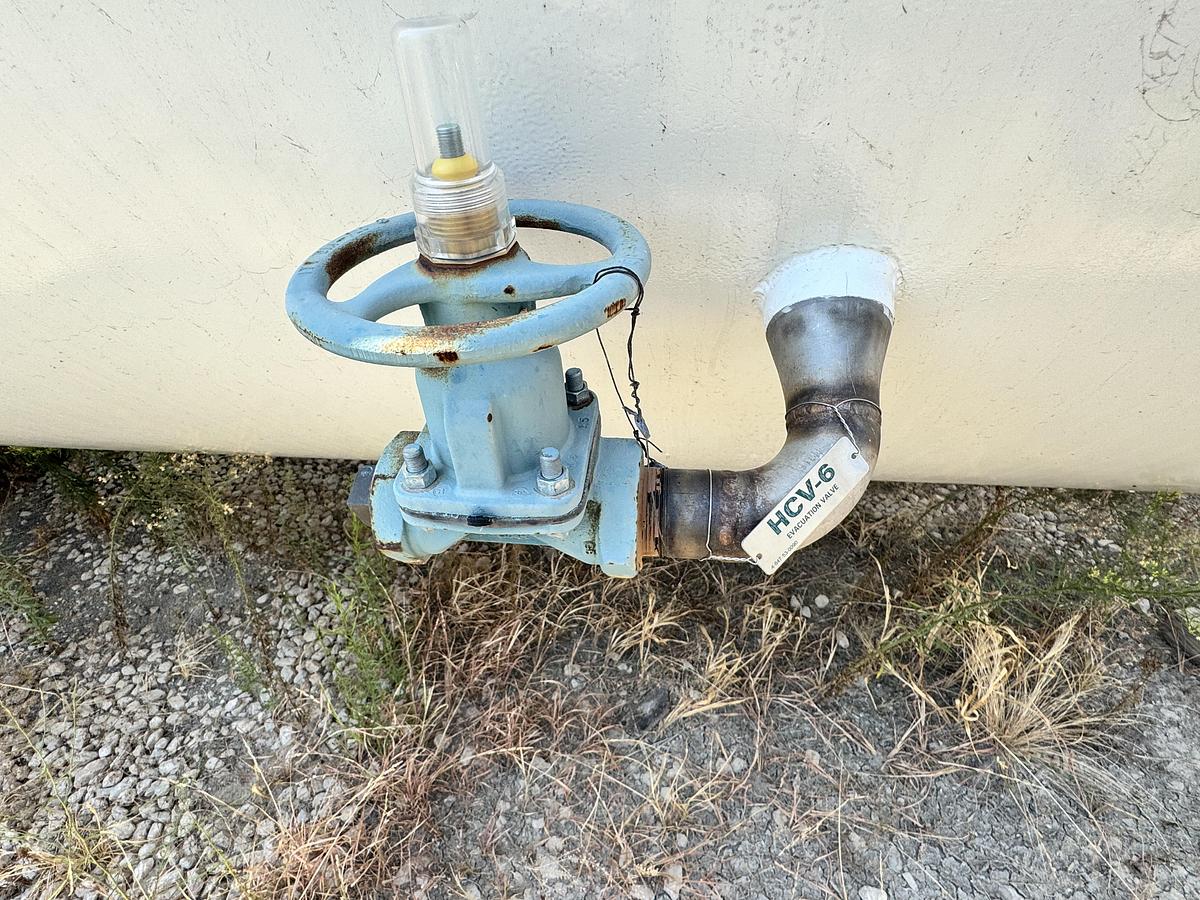

• Instrumentation panel includes fill connections, pressure indicators, economizer, rupture discs, relief valves, and venting controls.
• Engineered for safe filling, withdrawal, and pressure regulation.
• Complies with medical oxygen storage and industrial gas distribution standards.

Applications

• Hospitals and medical oxygen systems
• Aerospace fueling and LOX applications
• Steel production and metal processing
• Water treatment facilities
• Large-scale industrial gas supply networks
