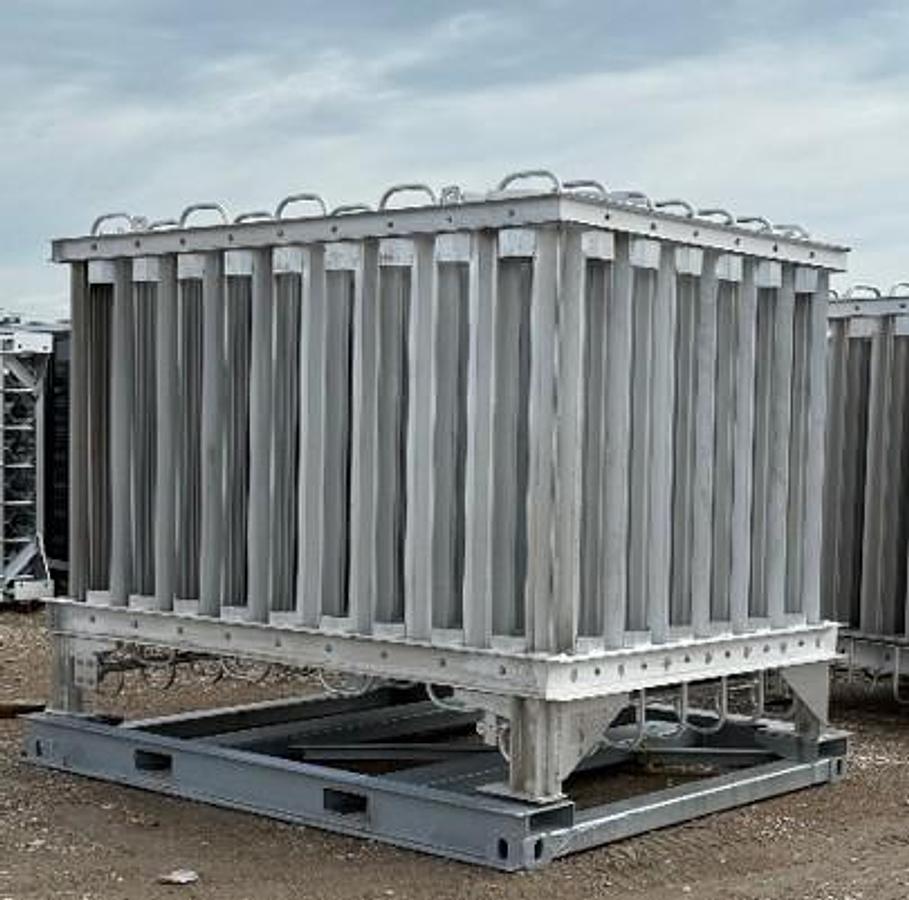

36,000 SCFH 700 PSIG Ambient Vaporizer – Model HBVP-36K

This HBVP-36K Ambient Vaporizer is a high-performance heat exchanger engineered for the efficient vaporization of cryogenic liquids into gas form. Designed for use in industrial gas, medical gas, and energy sectors, this vaporizer is suitable for Liquid Oxygen (LOX), Liquid Nitrogen (LIN), Liquid Argon (LAR), and Liquid Natural Gas (LNG) applications.

Construction & Mechanical Features

The HBVP-36K is constructed from all-aluminum alloy components for durability, corrosion resistance, and thermal efficiency.

Alloy 6063 extrusions with Alloy 6061 structural members and Alloy 5052 piping components

Welded skid base with crimped fin array for maximum thermal flexibility

Wide 12-inch fin spacing with 4-inch air gap for optimal heat transfer

Combination of 8-fin and 16-fin, 8-inch diameter extrusions with internal fins for increased surface area

Equipped with 1-1/2” ANSI CL300 RF W/N Flange connections for secure integration

Design Specifications

Built to ASME B31.3 compliance for process piping standards

Maximum Allowable Working Pressure (MAWP): 700 PSIG

Seismic Design: Built in accordance with ASCE/SEI 7 (San Jose, CA region)

Wind Load Rating: 120 mph per ASCE/SEI 7 standards

Process & Performance

Outlet temperature is designed at a 20°F approach to ambient

All units are cleaned, sealed, and oxygen-tagged per FinnCo Procedure P-113 in compliance with CGA G-4.1

Skid dimensions: 118” x 100” x 99”

Skid weight: 3,120 lbs

Applications

The HBVP-36K Ambient Vaporizer is ideal for:

Industrial gas distribution systems

LNG regasification facilities

Hydrogen fueling stations

Medical oxygen supply systems

Steel manufacturing, food processing, and electronics industries
