Motor & Drive:

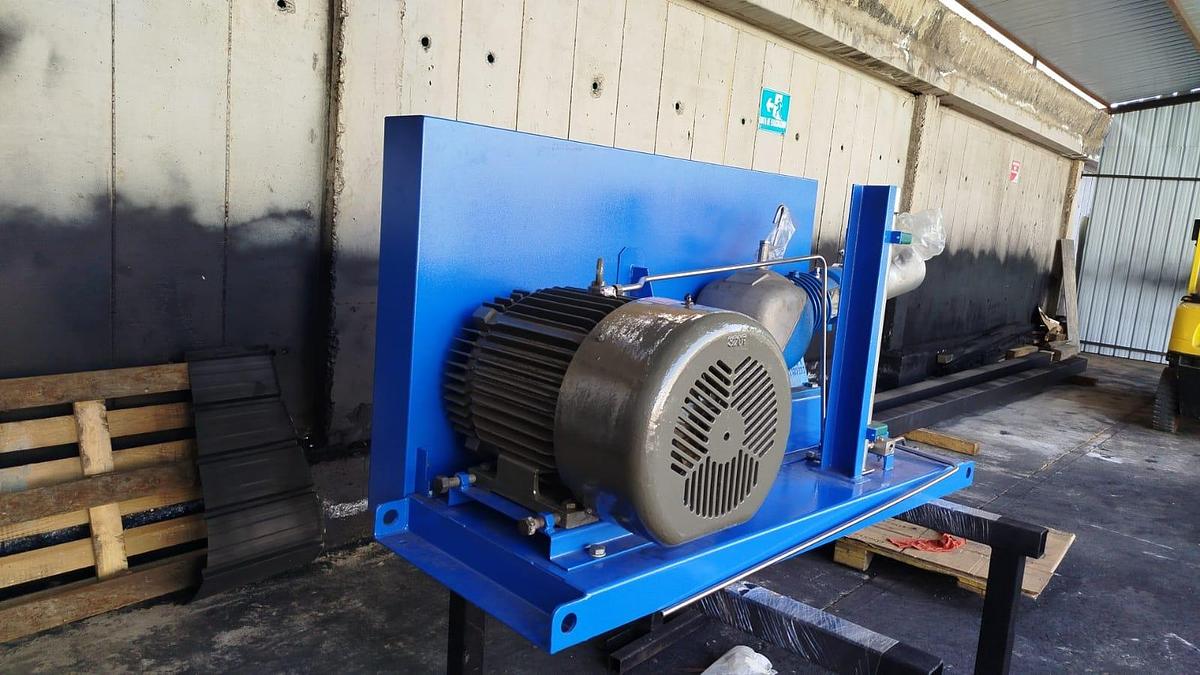

40 HP explosion-proof TEFC motor

Voltage: 230–460 VAC

Phase/Frequency: 3PH / 60 Hz

Lubrication: Krytox grease-lubricated drive

VFD required for variable motor speed operation

Performance:

Flow Rate: Up to 6 GPM

Maximum Service Pressure: 6000 PSIG

Relief Valve Set Pressure: 6400 PSIG (calibrated)

Oxygen Service Limitation: Do not operate above 3600 PSIG

Wetted Materials:

Low Pressure: Stainless steel and brass

High Pressure: 316 stainless steel tubing and components

Testing & Preparation:

Oxygen cleaned

Integrity pressure tested at 3600 PSIG

Exclusions:

Thermowells and thermocouples not included

No electrical panel or switch gauge supplied
