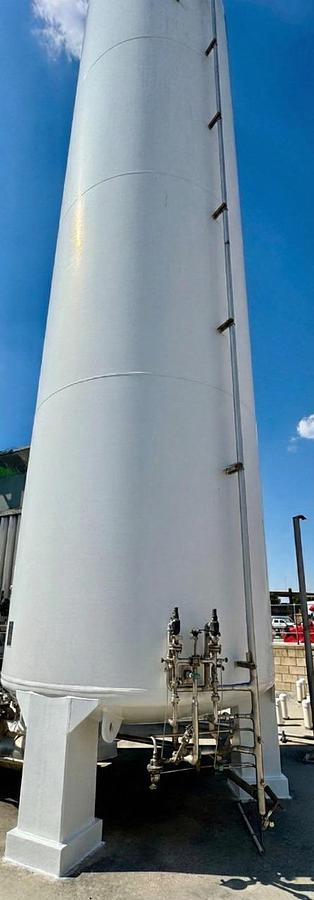

Chart Vertical LNG Storage Tank – 13,340 Gallon – ASME/NFPA 52

This 2011 ASME-coded vertical LNG storage tank offers a certified 13,340-gallon net liquid capacity and is engineered for ultra-low-temperature service down to –320°F. Built in the USA by Chart Industries, the vessel features a high-integrity SA240 304 stainless steel inner tank and a carbon-steel outer jacket, providing long-term durability for industrial LNG storage applications.

The tank is fully compliant with ASME Section VIII Div. 1, NFPA 52, and California Title 3 LNG container requirements. Its vacuum-insulated, multi-layer thermal system minimizes boil-off and supports stable LNG performance in fueling, storage, and process environments.

Technical Specifications

• Manufacturer: Chart Industries (USA)
• Model: VS-15000 SC-174-CS
• Serial Number: 24270
• Year Built: 2011
• Tare Weight: 50,400 lbs
• Service: LNG (Nameplate Rated)
• Net Liquid Capacity: 13,340 gallons
• Tare Weight: 50,400 lbs

Pressure & Temperature Ratings

• MAWP: 175 PSI @ 120°F (Inner Vessel Only)
• Minimum Design Metal Temperature (MDMT): –320°F @ 175 PSI
• Service Rating: LNG (Nameplate-Designated Service)
• Relief Valve Minimum Capacity: 28 CFM (Air)

Design & Construction Features

• Design Code: ASME Section VIII, Div. 1
• Service Compliance: CA Title 3 LNG Container / NFPA 52 LNG
• Inner Vessel Material: SA240 304 Stainless Steel
• Outer Jacket Material: Carbon Steel
• Shell Thickness: 0.266 in
• Head Thickness: 0.265 in
• Insulation System: Multi-layer vacuum insulation
• Tank Type: Vertical Cryogenic LNG Storage Tank
• Manufacturer: Chart Industries (USA)
• Certified Net Liquid Capacity: 13,340 gallons
• Tare Weight: 50,400 lbs

Condition & Documentation:

Tank is sold as-is; recertification support available upon request.

All engineering drawings and schematics are available to assist with permitting and installation.

Pre-purchase inspections are welcomed during the normal business hours upon appointment scheduled in advanced. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see / send someone to inspect the item in person. In addition, we can do facetime / teams / zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located at our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we would provide loading service at no additional charge.

Payment: Payment in full FOB our yard in South Dallas is required for equipment procurement. We prefer meeting people buying our equipment in person to discuss all aspects of the project requirements and ensure adequate sale support to set your project for success. We will require verifiable Cashier check as a payment if you are planning to come in person. We will require wire transfer in full with transaction cleared the company account prior to releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but will take all necessary measures to protect us and you.

Please feel free to call / contact Gas Equipment 4 Sale with any questions; we will be happy to answer your online inquiries and/or jump on the call to see how any of our available Gas Equipment 4 Sale can help you to meet your project needs.
